7.3.10.1 Sub-LVDS (HS) Interface

The DLPC3479 controller to DMD interface consists of a HS 1.8-V sub-LVDS output only interface with a maximum clock speed of 532-MHz DDR and a LS SDR (1.8-V LVCMOS) interface with a fixed clock speed of 120 MHz.Table 7-10 shows the two options available for the DLP4710 DMD.

Table 7-10 DLPC3479 (Primary and Secondary) to DLP4710LC (.47 1080p) DMD 8-Lane DMD Pin Mapping
DLPC3479 CONTROLLER 8 LANE DMD ROUTING OPTION #1
PRIMARY DLPC3479 PINS
SECONDARY DLPC3479 PINS
DMD PINS
HS_WDATA_D_P
HS_WDATA_D_N		HS_WDATA_E_P
HS_WDATA_E_N		Input DATA_p_0
Input DATA_n_0
HS_WDATA_C_P
HS_WDATA_C_N		HS_WDATA_F_P
HS_WDATA_F_N		Input DATA_p_1
Input DATA_n_1
HS_WDATA_B_P
HS_WDATA_B_N		HS_WDATA_G_P
HS_WDATA_G_N		Input DATA_p_2
Input DATA_n_2
HS_WDATA_A_P
HS_WDATA_A_N		HS_WDATA_H_P
HS_WDATA_H_N		Input DATA_p_3
Input DATA_n_3
HS_WDATA_H_P
HS_WDATA_H_N		HS_WDATA_A_P
HS_WDATA_A_N		Input DATA_p_4
Input DATA_n_4
HS_WDATA_G_P
HS_WDATA_G_N		HS_WDATA_B_P
HS_WDATA_B_N		Input DATA_p_5
Input DATA_n_5
HS_WDATA_F_P
HS_WDATA_F_N		HS_WDATA_C_P
HS_WDATA_C_N		Input DATA_p_6
Input DATA_n_6
HS_WDATA_E_P
HS_WDATA_E_N		HS_WDATA_D_P
HS_WDATA_D_N		Input DATA_p_7
Input DATA_n_7
DLPC3479 CONTROLLER 8 LANE DMD ROUTING OPTION #2
PRIMARY DLPC3479 PINS
SECONDARY DLPC3479 PINS
DMD PINS
HS_WDATA_E_P
HS_WDATA_E_N		HS_WDATA_D_P
HS_WDATA_D_N		Input DATA_p_0
Input DATA_n_0
HS_WDATA_F_P
HS_WDATA_F_N		HS_WDATA_C_P
HS_WDATA_C_N		Input DATA_p_1
Input DATA_n_1
HS_WDATA_G_P
HS_WDATA_G_N		HS_WDATA_B_P
HS_WDATA_B_N		Input DATA_p_2
Input DATA_n_2
HS_WDATA_H_P
HS_WDATA_H_N		HS_WDATA_A_P
HS_WDATA_A_N		Input DATA_p_3
Input DATA_n_3
HS_WDATA_A_P
HS_WDATA_A_N		HS_WDATA_H_P
HS_WDATA_H_N		Input DATA_p_4
Input DATA_n_4
HS_WDATA_B_P
HS_WDATA_B_N		HS_WDATA_G_P
HS_WDATA_G_N		Input DATA_p_5
Input DATA_n_5
HS_WDATA_C_P
HS_WDATA_C_N		HS_WDATA_F_P
HS_WDATA_F_N		Input DATA_p_6
Input DATA_n_6
HS_WDATA_D_P
HS_WDATA_D_N		HS_WDATA_E_P
HS_WDATA_E_N		Input DATA_p_7
Input DATA_n_7

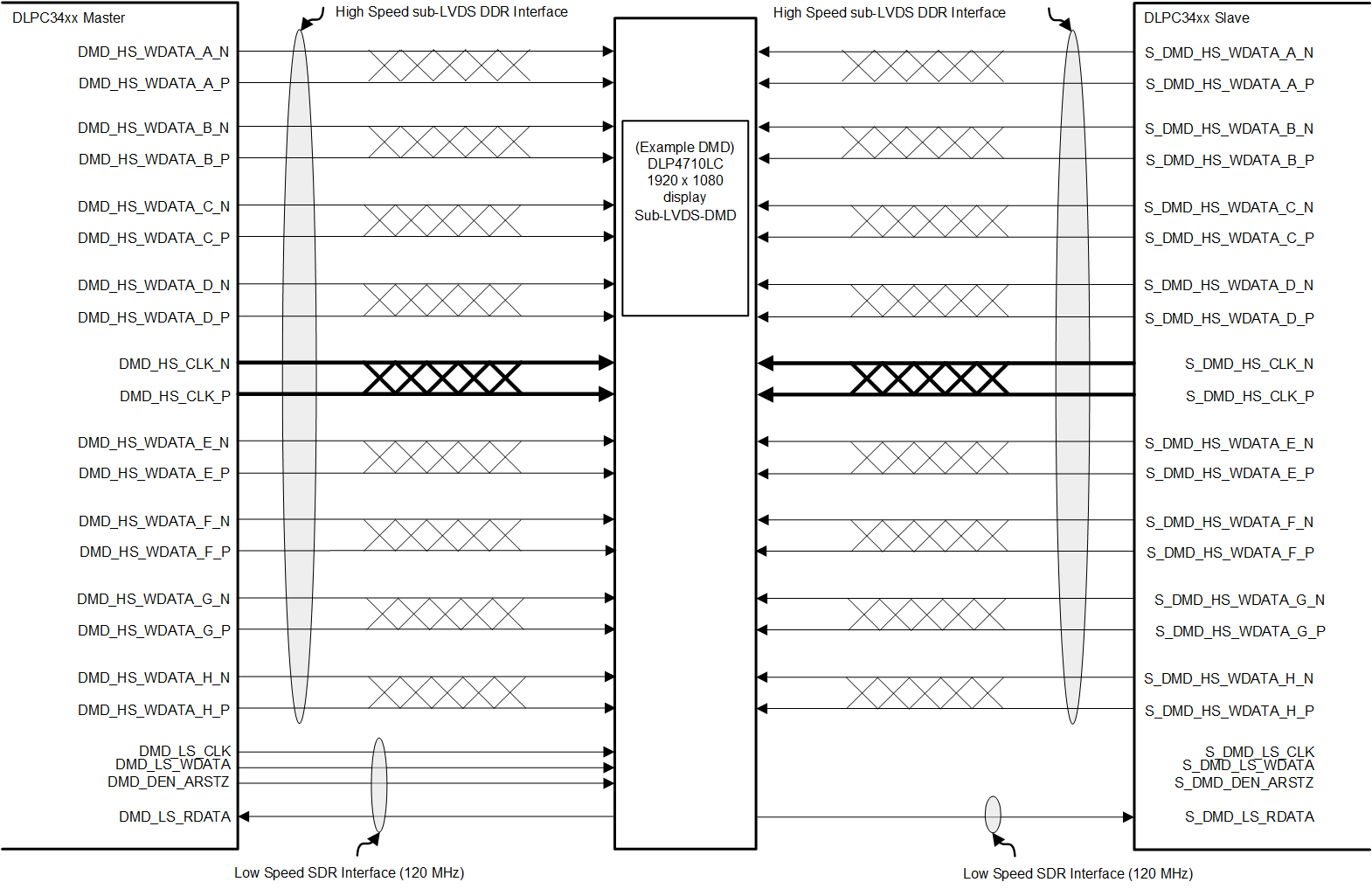

GUID-20210126-CA0I-W97L-PVP1-30G4QWLN9SKW-low.gif Figure 7-23 DLP4710LC (.47 1080p) DMD Interface

The sub-LVDS high-speed interface waveform quality and timing on the DLPC34xx controller depends on the total length of the interconnect system, the spacing between traces, the characteristic impedance, etch losses, and how well matched the lengths are across the interface. Thus, ensuring positive timing margin requires attention to many factors.

In an attempt to minimize the signal integrity analysis that would otherwise be required, the DMD Control and Sub-LVDS Signals layout section is provided as a reference of an interconnect system that satisfy both waveform quality and timing requirements (accounting for both PCB routing mismatch and PCB signal integrity). Variation from these recommendations may also work, but should be confirmed with PCB signal integrity analysis or lab measurements.
