11 器件和文档支持

11.1 器件支持

11.1.1 器件命名规则

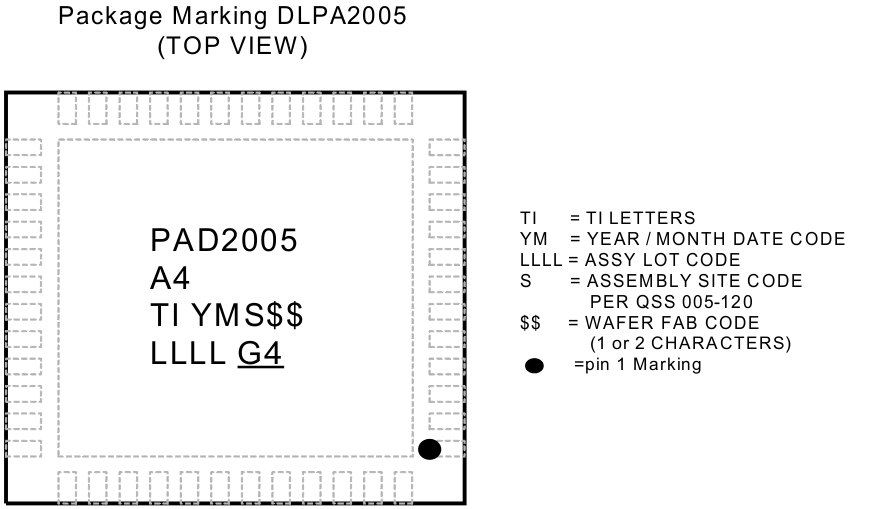

DLPA2005 QFN package PAD2005 A4 top.gif Figure 20. 封装标记 DLPA2005（顶视图）

11.2 商标

Pico is a trademark of Texas Instruments.

DLP is a registered trademark of Texas Instruments.

All other trademarks are the property of their respective owners.

11.3 静电放电警告

esds-image

这些装置包含有限的内置 ESD 保护。 存储或装卸时，应将导线一起截短或将装置放置于导电泡棉中，以防止 MOS 门极遭受静电损伤。

11.4 Glossary

SLYZ022 — TI Glossary.

This glossary lists and explains terms, acronyms, and definitions.
