Timing Requirements

Device electrical characteristics are over Recommended Operating Conditions unless otherwise noted.
MIN NOM MAX UNIT
LPSDR
tr Rise slew rate(1) (20% to 80%) × VDD, see Figure 2 0.25 V/ns
tƒ Fall slew rate(1) (80% to 20%) × VDD, see Figure 2 0.25 V/ns
tW(H) Pulse duration LS_CLK high 50% to 50% reference points, see Figure 4 0.75 ns
tW(L) Pulse duration LS_CLK low 50% to 50% reference points, see Figure 4 0.75 ns
tsu Setup time LS_WDATA valid before LS_CLK ↑ or LS_CLK ↓,
see Figure 4
1.5 ns
th Hold time LS_WDATA valid after LS_CLK ↑ or LS_CLK ↓,
see Figure 4
1.5 ns
SubLVDS
tr Rise slew rate 20% to 80% reference points, see Figure 3 0.7 1 V/ns
tƒ Fall slew rate 80% to 20% reference points, see Figure 3 0.7 1 V/ns
tc Cycle time DCLK See Figure 4 1.61 1.67 ns
tW(H) Pulse duration DCLK high 50% to 50% reference points, see Figure 4 0.75 ns
tW(L) Pulse duration DCLK low 50% to 50% reference points, see Figure 4 0.75 ns
tWINDOW Window time Setup time + Hold time, see Figure 4, Figure 5 0.3 ns
tLVDS-ENABLE+REFGEN Power-up receiver(2) 2000 ns
Specification is for DMD_DEN_ARSTZ pin. Refer to LPSDR input rise and fall slew rate in Figure 2.
Specification is for SubLVDS receiver time only and does not take into account commanding and latency after commanding.
DLP5531-Q1 lpsdr_rise_fall_slew.gifFigure 2. LPSDR Input Rise and Fall Slew Rate
DLP5531-Q1 sublvds_rise_fall_slew.gifFigure 3. SubLVDS Input Rise and Fall Slew Rate

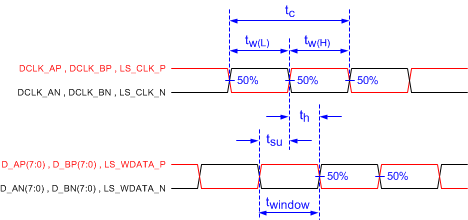

DLP5531-Q1 sublvds_switching_parameters.gifFigure 4. SubLVDS Switching Parameters

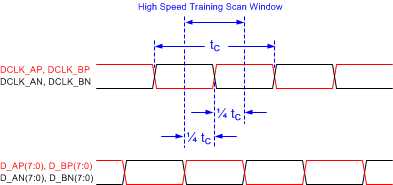

DLP5531-Q1 sublvds_high_speed_training_window.gifFigure 5. High-Speed Training Scan Window

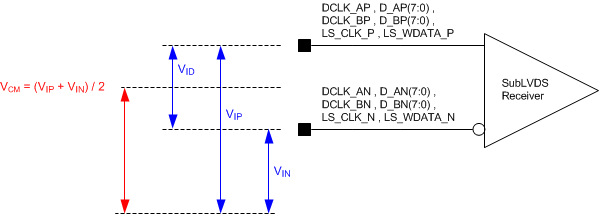

DLP5531-Q1 sublvds_voltage_parameters.gifFigure 6. SubLVDS Voltage Parameters
DLP5531-Q1 sublvds_waveform_parameters.gifFigure 7. SubLVDS Waveform Parameters

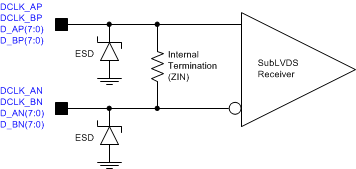

DLP5531-Q1 sublvds_equivalent_input_circuit.gifFigure 8. SubLVDS Equivalent Input Circuit
DLP5531-Q1 lpsdr_input_hysteresis.gifFigure 9. LPSDR Input Hysteresis
