Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

GUID-CC1F0301-BA25-4F70-881E-747EED1E86BA-low.pngFigure 5-1 Transient Thermal Impedance
GUID-AB5DD572-5151-4DE4-89FB-91C187B7038D-low.gifFigure 5-2 Saturation Characteristics
VDS = 5 V
Figure 5-3 Transfer Characteristics
ID = 1 AVDS = 30 V

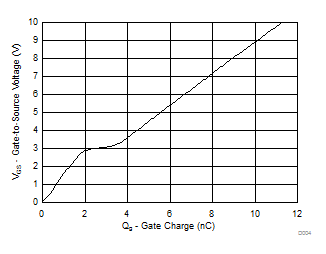

Figure 5-4 Gate Charge
ID = 250 µA

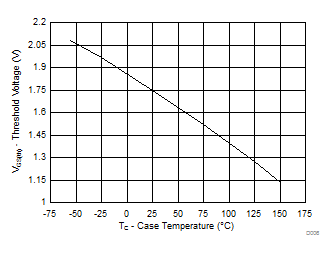

Figure 5-6 Threshold Voltage vs Temperature
ID = 1 A

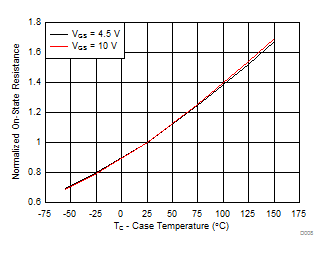

Figure 5-8 Normalized On-State Resistance vs Temperature
Single pulse, typ RθJA = 245°C/W
Figure 5-10 Maximum Safe Operating Area (SOA)
GUID-F3729E5E-9D2C-41F6-B009-DC6EF5FD62C6-low.gifFigure 5-12 Maximum Drain Current vs Temperature

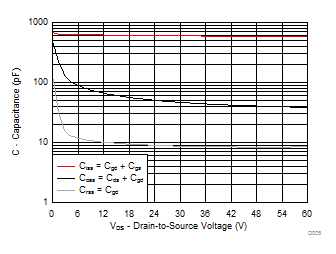

GUID-45AAC386-43F5-4DC9-A07C-C01606B72E22-low.gifFigure 5-5 Capacitance
GUID-033C1D1B-A873-404E-B933-244119A65B38-low.gifFigure 5-7 On-State Resistance vs Gate-to-Source Voltage
GUID-A2C5D896-20A7-4FE1-895A-08841D93268C-low.gifFigure 5-9 Typical Diode Forward Voltage
GUID-01F7BF1B-6248-4DD4-A0B5-148E9FB96FB0-low.gifFigure 5-11 Single Pulse Unclamped Inductive Switching
