5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-Source Voltage VGS = 0 V, ID = 250 μA 40 V
IDSS Drain-to-Source Leakage Current VGS = 0 V, VDS = 32 V 1 μA
IGSS Gate-to-Source Leakage Current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-Source Threshold Voltage VDS = VGS, ID = 250 μA 1.4 1.8 2.3 V
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V, ID = 25 A 3.3 4.3 mΩ
VGS = 10 V, ID = 25 A 2.5 3.2 mΩ
gƒs Transconductance VDS = 20 V, ID = 25 A 118 S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VGS = 0 V, VDS = 20 V,
ƒ = 1 MHz		 3200 3840 pF
Coss Output Capacitance 725 870 pF
Crss Reverse Transfer Capacitance 18 23 pF
RG Series Gate Resistance 1.2 2.4 Ω
Qg Gate Charge Total (4.5 V) VDS = 20 V, ID = 25 A 20 24 nC
Qg Gate Charge Total (10 V) 42 50
Qgd Gate Charge Gate-to-Drain 5.9 nC
Qgs Gate Charge Gate-to-Source 8.1 nC
Qg(th) Gate Charge at Vth 5.7 nC
Qoss Output Charge VDS = 20 V, VGS = 0 V 48 nC
td(on) Turn On Delay Time VDS = 20 V, VGS = 10 V,
IDS = 25 A, RG = 0		 4.7 ns
tr Rise Time 10 ns
td(off) Turn Off Delay Time 20 ns
tƒ Fall Time 3.4 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage IDS = 25 A, VGS = 0 V 0.8 1 V
Qrr Reverse Recovery Charge VDS= 20 V, IF = 25 A, di/dt = 300 A/μs 70 nC
trr Reverse Recovery Time 40 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-Case Thermal Resistance(1) 1.0 °C/W
RθJA Junction-to-Ambient Thermal Resistance(1)(2) 50
(1) RθJC is determined with the device mounted on a 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu pad on a 1.5-inches × 1.5-inches
(3.81-cm × 3.81-cm), 0.06-inch (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu.
CSD18501Q5A M0137-01_LPS198.gif
 Max RθJA = 50°C/W when mounted on 1 inch2 (6.45-cm2) of
2-oz. (0.071-mm thick) Cu.
CSD18501Q5A M0137-02_LPS198.gif
 Max RθJA = 125°C/W when mounted on a minimum pad area of 2-oz.
(0.071-mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD18501Q5A graph01_SLPS319C.png
Figure 1. Transient Thermal Impedance
CSD18501Q5A graph02_LPS.png
Figure 2. Saturation Characteristics
CSD18501Q5A graph04_LPS.png
Figure 4. Gate Charge
CSD18501Q5A graph06_LPS.png
Figure 6. Threshold Voltage vs Temperature
CSD18501Q5A graph08_LPS.png
Figure 8. Normalized On-State Resistance vs Temperature
CSD18501Q5A graph10_SLPS319C.png

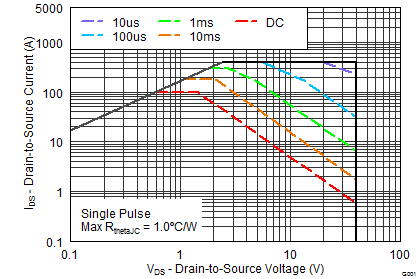

Figure 10. Maximum Safe Operating Area
CSD18501Q5A graph12_LPS.png
Figure 12. Maximum Drain Current vs Temperature
CSD18501Q5A graph03_LPS.png
Figure 3. Transfer Characteristics
CSD18501Q5A graph05_LPS.png
Figure 5. Capacitance
CSD18501Q5A graph07_LPS.png
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD18501Q5A graph09_LPS.png
Figure 9. Typical Diode Forward Voltage
CSD18501Q5A graph11_LPS.png
Figure 11. Single Pulse Unclamped Inductive Switching
