5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-Source Voltage VGS = 0 V, IDS = 250 μA 25 V
IDSS Drain-to-Source Leakage Current VGS = 0 V, VDS = 24 V 1 μA
IGSS Gate-to-Source Leakage Current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-Source Threshold Voltage VDS = VGS, IDS = 250 μA 1.2 1.4 1.7 V
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V, IDS = 30 A 1.2 1.5 mΩ
VGS = 10 V, IDS = 30 A 0.9 1.07 mΩ
gƒs Transconductance VDS = 15 V, IDS = 30 A 191 S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VGS = 0 V, VDS = 15 V,
ƒ = 1MHz		 4750 6180 pF
Coss Output Capacitance 2270 2950 pF
Crss Reverse Transfer Capacitance 220 280 pF
RG Series Gate Resistance 0.7 1.4 Ω
Qg Gate Charge Total (4.5 V) VDS = 15 V, IDS = 30 A 36 47 nC
Qgd Gate Charge Gate-to-Drain 12 nC
Qgs Gate Charge Gate-to-Source 11 nC
Qg(th) Gate Charge at Vth 7 nC
Qoss Output Charge VDS = 15 V, VGS = 0 V 45 nC
td(on) Turn On Delay Time VDS = 15 V, VGS = 4.5 V,
IDS = 30 A,RG = 2 Ω		 17 ns
tr Rise Time 34 ns
td(off) Turn Off Delay Time 25 ns
tƒ Fall Time 13 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage ISD = 30 A, VGS = 0 V 0.8 1 V
Qrr Reverse Recovery Charge VDD= 15 V, IF = 30 A, di/dt = 300 A/μs 84 nC
trr Reverse Recovery Time 41 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-Case Thermal Resistance(1) 1.3 °C/W
RθJA Junction-to-Ambient Thermal Resistance(1)(2) 50
(1) RθJC is determined with the device mounted on a 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu pad on a 1.5-inches × 1.5-inches
(3.81-cm × 3.81-cm), 0.06-inch (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu.
CSD16556Q5B M0137-01_LPS198.gif
 Max RθJA = 50°C/W when mounted on 1 inch2 (6.45 cm2) of
2-oz. (0.071-mm thick) Cu.
CSD16556Q5B M0137-02_LPS198.gif
 Max RθJA = 125°C/W when mounted on a minimum pad area of 2-oz.
(0.071-mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD16556Q5B graph01_SLPS392B.png

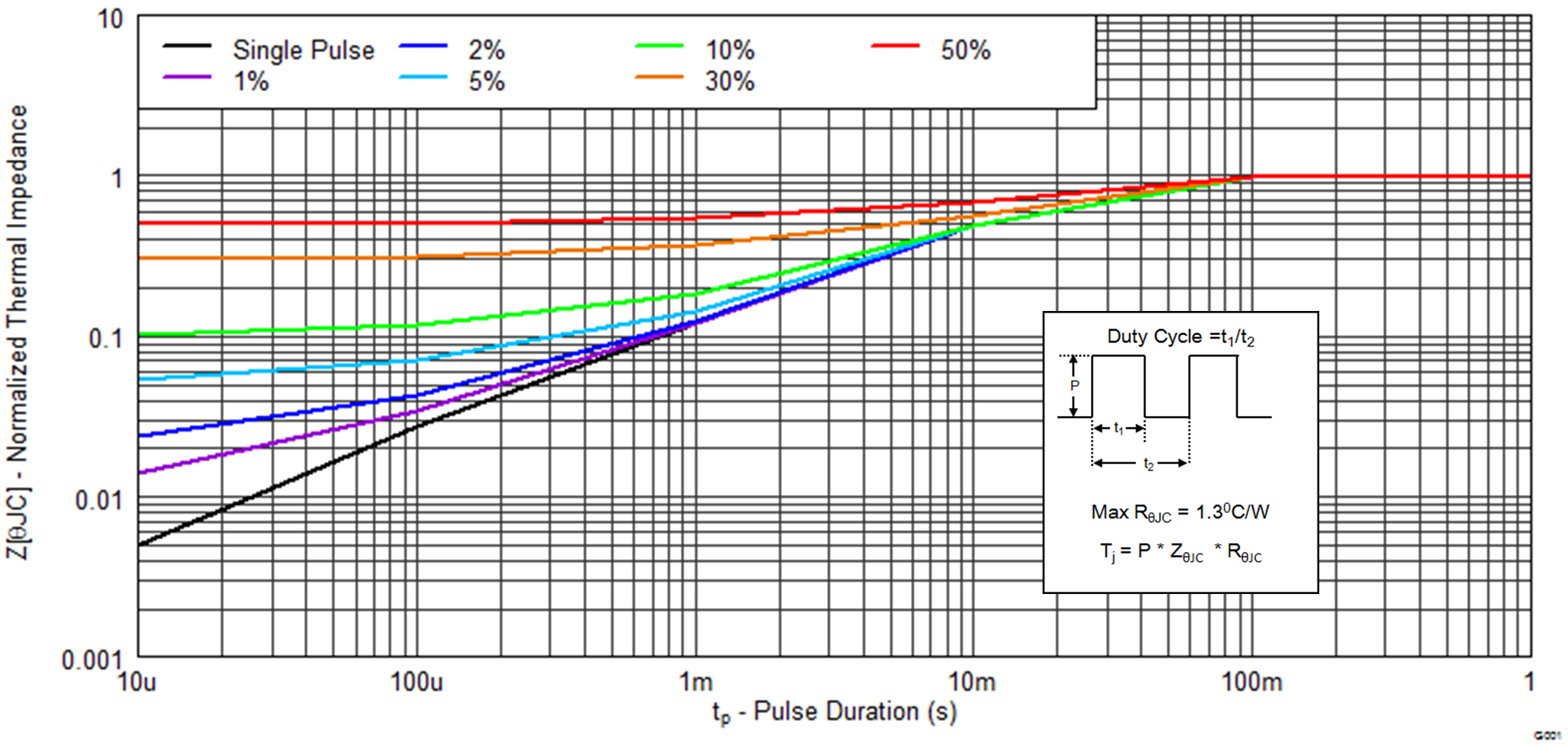

Figure 1. Transient Thermal Impedance
CSD16556Q5B graph02_SLPS431.png
Figure 2. Saturation Characteristics
CSD16556Q5B graph04_SLPS431.png
Figure 4. Gate Charge
CSD16556Q5B graph06_SLPS431.png
Figure 6. Threshold Voltage vs Temperature
CSD16556Q5B graph08_SLPS431.png

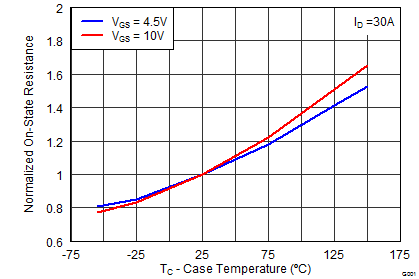

Figure 8. Normalized On-State Resistance vs Temperature
CSD16556Q5B graph10_SLPS432C.png

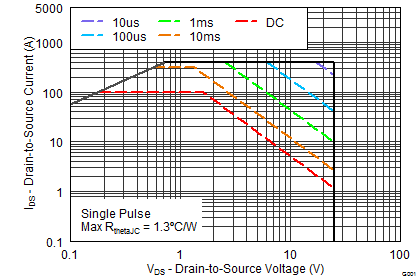

Figure 10. Maximum Safe Operating Area (SOA)
CSD16556Q5B graph12_SLPS431.png

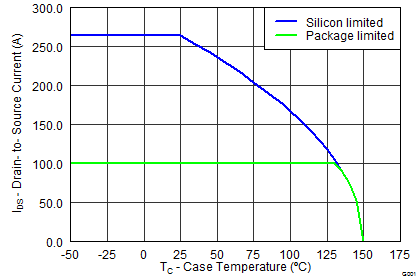

Figure 12. Maximum Drain Current vs Temperature
CSD16556Q5B graph03_SLPS431.png

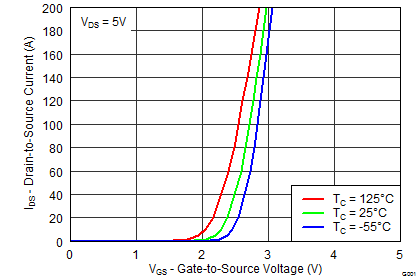

Figure 3. Transfer Characteristics
CSD16556Q5B graph05_SLPS431.png

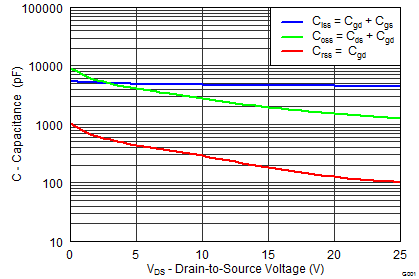

Figure 5. Capacitance
CSD16556Q5B graph07_SLPS431.png
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD16556Q5B graph09_SLPS431.png
Figure 9. Typical Diode Forward Voltage
CSD16556Q5B graph11_SLPS431.png

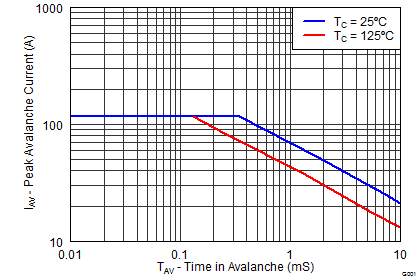

Figure 11. Single Pulse Unclamped Inductive Switching
