Parameter Measurement Information

This section describes the characterization test setup of each block in the CDCM6208.

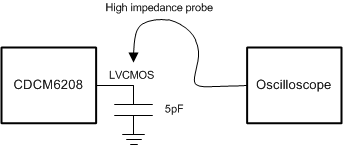

CDCM6208 LVCMOS_Output_AC_VOH_VOL_SCAS931.gifFigure 9. LVCMOS Output AC Configuration During Device Test (VOH, VOL, tSLEW)

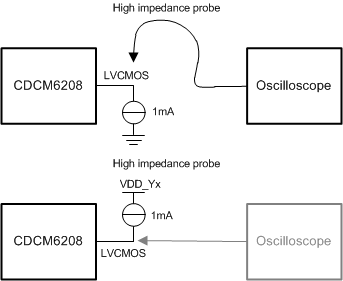

CDCM6208 LVCMOS_Output_DC_SCAS931.gifFigure 10. LVCMOS Output DC Configuration During Device Test
CDCM6208 LVCMOS_Output_AC_SCAS931.gifFigure 11. LVCMOS Output AC Configuration During Device Phase Noise Test
CDCM6208 LVDS_CML_and_LVPECL_SCAS931.gifFigure 12. LVDS, CML, and LVPECL Output AC Configuration During Device Test

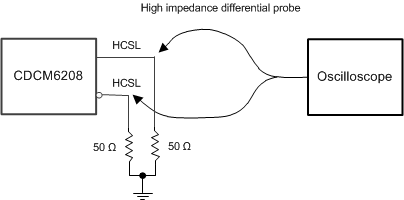

CDCM6208 HCSL_Output_DC_SCAS931.gifFigure 13. HCSL Output DC Configuration During Device Test

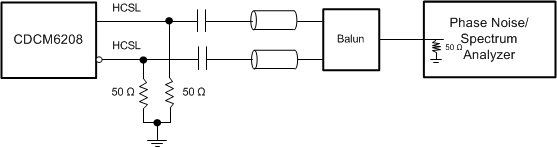

CDCM6208 HCSL_Output_AC_SCAS931.gifFigure 14. HCSL Output AC Configuration During Device Test
CDCM6208 LVCMOS_Input_DC_SCAS931.gifFigure 15. LVCMOS Input DC Configuration During Device Test

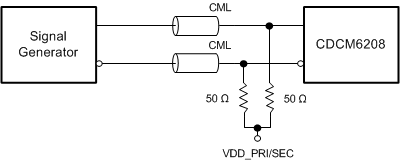

CDCM6208 CML_Input_DC_SCAS931.gifFigure 16. CML Input DC Configuration During Device Test
CDCM6208 LVDS_Input_DC_SCAS931.gifFigure 17. LVDS Input DC Configuration During Device Test

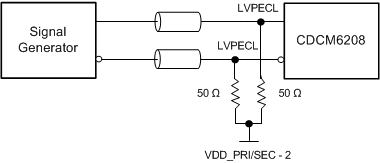

CDCM6208 LVPECL_Input_DC_SCAS931.gifFigure 18. LVPECL Input DC Configuration During Device Test

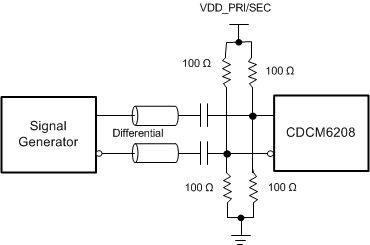

CDCM6208 Differential_Input_AC_SCAS931.gifFigure 19. Differential Input AC Configuration During Device Test
CDCM6208 Crystal_Reference_Input_SCAS931.gifFigure 20. Crystal Reference Input Configuration During Device Test

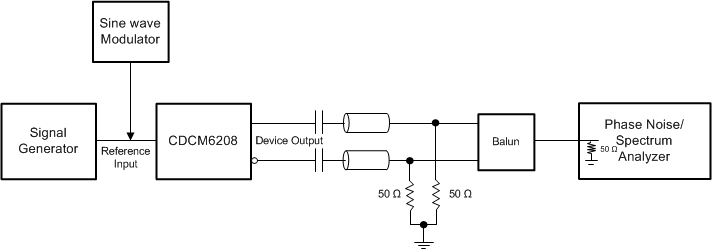

CDCM6208 Jitter_transfer_SCAS931.gifFigure 21. Jitter Transfer Test Setup

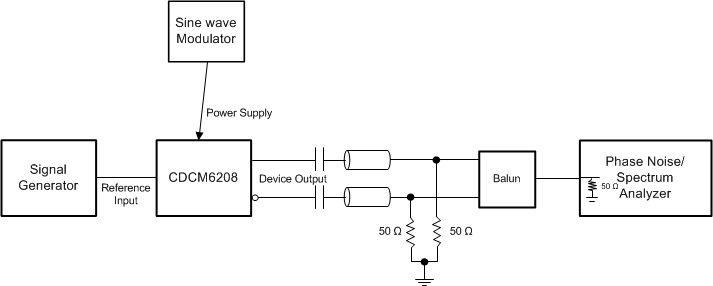

CDCM6208 PSNR_test_setup_SCAS931.gifFigure 22. PSNR Test Setup

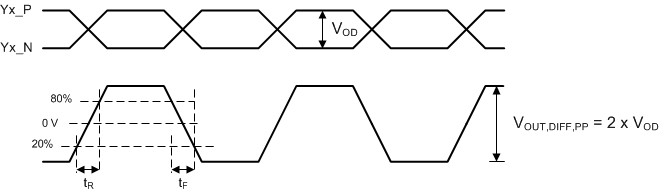

CDCM6208 Differential_Output_Voltage_SCAS931.gifFigure 23. Differential Output Voltage and Rise and Fall Time

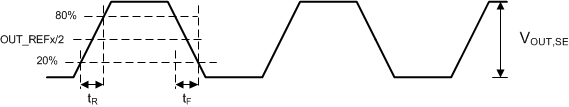

CDCM6208 Single_ended_Output_Voltage_SCAS931.gifFigure 24. Single-Ended Output Voltage and Rise and Fall Time
CDCM6208 Differential_and_single_ended_output_SCAS931.gifFigure 25. Differential and Single-Ended Output Skew and Propagation Delay
