7 Parameter Measurement Information

7.1 Test Configurations

Figure 5 through Figure 11 show how the device should be set up for a variety of test configurations.

CDCLVP2102 ai_test_lvcmos_dc_in_cas881.gif Figure 5. DC-Coupled LVCMOS Input During Device Test
CDCLVP2102 ai_vth_var_lvcmos_in_cas881.gif Figure 6. Vth Variation over LVCMOS Levels
CDCLVP2102 ai_test_lvpecl_dc_in_cas881.gif Figure 7. DC-Coupled LVPECL Input During Device Test
CDCLVP2102 ai_test_lvds_dc_in_cas881.gif Figure 8. DC-Coupled LVDS Input During Device Test

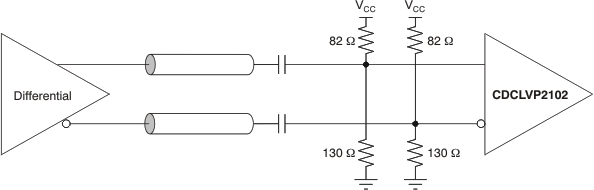

CDCLVP2102 ai_test_diff_ac_in_cas881.gif Figure 9. AC-Coupled Differential Input to Device
CDCLVP2102 ai_test_lvpecl_dc_out_cas881.gif Figure 10. LVPECL Output DC Configuration During Device Test
CDCLVP2102 ai_test_lvpecl_ac_out_cas881.gif Figure 11. LVPECL Output AC Configuration During Device Test
