7 Parameter Measurement Information

7.1 Test Configurations

Figure 5 through Figure 11 illustrate how the device must be set up for a variety of test configurations for each block for the CDCLVP1204.

CDCLVP1204 ai_test_lvpecl_dc_in_cas880.gifFigure 5. DC-Coupled LVPECL Input During Device Test
CDCLVP1204 ai_test_lvcmos_dc_in_cas880.gifFigure 6. DC-Coupled LVCMOS Input During Device Test
CDCLVP1204 ai_vth_var_lvcmos_in_cas880.gifFigure 7. Voltage Variation Over LVCMOS Vth Levels

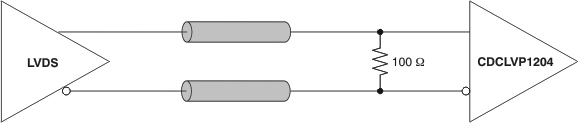

CDCLVP1204 ai_test_lvds_dc_in_cas880.gifFigure 8. DC-Coupled LVDS Input During Device Test
CDCLVP1204 ai_test_diff_ac_in_cas880.gifFigure 9. AC-Coupled Differential Input To Device
CDCLVP1204 ai_test_lvpecl_dc_out_cas880.gifFigure 10. LVPECL Output DC Configuration During Device Test
CDCLVP1204 ai_test_lvpecl_ac_out_cas880.gifFigure 11. LVPECL Output AC Configuration During Device Test
