11 Layout

11.1 Layout Guidelines

bq25871 supports up to 7-A charge current. It is very critical to maximize Cu trace of VBUS and VOUT. Following PCB layout guideline is recommended:

  • Use Cu trace of at least 110 mil (2.794 mm) wide for VBUS and VOUT respectively. This allows current flow evenly through all 7 WCSP solder balls.
  • Cu trace of VBUS and VOUT should run at least 150 mil (3.81 mm) straight (perpendicular to WCSP ball array) before making turns.
  • Use as large as possible Cu pour for VBUS and VOUT trace elsewhere.
  • Use as large as possible Cu pour for PGND.
  • Place decoupling capacitors of VBUS and VOUT as close as possible to the device.

11.2 Layout Example

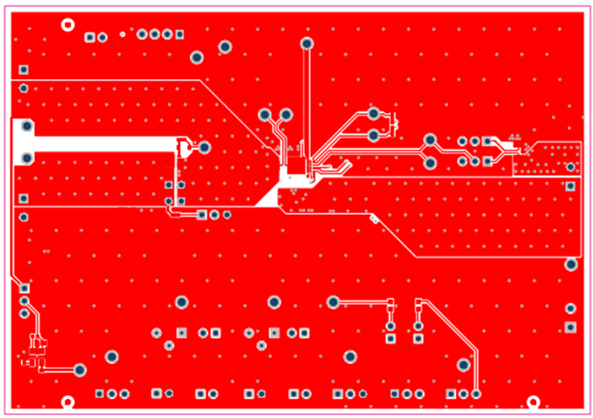

bq25871 layout1_luscn1.gif Figure 61. bq25871 Layout Diagram (Top Layer)

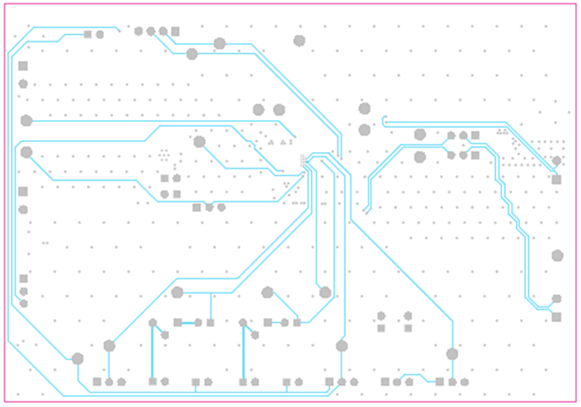

bq25871 layout2_luscn1.gif Figure 62. bq25871 Layout Diagram (Mid Layer 2)
bq25871 layout3_luscn1.gif Figure 63. bq25871 Layout Diagram (Mid Layer 1)
bq25871 layout4_luscn1.gif Figure 64. bq25871 Layout Diagram (Bottom 1)
