9.2.1.3 Application Curves

SETUP: BQ24040 typical applications schematic; VIN = 5V, VBAT = 3.6V (unless otherwise indicated)

Figure 9-2 Power-up Timing
Figure 9-4 – ASI and OUT Power-up Timing – No Input  
Figure 9-6 OVP 8V Adaptor - Hot Plug  

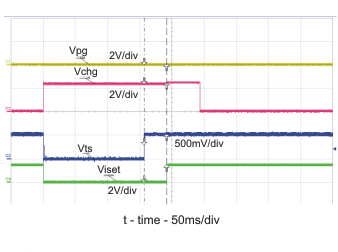

10kΩ resistor from TS to GND. 10kΩ is shorted to disable the IC
.
Figure 9-8 TS Enable and Disable  

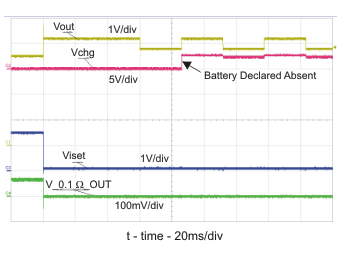

Figure 9-10 Battery Removal – GND Removed 1st, 42 Ω Load  
Continuous battery detection when not in TTDM
Figure 9-12 Battery Removal with fixed TS = 0.5V  
CH4: IOUT (1A/Div)
Figure 9-14 ISET Shorted During Normal Operation  
CH4: IOUT (0.2A/Div)
Figure 9-16 DPM – Adaptor Current Limits – Vin Regulated  
The IC temperature rises to 125°C and enters thermal regulation. Charge current is reduced to regulate the IC at 125°C. VIN is reduced, the IC temperature drops, the charge current returns to the programmed value
.
Figure 9-18 Thermal Reg. – Vin increases PWR/Iout Reduced
Figure 9-3 Power-up Timing – No Battery or Load  
Figure 9-5 ASI and delayed OUT Power-up Timing – No Input  
Figure 9-7 OVP from Normal Power-up Operation – VIN 0V → 5V → 8V →5V  
Fixed 10kΩ resistor, between TS and GND.
Figure 9-9 Hot Plug Source w/No Battery – Battery Detection  
Figure 9-11 Battery Removal with OUT and TS Disconnect 1st, With 100 Ω Load  
CH4: IOUT (1A/Div)
Battery voltage swept from 0V to 4.25V to 3.9V.
Figure 9-13 Battery Charge Profile  
CH4: IOUT (0.2A/Div)
Figure 9-15 ISET Shorted Prior to USB Power-up  
Figure 9-17 DPM – USB Current Limits – Vin Regulated to 4.4V  

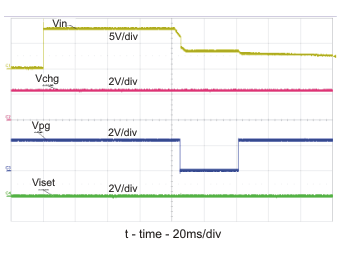

VIN swept from 5V to 3.9V to 5VVBAT = 4V
Figure 9-19 Entering and Exiting Sleep mode
