Insulation Characteristics Curves

AMC1336-Q1 D001_SBAS951.gif

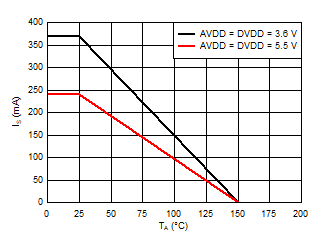

Figure 3. Thermal Derating Curve for Safety-Limiting Current per VDE
AMC1336-Q1 tddb_curve_reinforced_dw.gif
TA up to 150°C, stress-voltage frequency = 60 Hz,
isolation working voltage = 1500 VRMS, operating lifetime = 135 years
Figure 5. Reinforced Isolation Capacitor Lifetime Projection
AMC1336-Q1 D002_SBAS951.gif
Figure 4. Thermal Derating Curve for Safety-Limiting
Power per VDE
