Typical Characteristics

at VDD1 = 5 V, VDD2 = 3.3 V, INP = –250 mV to 250 mV, INN = 0 V, and fIN = 10 kHz (unless otherwise noted)

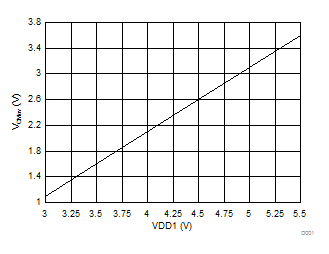

Figure 6-5 Common-Mode Overvoltage Detection Level vs High-Side Supply Voltage
VDD1 = 3.3 V

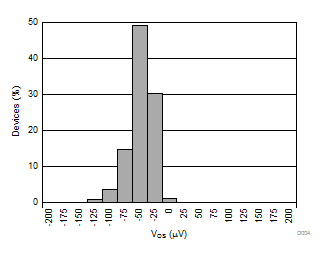

Figure 6-7 Input Offset Voltage Histogram

Figure 6-9 Input Offset Voltage vs Supply Voltage
VDD1 = 3.3 V

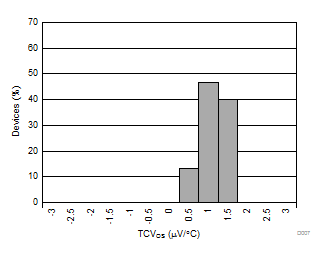

Figure 6-11 Input Offset Drift Histogram

Figure 6-13 Common-Mode Rejection Ratio vs Input Frequency

Figure 6-15 Input Bias Current vs Common-Mode Input Voltage
–55°C ≤ TA < 40°C valid for the AMC1301S only
Figure 6-17 Input Bias Current vs Temperature
VDD1 = 3.3 V
Figure 6-19 Gain Error Histogram

Figure 6-21 Gain Error vs Supply Voltage
VDD1 = 3.3 V
Figure 6-23 Gain Error Drift Histogram

Figure 6-25 Output Voltage vs Input Voltage

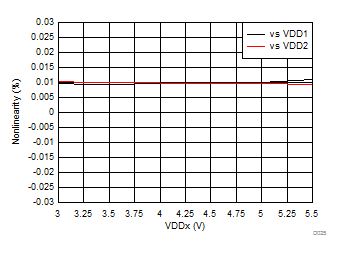

Figure 6-27 Nonlinearity vs Supply Voltage

Figure 6-29 Total Harmonic Distortion vs Supply Voltage

Figure 6-31 Signal-to-Noise Ratio vs Input Voltage
–55°C ≤ TA < 40°C valid for the AMC1301S only

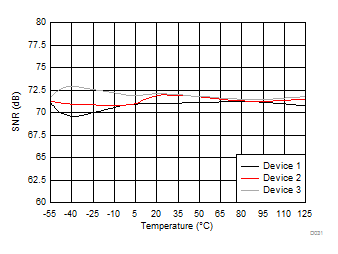

Figure 6-33 Signal-to-Noise Ratio vs Temperature
vs VDD1
Figure 6-35 Power-Supply Rejection Ratio vs Ripple Frequency
–55°C ≤ TA < 40°C valid for the AMC1301S only
Figure 6-37 Output Rise and Fall Time vs Temperature
–55°C ≤ TA < 40°C valid for the AMC1301S only
Figure 6-39 VIN to VOUT Signal Delay vs Temperature
–55°C ≤ TA < 40°C valid for the AMC1301S only
Figure 6-41 Output Common-Mode Voltage vs Temperature
–55°C ≤ TA < 40°C valid for the AMC1301S only

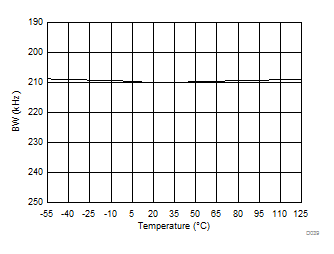

Figure 6-43 Output Bandwidth vs Temperature
–55°C ≤ TA < 40°C valid for the AMC1301S only

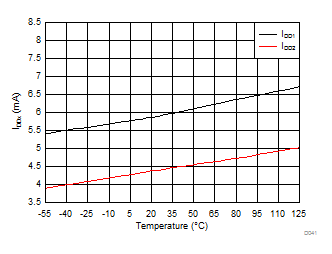

Figure 6-45 Supply Current vs Temperature
–55°C ≤ TA < 40°C valid for the AMC1301S only
Figure 6-6 Common-Mode Overvoltage Detection Level vs Temperature
VDD1 = 5 V
Figure 6-8 Input Offset Voltage Histogram
–55°C ≤ TA < 40°C valid for the AMC1301S only

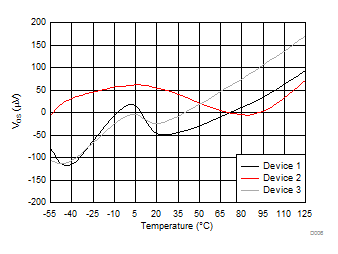

Figure 6-10 Input Offset Voltage vs Temperature
VDD1 = 5 V
Figure 6-12 Input Offset Drift Histogram
–55°C ≤ TA < 40°C valid for the AMC1301S only
Figure 6-14 Common-Mode Rejection Ratio vs Temperature

Figure 6-16 Input Bias Current vs High-Side Supply Voltage

Figure 6-18 Normalized Gain vs Input Frequency
VDD1 = 5 V
Figure 6-20 Gain Error Histogram
–55°C ≤ TA < 40°C valid for the AMC1301S only
Figure 6-22 Gain Error vs Temperature
VDD1 = 5 V
Figure 6-24 Gain Error Drift Histogram

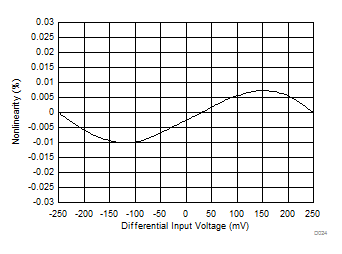

Figure 6-26 Nonlinearity vs Input Voltage
–55°C ≤ TA < 40°C valid for the AMC1301S only

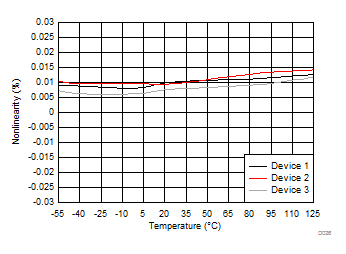

Figure 6-28 Nonlinearity vs Temperature
–55°C ≤ TA < 40°C valid for the AMC1301S only

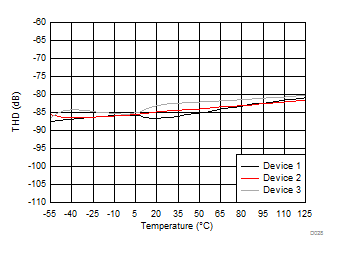

Figure 6-30 Total Harmonic Distortion vs Temperature

Figure 6-32 Signal-to-Noise Ratio vs Supply Voltage

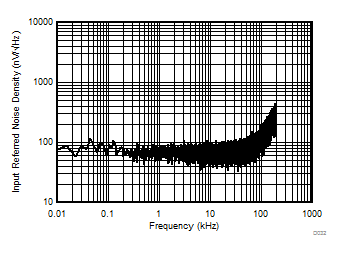

Figure 6-34 Input-Referred Noise Density vs Frequency
vs VDD2
Figure 6-36 Power-Supply Rejection Ratio vs Ripple Frequency

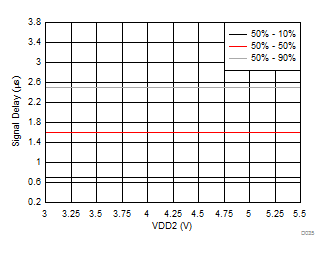

Figure 6-38 VIN to VOUT Signal Delay vs Low-Side
Supply Voltage

Figure 6-40 Output Common-Mode Voltage vs Low-Side
Supply Voltage

Figure 6-42 Output Bandwidth vs Low-Side Supply Voltage

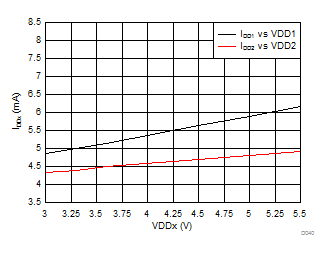

Figure 6-44 Supply Current vs Supply Voltage
