Typical Characteristics

at AVDD = 5 V, DVDD = 3.3 V, VINP = –250 mV to 250 mV, VINN = 0 V, and sinc3 filter with OSR = 256 (unless otherwise noted)
AMC1204 tc_inl-signal_amp_bas512.png

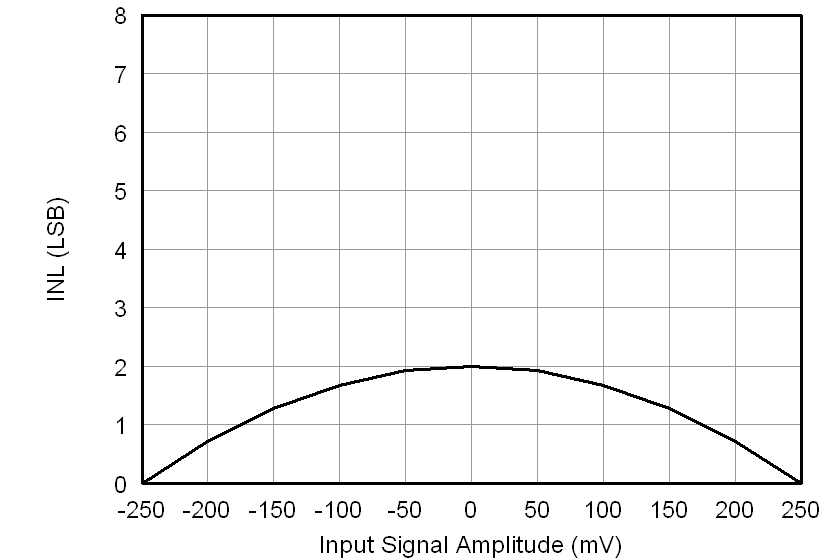

Figure 4. Integral Nonlinearity vs Input Signal Amplitude

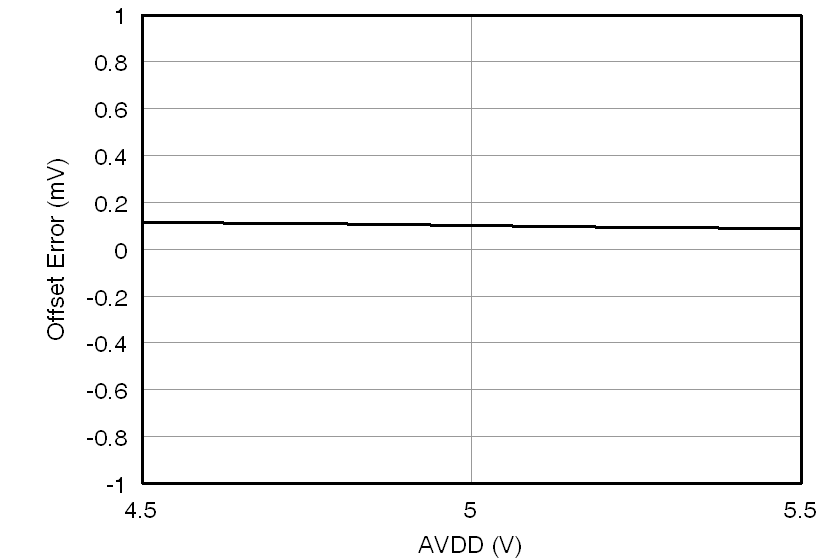

AMC1204 tc_oerr-avdd_bas512.png
Figure 6. Offset Error vs Analog Supply Voltage

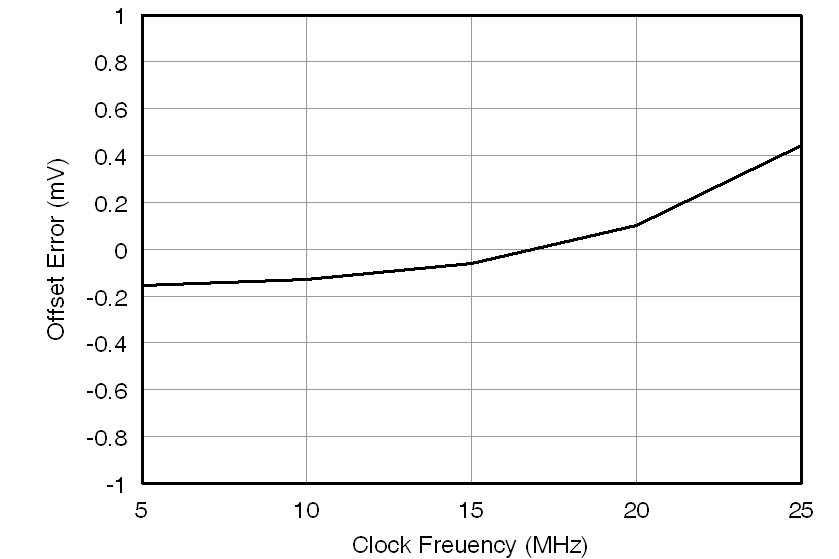

AMC1204 tc_oerr-clk_frq_bas512.png
Figure 8. Offset Error vs Clock Frequency

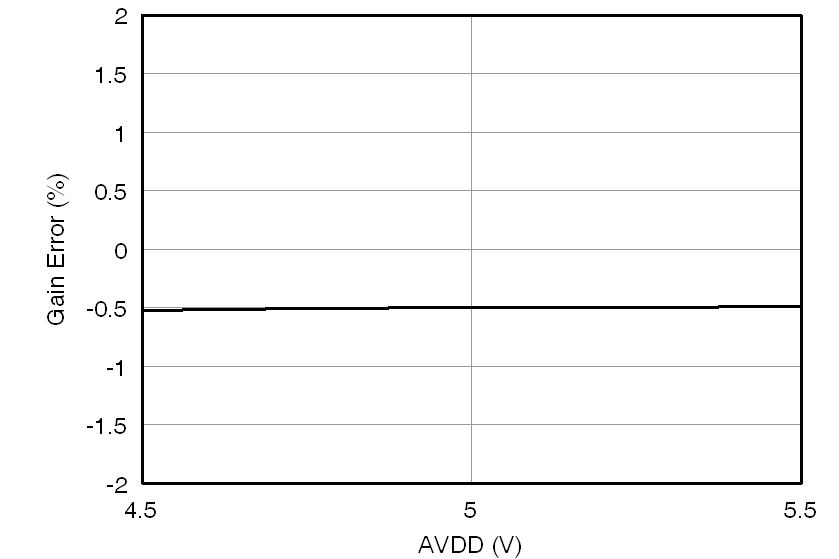

AMC1204 tc_gerr-avdd_bas512.png
Figure 10. Gain Error vs Analog Supply Voltage

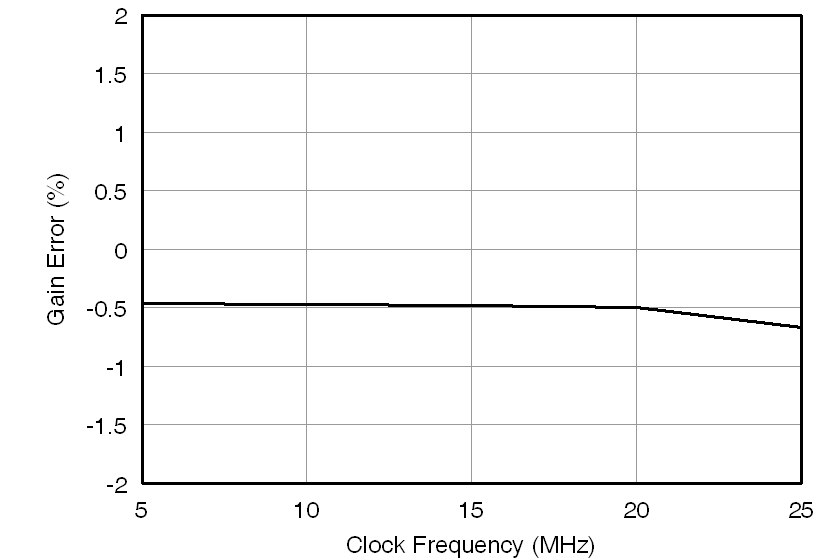

AMC1204 tc_gerr-clk_frq_bas512.png
Figure 12. Gain Error vs Clock Frequency
AMC1204 tc_psrr-frq_bas512.png
Figure 14. Power-Supply Rejection Ratio vs Frequency
AMC1204 tc_sinad_snr-avdd_bas512.png

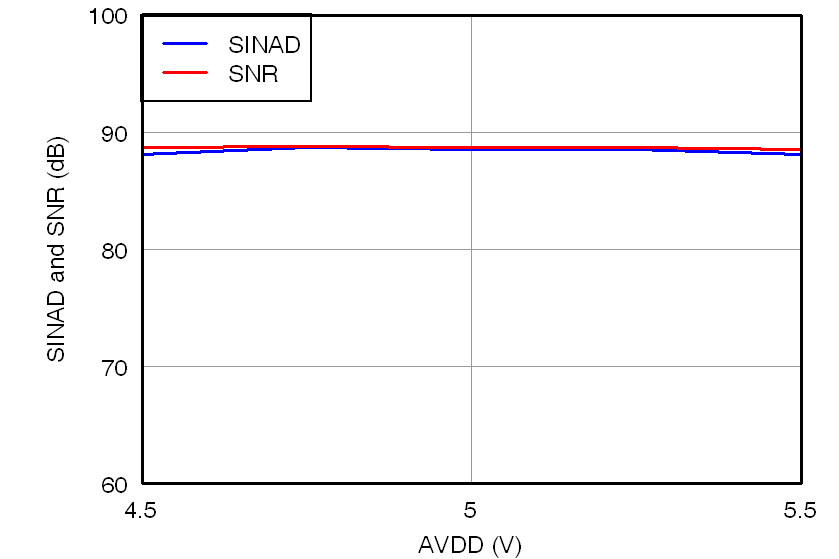

Figure 16. SINAD and SNR vs Analog Supply Voltage
AMC1204 tc_sinad_snr-frq_bas512.png
Figure 18. SINAD and SNR vs Input Signal Frequency
AMC1204 tc_sinad_snr-clk_frq_bas512.png

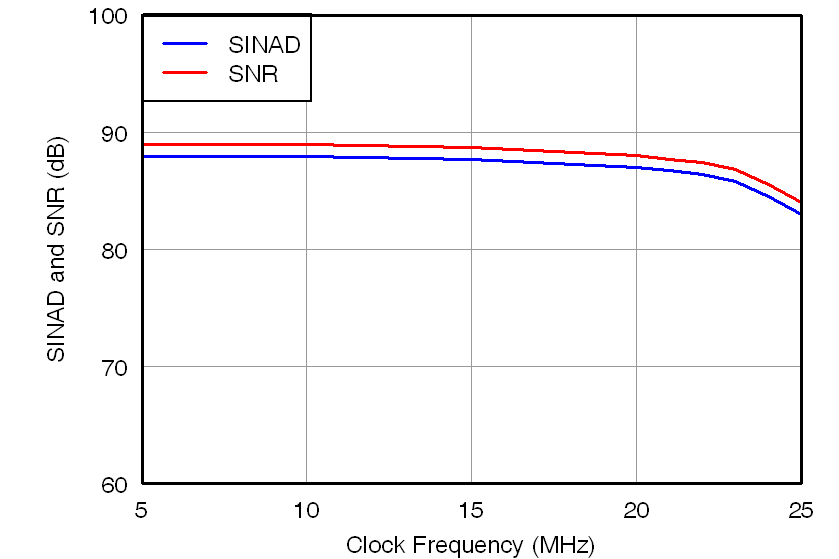

Figure 20. SINAD and SNR vs Clock Frequency
AMC1204 tc_thd-avdd_bas512.png
Figure 22. Total Harmonic Distortion vs Analog Supply Voltage
AMC1204 tc_thd-frq_bas512.png
Figure 24. Total Harmonic Distortion vs Input Signal Frequency

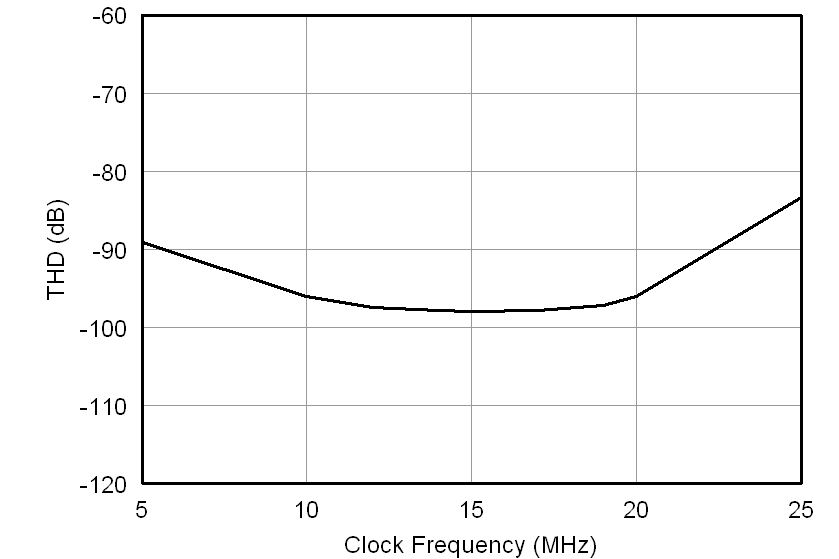

AMC1204 tc_thd-clk_frq_bas512.png
Figure 26. Total Harmonic Distortion vs Clock Frequency
AMC1204 tc_sfdr-avdd_bas512.png
Figure 28. Spurious-Free Dynamic Range vs Analog Supply Voltage
AMC1204 tc_sfdr-frq_bas512.png
Figure 30. Spurious-Free Dynamic Range vs Input Signal Frequency
AMC1204 tc_sfdr-clk_frq_bas512.png
Figure 32. Spurious-Free Dynamic Range vs Clock Frequency
AMC1204 tc_fft_1khz_bas512.gif
Figure 34. Frequency Spectrum (4096 Point FFT, fIN = 1 kHz, 0.56 VPP)
AMC1204 tc_iavdd-avdd_bas512.png
Figure 36. Analog Supply Current vs Analog Supply Voltage
AMC1204 tc_iavdd-clk_frq_bas512.png
Figure 38. Analog Supply Current vs Clock Frequency

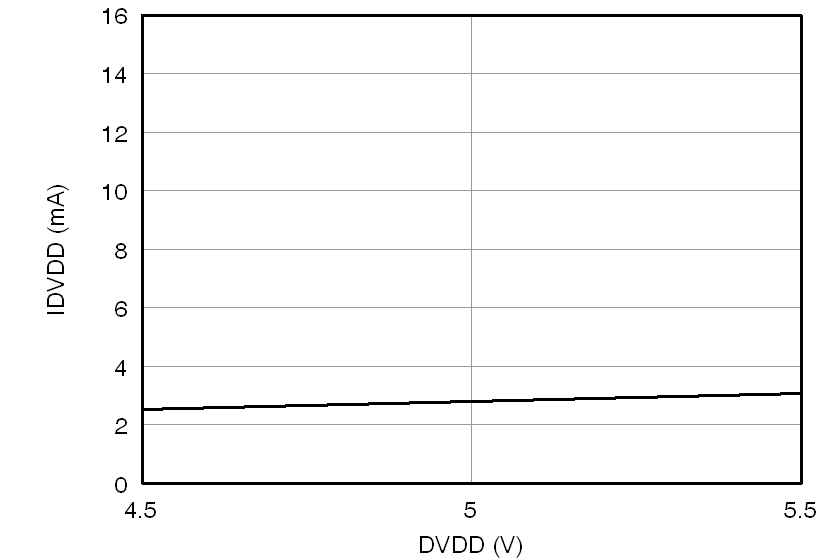

AMC1204 tc_idvdd-dvdd_hi_bas512.png
Figure 40. Digital Supply Current vs Digital Supply Voltage (5 V)
AMC1204 tc_idvdd-clk_frq_bas512.png

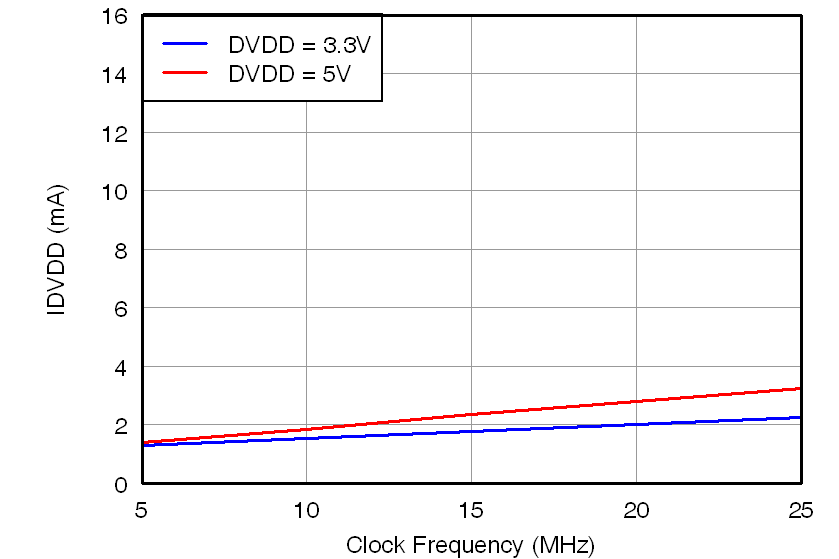

Figure 42. Digital Supply Current vs Clock Frequency

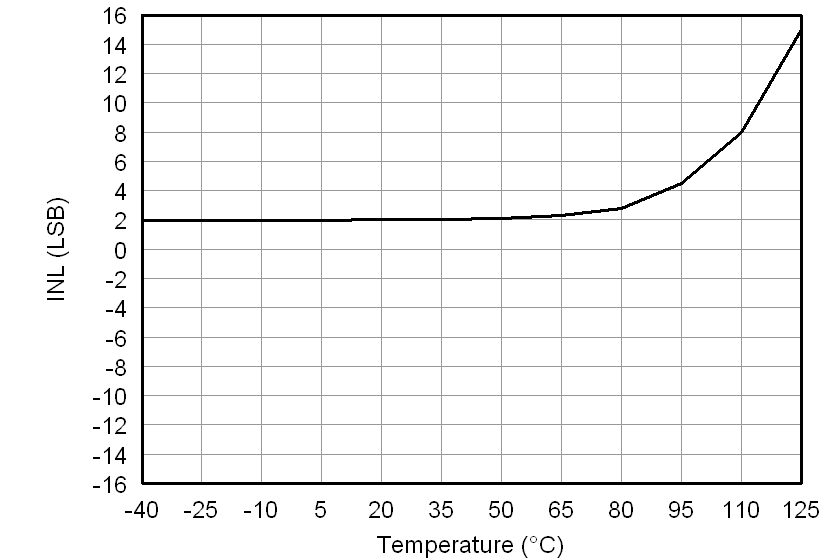

AMC1204 tc_inl-tmp_bas512.png
Figure 5. Integral Nonlinearity vs Temperature
AMC1204 tc_oerr-tmp_bas512.png
Figure 7. Offset Error vs Temperature

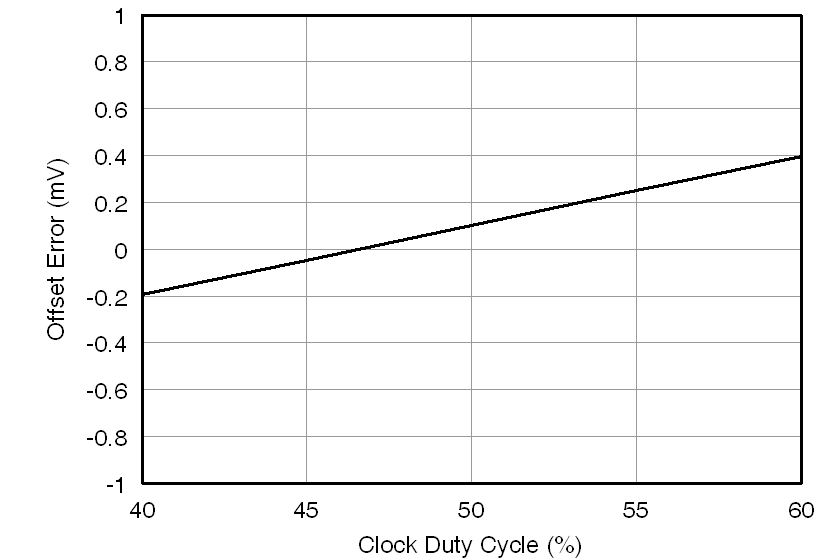

AMC1204 tc_oerr-clk_dcy_bas512.png
Figure 9. Offset Error vs Clock Duty Cycle

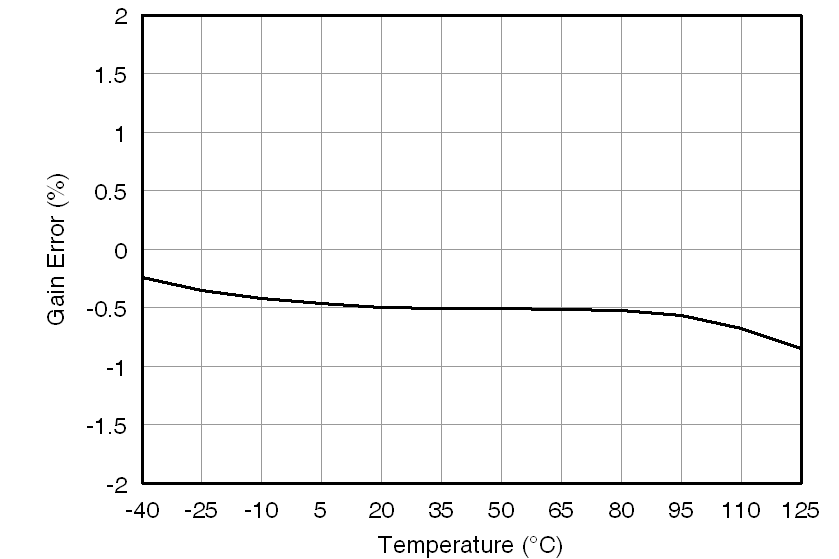

AMC1204 tc_gerr-tmp_bas512.png
Figure 11. Gain Error vs Temperature

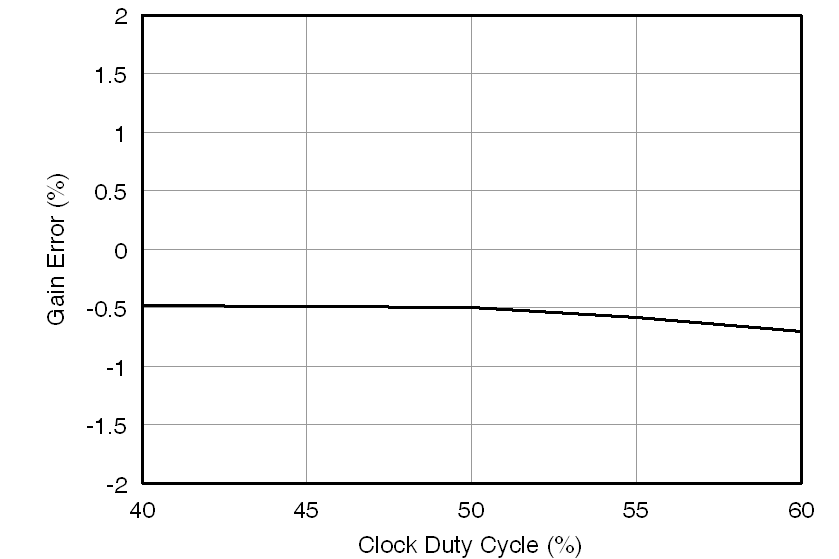

AMC1204 tc_gerr-clk_dcy_bas512.png
Figure 13. Gain Error vs Clock Duty Cycle
AMC1204 tc_cmrr-frq_bas512.png
Figure 15. Common-Mode Rejection Ratio vs Input Signal Frequency

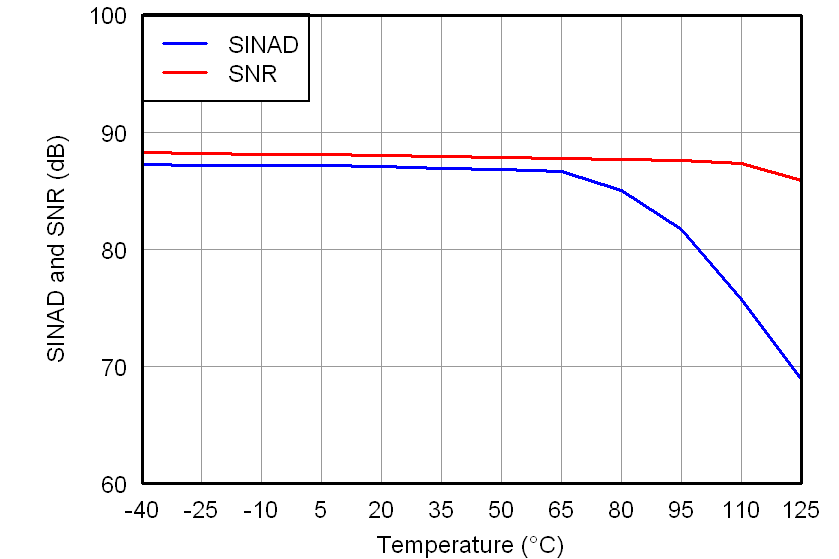

AMC1204 tc_sinad_snr-tmp_bas512.png
Figure 17. SINAD and SNR vs Temperature
AMC1204 tc_sinad_snr-signal_amp_bas512.png
Figure 19. SINAD and SNR vs Input Signal Amplitude

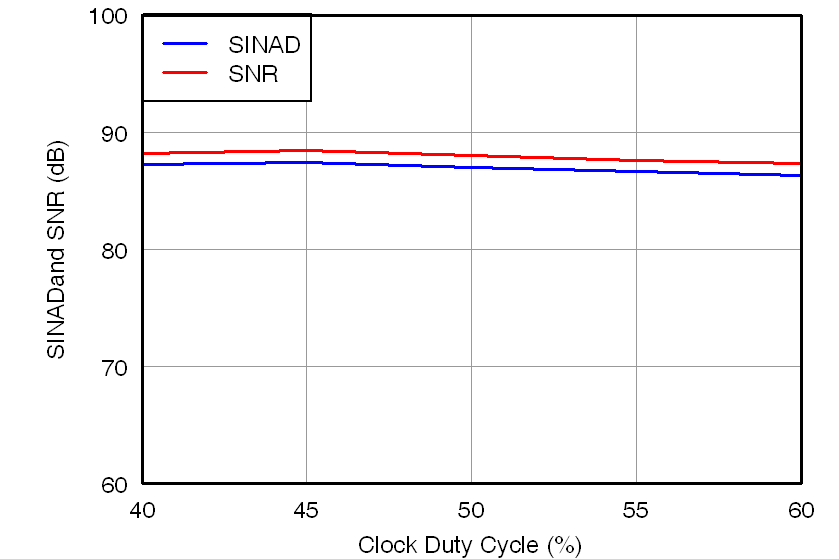

AMC1204 tc_sinad_snr-clk_dcy_bas512.png
Figure 21. SINAD and SNR vs Clock Duty Cycle

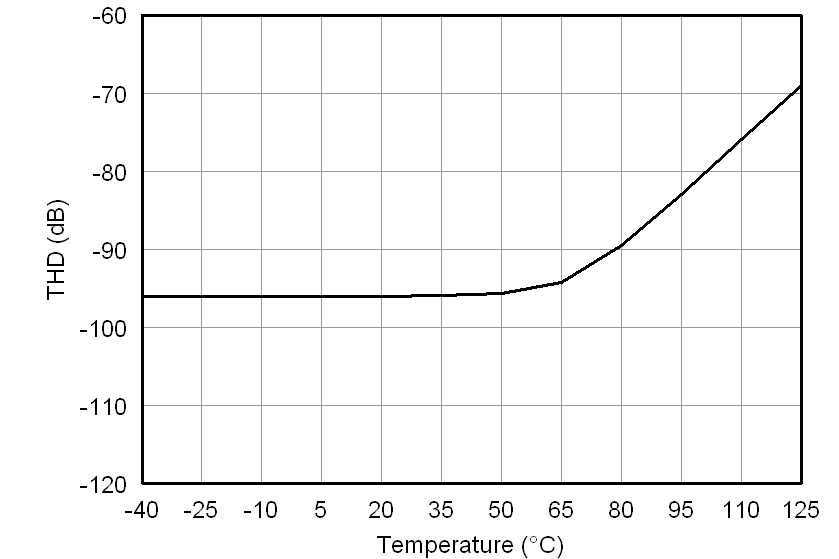

AMC1204 tc_thd-tmp_bas512.png
Figure 23. Total Harmonic Distortion vs Temperature
AMC1204 tc_thd-signal_amp_bas512.png

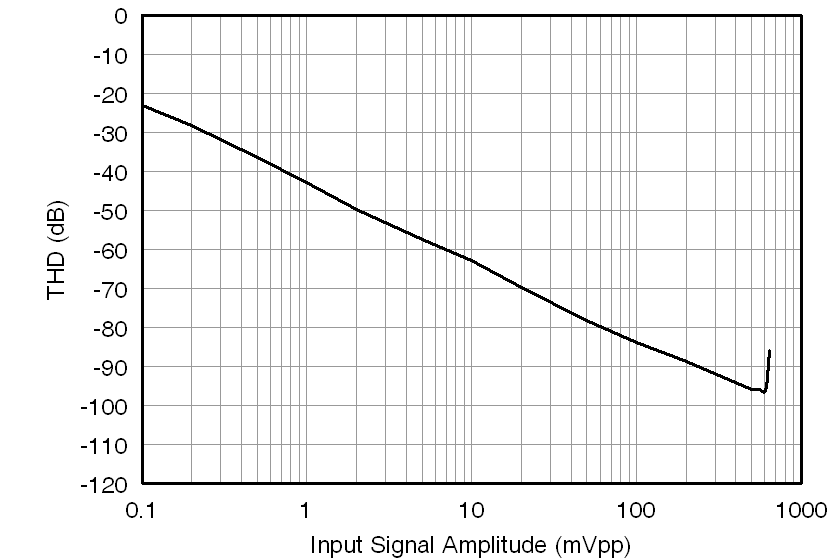

Figure 25. Total Harmonic Distortion vs Input Signal Amplitude
AMC1204 tc_thd-clk_dcy_bas512.png

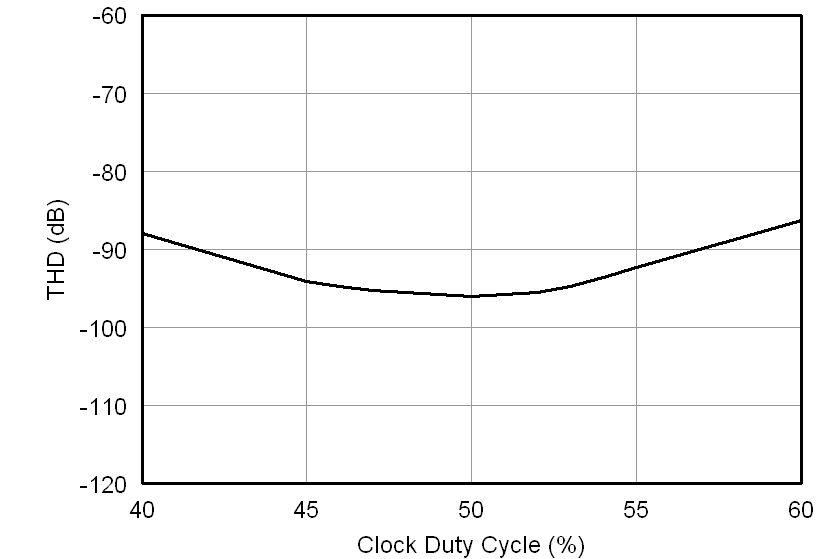

Figure 27. Total Harmonic Distortion vs Clock Duty Cycle

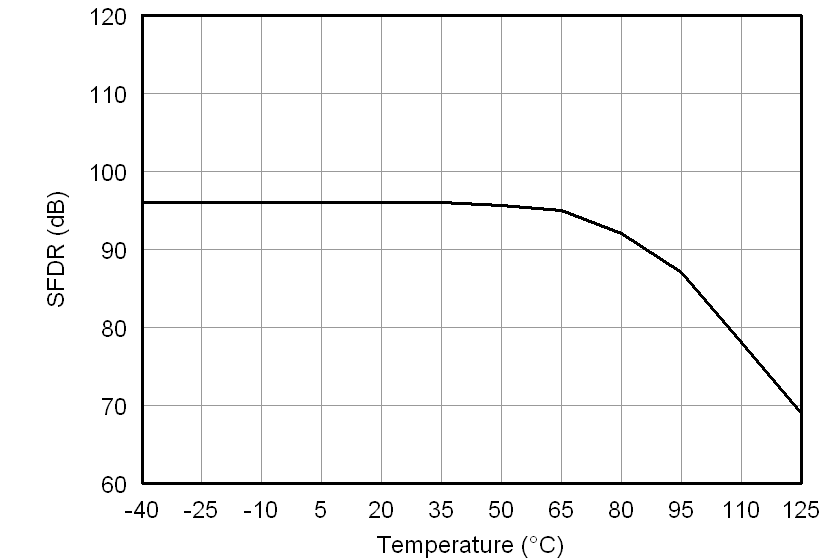

AMC1204 tc_sfdr-tmp_bas512.png
Figure 29. Spurious-Free Dynamic Range vs Temperature
AMC1204 tc_sfdr-signal_amp_bas512.png
Figure 31. Spurious-Free Dynamic Range vs Input Signal Amplitude
AMC1204 tc_sfdr-clk_dcy_bas512.png
Figure 33. Spurious-Free Dynamic Range vs Clock Duty Cycle
AMC1204 tc_fft_5khz_bas512.gif
Figure 35. Frequency Spectrum (4096 Point FFT, fIN = 5 kHz, 0.56 VPP)

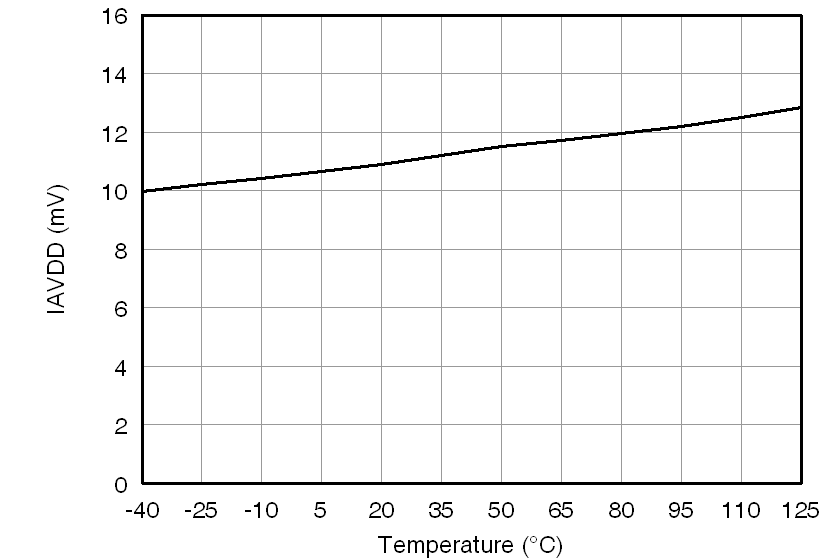

AMC1204 tc_iavdd-tmp_bas512.png
Figure 37. Analog Supply Current vs Temperature

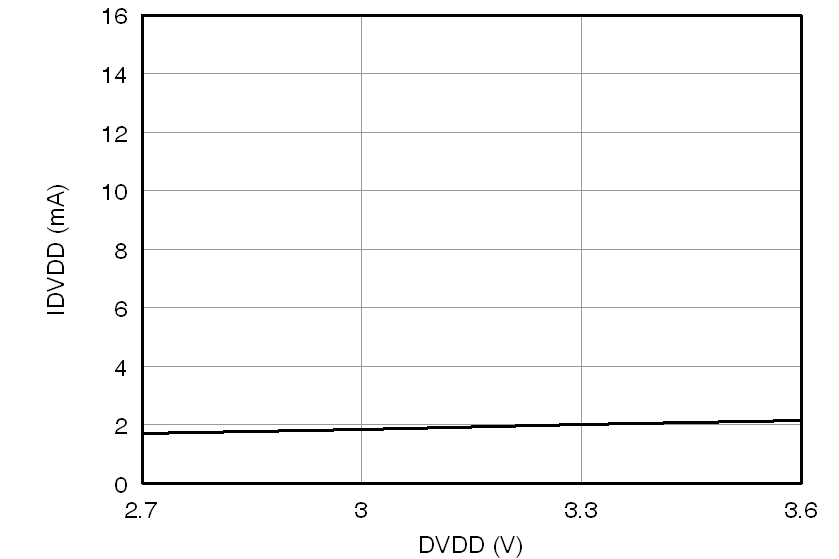

AMC1204 tc_idvdd-dvdd_lo_bas512.png
Figure 39. Digital Supply Current vs Digital Supply Voltage (3 V)
AMC1204 tc_idvdd-tmp_bas512.png
Figure 41. Digital Supply Current vs Temperature
