7.13 Typical Characteristics

at TA = 25°C, AVDD = 5 V, DVDD = 3.3 V, AINP = –50 mV to 50 mV, AINN = AGND, fCLKIN = 20 MHz, and sinc3 filter with OSR = 256 (unless otherwise noted)
AMC1106E05 AMC1106M05 D003_SBAS734.gif
Figure 5. Maximum Operating Common-Mode Input Voltage vs High-Side Supply Voltage
AMC1106E05 AMC1106M05 D005_SBAS789.gif
Figure 7. Input Bias Current vs
Common-Mode Input Voltage
AMC1106E05 AMC1106M05 D008_SBAS789.gif
Figure 9. Integral Nonlinearity vs Temperature
AMC1106E05 AMC1106M05 D010_SBAS734.gif
Figure 11. Offset Error vs Temperature
AMC1106E05 AMC1106M05 D012_SBAS789.gif
Figure 13. Gain Error vs High-Side Supply Voltage
AMC1106E05 AMC1106M05 D014_SBAS734.gif
Figure 15. Gain Error vs Clock Frequency
AMC1106E05 AMC1106M05 D016_SBAS789.gif
Figure 17. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs High-Side Supply Voltage
AMC1106E05 AMC1106M05 D018_SBAS789.gif
Figure 19. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Clock Frequency
AMC1106E05 AMC1106M05 D020_SBAS789.gif
Figure 21. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Input Signal Amplitude

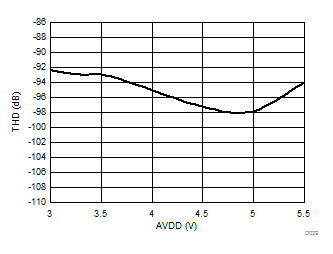

AMC1106E05 AMC1106M05 D039_SBAS734.gif
fCLKIN = 20 MHz
Figure 23. Total Harmonic Distortion vs
High-Side Supply Voltage

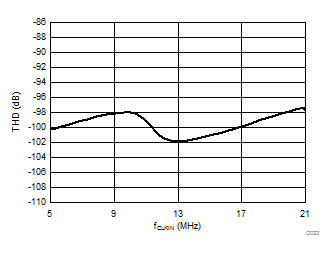

AMC1106E05 AMC1106M05 D023_SBAS734.gif
Figure 25. Total Harmonic Distortion vs Clock Frequency
AMC1106E05 AMC1106M05 D025_SBAS789.gif
Figure 27. Total Harmonic Distortion vs
Input Signal Amplitude
AMC1106E05 AMC1106M05 D027_SBAS734.gif
Figure 29. Spurious-Free Dynamic Range vs Temperature

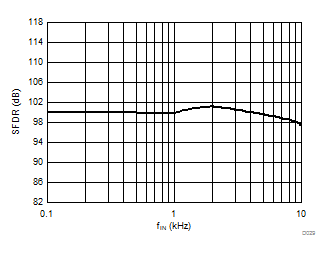

AMC1106E05 AMC1106M05 D029_SBAS734.gif
Figure 31. Spurious-Free Dynamic Range vs
Input Signal Frequency
AMC1106E05 AMC1106M05 D031_SBAS789.gif
4096-point FFT, VIN = 100 mVPP
Figure 33. Frequency Spectrum With 1-kHz Input Signal
AMC1106E05 AMC1106M05 D033_SBAS734.gif
Figure 35. High-Side Supply Current vs
High-Side Supply Voltage
AMC1106E05 AMC1106M05 D035_SBAS789.gif
Figure 37. High-Side Supply Current vs Clock Frequency
AMC1106E05 AMC1106M05 D037_SBAS789.gif
Figure 39. Controller-Side Supply Current vs Temperature
AMC1106E05 AMC1106M05 D004_SBAS734.gif
Figure 6. Common-Mode Overvoltage Detection Level vs Temperature
AMC1106E05 AMC1106M05 D006_SBAS789.gif
Figure 8. Common-Mode Rejection Ratio vs
Input Signal Frequency
AMC1106E05 AMC1106M05 D009_SBAS789.gif
Figure 10. Offset Error vs High-Side Supply Voltage
AMC1106E05 AMC1106M05 D011_SBAS789.gif
Figure 12. Offset Error vs Clock Frequency
AMC1106E05 AMC1106M05 D013_SBAS734.gif
Figure 14. Gain Error vs Temperature
AMC1106E05 AMC1106M05 D015_SBAS789.gif
Figure 16. Power-Supply Rejection Ratio vs
Ripple Frequency
AMC1106E05 AMC1106M05 D017_SBAS789.gif
Figure 18. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Temperature
AMC1106E05 AMC1106M05 D019_SBAS789.gif
Figure 20. Signal-to-Noise Ratio and Signal-to-Noise + Distortion vs Input Signal Frequency
AMC1106E05 AMC1106M05 D021_SBAS734.gif
fCLKIN = 21 MHz
Figure 22. Total Harmonic Distortion vs
High-Side Supply Voltage
AMC1106E05 AMC1106M05 D022_SBAS734.gif
Figure 24. Total Harmonic Distortion vs Temperature
AMC1106E05 AMC1106M05 D024_SBAS734.gif
Figure 26. Total Harmonic Distortion vs
Input Signal Frequency
AMC1106E05 AMC1106M05 D026_SBAS734.gif
Figure 28. Spurious-Free Dynamic Range vs
High-Side Supply Voltage
AMC1106E05 AMC1106M05 D028_SBAS734.gif
Figure 30. Spurious-Free Dynamic Range vs
Clock Frequency

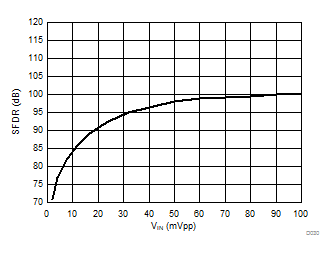

AMC1106E05 AMC1106M05 D030_SBAS789.gif
Figure 32. Spurious-Free Dynamic Range vs
Input Signal Amplitude
AMC1106E05 AMC1106M05 D032_SBAS789.gif
4096-point FFT, VIN = 100 mVPP
Figure 34. Frequency Spectrum With 10-kHz Input Signal
AMC1106E05 AMC1106M05 D034_SBAS734.gif
Figure 36. High-Side Supply Current vs Temperature
AMC1106E05 AMC1106M05 D036_SBAS789.gif
Figure 38. Controller-Side Supply Current vs
Controller-Side Supply Voltage
AMC1106E05 AMC1106M05 D038_SBAS789.gif
Figure 40. Controller-Side Supply Current vs
Clock Frequency
