Applications, Implementation, and Layout

NOTE

Information in the following Applications section is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI's customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

Power Supply Mapping

TPS65916 or TPS659037 are the Power Management ICs (PMICs) that should be used for the Device designs. TI requires use of these PMICs for the following reasons:

  • TI has validated their use with the Device
  • Board level margins including transient response and output accuracy are analyzed and optimized for the entire system
  • Support for power sequencing requirements (refer to Section 5.9 Power Supply Sequences)
  • Support for Adaptive Voltage Scaling (AVS) Class 0 requirements, including TI provided software

Whenever we allow for combining of rails mapped on any of the SMPSes, the PDN guidelines that are the most stringent of the rails combined should be implemented for the particular supply rail.

It is possible that some voltage domains on the device are unused in some systems. In such cases, to ensure device reliability, it is still required that the supply pins for the specific voltage domains are connected to some core power supply output.

These unused supplies though can be combined with any of the core supplies that are used (active) in the system. e.g. if IVA and GPU domains are not used, they can be combined with the CORE domain, thereby having a single power supply driving the combined CORE, IVA and GPU domains.

For the combined rail, the following relaxations do apply:

  • The AVS voltage of active rail in the combined rail needs to be used to set the power supply
  • The decoupling capacitance should be set according to the active rail in the combined rail

Table 8-1 illustrates the approved and validated power supply connections to the Device for the SMPS outputs of the TPS659037 PMIC.

Table 8-1 TPS659037 Power Supply Connections(1)

TPS659037 POWER SUPPLY VALID COMBINATION 1:

VALID COMBINATION 2:

SMPS1/2(2) vdd_mpu vdd_mpu
SMPS3 vdds_ddr1 vdds_ddr1
SMPS4/5 vdd_dsp, vdd_gpu, vdd_iva vdd_dsp
SMPS6 vdd vdd_gpu
SMPS7 SW configuration after boot vdd
SMPS8 vdds18v vdd_iva
SMPS9 SW configuration after boot 3.3V vddshvx
LDO1 vddshv8 vddshv8
LDO2 vddshv5 vdds18v
LDO3 vdda_usb1, vdda_usb2, vdda_csi,vdda_sata vdda_usb1, vdda_usb2, vdda_csi, vdda_sata
LDO4 vdda_hdmi, vdda_pcie, vdda_pcie0, vdda_usb3 vdda_hdmi, vdda_pcie, vdda_pcie0, vdda_usb3
LDO9 vdd_rtc vdd_rtc
LDOLN 1.8V PLLs 1.8V PLLs
LDOUSB vdda_usb3v3 vdda_usb3v3
  1. Power consumption is highly application-specific. Separate analysis must be performed to ensure output current ratings (average and peak) is within the limits of the PMIC for all rails of the device.
  2. Refer to the PMIC data manual for the latest TPS659037 specifications.
  3. For more information on connectivity with the TPS659037 PMIC, see the TPS659037 User’s Guide to Power AM572x (SLIU011).
  4. A product’s maximum ambient temperature, thermal system design & heat spreading performance could limit the maximum power dissipation below the full PMIC capacity in order to not exceed recommended SoC max Tj.

Table 8-2 illustrates the approved and validated power supply connections to the Device for the SMPS outputs of the TPS65916 PMIC.

Table 8-2 TPS65916 Power Supply Connections

TPS65916 POWER SUPPLY VALID COMBINATION 1:
SMPS1 vdd_mpu
SMPS2 vdd
SMPS3 vdd_dsp, vdd_gpu, vdd_iva
SMPS4 vdds18v
SMPS5 vdds_ddr1

DDR3 Board Design and Layout Guidelines

DDR3 General Board Layout Guidelines

To help ensure good signaling performance, consider the following board design guidelines:

  • Avoid crossing splits in the power plane.
  • Minimize Vref noise.
  • Use the widest trace that is practical between decoupling capacitors and memory module.
  • Maintain a single reference.
  • Minimize ISI by keeping impedances matched.
  • Minimize crosstalk by isolating sensitive bits, such as strobes, and avoiding return path discontinuities.
  • Use proper low-pass filtering on the Vref pins.
  • Keep the stub length as short as possible.
  • Add additional spacing for on-clock and strobe nets to eliminate crosstalk.
  • Maintain a common ground reference for all bypass and decoupling capacitors.
  • Take into account the differences in propagation delays between microstrip and stripline nets when evaluating timing constraints.

DDR3 Board Design and Layout Guidelines

Board Designs

TI only supports board designs using DDR3 memory that follow the guidelines in this document. The switching characteristics and timing diagram for the DDR3 memory controller are shown in Table 8-3 and Figure 8-1.

Table 8-3 Switching Characteristics Over Recommended Operating Conditions for DDR3 Memory Controller

NO. PARAMETER MIN MAX UNIT
1 tc(DDR_CLK) Cycle time, DDR_CLK 1.5 2.5(1) ns
  1. This is the absolute maximum the clock period can be. Actual maximum clock period may be limited by DDR3 speed grade and operating frequency (see the DDR3 memory device data sheet).
AM5718-HIREL SPRS906_PCB_DDR3_01.gif Figure 8-1 DDR3 Memory Controller Clock Timing

DDR3 EMIF

The processor contains one DDR3 EMIF.

DDR3 Device Combinations

Because there are several possible combinations of device counts and single- or dual-side mounting, Table 8-4 summarizes the supported device configurations.

Table 8-4 Supported DDR3 Device Combinations

NUMBER OF DDR3 DEVICES DDR3 DEVICE WIDTH (BITS) MIRRORED? DDR3 EMIF WIDTH (BITS)
1 16 N 16
2 8 Y(1) 16
2 16 N 32
2 16 Y(1) 32
3 16 N (3) 32
4 8 N 32
4 8 Y(2) 32
5 8 N (3) 32
  1. Two DDR3 devices are mirrored when one device is placed on the top of the board and the second device is placed on the bottom of the board.
  2. This is two mirrored pairs of DDR3 devices.
  3. Three or five DDR3 device combination is not available on this device, but combination types are retained for consistency with the AM57xx family of devices.

DDR3 Interface Schematic

32-Bit DDR3 Interface

The DDR3 interface schematic varies, depending upon the width of the DDR3 devices used and the width of the bus used (16 or 32 bits). General connectivity is straightforward and very similar. 16-bit DDR devices look like two 8-bit devices. Figure 8-2 and Figure 8-3 show the schematic connections for 32-bit interfaces using x16 devices.

16-Bit DDR3 Interface

Note that the 16-bit wide interface schematic is practically identical to the 32-bit interface (see Figure 8-2 and Figure 8-3); only the high-word DDR memories are removed and the unused DQS inputs are tied off.

When not using all or part of a DDR interface, the proper method of handling the unused pins is to tie off the ddrx_dqsi pins to ground via a 1k-Ω resistor and to tie off the ddrx_dqsni pins to the corresponding vdds_ddrx supply via a 1k-Ω resistor. This needs to be done for each byte not used. Although these signals have internal pullups and pulldowns, external pullups and pulldowns provide additional protection against external electrical noise causing activity on the signals.

The vdds_ddrx and ddrx_vref0 power supply pins need to be connected to their respective power supplies even if ddrx is not being used. All other DDR interface pins can be left unconnected. Note that the supported modes for use of the DDR EMIF are 32-bits wide, 16-bits wide, or not used.

AM5718-HIREL SPRS906_PCB_DDR3_02.gif Figure 8-2 32-Bit, One-Bank DDR3 Interface Schematic Using Two 16-Bit DDR3 Devices
AM5718-HIREL SPRS906_PCB_DDR3_03.gif Figure 8-3 32-Bit, One-Bank DDR3 Interface Schematic Using Four 8-Bit DDR3 Devices

Compatible JEDEC DDR3 Devices

Table 8-5 shows the parameters of the JEDEC DDR3 devices that are compatible with this interface. Generally, the DDR3 interface is compatible with DDR3-1333 devices in the x8 or x16 widths.

Table 8-5 Compatible JEDEC DDR3 Devices (Per Interface)

NO. PARAMETER CONDITION MIN MAX UNIT
1 JEDEC DDR3 device speed grade(1) DDR clock rate = 400MHz DDR3-800 DDR3-1600
400MHz< DDR clock rate ≤ 533MHz DDR3-1066 DDR3-1600
533MHz < DDR clock rate ≤ 667MHz DDR3-1333 DDR3-1600
2 JEDEC DDR3 device bit width x8 x16 Bits
3 JEDEC DDR3 device count(2) 2 4 Devices
  1. Refer to Table 8-3 Switching Characteristics Over Recommended Operating Conditions for DDR3 Memory Controller for the range of supported DDR clock rates.
  2. For valid DDR3 device configurations and device counts, see Section 8.2.2.4, Figure 8-2, and Figure 8-3.

PCB Stackup

The minimum stackup for routing the DDR3 interface is a six-layer stack up as shown in Table 8-6. Additional layers may be added to the PCB stackup to accommodate other circuitry, enhance SI/EMI performance, or to reduce the size of the PCB footprint. Complete stackup specifications are provided in Table 8-7.

Table 8-6 Six-Layer PCB Stackup Suggestion

LAYER TYPE DESCRIPTION
1 Signal Top routing mostly vertical
2 Plane Ground
3 Plane Split power plane
4 Plane Split power plane or Internal routing
5 Plane Ground
6 Signal Bottom routing mostly horizontal

Table 8-7 PCB Stackup Specifications

NO. PARAMETER MIN TYP MAX UNIT
PS1 PCB routing/plane layers 6
PS2 Signal routing layers 3
PS3 Full ground reference layers under DDR3 routing region(1) 1
PS4 Full 1.5-V power reference layers under the DDR3 routing region(1) 1
PS5 Number of reference plane cuts allowed within DDR routing region(2) 0
PS6 Number of layers between DDR3 routing layer and reference plane(3) 0
PS7 PCB routing feature size 4 Mils
PS8 PCB trace width, w 4 Mils
PS9 Single-ended impedance, Zo 50 75 Ω
PS10 Impedance control(5) Z-5 Z Z+5 Ω
  1. Ground reference layers are preferred over power reference layers. Be sure to include bypass caps to accommodate reference layer return current as the trace routes switch routing layers.
  2. No traces should cross reference plane cuts within the DDR routing region. High-speed signal traces crossing reference plane cuts create large return current paths which can lead to excessive crosstalk and EMI radiation.
  3. Reference planes are to be directly adjacent to the signal plane to minimize the size of the return current loop.
  4. An 18-mil pad assumes Via Channel is the most economical BGA escape. A 20-mil pad may be used if additional layers are available for power routing. An 18-mil pad is required for minimum layer count escape.
  5. Z is the nominal singled-ended impedance selected for the PCB specified by PS9.

Placement

Figure 8-4 shows the required placement for the processor as well as the DDR3 devices. The dimensions for this figure are defined in Table 8-8. The placement does not restrict the side of the PCB on which the devices are mounted. The ultimate purpose of the placement is to limit the maximum trace lengths and allow for proper routing space. For a 16-bit DDR memory system, the high-word DDR3 devices are omitted from the placement.

AM5718-HIREL SPRS906_PCB_DDR3_04.gif Figure 8-4 Placement Specifications

Table 8-8 Placement Specifications DDR3

NO. PARAMETER MIN MAX UNIT
KOD31 X1 500 Mils
KOD32 X2 600 Mils
KOD33 X3 600 Mils
KOD34 Y1 1800 Mils
KOD35 Y2 600 Mils
KOD36 DDR3 keepout region (1)
KOD37 Clearance from non-DDR3 signal to DDR3 keepout region (2) (3) 4 W
  1. DDR3 keepout region to encompass entire DDR3 routing area.
  2. Non-DDR3 signals allowed within DDR3 keepout region provided they are separated from DDR3 routing layers by a ground plane.
  3. If a device has more than one DDR controller, the signals from the other controller(s) are considered non-DDR3 and should be separated by this specification.

DDR3 Keepout Region

The region of the PCB used for DDR3 circuitry must be isolated from other signals. The DDR3 keepout region is defined for this purpose and is shown in Figure 8-5. The size of this region varies with the placement and DDR routing. Additional clearances required for the keepout region are shown in Table 8-8. Non-DDR3 signals should not be routed on the DDR signal layers within the DDR3 keepout region. Non-DDR3 signals may be routed in the region, provided they are routed on layers separated from the DDR signal layers by a ground layer. No breaks should be allowed in the reference ground layers in this region. In addition, the 1.5-V DDR3 power plane should cover the entire keepout region. Also note that the two signals from the DDR3 controller should be separated from each other by the specification in Table 8-8, (see KOD37).

AM5718-HIREL SPRS906_PCB_DDR3_05.gif Figure 8-5 DDR3 Keepout Region

Bulk Bypass Capacitors

Bulk bypass capacitors are required for moderate speed bypassing of the DDR3 and other circuitry. Table 8-9 contains the minimum numbers and capacitance required for the bulk bypass capacitors. Note that this table only covers the bypass needs of the DDR3 controllers and DDR3 devices. Additional bulk bypass capacitance may be needed for other circuitry.

Table 8-9 Bulk Bypass Capacitors

NO. PARAMETER MIN MAX UNIT
1 vdds_ddrx bulk bypass capacitor count(1) 1 Devices
2 vdds_ddrx bulk bypass total capacitance 22 μF
  1. These devices should be placed near the devices they are bypassing, but preference should be given to the placement of the high-speed (HS) bypass capacitors and DDR3 signal routing.

High-Speed Bypass Capacitors

High-speed (HS) bypass capacitors are critcal for proper DDR3 interface operation. It is particularly important to minimize the parasitic series inductance of the HS bypass capacitors, processor/DDR power, and processor/DDR ground connections. Table 8-10 contains the specification for the HS bypass capacitors as well as for the power connections on the PCB. Generally speaking, it is good to:

  1. Fit as many HS bypass capacitors as possible.
  2. Minimize the distance from the bypass cap to the pins/balls being bypassed.
  3. Use the smallest physical sized capacitors possible with the highest capacitance readily available.
  4. Connect the bypass capacitor pads to their vias using the widest traces possible and using the largest hole size via possible.
  5. Minimize via sharing. Note the limites on via sharing shown in Table 8-10.

Table 8-10 High-Speed Bypass Capacitors

NO. PARAMETER MIN TYP MAX UNIT
1 HS bypass capacitor package size(1) 0201 0402 10 Mils
2 Distance, HS bypass capacitor to processor being bypassed(2)(3)(4) 400 Mils
3 Processor HS bypass capacitor count per vdds_ddrx rail See Section 8.4 and (11) Devices
4 Processor HS bypass capacitor total capacitance per vdds_ddrx rail See Section 8.4 and (11) μF
5 Number of connection vias for each device power/ground ball(5) Vias
6 Trace length from device power/ground ball to connection via(2) 35 70 Mils
7 Distance, HS bypass capacitor to DDR device being bypassed(6) 150 Mils
8 DDR3 device HS bypass capacitor count(7) 12 Devices
9 DDR3 device HS bypass capacitor total capacitance(7) 0.85 μF
10 Number of connection vias for each HS capacitor(8)(9) 2 Vias
11 Trace length from bypass capacitor connect to connection via(2)(9) 35 100 Mils
12 Number of connection vias for each DDR3 device power/ground ball(10) 1 Vias
13 Trace length from DDR3 device power/ground ball to connection via(2)(8) 35 60 Mils
  1. LxW, 10-mil units, that is, a 0402 is a 40x20-mil surface-mount capacitor.
  2. Closer/shorter is better.
  3. Measured from the nearest processor power/ground ball to the center of the capacitor package.
  4. Three of these capacitors should be located underneath the processor, between the cluster of DDR_1V5 balls and ground balls, between the DDR interfaces on the package.
  5. See the Via Channel™ escape for the processor package.
  6. Measured from the DDR3 device power/ground ball to the center of the capacitor package.
  7. Per DDR3 device.
  8. An additional HS bypass capacitor can share the connection vias only if it is mounted on the opposite side of the board. No sharing of vias is permitted on the same side of the board.
  9. An HS bypass capacitor may share a via with a DDR device mounted on the same side of the PCB. A wide trace should be used for the connection and the length from the capacitor pad to the DDR device pad should be less than 150 mils.
  10. Up to a total of two pairs of DDR power/ground balls may share a via.
  11. The capacitor recommendations in this data manual reflect only the needs of this processor. Please see the memory vendor’s guidelines for determining the appropriate decoupling capacitor arrangement for the memory device itself.

Return Current Bypass Capacitors

Use additional bypass capacitors if the return current reference plane changes due to DDR3 signals hopping from one signal layer to another. The bypass capacitor here provides a path for the return current to hop planes along with the signal. As many of these return current bypass capacitors should be used as possible. Because these are returns for signal current, the signal via size may be used for these capacitors.

Net Classes

Table 8-11 lists the clock net classes for the DDR3 interface. Table 8-12 lists the signal net classes, and associated clock net classes, for signals in the DDR3 interface. These net classes are used for the termination and routing rules that follow.

Table 8-11 Clock Net Class Definitions

CLOCK NET CLASS Processor PIN NAMES
CK ddrx_ck/ddrx_nck
DQS0 ddrx_dqs0 / ddrx_dqsn0
DQS1 ddrx_dqs1 / ddrx_dqsn1
DQS2(1) ddrx_dqs2 / ddrx_dqsn2
DQS3(1) ddrx_dqs3 / ddrx_dqsn3
  1. Only used on 32-bit wide DDR3 memory systems.

Table 8-12 Signal Net Class Definitions

SIGNAL NET CLASS ASSOCIATED CLOCK
NET CLASS
Processor PIN NAMES
ADDR_CTRL CK ddrx_ba[2:0], ddrx_a[14:0], ddrx_csnj, ddrx_casn, ddrx_rasn, ddrx_wen, ddrx_cke, ddrx_odti
DQ0 DQS0 ddrx_d[7:0], ddrx_dqm0
DQ1 DQS1 ddrx_d[15:8], ddrx_dqm1
DQ2(1) DQS2 ddrx_d[23:16], ddrx_dqm2
DQ3(1) DQS3 ddrx_d[31:24], ddrx_dqm3
  1. Only used on 32-bit wide DDR3 memory systems.

DDR3 Signal Termination

Signal terminators are required for the CK and ADDR_CTRL net classes. The data lines are terminated by ODT and, thus, the PCB traces should be unterminated. Detailed termination specifications are covered in the routing rules in the following sections.

VREF_DDR Routing

ddrx_vref0 (VREF) is used as a reference by the input buffers of the DDR3 memories as well as the processor. VREF is intended to be half the DDR3 power supply voltage and is typically generated with the DDR3 VDDS and VTT power supply. It should be routed as a nominal 20-mil wide trace with 0.1 µF bypass capacitors near each device connection. Narrowing of VREF is allowed to accommodate routing congestion.

VTT

Like VREF, the nominal value of the VTT supply is half the DDR3 supply voltage. Unlike VREF, VTT is expected to source and sink current, specifically the termination current for the ADDR_CTRL net class Thevinen terminators. VTT is needed at the end of the address bus and it should be routed as a power sub-plane. VTT should be bypassed near the terminator resistors.

CK and ADDR_CTRL Topologies and Routing Definition

The CK and ADDR_CTRL net classes are routed similarly and are length matched to minimize skew between them. CK is a bit more complicated because it runs at a higher transition rate and is differential. The following subsections show the topology and routing for various DDR3 configurations for CK and ADDR_CTRL. The figures in the following subsections define the terms for the routing specification detailed in Table 8-13.

Four DDR3 Devices

Four DDR3 devices are supported on the DDR EMIF consisting of four x8 DDR3 devices arranged as one bank (CS). These four devices may be mounted on a single side of the PCB, or may be mirrored in two pairs to save board space at a cost of increased routing complexity and parts on the backside of the PCB.

CK and ADDR_CTRL Topologies, Four DDR3 Devices

Figure 8-6 shows the topology of the CK net classes and Figure 8-7 shows the topology for the corresponding ADDR_CTRL net classes.

AM5718-HIREL SPRS906_PCB_DDR3_06.gif Figure 8-6 CK Topology for Four x8 DDR3 Devices
AM5718-HIREL SPRS906_PCB_DDR3_07.gif Figure 8-7 ADDR_CTRL Topology for Four x8 DDR3 Devices

CK and ADDR_CTRL Routing, Four DDR3 Devices

Figure 8-8 shows the CK routing for four DDR3 devices placed on the same side of the PCB. Figure 8-9 shows the corresponding ADDR_CTRL routing.

AM5718-HIREL SPRS906_PCB_DDR3_08.gif Figure 8-8 CK Routing for Four Single-Side DDR3 Devices
AM5718-HIREL SPRS906_PCB_DDR3_09.gif Figure 8-9 ADDR_CTRL Routing for Four Single-Side DDR3 Devices

To save PCB space, the four DDR3 memories may be mounted as two mirrored pairs at a cost of increased routing and assembly complexity. Figure 8-10 and Figure 8-11 show the routing for CK and ADDR_CTRL, respectively, for four DDR3 devices mirrored in a two-pair configuration.

AM5718-HIREL SPRS906_PCB_DDR3_10.gif Figure 8-10 CK Routing for Four Mirrored DDR3 Devices
AM5718-HIREL SPRS906_PCB_DDR3_11.gif Figure 8-11 ADDR_CTRL Routing for Four Mirrored DDR3 Devices

Two DDR3 Devices

Two DDR3 devices are supported on the DDR EMIF consisting of two x8 DDR3 devices arranged as one bank (CS), 16 bits wide, or two x16 DDR3 devices arranged as one bank (CS), 32 bits wide. These two devices may be mounted on a single side of the PCB, or may be mirrored in a pair to save board space at a cost of increased routing complexity and parts on the backside of the PCB.

CK and ADDR_CTRL Topologies, Two DDR3 Devices

Figure 8-12 shows the topology of the CK net classes and Figure 8-13 shows the topology for the corresponding ADDR_CTRL net classes.

AM5718-HIREL SPRS906_PCB_DDR3_12.gif Figure 8-12 CK Topology for Two DDR3 Devices
AM5718-HIREL SPRS906_PCB_DDR3_13.gif Figure 8-13 ADDR_CTRL Topology for Two DDR3 Devices

CK and ADDR_CTRL Routing, Two DDR3 Devices

Figure 8-14 shows the CK routing for two DDR3 devices placed on the same side of the PCB. Figure 8-15 shows the corresponding ADDR_CTRL routing.

AM5718-HIREL SPRS906_PCB_DDR3_14.gif Figure 8-14 CK Routing for Two Single-Side DDR3 Devices
AM5718-HIREL SPRS906_PCB_DDR3_15.gif Figure 8-15 ADDR_CTRL Routing for Two Single-Side DDR3 Devices

To save PCB space, the two DDR3 memories may be mounted as a mirrored pair at a cost of increased routing and assembly complexity. Figure 8-16 and Figure 8-17 show the routing for CK and ADDR_CTRL, respectively, for two DDR3 devices mirrored in a single-pair configuration.

AM5718-HIREL SPRS906_PCB_DDR3_16.gif Figure 8-16 CK Routing for Two Mirrored DDR3 Devices
AM5718-HIREL SPRS906_PCB_DDR3_17.gif Figure 8-17 ADDR_CTRL Routing for Two Mirrored DDR3 Devices

One DDR3 Device

A single DDR3 device is supported on the DDR EMIF consisting of one x16 DDR3 device arranged as one bank (CS), 16 bits wide.

CK and ADDR_CTRL Topologies, One DDR3 Device

Figure 8-18 shows the topology of the CK net classes and Figure 8-19 shows the topology for the corresponding ADDR_CTRL net classes.

AM5718-HIREL SPRS906_PCB_DDR3_18.gif Figure 8-18 CK Topology for One DDR3 Device
AM5718-HIREL SPRS906_PCB_DDR3_19.gif Figure 8-19 ADDR_CTRL Topology for One DDR3 Device

CK and ADDR/CTRL Routing, One DDR3 Device

Figure 8-20 shows the CK routing for one DDR3 device placed on the same side of the PCB. Figure 8-21 shows the corresponding ADDR_CTRL routing.

AM5718-HIREL SPRS906_PCB_DDR3_20.gif Figure 8-20 CK Routing for One DDR3 Device
AM5718-HIREL SPRS906_PCB_DDR3_21.gif Figure 8-21 ADDR_CTRL Routing for One DDR3 Device

Data Topologies and Routing Definition

No matter the number of DDR3 devices used, the data line topology is always point to point, so its definition is simple.

Care should be taken to minimize layer transitions during routing. If a layer transition is necessary, it is better to transition to a layer using the same reference plane. If this cannot be accommodated, ensure there are nearby ground vias to allow the return currents to transition between reference planes if both reference planes are ground or vdds_ddr. Ensure there are nearby bypass capacitors to allow the return currents to transition between reference planes if one of the reference planes is ground. The goal is to minimize the size of the return current loops.

DQS and DQ/DM Topologies, Any Number of Allowed DDR3 Devices

DQS lines are point-to-point differential, and DQ/DM lines are point-to-point singled ended. Figure 8-22 and Figure 8-23 show these topologies.

AM5718-HIREL SPRS906_PCB_DDR3_22.gif Figure 8-22 DQS Topology
AM5718-HIREL SPRS906_PCB_DDR3_23.gif Figure 8-23 DQ/DM Topology

DQS and DQ/DM Routing, Any Number of Allowed DDR3 Devices

Figure 8-24 and Figure 8-25 show the DQS and DQ/DM routing.

AM5718-HIREL SPRS906_PCB_DDR3_24.gif Figure 8-24 DQS Routing With Any Number of Allowed DDR3 Devices
AM5718-HIREL SPRS906_PCB_DDR3_25.gif Figure 8-25 DQ/DM Routing With Any Number of Allowed DDR3 Devices

Routing Specification

CK and ADDR_CTRL Routing Specification

Skew within the CK and ADDR_CTRL net classes directly reduces setup and hold margin and, thus, this skew must be controlled. The only way to practically match lengths on a PCB is to lengthen the shorter traces up to the length of the longest net in the net class and its associated clock. A metric to establish this maximum length is Manhattan distance. The Manhattan distance between two points on a PCB is the length between the points when connecting them only with horizontal or vertical segments. A reasonable trace route length is to within a percentage of its Manhattan distance. CACLM is defined as Clock Address Control Longest Manhattan distance.

Given the clock and address pin locations on the processor and the DDR3 memories, the maximum possible Manhattan distance can be determined given the placement. Figure 8-26 and Figure 8-27 show this distance for four loads and two loads, respectively. It is from this distance that the specifications on the lengths of the transmission lines for the address bus are determined. CACLM is determined similarly for other address bus configurations; that is, it is based on the longest net of the CK/ADDR_CTRL net class. For CK and ADDR_CTRL routing, these specifications are contained in Table 8-13.

AM5718-HIREL SPRS906_PCB_DDR3_26.gif
It is very likely that the longest CK/ADDR_CTRL Manhattan distance will be for Address Input 8 (A8) on the DDR3 memories. CACLM is based on the longest Manhattan distance due to the device placement. Verify the net class that satisfies this criteria and use as the baseline for CK/ADDR_CTRL skew matching and length control.

The length of shorter CK/ADDR_CTRL stubs as well as the length of the terminator stub are not included in this length calculation. Non-included lengths are grayed out in the figure.

Assuming A8 is the longest, CALM = CACLMY + CACLMX + 300 mils.
The extra 300 mils allows for routing down lower than the DDR3 memories and returning up to reach A8.
Figure 8-26 CACLM for Four Address Loads on One Side of PCB
AM5718-HIREL SPRS906_PCB_DDR3_27.gif
It is very likely that the longest CK/ADDR_CTRL Manhattan distance will be for Address Input 8 (A8) on the DDR3 memories. CACLM is based on the longest Manhattan distance due to the device placement. Verify the net class that satisfies this criteria and use as the baseline for CK/ADDR_CTRL skew matching and length control.

The length of shorter CK/ADDR_CTRL stubs as well as the length of the terminator stub are not included in this length calculation. Non-included lengths are grayed out in the figure.

Assuming A8 is the longest, CALM = CACLMY + CACLMX + 300 mils.
The extra 300 mils allows for routing down lower than the DDR3 memories and returning up to reach A8.
Figure 8-27 CACLM for Two Address Loads on One Side of PCB

Table 8-13 CK and ADDR_CTRL Routing Specification(2)(3)

NO. PARAMETER MIN TYP MAX UNIT
CARS31 A1+A2 length 500(1) ps
CARS32 A1+A2 skew 29 ps
CARS33 A3 length 125 ps
CARS34 A3 skew(4) 6 ps
CARS35 A3 skew(5) 6 ps
CARS36 A4 length 125 ps
CARS37 A4 skew 6 ps
CARS38 AS length 5(1) 17 ps
CARS39 AS skew 1.3(1) 14 ps
CARS310 AS+/AS- length 5 12 ps
CARS311 AS+/AS- skew 1 ps
CARS312 AT length(6) 75 ps
CARS313 AT skew(7) 14 ps
CARS314 AT skew(8) 1 ps
CARS315 CK/ADDR_CTRL trace length 1020 ps
CARS316 Vias per trace 3(1) vias
CARS317 Via count difference 1(15) vias
CARS318 Center-to-center CK to other DDR3 trace spacing(9) 4w
CARS319 Center-to-center ADDR_CTRL to other DDR3 trace spacing(9)(10) 4w
CARS320 Center-to-center ADDR_CTRL to other ADDR_CTRL trace spacing(9) 3w
CARS321 CK center-to-center spacing(11) (12)
CARS322 CK spacing to other net(9) 4w
CARS323 Rcp(13) Zo-1 Zo Zo+1 Ω
CARS324 Rtt(13)(14) Zo-5 Zo Zo+5 Ω
  1. Max value is based upon conservative signal integrity approach. This value could be extended only if detailed signal integrity analysis of rice time and fall time confirms desired operation.
  2. The use of vias should be minimized.
  3. Additional bypass capacitors are required when using the DDR_1V5 plane as the reference plane to allow the return current to jump between the DDR_1V5 plane and the ground plane when the net class switches layers at a via.
  4. Non-mirrored configuration (all DDR3 memories on same side of PCB).
  5. Mirrored configuration (one DDR3 device on top of the board and one DDR3 device on the bottom).
  6. While this length can be increased for convenience, its length should be minimized.
  7. ADDR_CTRL net class only (not CK net class). Minimizing this skew is recommended, but not required.
  8. CK net class only.
  9. Center-to-center spacing is allowed to fall to minimum 2w for up to 1250 mils of routed length.
  10. The ADDR_CTRL net class of the other DDR EMIF is considered other DDR3 trace spacing.
  11. CK spacing set to ensure proper differential impedance.
  12. The most important thing to do is control the impedance so inadvertent impedance mismatches are not created. Generally speaking, center-to-center spacing should be either 2w or slightly larger than 2w to achieve a differential impedance equal to twice the singleended impedance, Zo.
  13. Source termination (series resistor at driver) is specifically not allowed.
  14. Termination values should be uniform across the net class.
  15. Via count difference may increase by 1 only if accurate 3-D modeling of the signal flight times – including accurately modeled signal propagation through vias – has been applied to ensure all segment skew maximums are not exceeded.

DQS and DQ Routing Specification

Skew within the DQS and DQ/DM net classes directly reduces setup and hold margin and thus this skew must be controlled. The only way to practically match lengths on a PCB is to lengthen the shorter traces up to the length of the longest net in the net class and its associated clock. As with CK and ADDR_CTRL, a reasonable trace route length is to within a percentage of its Manhattan distance. DQLMn is defined as DQ Longest Manhattan distance n, where n is the byte number. For a 32-bit interface, there are four DQLMs, DQLM0-DQLM3. Likewise, for a 16-bit interface, there are two DQLMs, DQLM0-DQLM1.

NOTE

It is not required, nor is it recommended, to match the lengths across all bytes. Length matching is only required within each byte.

Given the DQS and DQ/DM pin locations on the processor and the DDR3 memories, the maximum possible Manhattan distance can be determined given the placement. Figure 8-28 shows this distance for four loads. It is from this distance that the specifications on the lengths of the transmission lines for the data bus are determined. For DQS and DQ/DM routing, these specifications are contained in Table 8-14.

AM5718-HIREL SPRS906_PCB_DDR3_28.gif
There are four DQLMs, one for each byte (32-bit interface). Each DQLM is the longest Manhattan distance of the byte; therefore:
DQLM0 = DQLMX0 + DQLMY0
DQLM1 = DQLMX1 + DQLMY1
DQLM2 = DQLMX2 + DQLMY2
DQLM3 = DQLMX3 + DQLMY3
Figure 8-28 DQLM for Any Number of Allowed DDR3 Devices

Table 8-14 Data Routing Specification(2)

NO. PARAMETER MIN TYP MAX UNIT
DRS31 DB0 length 340 ps
DRS32 DB1 length 340 ps
DRS33 DB2 length 340 ps
DRS34 DB3 length 340 ps
DRS35 DBn skew(3) 5 ps
DRS36 DQSn+ to DQSn- skew 1 ps
DRS37 DQSn to DBn skew(3)(4) 5(10) ps
DRS38 Vias per trace 2(1) vias
DRS39 Via count difference 0(10) vias
DRS310 Center-to-center DBn to other DDR3 trace spacing(6) 4 w(5)
DRS311 Center-to-center DBn to other DBn trace spacing(7) 3 w(5)
DRS312 DQSn center-to-center spacing(8) (9)
DRS313 DQSn center-to-center spacing to other net 4 w(5)
  1. Max value is based upon conservative signal integrity approach. This value could be extended only if detailed signal integrity analysis of rice time and fall time confirms desired operation.
  2. External termination disallowed. Data termination should use built-in ODT functionality.
  3. Length matching is only done within a byte. Length matching across bytes is neither required nor recommended.
  4. Each DQS pair is length matched to its associated byte.
  5. Center-to-center spacing is allowed to fall to minimum 2w for up to 1250 mils of routed length.
  6. Other DDR3 trace spacing means other DDR3 net classes not within the byte.
  7. This applies to spacing within the net classes of a byte.
  8. DQS pair spacing is set to ensure proper differential impedance.
  9. The most important thing to do is control the impedance so inadvertent impedance mismatches are not created. Generally speaking, center-to-center spacing should be either 2w or slightly larger than 2w to achieve a differential impedance equal to twice the singleended impedance, Zo.
  10. Via count difference may increase by 1 only if accurate 3-D modeling of the signal flight times – including accurately modeled signal propagation through vias – has been applied to ensure DBn skew and DQSn to DBn skew maximums are not exceeded.

High Speed Differential Signal Routing Guidance

The High-Speed Interface Layout Guidelines Application Report (SPRAAR7) available from http://www.ti.com/lit/pdf/spraar7 provides guidance for successful routing of the high speed differential signals. This includes PCB stackup and materials guidance as well as routing skew, length and spacing limits. TI supports only designs that follow the board design guidelines contained in the application report.

Power Distribution Network Implementation Guidance

The Power Distribution Network Implementation Guidelines Application Report (SPRABY8) available from http://www.ti.com/lit/pdf/spraby8 provides guidance for successful implementation of the power distribution network. This includes PCB stackup guidance as well as guidance for optimizing the selection and placement of the decoupling capacitors. TI supports only designs that follow the board design guidelines contained in the application report.

Single-Ended Interfaces

General Routing Guidelines

The following paragraphs detail the routing guidelines that must be observed when routing the various functional LVCMOS interfaces.

  • Line spacing:
    • For a line width equal to W, the spacing between two lines must be 2W, at least. This minimizes the crosstalk between switching signals between the different lines. On the PCB, this is not achievable everywhere (for example, when breaking signals out from the device package), but it is recommended to follow this rule as much as possible. When violating this guideline, minimize the length of the traces running parallel to each other (see Figure 8-29).
    • AM5718-HIREL SPRS906_PCB_SE_GND_01.gif Figure 8-29 Ground Guard Illustration
  • Length matching (unless otherwise specified):
    • For bus or traces at frequencies less than 10 MHz, the trace length matching (maximum length difference between the longest and the shortest lines) must be less than 25 mm.
    • For bus or traces at frequencies greater than 10 MHz, the trace length matching (maximum length difference between the longest and the shortest lines) must be less than 2.5 mm.
  • Characteristic impedance
    • Unless otherwise specified, the characteristic impedance for single-ended interfaces is recommended to be between 35-Ω and 65-Ω.
  • Multiple peripheral support
    • For interfaces where multiple peripherals have to be supported in the star topology, the length of each branch has to be balanced. Before closing the PCB design, it is highly recommended to verify signal integrity based on simulations including actual PCB extraction.

QSPI Board Design and Layout Guidelines

The following section details the routing guidelines that must be observed when routing the QSPI interfaces.

  • The qspi1_sclk output signal must be looped back into the qspi1_rtclk input.
  • The signal propagation delay from the qspi1_sclk ball to the QSPI device CLK input pin (A to C) must be approximately equal to the signal propagation delay from the QSPI device CLK pin to the qspi1_rtclk ball (C to D).
  • The signal propagation delay from the QSPI device CLK pin to the qspi1_rtclk ball (C to D) must be approximately equal to the signal propagation delay of the control and data signals between the QSPI device and the SoC device (E to F, or F to E).
  • The signal propagation delay from the qspi1_sclk signal to the series terminators (R2 = 10 Ω) near the QSPI device must be < 450pS (~7cm as stripline or ~8cm as microstrip)
  • 50 Ω PCB routing is recommended along with series terminations, as shown in Figure 8-30.
  • Propagation delays and matching:
    • A to C = C to D = E to F.
    • Matching skew: < 60pS
    • A to B < 450pS
    • B to C = as small as possible (<60pS)
AM5718-HIREL SPRS906_PCB_QSPI_01.gif Figure 8-30 QSPI Interface High Level Schematic

NOTE

*0 Ω resistor (R1), located as close as possible to the qspi1_sclk pin, is placeholder for fine-tuning if needed.

Clock Routing Guidelines

32-kHz Oscillator Routing

When designing the printed-circuit board:

  • Keep the crystal as close as possible to the crystal pins X1 and X2.
  • Keep the trace lengths short and small to reduce capacitor loading and prevent unwanted noise pickup.
  • Place a guard ring around the crystal and tie the ring to ground to help isolate the crystal from unwanted noise pickup.
  • Keep all signals out from beneath the crystal and the X1 and X2 pins to prevent noise coupling.
  • Finally, an additional local ground plane on an adjacent PCB layer can be added under the crystal to shield it from unwanted pickup from traces on other layers of the board. This plane must be isolated from the regular PCB ground plane and tied to the GND pin of the RTC. The plane must not be any larger than the perimeter of the guard ring. Make sure that this ground plane does not contribute to significant capacitance (a few pF) between the signal line and ground on the connections that run from X1 and X2 to the crystal.

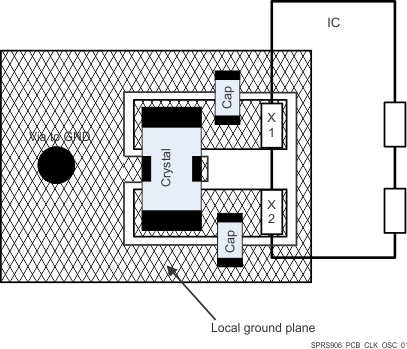

AM5718-HIREL SPRS906_PCB_CLK_OSC_01.gif Figure 8-31 Slow Clock PCB Requirements

Oscillator Ground Connection

Although the impedance of a ground plane is low it is, of course, not zero. Therefore, any noise current in the ground plane causes a voltage drop in the ground. Figure 8-32 shows the grounding scheme for slow (low frequency) clock generated from the internal oscillator.

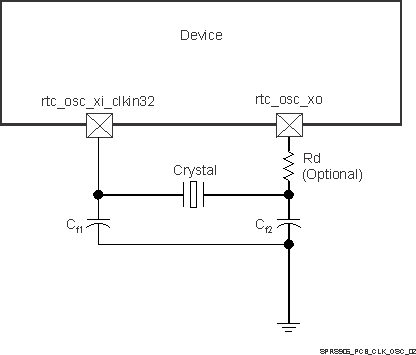

AM5718-HIREL SPRS906_PCB_CLK_OSC_02.gif Figure 8-32 Grounding Scheme for Low-Frequency Clock

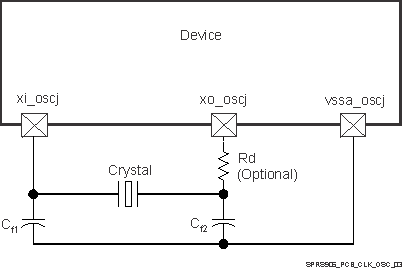

Figure 8-33 shows the grounding scheme for high-frequency clock.

AM5718-HIREL SPRS906_PCB_CLK_OSC_03.gif
j in *_osc = 0 or 1
Figure 8-33 Grounding Scheme for High-Frequency Clock
