Layout

Layout Guidelines

Figure 50 shows a typical connection diagram for the ADS7046.

ADS7046 layout_sch_se_sbas769.gif Figure 50. Typical Connection Diagram

Figure 51 depicts a board layout example for the device for the typical connection diagram in Figure 50. The key considerations for layout are:

  • Use a solid ground plane underneath the device and partition the PCB into analog and digital sections
  • Avoid crossing digital lines with the analog signal path and keep the analog input signals and the reference input signals away from noise sources.
  • The power sources to the device must be clean and well-bypassed. Use CAVDD decoupling capacitors in close proximity to the analog (AVDD) power-supply pin.
  • Use a CDVDD decoupling capacitor close to the digital (DVDD) power-supply pin.
  • Avoid placing vias between the AVDD and DVDD pins and the bypass capacitors.
  • Connect the ground pin to the ground plane using a short, low-impedance path.
  • Place the charge kickback filter components close to the device.

Among ceramic surface-mount capacitors, COG (NPO) ceramic capacitors are recommended because these components provide the most stable electrical properties over voltage, frequency, and temperature changes.

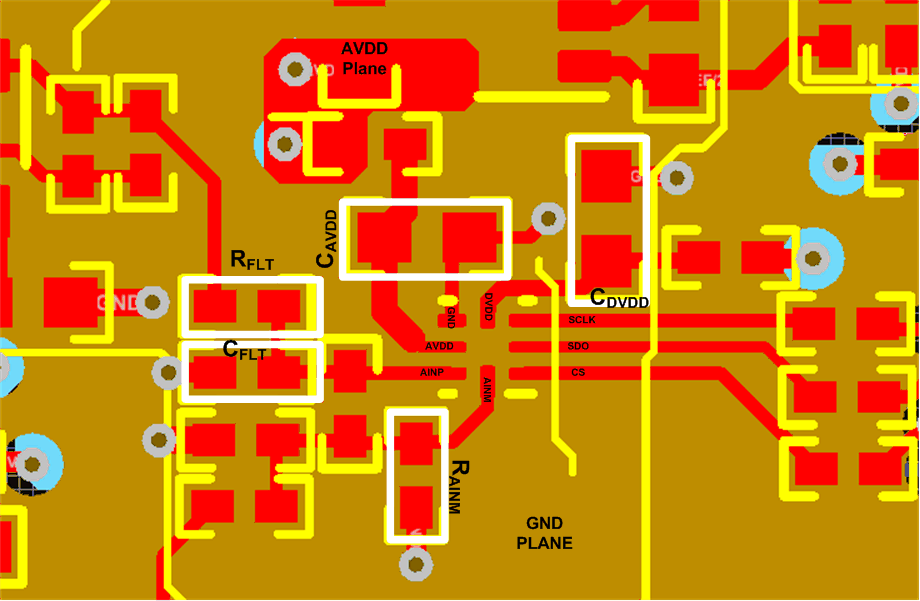

Layout Example

ADS7046 layout_layout_se_sbas769.gif Figure 51. Example Layout
