1 Features

  • Qualified for Automotive Applications
  • Output Current up to 1000 mA
  • Input Voltage Range from 2.5 V to 6 V
  • High Efficiency Step Down Converter
  • Output Voltage Accuracy in PWM mode ±2.5%
  • Typical 15-μA Quiescent Current
  • 2.25 MHz Fixed Frequency Operation
  • Power Save Mode at Light Load Currents
  • 100% Duty Cycle for Lowest Dropout

2 Applications

  • Automotive Infotainment and Cluster
    • Head Unit
    • Navigation
    • Display
  • Advanced Driver Assistance System (ADAS)
    • Front Cameras
    • Blind Spot Monitoring
    • Lane Departure Warning
    • Park Assist

3 Description

The TPS62590-Q1 device is a high-efficiency synchronous step-down converter, optimized for space constrained applications and very low quiescent current requirements. It provides up to 1000-mA output current from preregulated low voltage rails and consumes 15 uA (typical) in power-save mode.

With an input voltage range of 2.5 V to 6 V and an output voltage accuracy of 2.5%, the device is targeted to power a large variety of automotive applications.

The TPS62590-Q1 family operates at a 2.25-MHz fixed switching frequency and enters a power-save mode at light load currents to maintain a high efficiency over the entire load current range.

The power-save mode is optimized for low output-voltage ripple. For low-noise applications, the device can be forced into fixed-frequency PWM mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1 µA. The TPS62590-Q1 allows the use of small inductors and capacitors to achieve a small solution size.

The TPS62590-Q1 is available in a 2-mm × 2-mm
6-pin SON package with a thermal pad for improved thermal performance.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
TPS62590-Q1 SON (6) 2.00 mm × 2.00
  1. For all available packages, see the orderable addendum at the end of the data sheet.

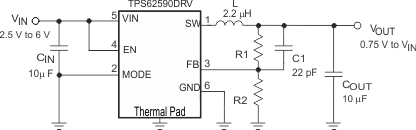

Typical Application Schematic

TPS62590-Q1 fbd_slvsao5b.gif

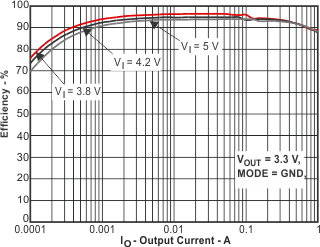

Efficiency vs Load Current

TPS62590-Q1 fp_graph_slvsao5.gif
