1 Example 1: Reading Cell Voltage

I²C commands are always initiated by the host with a START (S) bit sequence, immediately followed by a 7-bit I²C address with the most-significant bit (MSB) sent first. An eighth bit of 0 is sent by the host, indicating that the next byte to be sent will be a write to the gauge. For the bq34xxx series and bq35xxx series of parts, these 8 bits form the byte 0xAA. Once the start bit and address byte have been successfully received by the gauge, the gauge responds with an ACKNOWLEDGE (A) bit sequence. The gauge is now ready for the subsequent command directive from the host. Further descriptions of the control bit sequences are presented in the Glossary: Control-Bit-Sequence Definitions.

After the successful transmission of the I²C address and read or write bit, the gauge command code can be sent by the host, in this case 0x08 for the Voltage( ) command. The command code is actually a base address location within the gauge and must not be confused with the I²C address for the gauge. Once this location is sent by the host, the gauge responds by sending an ACKNOWLEDGE bit sequence and then executing the corresponding command subroutine. Even though two-byte locations are used for many gauge commands, writing to only the single byte is required to start gauge command processing. In this case, only 0x08 was written to the gauge, even though the command consists of the two consecutive command bytes 0x08 and 0x09. Most commands consist of two bytes, because the data is returned to these command locations and are also two bytes – the least-significant byte (LSB) is stored in the lower address (0x08), whereas the MSB is stored in the higher address (0x09). Like the I²C address data, the gauge command is sent MSB-first.

The host initiates the reading of the command data by sending a REPEAT START (Sr) bit sequence. This is immediately followed by the 7-bit I²C address of the gauge plus the read-bit directive (1), which together create the byte 0xAB. The gauge responds with an ACKNOWLEDGE bit sequence, then takes control of the data bus. The first data byte (LSB) is stored at the 0x08 location in the gauge and is strobed out by the gauge MSB-first. If the host responds with an ACKNOWLEDGE bit sequence, the gauge automatically increments the command location to 0x09, then strobes out the MSB stored there. If the host responds with a NO ACKNOWLEDGE (P or NACK) bit transmission, no further data is spooled to the host. The host terminates the present command packet by sending a STOP bit.

2 Example 2: Reading the Firmware Version

Reading the firmware version is an example of using the bq34z100-G1 subcommands. Subcommands are unique, as they represent another level of depth into the gauge command structure. All subcommands are accessed through the paired command locations at 0x00 and 0x01 in the gauge. The subcommands are written LSB-first. Hence, to send the FW_VERSION subcommand (0x0002), the host writes 0x02 to command location 0x00 and 0x00 to 0x01. Again, I²C always writes the MSB first. The format for address/command/data exchange between host and gauge is similar to the previous example and is shown in Figure 2. As in Example 1, the host initiates transmission with a START bit, followed by the gauge I²C address and a WRITE bit of 0 (0xAA). The gauge responds with an ACKNOWLEDGE, then the host specifies the command address of 0x00. Again, the gauge responds with an ACKNOWLEDGE. At this stage, the host must make additional writes to the gauge to set the subcommand code of 0x0002. Hence, the host sends the low byte of the subcommand (0x02). The gauge acknowledges. Then the host sends the high byte of the subcommand (0x00). The gauge issues an ACKNOWLEDGE. The host completes the writing process by issuing the STOP bit sequence. Now the gauge is prepared to return firmware information to the host.

To start the reading process, the host proceeds in a manner similar to Example 1, by issuing a START (S) bit sequence, immediately followed by the 7-bit I²C address of the gauge and the eighth bit of 0 (altogether, 0xAA for the bq34z100-G1 device). The gauge responds with an ACKNOWLEDGE bit sequence. The host sends the Control( ) command of 0x00, and the gauge acknowledges. The gauge address location has now been set. To retrieve the data at 0x00 and 0x01, the host proceeds as before. It initiates the reading of the command data by sending a REPEATED START bit sequence. This is immediately followed by the 7-bit I²C address of the gauge plus the read-bit directive (1), which together create the byte 0xAB. The gauge responds with an ACKNOWLEDGE bit sequence, then takes control of the data bus. The first data byte (LSB) is stored at the 0x00 location in the gauge and is strobed out by the gauge MSB-first. If the host responds with an ACKNOWLEDGE bit sequence, the gauge automatically increments the command location to 0x01, then strobes out the MSB stored there. The host terminates the entire command process by sending a STOP bit.

2.1 Standard I²C Commands

We will use the Voltage as an example. Its command code is 08/09. Use the I²C Master Control Panel section to read the flash.

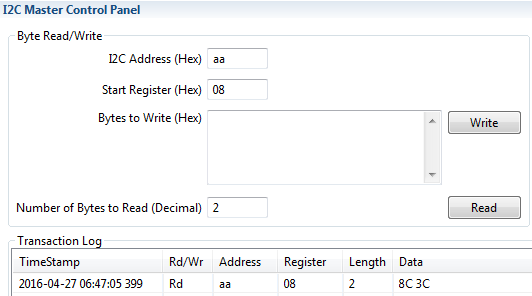

ENTER: Start Register 08, Number of Bytes to Read 2 and PRESS the Read button.

Byte swap the data and convert it to decimal. 3C8C is 15500 mV.

2.2 Extended I²C Commands

Read these like Standard Commands. As an example, use the State-of-Health (SOH), its command code is 2E/2F.

Use the I²C Master Control Panel section to read the flash.

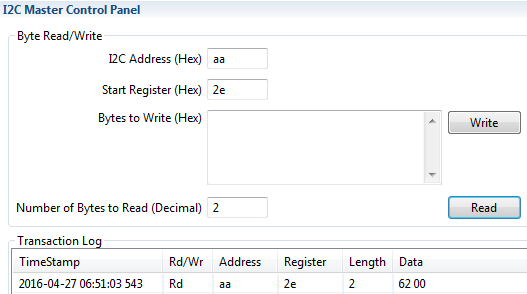

ENTER: Start Register 2E, Number of Bytes to Read 2, and PRESS the Read button.

Byte swap the data and convert it to decimal. 0062 is 98% SOH.

2.3 Control Subcommands

Example 1:

DEVICE_TYPE Control() Subcommand 0001 and the correct answer is 0100 for the bq34z100-G1.

Use the I²C Master Control Panel section to read the flash.

ENTER: Start Register 00, Bytes to Write 0100 and PRESS the Write button.

The I²C words occur in the following order in the data stream: AA, 00, 01, 00.

ENTER: Start Register 00, Number of Bytes to Read 2 and PRESS the Read button.

The I²C words occur in the following order in the data stream: AA, 00, AB, 00, 01.

The device returns 0001, which is Little Endian for 0100. This is the DEVICE_TYPE for the bq34z100-G1.

Example 2:

CHEM_ID Control() Subcommand 0008 and the correct answer is 0107 for the bq34z100-G1.

Use the I²C Master Control Panel section to read the flash.

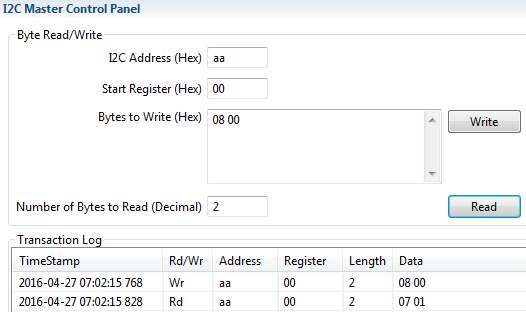

ENTER: Start Register 00, Bytes to Write 0800 and PRESS the Write button.

The I²C words occur in the following order in the data stream: AA, 00, 08, 00.

ENTER: Start Register 00, Number of Bytes to Read 2 and PRESS the Read button.

The I²C words occur in the following order in the data stream: AA, 00, AB, 07, 01.

The device returns 0701, which is Little Endian for 0107. This is the default ChemID for the bq34z100-G1.

Example 3:

FW_VERSION Control() Subcommand 0002 returns both the DEVICE_NUMBER and the FW_VERSION on the bq34110 and bq35100. You must read 4 bytes of data.

Use the I²C Master Control Panel section to read the flash.

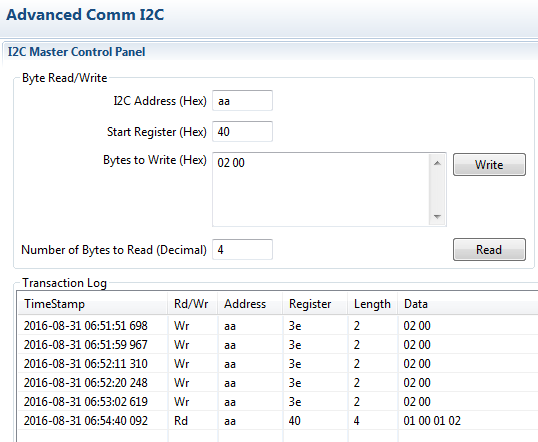

ENTER: Start Register 3E, Bytes to Write 0200 and PRESS the Write button.

The I²C words occur in the following order in the data stream: AA, 3E, 02, 00.

ENTER: Start Register 40, Number of Bytes to Read 4 and PRESS the Read button.

The I²C words occur in the following order in the data stream: AA, 40, AB, 01, 00, 01, 02.

The device returns 0100 0102 and it is not returned Little Endian. The DEVICE_NUMBER is 0100 for the bq35100 and the FW_VERSION is 0102.

2.4 Data Flash Access for the bq34z100-G1

Example 1:

Find the SubClass and Offset for the data that you want to read. We will use Serial Number for this example. SubClass 48, Offset 04 and it occupies 2 bytes.

Convert the SubClass HEX. 48 = 30H

Use the I²C Master Control Panel section to read the flash.

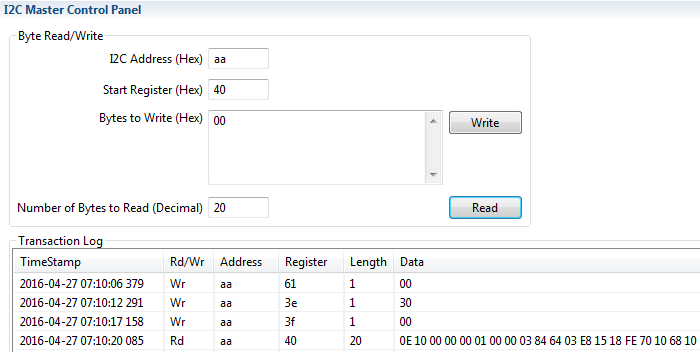

Start Register 61, Bytes to Write 00 (Enable Flash x’fer command)

Start Register 3E, Bytes to Write 30 (SubClass address)

Start Register 3F, Bytes to Write 00 (Enable General Purpose Block)

Start Register 40, Number of Bytes to Read 20

The Serial number starts in the 5th byte. (0 is the first byte) The Serial Number is 0001 in this example.

To read offset greater than 31, go to the next page; for example, I²C Command 3F, Byte 01

Example 2:

Find the SubClass and Offset for the data you want to read. Using Device Chemistry for this example; SubClass 30, Offset 55, and it occupies 5 bytes. The Offset exceeds 32 bytes, so read the data from the 2^nd page of the SubClass. The Device Chemistry will be located in bytes 24-29 of the 2^nd page. The first byte is the number of bytes in the string.

Convert the SubClass HEX. 48 = 30H

Use the I²C Master Control Panel section to read the flash.

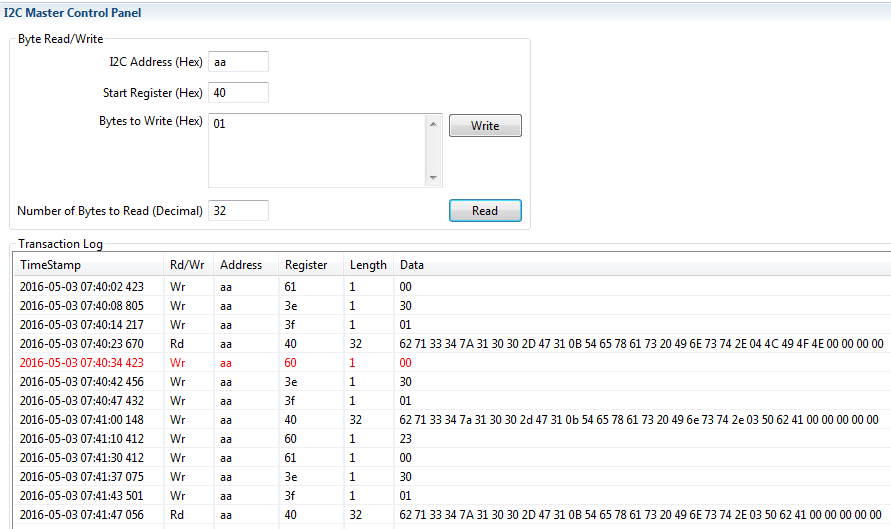

Start Register 61, Bytes to Write 00 (Enable Flash x’fer command)

Start Register 3E, Bytes to Write 30 (SubClass address)

Start Register 3F, Bytes to Write 01 (Enable General Purpose Block, 2^nd page)

Start Register 40, Number of Bytes to Read 32

This is the data that was returned. The Device Chemistry starts in the 24th byte. (0 is the first byte) The 04 is the number of bytes currently programmed and 4C 49 4F 4E are ASCII for LION

We want to change LION to PbA and PbA is 50 62 41 in ASCII. The new string will be:

Where 03 is the number of bytes.

You will also need to calculate the checksum. Add the 32 bytes of data in hexadecimal and inverse the bits on the last byte to find the checksum. The string adds up to 7DC. The inverse of the last byte is 23, so this will be entered with the 60 command. Here is the full process to read the initial data flash contents, enter the new data and read the data flash to verify that it is correct.

3 Data Flash Access for the bq34110 and bq35100

Find the data flash address for the data that you want to read or change. Use the Operation Config A register on the bq35100 for this example. The parameter is located at 0z41b1 and it occupies 1 byte and can be found in the Technical Reference Manual (TRM) or on the bqStudio Data Memory screen.

Use the Advanced Comm section to read the data flash.

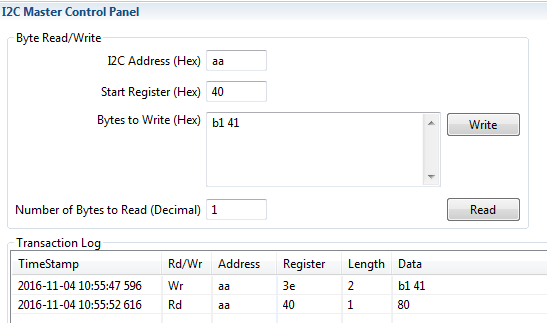

Start Register 3E, Bytes to Write b1 41 (data flash address)

Start Register 40, Number of Bytes to Read 01

The Operation Config A register is 80 in this example.

Change the Operation Config A register to 0x82 to change to End-of Service mode.

Use the Advanced Comm section to write the data flash.

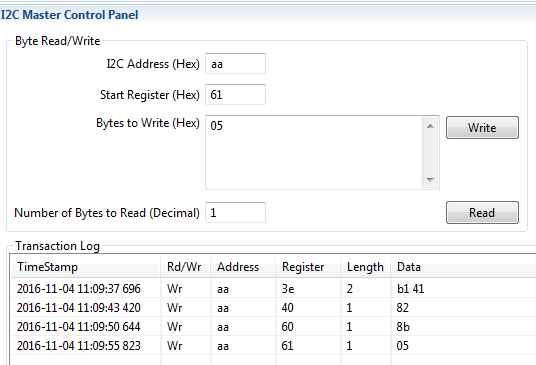

Start Register 3E, Bytes to Write b1 41 (data flash address)

Start Register 40, Byte to Write 82 (new data)

Start Register 60, Byte to Write 8b (checksum)

Start Register 61, Byte to Write 05 (length of data written)

The checksum is calculated by adding the starting address and the data in hexadecimal and the taking the inverse of the last byte. In the example, the checksum calculation will be 41 + b1 + 82 = 174. Inverse the last byte. 74 => 8b

The Length of Data Written is set to the number of bytes + 4. In this example it is set to 1 + 4 = 5.

4 Summary

In summary, remember the following critical aspects when implementing I²C communication between host and bq34xxx and bq35xxx gauges:

1. Handshaking between the host and gauge is performed by five bit sequences: START, REPEATSTART, ACKNOWLEDGE, NO ACKNOWLEDGE, and STOP.
2. The I²C address and read/write bit is the first data item sent at the beginning of an I²C packet transmission. The I²C address must not be mistaken for the command address in the gauge, the latter being the second data field to be transmitted by the host.
3. The host initiates all communication to the gauge and uses the WRITE directive at the end of the I²C address (total byte is 0xAA). When followed by the gauge command, this sets the command address from which the host writes or reads gauge data.
4. When reading or writing multiple bytes, the host should use the base-address auto-increment feature of the gauge, rather than specifying the gauge address location each time a byte is transferred.
5. Whether command address or gauge data, all I²C data is transferred between host and gauge with the least-significant byte first.
6. All bytes transferred between host and gauge is transferred most-significant bit first.

5 Glossary: Control-Bit-Sequence Definitions

START: The START-bit sequence is a host-generated bit that begins the transmission of every packet. It is defined by a high-to-low transition on the SDA line, while the SCL line is high.

REPEAT START: The REPEAT-START-bit sequence is also a host-generated bit. It has the same characteristics as the START bit, but appears in the middle of a packet transmission. It tells the slave that the gauge command (address) has been specified and data is ready for transfer to or from that command address.

STOP: The STOP-bit sequence indicates the end of a transmission packet. It is consists of a low-to-high transition of the SDA line, while the SCL line is high.

ACKNOWLEDGE: The ACKNOWLEDGE-bit sequence follows every (successful) data field sent between the host and gauge. The device receiving the data field is responsible for sending the bit sequence. The sequence consists of the SDA line being maintained in a low-status, while the SCL line is pulsed high.

NO ACKNOWLEDGE: The NO-ACKNOWLEDGE-bit sequence is frequently used by the host or gauge to indicate the last data byte has been transmitted/received, and that the host should terminate the packet with a STOP-bit sequence. It can also be used to indicate that an I²C device is not listening or capable of responding to the host at a given time. The sequence consists of the SDA line floating in a high state, while the SCL line is pulsed high.
