DATA SHEET

TPS7B81 150mA、40V、超低 IQ 低压降稳压器

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

1 特性

  • 宽输入电压范围:3V 至 40V
  • 输出电流:150mA
  • 超低静态电流 (IQ):
    • 轻负载时典型值为 2.7µA
    • 轻负载时最大值为 4.5µA
  • 精度:整个线路、负载和温度范围内为 1.5%
  • 典型压降电压:180mV(电流为 100mA)
  • 宽使能电压范围:2V 至 VIN(最大值为 40V)
  • 输入电压瞬态容差:45V
  • 5V 和 3.3V 固定输出选项
  • 电流限制和热关断保护
  • 与多种电容(1µF 至 200µF)搭配使用可保持稳定(1)
  • 结温范围:–40°C 至 +150°C
  • 高热性能封装:
    • DGN(8 引脚 HVSSOP),RθJA = 63.9°C/W
    • DRV(6 引脚 WSON),RθJA = 72.8°C/W

    (1)
  • 1. 请参阅 建议运行条件 表中的输出电容要求

2 应用

  • 烟雾和热量探测器
  • 恒温器
  • 运动检测器(PIR、uWave 等)
  • 无线电动工具
  • 电器电池组
  • 电机驱动器

3 说明

TPS7B81 是一款低压降 (LDO) 线性稳压器,可在高达 40V 的输入电压下工作,并可提供高达 150mA 的电流。该器件在轻负载时的静态电流仅为 2.7µA,非常适合 需要极低待机功耗的 宽输入电源设计和高电池节数电池应用45V 的瞬态容差为可能存在电感反冲的 应用 提供了额外的裕量,从而减少了用于电压抑制的外部电路。

TPS7B81 具有集成的短路和过流限制功能,可在故障条件下为系统提供保护。除了低待机功耗外,轻负载条件下的极低压降电压也有助于维持电压稳定,即使在电池耗尽的情况下,也是如此。

TPS7B81 采用热增强型 8 引脚 HVSSOP 和 6 引脚 WSON 封装。这两种封装均具有较高的导热率,而且它们的尺寸较小,可支持紧凑型设计,非常适合用于空间受限的 应用 ,例如电动工具或电机驱动模块和电池组。

器件信息(1)

器件型号 封装 封装尺寸(标称值)
TPS7B81 HVSSOP (8) 3.00mm × 3.00mm
WSON (6) 2.00mm × 2.00mm
  1. 如需了解所有可用封装,请参阅数据表末尾的可订购产品附录。

Device Images

T48 路多路复用 LC6948

TPS7B81 SBVS402-typ-app.gif

静态电流与环境温度间的关系
(VOUT = 3.3V)

TPS7B81 iq_vs_temp_3v3.gif

4 修订历史记录

日期 修订版本 说明
2020 年 4 月 * 初始发行版。

5 Pin Configuration and Functions

DGN Package
8-Pin HVSSOP PowerPAD™
Top View
DRV Package
6-Pin WSON PowerPAD™
Top View

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
DGN DRV
DNC — 5 — Do not connect to a biased voltage. Tie this pin to ground or leave floating.
EN 2 2 I Enable input pin. Drive EN greater than VIH to turn on the regulator. Drive EN less than VIL to put the low-dropout (LDO) into shutdown mode.
GND 4, 5, 6 3,4 — Ground reference
IN 1 1 I Input power-supply pin. For best transient response and to minimize input impedance, use the recommended value or larger ceramic capacitor from IN to ground as listed in the Recommended Operating Conditions table and the Input Capacitor section. Place the input capacitor as close to the output of the device as possible.
NC 3, 7 — — Not internally connected
OUT 8 6 O Regulated output voltage pin. A capacitor is required from OUT to ground for stability. For best transient response, use the nominal recommended value or larger ceramic capacitor from OUT to ground; see the Recommended Operating Conditions table and the Output Capacitor section. Place the output capacitor as close to output of the device as possible.
Thermal pad — Connect the thermal pad to a large-area GND plane for improved thermal performance.

6 Specifications

6.1 Absolute Maximum Ratings

over operating ambient temperature range (unless otherwise noted)(1)(2)
MIN MAX UNIT
VIN Unregulated input voltage(3) –0.3 45 V
VEN Enable input voltage(3) –0.3 VIN V
VOUT Regulated output –0.3 7 V
TJ Junction temperature –40 150 °C
Tstg Storage temperature –40 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to GND.
(3) Absolute maximum voltage, can withstand 45 V for 200 ms.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) JEDEC document JEP155 states that 2-kV HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 500-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating ambient temperature range (unless otherwise noted)
MIN MAX UNIT
VIN Unregulated input voltage 3 40 V
VEN Enable input voltage 0 VIN V
COUT Output capacitor requirements(1) 1 200 µF
ESR Output capacitor ESR requirements(2) 0.001 5 Ω
TA Ambient temperature –40 125 °C
TJ Junction temperature –40 150 °C
(1) The output capacitance range specified in the table is the effective capacitance value.
(2) Relevant ESR value at f = 10 kHz

6.4 Thermal Information

THERMAL METRIC(1) TPS7B81 UNIT
DGN
(HVSSOP)
DRV
(WSON)
8 PINS 6 PINS
RθJA Junction-to-ambient thermal resistance 63.9 72.8 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 50.2 85.8 °C/W
RθJB Junction-to-board thermal resistance 22.6 37.4 °C/W
ψJT Junction-to-top characterization parameter 1.8 2.7 °C/W
ψJB Junction-to-board characterization parameter 22.3 37.3 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 12.1 13.8 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

6.5 Electrical Characteristics

over operating ambient temperature range, TJ = –40°C to +150°C, VIN = 14 V, and 10-µF ceramic output capacitor (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SUPPLY VOLTAGE AND CURRENT (IN)
VIN Input voltage VOUT(Nom) + V(Dropout) 40 V
I(SD) Shutdown current EN = 0 V 0.3 1 µA
I(Q) Quiescent current VIN = 6 V to 40 V, EN ≥ 2 V, IOUT = 0 mA 1.9 3.5 µA
VIN = 6 V to 40 V, EN ≥ 2 V, IOUT = 0.2 mA DGN package 2.7 6.5
DRV package 2.7 4.5
V(IN, UVLO) VIN undervoltage detection Ramp VIN down until the output turns off 2.7 V
Hysteresis 200 mV
ENABLE INPUT (EN)
VIL Logic-input low level 0.7 V
VIH Logic-input high level 2 V
IEN Enable current 10 nA
REGULATED OUTPUT (OUT)
VOUT Regulated output VIN = VOUT + V(Dropout) to 40 V,
IOUT = 1 mA to 150 mA
–1.5% 1.5%
V(Line-Reg) Line regulation VIN = 6 V to 40 V, IOUT = 10 mA 10 mV
V(Load-Reg) Load regulation VIN = 14 V, IOUT = 1 mA to 150 mA DGN package 20 mV
DRV package 10
V(Dropout) Dropout voltage VOUT = 5 V IOUT = 150 mA DGN package 270 540 mV
DRV package 325 585
IOUT = 100 mA DGN package 180 350
DRV package 200 390
VOUT = 3.3 V IOUT = 150 mA DGN package 650
DRV package 345 675
IOUT = 100 mA 255 450
IOUT Output current VOUT in regulation, VIN = 7 V for the fixed 5-V option, VIN = 5.8 V for the fixed 3.3-V option 0 150 mA
I(CL) Output current limit VOUT short to 90% × VOUT 180 510 690 mA
PSRR Power-supply ripple rejection V(Ripple) = 0.5 VPP, IOUT = 10 mA, frequency = 100 Hz, COUT = 2.2 µF 60 dB
OPERATING TEMPERATURE RANGE
T(SD) Junction shutdown temperature 175 ºC
T(HYST) Hysteresis of thermal shutdown 20 ºC

6.6 Typical Characteristics

at TJ = –40°C to +150°C, VIN = 14 V, and VEN ≥ 2 V (unless otherwise noted)

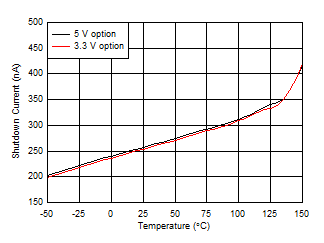

TPS7B81 shutdown_current_vs_temp.gif
VEN = 0 V
Figure 1. Shutdown Current vs Ambient Temperature
TPS7B81 iq_vs_temp_3v3.gif
VOUT = 3.3 V
Figure 3. Quiescent Current vs Ambient Temperature
TPS7B81 dropout_vs_iout_3v3.gif
VOUT = 3.3 V, DRV package
Figure 5. Dropout Voltage vs Output Current
TPS7B81 dropout_vs_temp_3v3.gif
VOUT = 3.3 V
Figure 7. Dropout Voltage vs Ambient Temperature

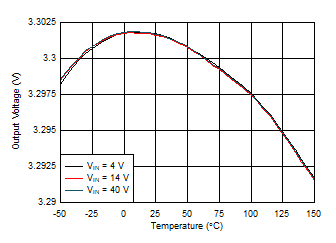

TPS7B81 accuracy_vs_temp_3v3.gif
VOUT = 3.3 V, IOUT = 1 mA
Figure 9. Output Voltage vs Ambient Temperature
TPS7B81 25_to_150_acc_hist_v2.gif
3.3-V and 5-V options, IOUT = 1 mA
Figure 11. Temperature Drift Histogram (25ºC to 150ºC)
TPS7B81 accuracy_vs_vin_3v3.gif
VOUT = 3.3 V, IOUT = 1 mA
Figure 13. Output Voltage vs Input Voltage

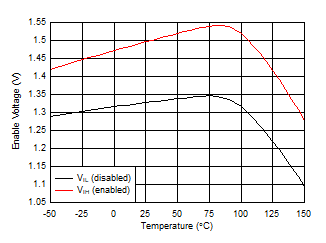

TPS7B81 enable_voltage_vs_temp.gif
Figure 15. Enable Voltage vs Ambient Temperature
TPS7B81 uvlo_vs_temp.gif
Figure 17. UVLO vs Ambient Temperature
TPS7B81 D004_line_transient.gif
VOUT = 3.3 V, CIN = 0 µF, COUT = 1 µF,
IOUT = 100 mA, slew rate = 1 V/µs
Figure 19. Line Transient
TPS7B81 psrr_5v.gif
VOUT = 5 V, CIN = 0 µF, COUT = 10 µF
Figure 21. PSRR vs Frequency
TPS7B81 noise.gif
CIN = 0.1 µF, COUT = 10 µF
Figure 23. Noise vs Frequency
TPS7B81 iq_vs_temp_5v.gif
VOUT = 5 V
Figure 2. Quiescent Current vs Ambient Temperature
TPS7B81 dropout_vs_iout_5v.gif
VOUT = 5 V, DRV package
Figure 4. Dropout Voltage vs Output Current
TPS7B81 dropout_vs_temp_5v.gif
VOUT = 5 V
Figure 6. Dropout Voltage vs Ambient Temperature

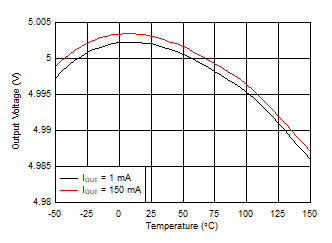

TPS7B81 accuracy_vs_temp_5v.gif
VOUT = 5 V
Figure 8. Output Voltage vs Ambient Temperature
TPS7B81 neg40_to_25_acc_hist_v2.gif
3.3-V and 5-V options, IOUT = 1 mA
Figure 10. Temperature Drift Histogram (–40°C to +25°C)
TPS7B81 accuracy_vs_vin_5v.gif
VOUT = 5 V, IOUT = 1 mA
Figure 12. Output Voltage vs Input Voltage

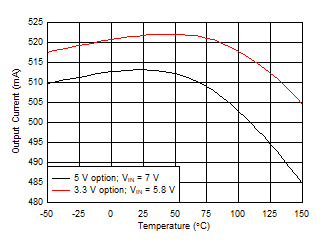

TPS7B81 current_limit_vs_temp.gif
VOUT is shorted to 90% × VOUT(NOM)
Figure 14. Output Current Limit vs Ambient Temperature

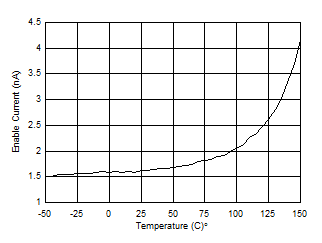

TPS7B81 enable_current_vs_temp.gif
Figure 16. Enable Current vs Ambient Temperature

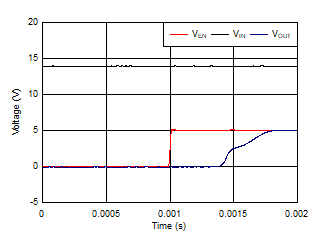

TPS7B81 D005_startup.gif
VOUT = 5 V, CIN = 1 µF, COUT = 1 µF
Figure 18. Startup With Enable
TPS7B81 D006_load_transient.gif
VOUT = 5 V, CIN = 1 µF, COUT = 1 µF,
IOUT = 1 mA → 100 mA → 1 mA, slew rate = 1 mA/µs
Figure 20. Load Transient
TPS7B81 psrr_3v3.gif
VOUT = 3.3 V, CIN = 0 µF, COUT = 10 µF
Figure 22. PSRR vs Frequency
TPS7B81 D014_SLVSDQ0.gif
Figure 24. Output Capacitance vs ESR Stability

7 Detailed Description

7.1 Overview

The TPS7B81 is a 40-V, 150-mA, low-dropout (LDO) linear regulator with ultra-low quiescent current. This voltage regulator consumes only 3 µA of quiescent current at light load, and is quite suitable for always-on applications.

7.2 Functional Block Diagram

TPS7B81 fbd_SLVSDQ0.gif

7.3 Feature Description

7.3.1 Device Enable (EN)

The EN pin is a high-voltage-tolerant pin. A high input activates the device and turns the regulation on. Connect this pin to an external microcontroller or a digital circuit to enable and disable the device, or connect to the IN pin for self-bias applications.

7.3.2 Undervoltage Shutdown

This device has an integrated undervoltage lockout (UVLO) circuit to shut down the output if the input voltage (VIN) falls below an internal UVLO threshold (V(UVLO)). This feature ensures that the regulator does not latch into an unknown state during low-input-voltage conditions. If the input voltage has a negative transient that drops below the UVLO threshold and recovers, the regulator shuts down and powers up with a normal power-up sequence when the input voltage is above the required level.
