DATA SHEET

TPS62840 1.8V 至 6.5V、750mA、60nA IQ 降压转换器

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

1 特性

  • 60nA 工作静态电流
  • 100% 占空比模式下,IQ 为 120nA
  • 输入电压范围 VIN:1.8V 至 6.5V
  • 高达 750mA 的输出电流
  • 射频友好型 DCS-Control™
  • 1µA IOUT(3.6VIN 至 1.8VOUT)时的效率为 80%
  • 通过 VSET 引脚提供 16 种可选输出电压
    • 自动转换 PFM/PWM 或强制 PWM 模式
    • 可选的强制 PWM 和 STOP 模式
    • 输出放电功能
    • 25nA 关断电流
    • SON-8、WCSP-6 和热增强型 HVSSOP-8

    2 应用

    • 智能仪表、智能恒温器
    • 资产跟踪设备
    • 可穿戴电子产品
    • 医疗传感器贴片和患者监护仪
    • 工业物联网(智能传感器)/窄带物联网
    • 测试和测量
    • ATEX/本质安全

    3 说明

    TPS62840 是一款高效降压转换器,具有典型值为 60nA 的超低工作静态电流。此器件具有特殊电路,可在 100% 模式下实现仅 120nA 的 IQ,因此可在放电末期进一步延长电池寿命。

    此器件采用 DCS-Control 技术,可以为无线电提供干净的电源,工作时具有 1.8MHz 的典型开关频率。在省电模式下,此器件可将轻负载效率向下扩展至 1μA 负载电流及以下。

    可以将一个电阻器连接到 VSET 引脚以选择 16 种预定义的输出电压,因此这款器件可以灵活地用于各种 应用 并最大限度地减少了外部组件的数量。

    该器件的 STOP 引脚可立即消除所有的开关噪声,从而在测试和测量系统中执行无噪声测量。

    TPS62840 提供了高达 750mA 的输出电流。此器件的输入电压为 1.8V 至 6.5V,支持多种电源,例如 2 节至 4 节碱性电池或 1 节至 2 节锂二氧化锰 (Li-MnO2) 或 1 节锂离子/锂亚硫酰氯 (Li-SOCl2) 电池。

    器件信息(1)

    器件型号 封装 封装尺寸(标称值)
    TPS6284x 8 引脚 DLC (SON) 1.5mm x 2mm
    6 引脚 YBG (WCSP) 0.97mm x 1.47mm
    8 引脚 DGR (HVSSOP) 3mm x 5mm
    1. 如需了解所有可用封装,请参阅数据表末尾的可订购产品附录。

    Device Images

    典型应用

    TPS62840 TPS62841_DLC.png

    效率与负载电流间的关系 (VOUT = 1.8V)

    TPS62840 D0001-SLVSEC6-02.gif

    4 修订历史记录

    Changes from C Revision (November 2019) to D Revision

    • Updated the Device Comparison TableGo
    • Added efficiency graphs to the Application CurvesGo

    Changes from B Revision (August 2019) to C Revision

    • 将 SON-8、WCSP-6 和热增强型 HVSSOP-8 添加至特性Go
    • 将“ATEX/本质安全”添加到应用Go
    • 更新了典型应用图像以显示 TPS62842DGR 器件Go
    • Added orderable part number TPS62841DGR to Device Comparison TableGo
    • Added orderable part number TPS62842DGR to Device Comparison TableGo
    • Updated Thermal Information values to support TPS62842DGRGo
    • Added low-side MOSFET switch current limit to Electrical CharacteristicsGo
    • Added TPS62841DGR to Output Voltage SelectionGo
    • Updated Efficiency Power Save graphs in Application CurvesGo
    • Updated Load Transient waveform in Application CurvesGo
    • Added PCB layout for DGR packageGo

    Changes from A Revision (July 2019) to B Revision

    • 将销售状态从“预告信息”更改为“生产数据”Go

    5 Device Comparison Table

    ORDERABLE PART NUMBER OUTPUT VOLTAGE OUTPUT CURRENT OUTPUT DISCHARGE MODE PIN STOP PIN PACKAGE PACKAGE
    MARKING
    TPS62840DLC 1.8 V to 3.3 V
    in 100-mV steps
    750 mA yes yes yes SON-8 (DLC) E5
    TPS62840YBG no no WCSP-6 (YBG) 62840
    TPS62841DLC 0.8 V to 1.55 V
    in 50-mV steps
    750 mA yes yes yes SON-8 (DLC) E9
    TPS62841YBG no no WCSP-6 (YBG) 62841
    TPS62841DGR yes no HVSSOP-8 (DGR) 62841
    TPS62842DGR 1.8 V, 2.0 V, 2.2 V,
    2.4 V to 3.6 V in 100-mV steps
    750 mA yes yes no HVSSOP-8 (DGR) 62842
    TPS62849DLC 3.4-V fixed output voltage yes SON-8 (DLC) FF

    6 Pin Configuration and Functions

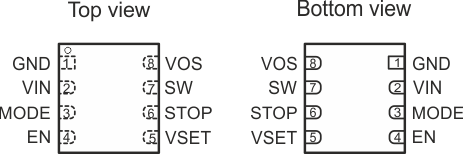

    DLC
    SON-8
    TPS62840 Pinout_8.gif

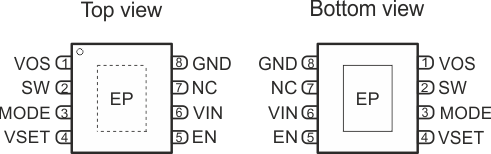

    DGR
    HVSSOP-8
    TPS62840 Pinout_8_DGR.gif

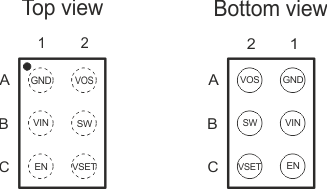

    YBG
    WCSP-6
    TPS62840 Pinout_6.gif

    Pin Functions

    PIN I/O DESCRIPTION
    NAME DLC
    (SON-8)
    DGR
    (HVSSOP-8)
    YBG
    (WCSP-6)
    VIN 2 6 B1 PWR VIN power supply pin. Connect the input capacitor close to this pin for best noise and voltage spike suppression. A 4.7-µF ceramic capacitor is required.
    SW 7 2 B2 PWR The switch pin is connected to the internal MOSFET switches. Connect the inductor to this terminal.
    GND 1 8 A1 PWR GND supply pin. Connect this pin close to the GND terminal of the input and output capacitors.
    VSET 5 4 C2 IN Connecting a resistor to GND sets the output voltage when the converter is enabled. For the TPS62849, connect this pin to GND.
    VOS 8 1 A2 IN Output voltage sense pin for the internal feedback divider network and regulation loop. When the converter is disabled, this pin discharges VOUT by an internal MOSFET. Connect this pin directly to the output capacitor with a short trace.
    EN 4 5 C1 IN Enable pin. A high level enables the device and a low level turns the device off. The pin features an internal pulldown resistor, which is disabled once the device has started up and the output voltage is regulated. The pulldown resistor is activated again, once a low level has been detected.
    STOP 6 n/a n/a IN STOP Switching pin. When this pin is logic high, the converter stops switching in order to provide a quiet supply rail. The output is powered from the charge available in the output capacitor. When this pin is logic low, the device immediately resumes operation. The pin features an internal pulldown resistor, which is disabled once a high level is detected at the input. The pulldown resistor is activated again, once a low level has been detected.
    MODE 3 3 n/a IN MODE pin. A low level enables Power-Save Mode operation with an automatic transition between PFM and PWM modes. A high level forces the converter to operated in PWM mode. This pin can be toggled during operation. It must be terminated.
    NC n/a 7 n/a This pin is not connected internally. Do not connect this pin.
    EP n/a 9 n/a PWR Exposed thermal pad(1). The PowerPAD must be connected to GND.
    (1) For more information about the PowerPAD, see the PowerPAD™ Thermally Enhanced Package application report.

    7 Specifications

    7.1 Absolute Maximum Ratings(1)

    MIN MAX UNIT
    Pin voltage(2) VIN –0.3 7 V
    SW (DC) –0.3 VIN + 0.3 V
    SW (AC), less than 10ns(3) –2.0 8.5 V
    EN, MODE, STOP –0.3 6.5 V
    VSET –0.3 VIN + 0.3 < 3.6 V
    VOS –0.3 3.7 V
    Operating junction temperature, TJ –40 150 °C
    Storage temperature, Tstg –65 150 °C
    (1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute–maximum–rated conditions for extended periods may affect device reliability.
    (2) All voltage values are with respect to network ground terminal GND.
    (3) While switching.

    7.2 ESD Ratings

    VALUE UNIT
    V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±2000 V
    Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) ±500
    (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. The human body model is a 100-pF capacitor discharged through a 1.5-kΩ resistor into each pin.
    (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

    7.3 Recommended Operating Conditions

    MIN NOM MAX UNIT
    VIN Supply voltage VIN 1.8 6.5 V
    L Effective inductance 1.51 2.2 2.9 µH
    COUT Effective output capacitance 3 10 40 µF
    CIN Effective input capacitance 1 4.7 µF
    CVSET External parasitic capacitance at VSET pin 100 pF
    RSET Nominal resistance range for external voltage selection resistor (E96 resistor series) 0.909 267 kΩ
    External voltage selection resistor tolerance 1%
    External voltage selection resistor temperature coefficient ±200 ppm/°C
    TJ Operating junction temperature range -40 125 °C

    7.4 Thermal Information

    THERMAL METRIC(1) 8 Pins DLC Package 6 Pins YBG Package 8 Pins DGR Package DGR EVM UNIT
    JEDEC PCB 51-7 JEDEC PCB 51-5 TPS62841-2EVM123
    RθJA Junction-to-ambient thermal resistance 105.6 133.4 54.4 46.9 °C/W
    RθJC(top) Junction-to-case (top) thermal resistance 75.7 0.4 58.1 N/A °C/W
    RθJB Junction-to-board thermal resistance 31.9 39.4 25.9 N/A °C/W
    ψJT Junction-to-top characterization parameter 2.3 0.1 1.2 0.9 °C/W
    ψJB Junction-to-board characterization parameter 31.5 39.4 25.9 17.4 °C/W
    RθJC(bot) Junction-to-case (bottom) thermal resistance n/a n/a 11.7 N/A °C/W
    (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

    7.5 Electrical Characteristics

    VIN = 3.6 V, TJ = –40°C to 125°C, STOP = GND, MODE = GND, typical values are at TJ = 25°C (unless otherwise noted)
    PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
    SUPPLY
    IQ_NO_LOAD No load
    operating input current
    EN = VIN, IOUT = 0µA, VOUT = 1.8V
    device switching
    60 nA
    IQ_NO_LOAD No load
    operating input current
    EN = VIN, IOUT = 0µA, VOUT = 1.2V
    device switching
    80 nA
    IQ_NO_LOAD No load
    operating input current
    (PWM Mode)
    EN = VIN, IOUT = 0µA, VOUT = 1.8V, MODE = VIN
    device switching
    3 mA
    IQ_VIN Operating quiescent current into pin VIN EN = VIN, IOUT = 0µA, VOUT = 1.55V or VOUT = 1.8V
    device not switching, TJ = 25°C
    (DLC package option)
    36 100 nA
    IQ_VOS Operating quiescent current into pin VOS EN = VIN, IOUT = 0µA, VOUT = 1.55V or VOUT = 1.8V
    device not switching, TJ = 25°C
    (DLC package option)
    56 120 nA
    IQ_VIN Operating quiescent current into pin VIN EN = VIN, IOUT = 0µA, VOUT = 1.55V or VOUT = 1.8V
    device not switching, TJ = -40°C to 85°C
    36 360 nA
    IQ_VOS Operating quiescent current into pin VOS EN = VIN, IOUT = 0µA, VOUT = 1.55V or VOUT = 1.8V
    device not switching, TJ = -40°C to 85°C
    56 170 nA
    IQ_VOS Operating quiescent current into VOS pin EN = VIN, VOUT = 3.3V
    device not switching
    70 nA
    EN = VIN, VOUT < 1.5 V
    device not switching
    5 nA
    EN, STOP = VIN, 3V < VOUT  < 3.3V
    TJ = -40°C to 85°C
    5 100 nA
    IQ_100%_MODE Operating quiescent current 100% Mode VIN = VOUT = 3.3V, TJ = -40°C to 85°C 120 nA
    IQ_VIN_STOP Operating quiescent current into pin VIN STOP = High, VOUT = 1.8V, TJ = -40°C to 85°C 70 175 µA
    ISD Shutdown current EN = GND, shutdown current into VIN
    VSET = GND, TJ = -40°C to 85°C
    25 300 nA
    VTH_UVLO+ Undervoltage lockout threshold Rising VIN 1.72 1.8 V
    VTH_UVLO– Falling VIN 1.45 1.75 V
    EN, MODE, STOP INPUTS
    VIH_TH High level input voltage 1.1 V
    VIL_TH Low level input voltage 0.4 V
    IIN Input bias current MODE input, TJ = -40°C to 85°C 1 25 nA
    RPD Internal pull-down resistance EN, STOP inputs 200 450 kΩ
    POWER SWITCHES
    RDS(ON) High-side MOSFET
    on-resistance
    (DLC, YBG package)
    VIN = 3.6V, I = 200mA, TJ = -40°C to 85°C 430 600 mΩ
    VIN = 5V, I = 200mA, TJ = -40°C to 85°C 340 465
    Low-side MOSFET
    on-resistance
    (DLC, YBG package)
    VIN = 3.6V, I = 200mA, TJ = -40°C to 85°C 170 240 mΩ
    VIN = 5V, I = 200mA, TJ = -40°C to 85°C 135 180
    High-side MOSFET
    on-resistance
    (DGR package)
    VIN = 3.6V, I = 200mA, TJ = -40°C to 85°C 460 630 mΩ
    VIN = 5V, I = 200mA, TJ = -40°C to 85°C 370 495
    Low-side MOSFET
    on-resistance
    (DGR package)
    VIN = 3.6V, I = 200mA, TJ = -40°C to 85°C 200 270 mΩ
    VIN = 5V, I = 200mA, TJ = -40°C to 85°C 165 210
    ILIMF_SS Soft-start
    switch current limit(1)
    0.15 0.225 0.3 A
    ILIMF High-side MOSFET switch current limit(1) 1.0 1.2 1.4 A
    Low-side MOSFET switch current limit 1.0 A
    ILIMN Negative current limit 533 mA
    tI_LIM_DELAY Current limit propagation delay 50 ns
    ILKG_SW Leakage current
    into SW pin
    VSW = 1.8V, TJ = -40°C to 85°C 10 nA
    OUTPUT VOLTAGE DISCHARGE
    IDISCHARGE_VOS Output discharge current EN = GND, sink current into VOS pin, over VIN range
    VOUT = 1.8V, TJ = -40°C to 85°C
    16 35 44 mA
    THERMAL PROTECTION
    TSD Thermal shutdown temperature Rising junction temperature, PWM Mode 160 °C
    Thermal shutdown hysteresis 5 °C
    OUTPUT
    VOUT Output voltage accuracy PWM Mode, IOUT = 0 mA, VOUT >= 1.8 V -1.5 0 1.5 %
    PWM Mode, IOUT = 0 mA, VOUT <= 1.55 V -2 0 2 %
    VOUT DC output voltage
    load regulation
    PWM Mode 0 %/mA
    DC output voltage
    line regulation
    PWM Mode
    VOUT = 1.8V, IOUT = 200 mA, over VIN range
    0 %/V
    fSW Switching frequency VIN = 3.6V, VOUT = 1.8V, MODE = VIN
    IOUT = 0mA
    1.8 MHz
    tSTARTUP_DELAY Regulator start up delay time VIN = 3.6V, from EN = low to high until device starts switching 200 µs
    tSTARTUP_DELAY Regulator start up delay time EN ramps with VIN, VIN 0 to 3.6V (< 100us), until device starts switching 10 ms
    tSS Soft-start time IOUT = 0mA 120 µs
    tSS_ILIMF Reduced current limit soft-start timeout 700 1200 µs
    (1) This is the static current limit. It can be temporarily higher in applications due to internal propagation delay (see Switch Current Limit / Short Circuit Protection section).

    7.6 Typical Characteristics

    TPS62840 D2007-SLVSEC6-01.gif
    EN = VIN VOUT = 1.55 V Device Not Switching
    Figure 1. Quiescent Current into VIN
    (IQ_VIN)
    TPS62840 IQ100-SLVSEC6-01.gif
    EN = VIN VIN = VOUT = 3.3 V Device Not Switching
    Figure 3. 100% Mode Quiescent Current
    (IQ_100%_MODE)
    TPS62840 D2006-SLVSEC6-01.gif
    EN = GND
    Figure 5. Shutdown Current
    (ISD)
    TPS62840 D2001-SLVSEC6-01.gifFigure 7. Low-Side RDSON versus Temperature
    (DLC, YBG packages)
    TPS62840 D2003-SLVSEC6-01-REWORKED.gifFigure 9. MODE Input Thresholds versus Temperature
    TPS62840 D2012-SLVSEC6-01.gif
    EN = GND VOUT = 1.8 V
    Figure 11. Output Discharge Current versus Temperature
    TPS62840 D00001-SLVSEC6-01.gif
    EN = VIN VOUT = 1.55 V Device Not Switching
    Figure 2. Quiescent Current into VOS
    (IQ_VOS)
    TPS62840 D2011-SLVSEC6-01.gif
    EN = VIN VOUT = 1.8 V Device Not Switching
    Figure 4. STOP Mode Quiescent Current into VIN
    (IQ_VIN_STOP)
    TPS62840 D2000-SLVSEC6-01.gif
    Figure 6. High-Side RDSON versus Temperature
    (DLC, YBG packages)
    TPS62840 D2002-SLVSEC6-01-REWORKED.gifFigure 8. EN Input Thresholds versus Temperature
    TPS62840 D2004-SLVSEC6-01-REWORKED.gifFigure 10. STOP Input Thresholds versus Temperature

    8 Detailed Description



    Texas Instruments

    © Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
    Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
