DATA SHEET

TPS568230 4.5V 至 18V 输入、8A 同步降压稳压器

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

1 特性

  • 输入电压范围:4.5V 至 18V
  • D-CAP3™架构控制,可实现快速瞬态响应
  • 输出电压范围:0.6V 至 7V
  • 0.6V ±1% 基准电压 (25°C)
  • 支持 8A 的连续输出电流
  • 集成 19.5mΩ 和 9.5mΩ RDS(on) 内部功率 MOSFET
  • ULQ™(超低静态电流)功能,可实现较长的电池寿命
  • 可选择运行模式:
    • 强制连续导通模式 (FCCM)
    • Out-of-Audio™(OOA) 模式
    • 高级 Eco-Mode™
  • 可选 600kHz、800kHz 和 1MHz 开关频率
  • 支持高达 90% 的负荷运行
  • 可调节软启动时间(通过 SS 引脚调节)
  • 电源正常状态输出
  • 内置输出放电功能
  • 逐周期过流保护
  • 可提供故障保护的非锁存保护
  • 小型 3.0mm × 3.0mm HotRod™QFN 封装

2 应用

  • 数字电视、机顶盒、游戏机
  • 服务器、存储和网络负载点
  • 工业计算机和工厂自动化 应用
  • 具有典型 5V、12V、15V 输入的分布式电源系统

3 说明

TPS568230 是一款配备了集成 MOSFET 且具有成本效益、高电压输入、高效的同步降压转换器。

TPS568230 具有 ULQ™(超低静态电流)功能,可实现低偏置电流。其工作电源输入电压范围为 4.5V 至 18V。该器件使用 DCAP3™ 控制模式提供快速瞬态响应、良好的线路和负载调节,无需外部补偿,并支持低等效串联电阻 (ESR) 输出电容器,如专用聚合物和超低 ESR 陶瓷电容器。

TPS568230 具有完整的过压、欠压、过流、过热以及欠压锁定保护功能。它结合了电源正常信号、输出放电功能和大负荷运行功能。

TPS568230 配备了 MODE 引脚,用于选择所需的运行模式。为了在轻负载条件下实现高效率,可选择 OOA 模式和高级 Eco-mode™。OOA 模式不允许器件低于可闻频率(低于 25kHz 开关频率)。FCCM 还符合严格的输出电压纹波要求。

TPS568230 同时支持内部和外部软启动时间选项。内部固定软启动时间为 1.3ms。更长的软启动时间可通过在 SS 引脚上连接外部电容器来实现。

TPS568230 采用 20 引脚 3.0mm x 3.0mm HotRod™封装,额定结温范围为 -40oC 至 125oC。

器件信息(1)

器件型号 封装 封装尺寸(标称值)
TPS568230 VQFN (20) 3.00mm × 3.00mm
  1. 如需了解所有可用封装,请参阅数据表末尾的可订购产品附录。

Device Images

典型应用

TPS568230 schem-01-SLVSEY5.gif

效率与输出电流 ECO 模式

TPS568230 D034-5V_600K_PSM_Eff_diff_Vin_EAON.gif

4 修订历史记录

Changes from B Revision (March 2019) to C Revision

  • Added VENH min value 1.21VGo
  • Changed VENH typical value from 1.2V to 1.31VGo
  • Changed VENL min value from 0.8V to 0.95VGo
  • Changed VENLtypical value from 1.05V to 1.11VGo
  • Added VENL max value 1.19V Go

Changes from A Revision (February 2019) to B Revision

  • Changed SW negative voltage for DC change from -2V to -1VGo

Changes from * Revision (October 2018) to A Revision

  • Changed 将销售状态从“预告信息”更改为“生产数据”。Go

5 Pin Configuration and Functions

RJE Package
20-Pin VQFN
Top View
TPS568230 pinout-01-slvse32.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
BST 1 I Supply input for the gate drive voltage of the high-side MOSFET. Connect the bootstrap capacitor between BST and SW, 0.1uF is recommended.
VIN 2,3,4,5 P Input voltage supply pin for the control circuitry. Connect the input decoupling capacitors between VIN and GND.
SW 6,19,20 O Switch node terminal. Connect the output inductor to this pin.
GND 7,8,18,Pad G Power GND terminal for the controller circuit and the internal circuitry.
PGOOD 9 O Open drain power good indicator. It is asserted low if output voltage is out of PGOOD threshold, over voltage or if the device is under thermal shutdown, EN shutdown or during soft start.
SS 11 I Soft-start time selection pin. Connecting an external capacitor sets the soft-start time and if no external capacitor is connected, the soft-start time is about 1.3ms.
NC 10,16 Not connect. Can be connected to GND plane for better thermal achieved.
EN 12 I Enable pin of buck converter. EN pin is a digital input pin, decides turn on or off buck converter. Internal pull down current to disable converter if leave this pin open.
AGND 13 G Ground of internal analog circuitry. Connect AGND to GND plane with a short trace.
FB 14 I Converter feedback input. Connect to the center tap of the resistor divider between output voltage and AGND.
MODE 15 I Switching frequency and light load operation mode selection pin. Connect this pin to a resistor divider from VCC and AGND, the different MODE options are shown in Table 1
VCC 17 O 5.0-V internal VCC LDO output. This pin supplies voltage to the internal circuitry and gate driver. Bypass this pin with a 1-μF capacitor.

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) (1)
MIN MAX UNIT
Input voltage VIN –0.3 22 V
VBST –0.3 27 V
VBST-SW –0.3 6 V
MODE, FB, SS –0.3 6 V
EN –0.3 4 V
GND, AGND –0.3 0.3 V
Output voltage SW –1 22 V
SW (10-ns transient) –3 23 V
PGOOD –0.3 6 V
TJ Operating junction temperature –40 150 °C
Tstg Storage temperature –55 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22- V C101(2) ±500 V
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Input voltage VIN 4.5 18 V
VBST –0.3 23 V
VBST-SW –0.3 5.5 V
MODE, FB, SS –0.3 5.5 V
EN –0.3 3.6 V
GND, AGND –0.3 0.3 V
Output voltage SW –1 18 V
SW (10-ns transient) –3 19 V
PGOOD –0.3 5.5 V
IOUT Output current 8 A
TJ Operating junction temperature –40 125 °C

6.4 Thermal Information

THERMAL METRIC(1) TPS568230 UNIT
RJE (VQFN)
20 PINS
RθJA Junction-to-ambient thermal resistance 44.9 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 32.3 °C/W
RθJB Junction-to-board thermal resistance 13.3 °C/W
ψJT Junction-to-top characterization parameter 1.3 °C/W
ψJB Junction-to-board characterization parameter 13.5 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 16.1 °C/W
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report.

6.5 Electrical Characteristics

TJ =-40°C to 125°C, VVIN = 12 V, unless otherwise noted
PARAMETER TEST CONDITION MIN TYP MAX UNIT
SUPPLY CURRENT
VIN Input voltage range VIN 4.5 18 V
IVIN VIN supply current No load, VEN=3.3V, non-switching 105 uA
IVINSDN Shutdown supply current No load, VEN=0V 2 uA
VCC OUTPUT
VCC VCC output voltage VVIN>5.0V 4.85 5 5.15 V
VVIN=4.5V 4.5 V
ICC VCC current limit 20 mA
FEEDBACK VOLTAGE
VFB FB voltage TJ = 25°C 594 600 606 mV
TJ = -40°C to 125°C 592 600 611 mV
DUTY CYCLE and FREQUENCY CONTROL
FSW Switching frequency TJ = 25°C , FSW=600kHz,Vo=1V 600 kHz
TON(MIN) SW minumum on time TJ = 25°C 60 ns
TOFF(MIN) SW minimum off time VFB = 0.5 V 190 ns
MOSFET and DRIVERS
RDS(ON)H High side switch resistance TJ = 25°C 19.5 mΩ
RDS(ON)L Low side switch resistance TJ = 25°C 9.5 mΩ
OOA FUNCTION
TOOA OOA mode operation period 28 us
OUTPUT DISCHARGE and SOFT START
RDIS Discharge resistance TJ=25°C, VEN=0V 420 Ω
TSS Soft start time Internal soft-start time,SS floating 1.3 ms
ISS Soft start charge current 5 uA
POWER GOOD
TPGDLY PG start-up delay PG from low to high 1 ms
VPGTH PG threshold VFB falling (fault) 85 %
VFB rising (good) 90 %
VFB rising (fault) 115 %
VFB falling (good) 110 %
VPG_L PG sink current capability IOL =4mA 0.4 V
IPGLK PG leak current VPGOOD =5.5V 1 uA
CURRENT LIMIT
IOCL Over current threshold Valley current set point 8.1 9.8 12 A
INOCL Negative over current threshold 3.9 A
LOGIC THRESHOLD
VENH EN high-level input voltage 1.21 1.31 1.4 V
VENL EN low-level input voltage 0.95 1.11 1.19 V
IEN Enable internal pull down current VEN=0.8V 2 µA
OUTPUT UNDERVOLTAGE AND OVERVOLTAGE PROTECTION
VOVP OVP trip threshold 125 %
tOVPDLY OVP prop deglitch TJ=25°C 20 us
VUVP UVP trip threshold 60 %
tUVPDLY UVP prop deglitch 256 us
TUVPDEL Output hiccup delay relative to SS time 256 us
TUVPEN Output hiccup enable delay relative to SS time 7 cycle
UVLO
VUVLOVIN VIN UVLO threshold Wake up 4.2 4.4 V
Shutdown 3.6 3.8 V
Hysteresis 0.4 V
OVER TEMPERATURE PROTECTION
TOTP OTP trip threshold(1) Shutdown temperature 150 °C
TOTPHSY OTP hysteresis(1) Hysteresis 20 °C
(1) Not production tested

6.6 Typical Characteristics

TJ=-40oC to 125oC, VVIN=12V(unless otherwise noted)
TPS568230 D001-VINsupplycurrentvsTempEAON.gif
VEN = 3.3 V
Figure 1. Supply Current vs Junction Temperature
TPS568230 D003-VFBvsTempnew.gif
1.
Figure 3. Feedback Voltage vs Junction Temperature
TPS568230 D005-ENoffvsTempnew.gif
1.
Figure 5. Enable Off Voltage vs Junction Temperature

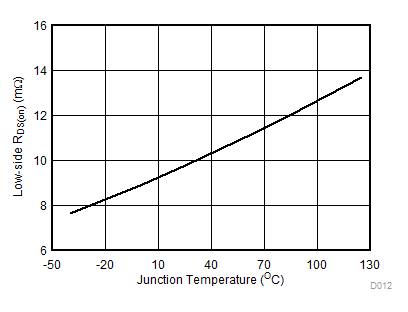

TPS568230 D012-highside_rdson_vsTemp.gif
1.
Figure 7. Low-Side RDS(on) vs Junction Temperature
TPS568230 D007-UVPvsTemp.gif
1.
Figure 9. UVP Threshold vs Junction Temperature
TPS568230 D009-Valley_current_vsTemp.gif
1.
Figure 11. Valley Current Limit vs Junction Temperature
TPS568230 D027-600K_PSM_Eff_diff_Vo_EAON.gif
1.
Figure 13. Efficiency, Eco-mode, FSW = 600 kHz
TPS568230 D029-600K_FCCM_Eff_diff_Vo.gif
1.

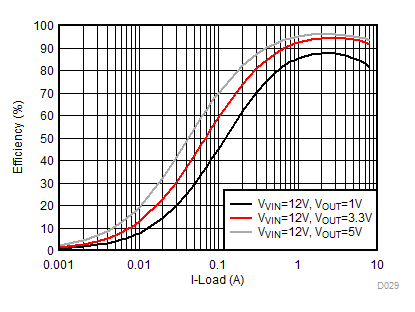

Figure 15. Efficiency, FCCM, FSW = 600 kHz
TPS568230 D031-1M_OOA_Eff_diff_Vo.gif
1.

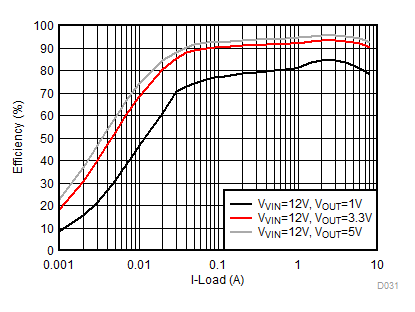

Figure 17. Efficiency, OOA-mode, FSW = 1 MHz
TPS568230 D035-5V_800K_PSM_LoadReg_diff_Vin_EAON.gif
1.
Figure 19. Load Regulation, Eco-mode, FSW = 600 kHz
TPS568230 D036-1V_OOA_FSW_load_diff_VIN_600k.gif
1.
Figure 21. FSW Load Regulation, OOA-mode, FSW = 600 kHz
TPS568230 D038-1V_PSM_FSW_load_diff_VIN_800k.gif
1.
Figure 23. FSW Load Regulation, Eco-mode, FSW = 800 kHz
TPS568230 D040-1V_FCCM_FSW_load_diff_VIN_800k.gif
1.

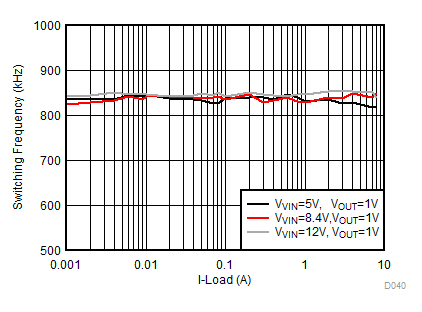

Figure 25. FSW Load Regulation, FCCM, FSW = 800 kHz
TPS568230 D045-FCCM_FSW_load_diff_Vo_800K.gif
1.
Figure 27. FSW Load Regulation, FCCM, FSW = 800 kHz
TPS568230 D002-shutdowncurrentvsTempnew.gif
VEN = 0 V
Figure 2. Shutdown Current vs Temperature
TPS568230 D004-ENonvsTemp.gif
1.
Figure 4. Enable On Voltage vs Junction Temperature
TPS568230 D011-highside_rdson_vsTemp.gif
1.
Figure 6. High-Side RDS(on) vs Junction Temperature
TPS568230 D006-OVPvsTemp.gif
1.
Figure 8. OVP Threshold vs Junction Temperature
TPS568230 D008-discharge_resistor_vsTemp.gif
1.
Figure 10. Discharge Resistor vs Junction Temperature

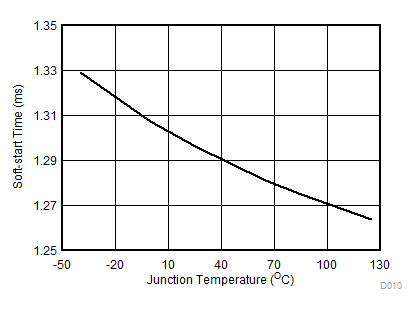

TPS568230 D010-softstart_time_vsTemp.gif
1.
Figure 12. Soft-Start Time vs Junction Temperature
TPS568230 D028-600K_OOA_Eff_diff_Vo.gif
1.

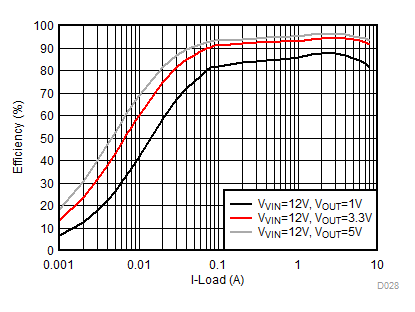

Figure 14. Efficiency, OOA-mode, FSW = 600 kHz
TPS568230 D030-1M_PSM_Eff_diff_Vo_EAON.gif
1.

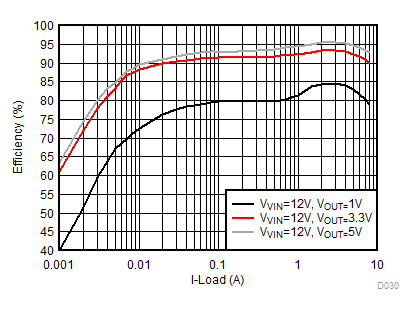

Figure 16. Efficiency, Eco-mode, FSW = 1 MHz
TPS568230 D032-1M_FCCM_Eff_diff_Vo.gif
1.

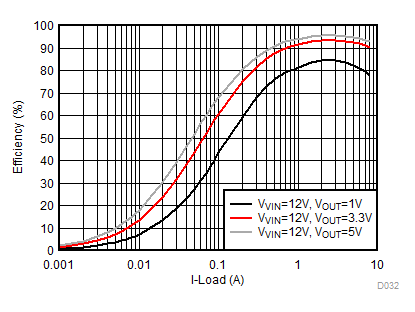

Figure 18. Efficiency, FCCM, FSW = 1 MHz

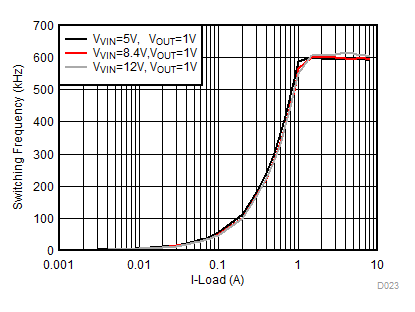

TPS568230 D023-1V_PSM_FSW_load_diff_VIN_600k.gif
1.
Figure 20. FSW Load Regulation, Eco-mode, FSW = 600 kHz

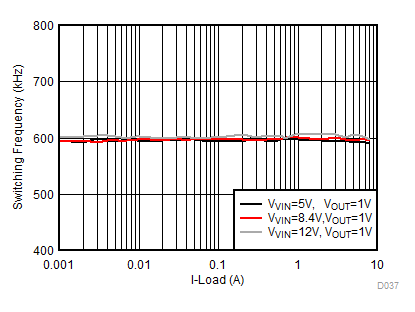

TPS568230 D037-1V_FCCM_FSW_load_diff_VIN_600k.gif
1.
Figure 22. FSW Load Regulation, FCCM, FSW = 600 kHz
TPS568230 D039-1V_OOA_FSW_load_diff_VIN_800k.gif

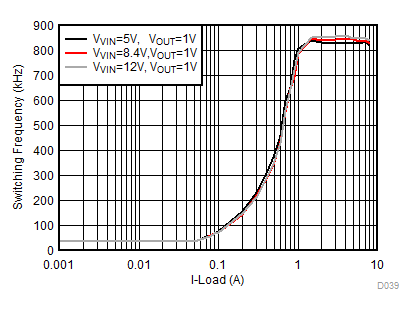

1.
Figure 24. FSW Load Regulation, OOA-mode, FSW = 800 kHz
TPS568230 D044-FCCM_FSW_load_diff_Vo_600K.gif
1.
Figure 26. FSW Load Regulation, FCCM, FSW = 600 kHz
TPS568230 D046-FCCM_FSW_load_diff_Vo_1M.gif

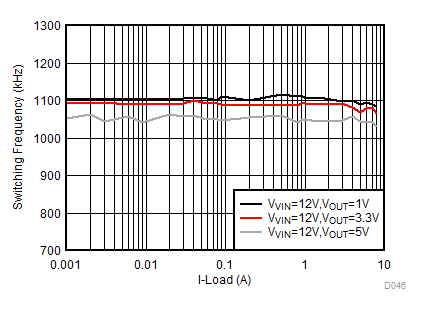

1.
Figure 28. FSW Load Regulation, FCCM, FSW = 1 MHz

7 Detailed Description

7.1 Overview

The TPS568230 is 8-A integrated FET synchronous buck converter which operates from 4.5V to 18V input voltage (VIN), and the output is from 0.6V to 7V. The proprietary D-CAP3™ mode enables low external component count, ease of design, optimization of the power design for cost, size and efficiency. The key feature of the TPS568230 is ultra-low quiescent current (ULQ™) mode. This feature is beneficial for long battery life in system standby mode. The device employs D-CAP3™ mode control that provides fast transient response with no external compensation components and an accurate feedback voltage. The control topology provides seamless transition between CCM operating mode at higher load condition and DCM operation at lighter load condition. Eco-mode™ allows the TPS568230 to maintain high efficiency at light load. OOA (out of audio) mode makes switching frequency above audible frequency larger than 25 kHz, even there is no loading at output side. FCCM mode has the constant switching frequency at both light and heavy load. The TPS568230 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors.



Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
