DATA SHEET

LMX2594 15GHz 宽带 PLLATINUM™ 射频合成器

本资源的原文使用英文撰写。 为方便起见，TI 提供了译文；由于翻译过程中可能使用了自动化工具，TI 不保证译文的准确性。 为确认准确性，请务必访问 ti.com 参考最新的英文版本（控制文档）。

1 特性

  • 10MHz 至 15GHz 输出频率
  • 在 100KHz 偏频和 15GHz 载波的情况下具有 -110dBc/Hz 的相位噪声
  • 7.5GHz 时，具有 45fs rms 抖动（100Hz 至 100MHz）
  • 可编程输出功率
  • PLL 主要规格
    • 品质因数：-236dBc/Hz
    • 标称 1/f 噪声：-129dBc/Hz
    • 最高相位检测器频率
      • 400MHz 整数模式
      • 300MHz 分数模式
    • 32 位分数 N 分频器
  • 用可编程输入乘法器消除整数边界杂散
  • 跨多个设备实现输出相位同步
  • 支持具有 9ps 分辨率可编程延迟的 SYSREF
  • 用于 FMCW 应用的频率斜升和线性调频脉冲生成 能力
  • 小于 20µs VCO 校准速度
  • 3.3V 单电源运行

2 应用

  • 5G 和毫米波无线基础设施
  • 测试和测量设备
  • 雷达
  • MIMO
  • 相控阵天线和波束形成
  • 高速数据转换器时钟（支持 JESD204B）

3 说明

LMX2594 是一款高性能宽带合成器，可在不使用内部加倍器的情况下生成 10MHz 至 15GHz 范围内的任何频率，因而无需使用分谐波滤波器。品质因数为 -236dBc/Hz 的高性能 PLL 和高相位检测器频率可实现非常低的带内噪声和集成抖动。高速 N 分频器没有预分频器，从而显著减少了杂散的振幅和数量。还有一个可减轻整数边界杂散的可编程输入乘法器。

LMX2594 允许用户同步多个器件的输出，并可在 输入和输出之间确定需要延迟的情况下 应用。频率斜升发生器可在自动斜坡生成选项或手动选项中最多合成 2 段斜坡，以实现最大的灵活性。通过快速校准算法可将频率加快至 20μs 以上。LMX2594 增添了对生成或重复 SYSREF（符合 JESD204B 标准）的支持，此 SYSREF 是高速数据转换器的理想低噪声时钟源。此配置中提供了精细的延迟调节（9ps 分辨率），以解决板迹线的延迟差异。

LMX2594 中的输出驱动器在载波频率为 15GHz 时提供高达 7dBm 的输出功率。该器件采用单个 3.3V 电源供电，并具有集成的 LDO，无需板载低噪声 LDO。

器件信息(1)

器件型号 封装 封装尺寸（标称值）
LMX2594 VQFN (40) 6.00mm × 6.00mm
  1. 如需了解所有可用封装，请参阅产品说明书末尾的可订购产品附录。

Device Images

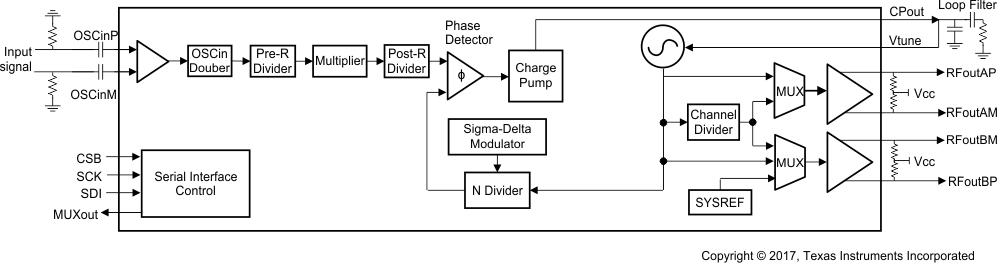

简化原理图

LMX2594 fbd_snas696.gif

4 修订历史记录

Changes from B Revision (March 2018) to C Revision

  • Deleted the recommended bypass capacitor values for Vcc pins 7, 11, 15, 21, 26 and 37, as these capacitor values are not mandatory and the power supply filtering design is up to the user.Go
  • Changed all the 'FRAC_ORDER' to 'MASH_ORDER' to avoid confusionGo
  • Changed the names of timing specs to align with timing diagram: changed tCE to tES, tCS to tDCS, tCH to tCDH, and tCES to tECSGo
  • Changed the names of timing specs to align with timing diagram: changed tES to tCE, tCES to tECS, added tDCS and tCDH, and changed tCS to tCRGo
  • Changed the serial data input timing diagram and corrected the typo for 'SCK'Go
  • Deleted the note 'The CSB transition from high to low must occur when SCK is low' from the serial data input timing diagram, because SPI mode 4 (CPOL = 1, CPHA = 1) is also supported, and SCK is held high when idle in mode 4Go
  • Added note for the serial data input timing diagram to explain the tCE requirement for mode 4 (CPOL = 1, CPHA = 1) of SPI, because the diagram only indicated SPI mode 1 (CPOL = 0, CPHA = 0)Go
  • Changed the serial data readback timing diagramGo
  • Changed the note about MUXout clocking out and emphasized the effect of tCR on the readback data available timeGo
  • Changed the fOUT test conditions in the Closed-Loop Phase Noise at 3.5 GHz graph from: 14 GHz / 2 = 3.5 GHz to: to 14 GHz / 4 = 3.5 GHz Go
  • Added Normalized Output Power Across OUTA_PWR With Resistor Pullup graphGo
  • Changed "Vtune" to "Indirect Vtune" when LD_TYPE = 1Go
  • Changed description for LD_TYPE. Go
  • Added description of Indirect Vtune. Go
  • Added description for the 'no assist' mode, mphasized the effect of VCO_SEL, VCO_DACISET_STRT and VCO_CAPCTRL_STRT under 'no assist' mode, and added recommended values for these registersGo
  • Added description for the 'full assist' mode to allow the user to set VCO amplitude and capcode using linear interpolation under certain conditionsGo
  • Changed OUTx_PWR Recommendations for Resistor Pullup table Go
  • Added description for category 3 of SYNC feature stating that FCAL_EN needs to be 1.Go
  • Changed description of MASH_SEED Go
  • Added 10-ms wait time before re-programming register R0 in recommended initial power-up sequence Go
  • Added the General Programming Requirements section based on frequently asked questionsGo
  • Changed register R4 in the register map to: exposed ACAL_CMP_DLY Go
  • Changed the register R20[14] value from 0 to 1 in the full register map to match the R20 register description Go
  • Changed the default value of R25 to align with register map of LMX2595. This change has no impact on the LMX2594Go
  • Changed the R0[14] register field name in the register map from VCO_PHASE_SYNC_EN to VCO_PHASE_SYNC. to align with the rest of the data sheetGo
  • Added recommended value for register CAL_CLK_DIV when lock time is not of concernGo
  • Changed the typo for register 'VCO_DACISET' in the register map. Bit 0 of this register was not included in the map. The full register map and register description were correctGo
  • Added description to the R4[15:8]: ACAL_CMP_DLY registerGo
  • Deleted the bit description '0: disabled; 1: enabled' for register 'PLL_N'Go
  • Added description to the R60[15:0] LD_DLY registerGo
  • Changed the R31[14] register name from CHDIV_DIV2 to SEG1_EN to align with the naming in the TICS Pro GUIGo
  • Changed the R105[1:0] field name from RAMP_NEXT_TRIG to RAMP1_NEXT_TRIGGo
  • Added the Bias Levels of Pins tableGo

Changes from A Revision (August 2017) to B Revision

  • Changed all the VCO Gain typical values in the Electrical Characteristics table. This is due to improved measurement methods and NOT a change in the device itselfGo
  • Moved the high-level output voltage parameter VCC – 0.4 value from the MAX column to the MINGo
  • Moved the high-level output current parameter 0.4 value from the MIN column to the MAXGo
  • Changed bulleted text: data is clocked out on MUXout, not SDI pinGo
  • Added comment that OSCin is clocked on rising edges of the signal. and reformatted with bulleted listGo
  • Added description of the state machine clock Go
  • Changed example from: 200 MHz / 232 to: 200 MHz / (232 – 1) Go
  • Changed LD_DLY description in Table 4 and removed duplicated text in the Lock Detect sectionGo
  • Changed name from VCO_AMPCAL to VCO_DACISET_STRT Go
  • Added more programmable settings to Table 5Go
  • Changed VCO Gain tableGo
  • Added that OUTx_PWR states 32 to 47 are redundant and reworded sectionGo
  • Added term "IncludedDivide" for clarity Go
  • Changed Fixed Diagram to show SEG0, SEG1, SEG2, and SEG3 Go
  • Changed included channel divide to IncludedDivide and 2 X SEG0 to 2 X SEG1. Also clarified IncludedDivide calculationsGo
  • Added more description on conditions for phase adustGo
  • Changed text from: (VCO_PHASE_SYNC = 1) to: (VCO_PHASE_SYNC = 0) Go
  • Changed text so the user does not incorrectly assume that MASH_SEED varies from part ot partGo
  • Changed the RAMP_THRESH programming from: 0 to ± 232 to: 0 to ± 233 – 1Go
  • Removed comment that RAMP_TRIG_CAL only applies in automatic ramping modeGo
  • Changed the RAMP_LOW and _HIGH programming from: 0 to ± 231 to: 0 to ± 233 – 1Go
  • Changed description to be in terms of state machine cyclesGo
  • Changed RAMP_MODE to RAMP_MANUAL in the Manual Pin Ramping and Automatic Ramping sectionsGo
  • Added that the RampCLK pin input is reclocked to the phase detector frequencyGo
  • Added that RampDir rising edges should be targeted away from rising edges of RampCLK pinGo
  • Changed programming enumerations for RAMP0_INC and RAMP1_INCGo
  • Changed programming enumerations for RAMP_THRESH, RAMPx_LEN, and RAMP1_INCGo
  • Changed Figure 29Go
  • Changed SysRef descriptionGo
  • Added divide by 2 to figureGo
  • Changed some entries in the table Go
  • Changed fINTERPOLATOR SYSREF setup equation in Table 18Go
  • Changed SysRef delay from: 224 and 225 to: 225 and 226Go
  • Changed "generator" mode to "master" mode. They mean the same thingGo
  • Changed description for SYSREF_DIVGo
  • Changed Figure 31Go
  • Changed wording for repeater mode and master modeGo
  • Changed description of a few of the stepsGo
  • Changed typo in R17 and R19 Go
  • Deleted reference to VCO_SEL_STRT_EN. This is always 1Go
  • Added VCO_SEL_STRT_EN reference. This is always 1Go
  • Changed the enumerations 0-3 and added content to the INPIN_LVL field description Go
  • Added Divide by 1' to SYSREF_DIV_PRE register description. Also fixed the name misspellingGo
  • Deleted redundant formula for Fout and also clarified SYSREF_DIV starts at 4 and counts by 2Go
  • Deleted reference to VCO_CAPCTRL_EN, which is always 1, and clarifiedGo
  • Changed text from: fMAX to: fHIGHGo
  • Changed text from: RAMP_LIMIT_LOW=232 - (fLOW - fVCO) / fPD × 16777216 to: RAMP_LIMIT_LOW=233 - 16777216 x (fVCO - fLOW) / fPDGo
  • Removed the OSCin Configuration table and added content to the OSCin Configuration sectionGo
  • Changed pin 27 recommendation from 10 µF to 1 µF in Figure 51Go

Changes from * Revision (March 2017) to A Revision

  • Added DAP pin described as "Die Attach Pad"Go
  • Added H2 Spec for 11 GHz Go
  • Changed "SDA" pin name mispelled. Should be "SDI". Also fixed in timing diagrams. Also added CE Pin Go
  • Clarified that output power assumes that load is matched and losses are de-embeddedGo
  • Swapped SDI and SCK in diagram Go
  • Added graphs and reordered Go
  • Added 12-GHz VCO frequency for PLL Noise Metrics Plot Go
  • Added Phase Noise plots vs. Temperature Go
  • Added Phase noise vs. Fpd Graph Go
  • Moved second paragraph of Readback into Lock Detect section; deleted last paragraph of Readback (was in wrong place)Go
  • Changed table to allow 11.5 GHz max frequency for divides >6Go
  • Added Recommendations table Go
  • Changed the IncludedDivide tableGo
  • Added section on fine tune adjustments Go
  • Changed graphic and descriptionGo
  • Added SYSREF_EN = 1 if and only if OUTB_MUX=2 Go
  • Changed SysRef Example Description and Pictures Go
  • Added recommendation to make fInterpolator a multiple of fOSCGo
  • Added SEG1_ENGo
  • Added INPIN_IGNORE, INPIN_LVL, and INPIN_HYSTGo
  • Removed RAMP0_FL from register mapGo
  • Changed address for VCO_DACISET_STRT and VCO_CAPCTRL Go
  • Clarified MASH_RESET_N. 0 = RESET (integer mode), 1 = Fractional mode Go
  • Changed OUT_ISEL to OUTI_SET Go
  • Added SYSREF_EN=1 when OUTB_MUX=2 Go
  • Added section for input register descriptions Go
  • Added description for SEG1_EN Go
  • Fixed TYPO table to match main register map.Go
  • Added SEG1_ENGo
  • Corrected RAMP_BURST_TRIG description to match other place in data sheetGo
  • Removed duplicate error in R101[2] Go
  • Changed RAMP1_INC from RAMP0 to RAMP1Go
  • Clarified that the delay was in state machine cyclesGo
  • Swapped 1 and 3 in the R110[10:9] descriptionGo
  • Fixed pin names in schematic Go

5 Pin Configuration and Functions

RHA Package
40-Pin VQFN
Top View
LMX2594 po_snas696.gif

Pin Functions

PIN I/O DESCRIPTION
NO. NAME
1 CE Input Chip enable input. Active HIGH powers on the device.
2, 4, 25, 31, 34, 39, 40 GND Ground VCO ground.
3 VbiasVCO Bypass VCO bias. Requires a 10-µF capacitor connected to VCO ground. Place close to pin.
5 SYNC Input Phase synchronization pin. Has programmable threshold.
6, 14 GND Ground Digital ground.
7 VccDIG Supply Digital supply. TI recommends bypassing with decoupling capacitor to digital ground.
8 OSCinP Input Reference input clock (+). High-impedance self-biasing pin. Requires AC-coupling capacitor.
(0.1 µF recommended)
9 OSCinM Input Reference input clock (–). High impedance self-biasing pin. Requires AC-coupling capacitor.
(0.1 µF recommended)
10 VregIN Bypass Input reference path regulator output. Requires a 1-µF capacitor connected to ground. Place close to pin.
11 VccCP Supply Charge pump supply. TI recommends bypassing with decoupling capacitor to charge pump ground.
12 CPout Output Charge pump output. TI recommends connecting C1 of loop filter close to pin.
13 GND Ground Charge pump ground.
15 VccMASH Supply Digital supply. TI recommends bypassing with decoupling capacitor to digital ground.
16 SCK Input SPI clock. High impedance CMOS input. 1.8-V to 3.3-V logic.
17 SDI Input SPI data. High impedance CMOS input. 1.8-V to 3.3-V logic.
18 RFoutBM Output Differential output B (–). Requires a pullup (typically 50-Ω resistor) connected to Vcc as close to the pin as possible. Can be used as an output signal or SYSREF output.
19 RFoutBP Output Differential output B (+). Requires a pullup (typically 50-Ω resistor) connected to Vcc as close to the pin as possible. Can be used as an output signal or SYSREF output.
20 MUXout Output Multiplexed output pin — lock detect, readback, diagnostics, ramp status.
21 VccBUF Supply Output buffer supply. TI recommends bypassing with decoupling capacitor to RFout ground.
22 RFoutAM Output Differential output A (–). Requires connecting a 50-Ω resistor pullup to Vcc as close to the pin as possible.
23 RFoutAP Output Differential output A (+). Requires connecting a 50-Ω resistor pullup to Vcc as close to the pin as possible.
24 CSB Input SPI latch. Chip Select Bar. High-impedance CMOS input. 1.8-V to 3.3-V logic.
26 VccVCO2 Supply VCO supply. TI recommends bypassing with decoupling capacitor to VCO ground.
27 VbiasVCO2 Bypass VCO bias. Requires a 1-µF capacitor connected to VCO ground.
28 SysRefReq Input SYSREF request input for JESD204B support.
29 VrefVCO2 Bypass VCO supply reference. Requires a 10-µF capacitor connected to VCO ground.
30 RampClk Input Input pin for ramping mode that can be used to clock the ramp in manual ramping mode or as a trigger input.
32 RampDir Input Input pin for ramping mode that can be used to change ramp direction in manual ramping mode or as a trigger input.
33 VbiasVARAC Bypass VCO Varactor bias. Requires a 10-µF capacitor connected to VCO ground.
35 Vtune Input VCO tuning voltage input.
36 VrefVCO Bypass VCO supply reference. Requires a 10-µF capacitor connected to VCO ground.
37 VccVCO Supply VCO supply. Recommend bypassing with decoupling capacitor to ground.
38 VregVCO Bypass VCO regulator node. Requires a 1-µF capacitor connected to ground.
DAP GND Ground Die Attached Pad. Used for RFout ground.

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VCC Power supply voltage –0.3 3.6 V
TJ Junction temperature –40 150 °C
Tstg Storage temperature –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±750
(1) JEDEC document JEP155 states that 500 V HBM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 500 V HBM is possible with the necessary precautions. Pins listed as ±XXX V may actually have higher performance.
(2) JEDEC document JEP157 states that 250 V CDM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 250 V CDM is possible with the necessary precautions. Pins listed as ±YYY V may actually have higher performance.


Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
