SN65DSI83-Q1 汽车类单通道 MIPI® DSI 转单链路 LVDS 桥接器
- ZHCSFS0A December 2016 – June 2018 SN65DSI83-Q1

  PRODUCTION DATA.

Full reading width

DATA SHEET

SN65DSI83-Q1 汽车类单通道 MIPI® DSI 转单链路 LVDS 桥接器

本资源的原文使用英文撰写。为方便起见，TI 提供了译文；由于翻译过程中可能使用了自动化工具，TI 不保证译文的准确性。为确认准确性，请务必访问 ti.com 参考最新的英文版本（控制文档）。

1 特性

符合汽车类应用的要求
具有符合 AEC-Q100 标准的下列特性：
- 器件温度等级 2：环境工作温度范围为 –40°C 至 +105°C
- 器件 HBM ESD 分类等级 3A
- 器件 CDM ESD 分类等级 C6
实现 MIPI®D-PHY 1.00.00 版本的物理层前端和 1.02.00 版本的显示串行接口 (DSI)
单通道 DSI 接收器每通道可配置 1、2、3 或 4 条 D-PHY 数据信道，每条信道的运行速率高达 1Gbps
支持 RGB666 和 RGB888 格式的 18bpp 与 24bpp DSI 视频流
最大分辨率高达 60fps WUXGA 1920 × 1200（18bpp 和 24bpp 颜色，采用简化消隐）。适合 60fps 1366 × 768/1280 × 800（18bpp 和 24bpp）
针对单链路 LVDS 的输出
支持单通道 DSI 至单链路 LVDS 运行模式
LVDS 输出时钟范围为 25MHz 至 154MHz
LVDS 像素时钟可采用自由运行持续 D-PHY 时钟或外部基准时钟 (REFCLK)
1.8V 主 V_CC 电源
低功耗特性包括关断模式、低 LVDS 输出电压摆幅、共模以及 MIPI 超低功耗状态 (ULPS) 支持
针对简化印刷电路板 (PCB) 走线的 LVDS 通道交换 (SWAP)，LVDS 引脚顺序反向特性
采用 64 引脚 10mm × 10mm HTQFP (PAP) 封装 PowerPAD™IC 封装

2 应用

集成显示屏的信息娱乐系统主机
具有远程显示屏的信息娱乐系统主机
后座信息娱乐系统
混合动力汽车仪表板
便携式导航设备
导航
工业人机界面 (HMI) 和显示屏

3 说明

SN65DSI83-Q1 DSI 转 LVDS 桥接器具有一个单通道 MIPI D-PHY 接收器前端
配置，此配置中在每个通道上具有 4 条信道，每条信道的运行速率为 1Gbps，最大输入带宽为 4Gbps。该桥接器可解码 MIPI DSI 18bpp RGB666 和 24bpp RGB888 视频流，并将格式化视频数据流转换为 LVDS 输出（像素时钟范围为 25MHz 至 154MHz），从而提供单链路 LVDS（每个链路具有 4 个数据信道）。

SN65DSI83-Q1 器件可支持高达 WUXGA 1920 × 1200（每秒 60 帧，24bpp，采用简化消隐）的分辨率。SN65DSI83-Q1 器件还适用于使用 60fps 1366 × 768/1280 × 800（18bpp 和 24bpp）的应用。该器件实现了部分线路缓冲以适应 DSI 与 LVDS 接口间的数据流不匹配的情况。

SN65DSI83-Q1 器件采用小外形 10mm × 10mm HTQFP
（0.5mm 间距）封装，工作温度范围为 –40ºC 至 +105ºC。

器件信息⁽¹⁾

器件编号	封装	封装尺寸（标称值）
SN65DSI83-Q1	HTQFP (64)	10.00mm x 10.00mm

如需了解所有可用封装，请参阅产品说明书末尾的可订购产品附录。

SN65DSI83-Q1 原理图

4 修订历史记录

Changes from * Revision (December 2016) to A Revision

Deleted figure RESET and Initialization Timing Definition While V_CC is HighGo
Changed the paragraph following Figure 8Go
Changed Recommended Initialization Sequence To: Initialization SequenceGo
Changed Table 2Go
Changed item 3 in Video Stop and Restart Sequence From: Drive all DSI input lanes including DSI CLK lane to LP11. To: Drive all DSI data lanes to LP11, but keep the DSI CLK lanes in HS. Go

5 Pin Configuration and Functions

PAP Package

64-Pin HTQFP With PowerPAD™

Top View

See the Layout section for layout information.

Pin Functions

PIN		TYPE	DESCRIPTION
NAME	NO.	TYPE	DESCRIPTION
ADDR	64	I/O	Local I²C interface target address select. See Table 3. In normal operation this pin is an input. When the ADDR pin is programmed high, it must be tied to the same 1.8-V power rails where the SN65DSI83-Q1 VCC 1.8-V power rail is connected
A_CLKP	38	O	LVDS channel A, LVDS clock output
A_CLKN	39	O	LVDS channel A, LVDS clock output
A_Y0P	46	O	LVDS channel A, LVDS data output 0
A_Y0N	47	O	LVDS channel A, LVDS data output 0
A_Y1P	44	O	LVDS channel A, LVDS data output 1
A_Y1N	45	O	LVDS channel A, LVDS data output 1
A_Y2P	41	O	LVDS channel A, LVDS data output 2
A_Y2N	42	O	LVDS channel A, LVDS data output 2
A_Y3P	36	O	LVDS channel A, LVDS data output 3. A_Y3P and A_Y3N must be left not connected (NC) for 18-bpp panels
A_Y3N	37	O
DA0P	19	I	MIPI D-PHY channel A, data lane 0; data rate up to 1 Gbps
DA0N	20	I	MIPI D-PHY channel A, data lane 0; data rate up to 1 Gbps
DA1P	21	I	MIPI D-PHY channel A, data lane 1; data rate up to 1 Gbps
DA1N	22	I	MIPI D-PHY channel A, data lane 1; data rate up to 1 Gbps
DA2P	27	I	MIPI D-PHY channel A, data lane 2; data rate up to 1 Gbps
DA2N	28	I	MIPI D-PHY channel A, data lane 2; data rate up to 1 Gbps
DA3P	29	I	MIPI D-PHY channel A, data lane 3; data rate up to 1 Gbps
DA3N	30	I	MIPI D-PHY channel A, data lane 3; data rate up to 1 Gbps
DACP	24	I	MIPI D-PHY channel A, clock lane; data rate up to 1 Gbps
DACN	25	I	MIPI D-PHY channel A, clock lane; data rate up to 1 Gbps
EN	2	I	Chip enable and reset. The device is reset (shutdown) when the EN pin is low
GND	23, 26, 52	G	Reference ground
IRQ	33	O	Interrupt signal
REFCLK	17	I	This pin is an optional external reference clock for the LVDS pixel clock. If an external reference clock is not used, this pin must be pulled to ground with an external resistor. The source of the reference clock must be placed as close as possible with a series resistor near the source to reduce EMI
RSVD	4	RSVD	Reserved and leave them unconnected
	5
	6
	7
	8
	9
	10
	11
	12
	13
	50
	51
	53
	54
	56
	57
	59
	60
	61
	62
RSVD1	34	I/O	Reserved. This pin must be left unconnected for normal operation
RSVD2	1	I	Reserved. This pin must be left unconnected for normal operation
SCL	15	I	Local I²C interface clock
SDA	16	I/O	Local I²C interface data
V_CC	3	—	1.8-V power supply
	14
	18
	32
	35
	40
	43
	48
	49
	55
	58
	63
VCORE	31	P	1.1-V output from the voltage regulator. This pin must have a 1-µF external capacitor to ground
PowerPAD	—	—	Reference ground

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)⁽¹⁾

			MIN	MAX	UNIT
V_CC	Supply voltage		–0.3	2.175	V
	Input voltage	CMOS input pins	–0.5	2.175	V
	Input voltage	DSI input pins (DAxP, DAxN)	–0.4	1.4	V
T_A	Operating free-air temperature		–40	105	°C
T_J	Junction temperature		–40	115	°C
T_stg	Storage temperature		–65	150	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

				VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human-body model (HBM), per AEC Q100-002⁽¹⁾		±4000	V
V_(ESD)	Electrostatic discharge	Charged-device model (CDM), per AEC Q100-011		±1000	V

(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

		MIN	NOM	MAX	UNIT
V_CC	V_CC power supply	1.65	1.8	1.95	V
V_PSN	Supply noise on any V_CC pin	ƒ_(noise) > 1 MHz		0.05	V
V_(DSI)	DSI input pin voltage	–50		1350	mV
ƒ_(I2C)	Local I²C input frequency			400	kHz
ƒ_HS(CLK)	DSI high-speed (HS) clock input frequency	40		500	MHz
t_su	DSI HS data to clock setup time; see Figure 1	0.15			UI⁽¹⁾
t_h	DSI HS data to clock hold time; see Figure 1	0.15			UI⁽¹⁾
Z_OD(LVDS)	LVDS output differential impedance	90		132	Ω
T_C	Case temperature			92.2	°C

(1) The unit interval (UI) is one half of the period of the HS clock; at 500 MHz the minimum setup and hold time is 150 ps.

6.4 Thermal Information

THERMAL METRIC⁽¹⁾		SN65DSI83-Q1	UNIT
		PAP (HTQFP)
		64 PINS
R_θJA	Junction-to-ambient thermal resistance	36.1	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance	18.2	°C/W
R_θJB	Junction-to-board thermal resistance	20.6	°C/W
ψ_JT	Junction-to-top characterization parameter	0.8	°C/W
ψ_JB	Junction-to-board characterization parameter	20.5	°C/W
R_θJC(bot)	Junction-to-case (bottom) thermal resistance	2.2	°C/W

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

6.5 Electrical Characteristics

over operating free-air temperature range (unless otherwise noted)

PARAMETER		TEST CONDITIONS	MIN	TYP⁽¹⁾	MAX	UNIT
V_IL	Low-level control signal input voltage				0.3 × VCC	V
V_IH	High-level control signal input voltage		0.7 × VCC			V
V_OH	High-level output voltage	I_OH = –4 mA	1.25			V
V_OL	Low-level output voltage	I_OL = 4 mA			0.4	V
I_LKG	Input failsafe leakage current	V_CC= 0; V_CC(PIN) = 1.8 V			±30	μA
I_IH	High level input current	Any input terminal			±30	μA
I_IL	Low level input current	Any input terminal			±30	μA
I_OZ	High-impedance output current	CMOS output terminals			±10	μA
I_OS	Short-circuit output current	Any output driving GND short			±50	mA
I_CC	Device active current	See ⁽²⁾		77	124	mA
I_ULPS	Device standby current	All data and clock lanes are in ultra-low power state (ULPS)		7.7	14	mA
I_RST	Shutdown current	EN = 0			130	µA
R_EN	EN control input resistor			200		kΩ
MIPI DSI INTERFACE
V_IH-LP	LP receiver input high threshold	See Figure 2	880			mV
V_IL-LP	LP receiver input low threshold	See Figure 2			550	mV
\|V_ID\|	HS differential input voltage		100		270	mV
\|V_IDT\|	HS differential input voltage threshold				50	mV
V_IL-ULPS	LP receiver input low threshold; ultra-low power state (ULPS)				300	mV
V_CM-HS	HS common mode voltage; steady-state		70		330	mV
ΔV_CM-HS	HS common mode peak-to-peak variation including symbol delta and interference				100	mV
V_IH-HS	HS single-ended input high voltage	See Figure 2			460	mV
V_IL-HS	HS single-ended input low voltage	See Figure 2	–40			mV
V_TERM-EN	HS termination enable; single-ended input voltage (both Dp AND Dn apply to enable)	Termination is switched simultaneous for Dn and Dp			450	mV
R_DIFF-HS	HS mode differential input impedance		80		125	Ω
LVDS OUTPUT
\|V_OD\|	Steady-state differential output voltage A_Y x P/N	CSR 0×19.3:2=00 100 Ω near end termination	180	245	330	mV
		CSR 0×19.3:2=01 100 Ω near end termination	215	293	392
		CSR 0×19.3:2=10 100 Ω near end termination	250	341	455
		CSR 0×19.3:2=11 100 Ω near end termination	290	389	515
		CSR 0×19.3:2=00 200 Ω near end termination	150	204	275
		CSR 0×19.3:2=01 200 Ω near end termination	200	271	365
		CSR 0×19.3:2=10 200 Ω near end termination	250	337	450
		CSR 0×19.3:2=11 200 Ω near end termination	300	402	535
\|V_OD\|	Steady-state differential output voltage for A_CLKP/N	CSR 0×19.3:2=00 near end termination	140	191	262	mV
		CSR 0×19.3:2=01 100 Ω near end termination	168	229	315
		CSR 0×19.3:2=10 100 Ω near end termination	195	266	365
		CSR 0×19.3:2=11 100 Ω near end termination	226	303	415
		CSR 0×19.3:2=00 200 Ω near end termination	117	159	220
		CSR 0×19.3:2=01 200 Ω near end termination	156	211	295
		CSR 0×19.3:2=10 200 Ω near end termination	195	263	362
		CSR 0×19.3:2=11 200 Ω near end termination	234	314	435
Δ\|V_OD\|	Change in steady-state differential output voltage between opposite binary states	RL = 100 Ω			35	mV
V_OC(SS)	Steady state common-mode output voltage⁽³⁾	CSR 0×19.6 = 1 and CSR 0×1B.6 = 1 Figure 3	0.75	0.9	1.13	V
V_OC(SS)	Steady state common-mode output voltage⁽³⁾	CSR 0×19.6 = 0 see Figure 3	1	1.25	1.5	V
V_OC(PP)	Peak-to-peak common-mode output voltage	see Figure 3			35	mV
R_{LVDS_DIS}	Pulldown resistance for disabled LVDS outputs			1		kΩ

(1) All typical values are at V_CC = 1.8 V and T_A = 25°C

(2) SN65DSI83-Q1: SINGLE Channel DSI to SINGLE Channel DSI, 1280 × 800

Number of LVDS lanes = 3 data lanes + 1 CLK lane
Number of DSI lanes = 4 data lanes + 1 CLK lane
LVDS CLK OUT = 83 M
DSI CLK = 500 M
RGB888, LVDS 18 bpp

Maximum values are at V_CC = 1.95 V and T_A = 85°C

(3) Tested at V_CC = 1.8V , T_A = –40°C for MIN, T_A = 25°C for TYP, T_A = 105°C for MAX.

6.6 Switching Characteristics

over operating free-air temperature range (unless otherwise noted)

PARAMETER		TEST CONDITIONS	MIN	TYP⁽¹⁾	MAX	UNIT
DSI
t_GS	DSI LP glitch suppression pulse width				300	ps
LVDS
t_c	Output clock period		6.49		40	ns
t_w	High-level output clock (CLK) pulse duration			4/7 t_c		ns
t₀	Delay time, CLK↑ to 1st serial bit position	t_c = 6.49 ns; Input clock jitter < 25 ps (REFCLK) See Figure 4	–0.15		0.15	ns
t₁	Delay time, CLK↑ to 2nd serial bit position		1/7 t_c – 0.15		1/7 t_c + 0.15	ns
t₂	Delay time, CLK↑ to 3rd serial bit position		2/7 t_c – 0.15		2/7 t_c + 0.15	ns
t₃	Delay time, CLK↑ to 4th serial bit position		3/7 t_c – 0.15		3/7 t_c + 0.15	ns
t₄	Delay time, CLK↑ to 5th serial bit position		4/7 t_c – 0.15		4/7 t_c + 0.15	ns
t₅	Delay time, CLK↑ to 6th serial bit position		5/7 t_c – 0.15		5/7 t_c + 0.15	ns
t₆	Delay time, CLK↑ to 7th serial bit position		6/7 t_c – 0.15		6/7 t_c + 0.15	ns
t_r	Differential output rise time	See Figure 4	180		500	ps
t_f	Differential output fall time	See Figure 4	180		500	ps
EN, ULPS, RESET
t_en	Enable time from EN or ULPS	t_c(o) = 12.9 ns			1	ms
t_dis	Disable time to standby; see	t_c(o) = 12.9 ns			0.1	ms
t_reset	Reset yime		10			ms
REFCLK
F_REFCLK	REFCLK freqeuncy. Supported frequencies: 25 MHz - 154 MHz		25		154	MHz
t_r, t_f	REFCLK rise and fall time		100 × 10^–12		1×10^–9	s
t_pj	REFCLK peak-to-peak phase jitter				50	ps
Duty	REFCLK duty cycle		40%	50%	60%
REFCLK or DSI CLK (DACP/N)
SSC_CLKIN	SSC enabled Input CLK center spread depth⁽²⁾		0.5%	1%	2%
SSC_CLKIN	Modulation frequency		30		60	kHz

(1) All typical values are at V_CC = 1.8 V and T_A = 25°C

(2) For EMI reduction purpose, the SN65DSI83-Q1 supports the center spreading of the LVDS CLK output through the REFCLK or DSI CLK input. The center spread CLK input to the REFCLK or DSI CLK is passed through to the LVDS CLK output A_CLKP/N.

7 Parameter Measurement Information

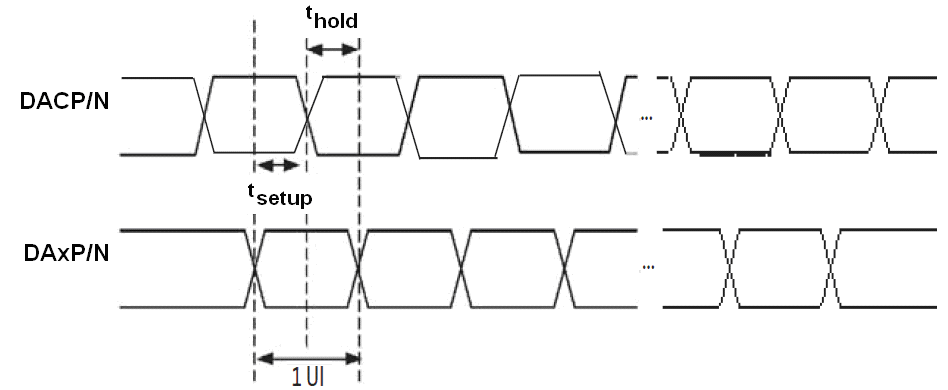

SN65DSI83-Q1 DSI_HS_Mode_Rec_Timing_ Def_llsec2.png

Figure 1. DSI HS Mode Receiver Timing Definitions

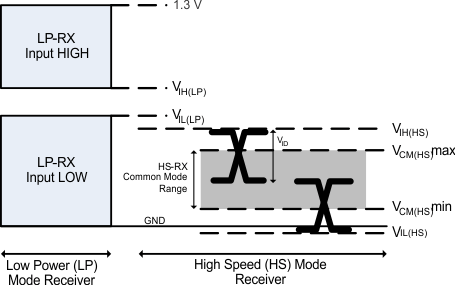

SN65DSI83-Q1 DSI_Rec_Voltage_Definitions_sllsej4.gif

Figure 2. DSI Receiver Voltage Definitions

Figure 3. Test Load and Voltage Definitions for LVDS Outputs

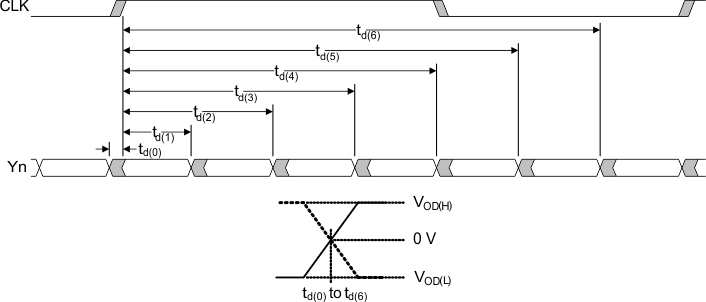

SN65DSI83-Q1 fig16_flatlink_timing_sllsej4.gif

Figure 4. SN65DSI83-Q1 LVDS Timing Definitions

1. See the ULPS section of the data sheet for the ULPS entry and exit sequence.

2. ULPS entry and exit protocol and timing requirements must be met according to the MIPI DPHY specification.

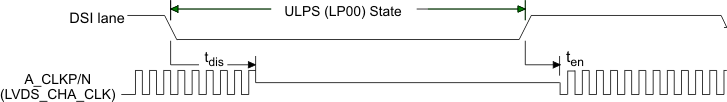

Figure 5. ULPS Timing Definition

8 Detailed Description

8.1 Overview

The SN65DSI83-Q1 DSI to LVDS bridge device features a single-channel MIPI® D-PHY receiver front-end configuration with four lanes per channel operating at 1 Gbps per lane; a maximum input bandwidth of 4 Gbps. The bridge decodes MIPI DSI 18-bpp RGB666 and 24-bpp RGB888 packets and converts the formatted video data stream to an LVDS output operating at pixel clocks operating from 25 MHz to 154 MHz, offering a Single-Link LVDS with four data lanes per link.

8.2 Functional Block Diagram

8.3 Feature Description

8.3.1 Clock Configurations and Multipliers

The LVDS clock may be derived from the DSI channel A clock, or from an external reference clock source. When the MIPI D-PHY channel A HS clock is used as the LVDS clock source, the D-PHY clock lane must operate in HS free-running (continuous) mode. This feature eliminates the need for an external reference clock reducing system costs.

The reference clock source is selected by HS_CLK_SRC (CSR 0×0A.0) programmed through the local I²C interface. If an external reference clock is selected, it is multiplied by the factor in REFCLK_MULTIPLIER (CSR 0×0B.1:0) to generate the LVDS output clock. When an external reference clock is selected, it must be between 25 MHz and 154 MHz. If the DSI channel A clock is selected, it is divided by the factor in DSI_CLK_DIVIDER (CSR 0×0B.7:3) to generate the LVDS output clock. Additionally, LVDS_CLK_RANGE (CSR 0×0A.3:1) and CH_DSI_CLK_RANGE(CSR 0×12) must be set to the frequency range of the LVDS output clock and DSI Channel A input clock respectively for the internal PLL to operate correctly. After these settings are programmed, PLL_EN (CSR 0×0D.0) must be set to enable the internal PLL.
