DATA SHEET

PCM514x2 VRMS DirectPath™、112/106dB 音频立体声 DAC， 具有 32 位、384kHz 脉冲编码调制 (PCM) 接口

本资源的原文使用英文撰写。 为方便起见，TI 提供了译文；由于翻译过程中可能使用了自动化工具，TI 不保证译文的准确性。 为确认准确性，请务必访问 ti.com 参考最新的英文版本（控制文档）。

1 特性

  • 可编程 miniDSP
  • 市场领先的低带外噪声特性
  • 可选数字滤波器延迟与性能
  • 无需隔离直流电流的电容器
  • 集成的负电荷泵
  • 智能静音系统；软斜升或斜降搭配模拟静音，实现 120dB 静音信噪比 (SNR)
  • 具有 BCK 基准的集成高性能音频锁相环 (PLL)，可在内部生成 SCK
  • 接受 16 位、20 位、24 位和 32 位音频数据
  • 脉冲编码调制 (PCM) 数据格式：I2S、左对齐、右对齐、时分复用 (TDM)/数字信号处理 (DSP)
  • 通用串行接口 (SPI) 或者 I2C 控制
  • 软件或者硬件配置
  • 当 LRCK 和 BCK 被置为无效时，自动进入省电模式
  • 1.8V 或 3.3V 故障安全低电压互补金属氧化物半导体 (LVCMOS) 数字输入
  • 单电源供电运行：
    3.3V（模拟），1.8V 或 3.3V（数字）
  • 集成型加电复位
  • 小型28-pin TSSOP封装

2 应用

  • A/V 接收器
  • DVD，BD 播放器
  • HDTV 接收器
  • 需要 2 VRMS 音频输出的应用

3 说明

PCM514x 器件属于单片 CMOS 集成电路系列，由立体声数模转换器 (DAC) 和采用薄型小外形尺寸 (TSSOP) 封装的附加支持电路组成。PCM514x 使用 TI 最新一代高级分段 DAC 架构产品，可实现出色的动态性能并提升针对时钟抖动的耐受度。

PCM514x 系列器件集成了一个完全可编程的 miniDSP 内核，允许开发人员将滤波器、动态范围控件、定制插值器等各类 功能 集成到相关产品中。

PCM514x 提供 2.1 VRMS 中央接地输出（设计人员无需在输出上连接隔直电容）以及传统意义上与单电源线路驱动器相关的外部静音电路。

集成的线路驱动器支持低至 1kΩ 的负载，允许 PCM514x 驱动多达 10 个并联产品（例如 LCD TV、DVDR 和 AV 接收器），性能优于所有其他基于电荷泵的线路驱动器。

器件上集成的 PLL 免除了对于系统时钟（通常称为主时钟）的需要，从而实现一个 3 线制 I2C 连接并减少了系统电磁干扰 (EMI)。

器件信息

器件名称 封装 封装尺寸（标称值）
PCM5141 TSSOP (28) 9.70mm x 4.40mm
PCM5142

.

简化系统图

PCM5141 PCM5142 pcm1865_pcm514x_tpa3130_tpa6120a2_sysdiag.gif

4 修订历史记录

Changes from A Revision (September 2012) to B Revision

  • Deleted 无喀嗒和噼啪声的内部控制，用于更改采样率或暂停时钟，... 无喀嗒和噼啪声操作Go
  • Changed “接受 16 位、24 位和 32 位音频数据”至“接受 16 位、20 位、24 位和 32 位音频数据”Go
  • Added 引脚配置和功能部分，ESD 额定值表，特性 说明部分，器件功能模式，应用和实施部分，电源相关建议部分，布局部分，器件和文档支持部分以及机械、封装和可订购信息部分Go
  • Clarified Pin Functions table.Go
  • Changed Operating temperature to Operating junction temperature in Absolute Maximum RatingsGo
  • Deleted redundant PLL specification in Recommended Operating Conditions Go
  • Deleted Intelligent clock error... and ...for pop-free performance in the Overview section.Go
  • Added note on instruction cycles to PCM512x Audio Processing.Go
  • Deleted text The Graphical Development Environment consists of number of Hybrid Flows that can be downloaded to the device and run on the miniDSP. From: Software Go
  • Added note on instruction cycles in Fixed Audio Processing Flow (Program 5).Go
  • Changed Ouptut to OutputGo
  • Deleted VREF mode provides 2.1Vrms full-scale output at both AVDD levels.Go
  • Clarified clock generation explanation in Reset and System Clock FunctionsGo
  • Clarified external SCK discussion in Clock Slave Mode with BCK PLL to Generate Internal Clocks (3-Wire PCM).Go
  • Deleted The PCM514x disables the internal PLL when an external SCK is supplied.Go

5 Device Comparison

Table 1. Differences Between PCM514x Devices

PART NUMBER DYNAMIC RANGE SNR THD
PCM5142A 112 dB 112 dB –93 dB
PCM5141A 106 dB 106 dB –92 dB

Table 2. Typical Performance (3.3-V Power Supply)

PARAMETER PCM5142 / PCM5141
SNR 112 / 106 dB
Dynamic range 112 /106 dB
THD+N at –1 dBFS –93/ –92 dB
Full-scale single-ended output 2.1 VRMS (GND center)
Normal 8× oversampling digital filter latency 20tS
Low latency 8× oversampling digital filter latency 3.5tS
Sampling frequency 8 kHz to 384 kHz
System clock multiples (fSCK): 64, 128, 192, 256, 384, 512, 768, 1024, 1152, 1536, 2048, 3072 Up to 50 MHz

6 Pin Configuration and Functions

RHB Package
I2C Mode
(MODE1 tied to DGND and MODE2 tied to DVDD)
Top View

PCM5141 PCM5142 po_pcm512x-4x_mode1-gnd_mode2-dvdd_i2c.gif

RHB Package
Hardwired Mode
(MODE1 tied to DGND, MODE2 tied to DGND)
Top View

PCM5141 PCM5142 po_pcm512x-4x_mode1-gnd_mode2-gnd_hardwired.gif

RHB Package
SPI Mode
(MODE1 tied to DVDD)
Top View

PCM5141 PCM5142 po_pcm512x-4xmode1-dvdd_spi.gif

Table 3. Gain and Attenuation in Hardwired Mode

ATT PIN CONDITION (ATT2 : ATT1 : ATT0) GAIN AND ATTENUATION LEVEL
( 0 0 0 ) 0 dB
( 0 0 1 ) 3 dB
( 0 1 0 ) 6 dB
( 0 1 1 ) 9 dB
( 1 0 0 ) 12 dB
( 1 0 1 ) 15 dB
( 1 1 0 ) –6 dB
( 1 1 1 ) –3 dB

6.1 Pin Functions

PIN I/O DESCRIPTION
NAME MODE, NO.
I2C SPI HW
CPVDD 1 1 1 - Charge pump power supply, 3.3 V
CAPP 2 2 2 O Charge pump flying capacitor terminal for positive rail
CPGND 3 3 3 - Charge pump ground
CAPM 4 4 4 O Charge pump flying capacitor terminal for negative rail
VNEG 5 5 5 O Negative charge pump rail terminal for decoupling, –3.3 V
OUTL 6 6 6 O Analog output from DAC left channel
OUTR 7 7 7 O Analog output from DAC right channel
AVDD 8 8 8 - Analog power supply, 3.3 V
AGND 9 9 9 - Analog ground
VCOM 10 10 – O I2C, SPI VCOM output (optional mode selected by register; default setting is VREF mode.) When in VREF mode (default), this pin ties to GND. When in VCOM mode, decoupling capacitor to GND is required.
DEMP – – 10 I HW DEMP: De-emphasis control for 44.1-kHz sampling rate: Off (Low) / On (High)
SDA 11 – – I/O I2C Data for I2C(1)(2)
MOSI – 11 – I SPI Input data for SPI(2)
ATT2 – – 11 HW Digital gain and attenuation control pin
SCL 12 – – I I2C Input clock for I2C(2)
MC – 12 – SPI Input clock for SPI(2)
ATT1 – – 12 HW Digital gain and attenuation control pin
GPIO5 13 13 – I/O I2C, SPI General purpose digital input and output port (3)
ATT0 – – 13 HW Digital gain and attenuation control pin
GPIO4 14 14 – I/O I2C, SPI General purpose digital input and output port (3)
MAST – – 14 HW I2S Master clock select pin : Master (High) BCK/LRCK outputs, Slave (Low) BCK/LRCK inputs
GPIO3 15 15 – I/O I2C, SPI General purpose digital input and output port (3)
AGNS – – 15 HW Analog gain selector : 0-dB 2-VRMS output (Low), –6-dB 1-VRMS output (High)
ADR2 16 – – I/O I2C 2nd LSB address select bit for I2C
GPIO2 – 16 – SPI General purpose digital input and output port
DOUT – – 16 O HW General Purpose Output (Low level)
MODE1 17 17 17 I Mode control selection pin (2)
MODE1 = Low, MODE2 = Low : Hardwired mode
MODE1 = Low, MODE2 = High: I2C mode
MODE1 = High: SPI mode
MODE2 18 – 18 I2C, HW MODE2
MS – 18 – I SPI MS pin (chip select for SPI)
GPIO6 19 19 – I/O I2C, SPI General purpose digital input and output port
FLT – – 19 I HW Filter select : Normal latency (Low) / Low latency (High)
SCK 20 20 20 I System clock input(2)
BCK 21 21 21 I/O Audio data bit clock input (slave) or output (master)(2)
DIN 22 22 22 I Audio data input(2)
LRCK 23 23 23 I/O Audio data word clock input (slave) or output (master)(2)
ADR1 24 – – I/O I2C LSB address select bit for I2C
MISO (GPIO1) – 24 – SPI Primary output data for SPI readback. Secondary; general purpose digital input/output port controlled by register
FMT – – 24 HW Audio format selection : I2S (Low) / Left justified (High)
XSMT 25 25 25 I Soft mute control Soft mute(2) (Low) / soft un-mute (High)
LDOO 26 26 26 - Internal logic supply rail terminal for decoupling, 1.8 V
DGND 27 27 27 - Digital ground
DVDD 28 28 28 - Digital power supply, 3.3 V or 1.8 V
(1) Open-drain configuration in out mode.
(2) Failsafe LVCMOS Schmitt trigger input.
(3) Internal Pulldown

7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Supply voltage AVDD, CPVDD, DVDD –0.3 3.9 V
LDO with DVDD at 1.8 V –0.3 2.25
Digital input voltage DVDD at 1.8 V –0.3 2.25 V
DVDD at 3.3 V –0.3 3.9
Analog input voltage –0.3 3.9 V
Operating junction temperature, TJ –40 130 °C
Storage temperature, Tstg –65 150 °C

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±750
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

MIN NOM MAX UNIT
AVDD Analog power supply voltage Referenced to AGND(1) VCOM mode 3 3.3 3.46 V
VREF mode 3.2 3.3 3.46
DVDD Digital power supply voltage Referenced to DGND(1) 1.8 V DVDD 1.65 1.8 1.95 V
3.3 V DVDD 3.1 3.3 3.46
CPVDD Charge pump supply voltage Referenced to CPGND(1) 3.1 3.3 3.46 V
MCLK Master clock frequency 50 MHz
LOL, LOR Stereo line output load resistance 1 10 kΩ
CLOUT Digital output load capacitance 10 pF
TJ Operating junction temperature –40 130 °C
(1) All grounds on board are tied together; they must not differ in voltage by more than 0.2-V maximum, for any combination of ground signals.

7.4 Thermal Information

THERMAL METRIC(1) PCM512x UNIT
RHB (TSSOP)
32 PINS
RθJA Junction-to-ambient thermal resistance 72.2 °C/W
RθJC(top) Junction-to-case(top) thermal resistance 17.5 °C/W
RθJB Junction-to-board thermal resistance 35.0 °C/W
ψJT Junction-to-top characterization parameter 0.4 °C/W
ψJB Junction-to-board characterization parameter 34.5 °C/W
(1) For more information about trdational and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

TA = 25°C, AVDD = CPVDD = DVDD = 3.3 V, fS = 48 kHz, system clock = 512 fS and 24-bit data (unless otherwise noted).
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Resolution 16 24 32 Bits
DIGITAL INPUT/OUTPUT
Logic Family: 3.3-V LVCMOS Compatible
VIH Input logic level, high 0.7 × DVDD V
VIL Input logic level, low 0.3 × DVDD V
IIH Input logic current, high VIN = VDD 10 µA
IIL Input logic current, low VIN = 0 V –10 µA
VOH Output logic level, high IOH = –4 mA 0.8 × DVDD V
VOL Output logic level, low IOL = 4 mA 0.22 × DVDD V
Logic Family 1.8-V LVCMOS Compatible
VIH Input logic level, high 0.7 × DVDD V
VIL Input logic level, low 0.3 × DVDD V
IIH Input logic current, high VIN = VDD 10 µA
IIL Input logic current, low VIN = 0 V –10 µA
VOH Output logic level, high IOH = –2 mA 0.8 × DVDD V
VOL Output logic level, low IOL = 2 mA 0.22 × DVDD V
DYNAMIC PERFORMANCE (PCM MODE)(1)(2)
THD+N at –1 dB(2) fS = 48 kHz –93 –83 dB
fS = 96 kHz –93
fS = 192 kHz –93
Dynamic range(2) EIAJ, A-weighted, fS = 48 kHz 108 112 dB
EIAJ, A-weighted, fS = 96 kHz 112
EIAJ, A-weighted, fS = 192 kHz 112
Signal-to-noise ratio(2) EIAJ, A-weighted, fS = 48 kHz 112 dB
EIAJ, A-weighted, fS = 96 kHz 112
EIAJ, A-weighted, fS = 192 kHz 112
Signal-to-noise ratio with analog mute(2)(3) EIAJ, A-weighted, fS = 48 kHz 113 123 dB
EIAJ, A-weighted, fS = 96 kHz 113 123
EIAJ, A-weighted, fS = 192 kHz 113 123
Channel separation fS = 48 kHz 100 / 95 109 / 103 dB
fS = 96 kHz 100 / 95 109 / 103
fS = 192 kHz 100 / 95 109 / 103
ANALOG OUTPUT
Single-ended output voltage 2.1 VRMS
Gain error –6 ±2.0 6 % of FSR
Gain mismatch, channel-to-channel –6 ±0.5 6 % of FSR
Load impedance 5 kΩ
FILTER CHARACTERISTICS–1: NORMAL (8x)
Pass band 0.45 × fS kHz
Stop band 0.55 × fS kHz
Stop band attenuation –60 dB
Pass-band ripple ±0.02 dB
Delay time 20 × tS s
FILTER CHARACTERISTICS–2: LOW LATENCY (8x)
Pass band 0.47 × fS kHz
Stop band 0.55 × fS kHz
Stop band attenuation –52 dB
Pass-band ripple ±0.0001 dB
Delay time 3.5 × tS s
FILTER CHARACTERISTICS–3: ASYMMETRIC FIR (8x)
Pass band 0.4 × fS kHz
Stop band 0.72 × fS kHz
Stop band attenuation –52 dB
Pass-band ripple ±0.05 dB
Delay time 1.2 × tS s
FILTER CHARACTERISTICS–4: HIGH-ATTENUATION (8x)
Pass band 0.45 × fS kHz
Stop band 0.45 × fS kHz
Stop band attenuation –100 dB
Pass-band ripple ±0.0005 dB
Delay time 33.7 × tS s
POWER SUPPLY REQUIREMENTS
DVDD Digital supply voltage Target DVDD = 1.8 V 1.65 1.8 1.95 VDC
DVDD Digital supply voltage Target DVDD = 3.3 V 3 3.3 3.6 VDC
AVDD Analog supply voltage 3 3.3 3.6 VDC
CPVDD Charge-pump supply voltage 3 3.3 3.6 VDC
IDD DVDD supply current at 1.8 V fS = 48 kHz, input is bipolar zero data 11 14 mA
fS = 96 kHz, input is bipolar zero data 12
fS = 192 kHz, input is bipolar zero data 14
IDD DVDD supply current at 1.8 V fS = 48 kHz, input is 1 kHz – 1 dBFS data 11 14 mA
fS = 96 kHz, input is 1 kHz – 1 dBFS data 12
fS = 192 kHz, input is 1 kHz – 1 dBFS data 14
IDD DVDD supply current at 1.8 V(4) fS = N/A, power-down mode 0.3 0.6 mA
IDD DVDD supply current at 3.3 V fS = 48 kHz, input is bipolar zero data 12 15 mA
fS = 96 kHz, input is bipolar zero data 13
fS = 192 kHz, input is bipolar zero data 15
IDD DVDD supply current at 3.3 V fS = 48 kHz, input is 1 kHz – 1 dBFS data 12 15 mA
fS = 96 kHz, input is 1 kHz – 1 dBFS data 13
fS = 192 kHz, input is 1 kHz – 1 dBFS data 15
IDD DVDD supply current at 3.3 V(4) fS = N/A, power-down mode 0.5 0.8 mA
ICC AVDD + CPVDD supply current fS = 48 kHz, input is bipolar zero data 11 16 mA
fS = 96 kHz, input is bipolar zero data 11
fS = 192 kHz, input is bipolar zero data 11
ICC AVDD + CPVDD supply current fS = 48 kHz, input is 1 kHz – 1 dBFS data 24 32 mA
fS = 96 kHz, input is 1 kHz – 1 dBFS data 24
fS = 192 kHz, input is 1 kHz – 1 dBFS data 24
ICC AVDD + CPVDD supply current(4) fS = N/A, power-down mode 0.2 0.4 mA
Power dissipation, DVDD = 1.8 V fS = 48 kHz, input is bipolar zero data 59.4 78 mW
fS = 96 kHz, input is bipolar zero data 61.2
fS = 192 kHz, input is bipolar zero data 64.8
Power dissipation, DVDD = 1.8 V fS = 48 kHz, input is 1 kHz – 1 dBFS data 99 130.8 mW
fS = 96 kHz, input is 1 kHz – 1 dBFS data 100.8
fS = 192 kHz, input is 1 kHz – 1 dBFS data 104.4
Power dissipation, DVDD = 1.8 V(4) fS = N/A, power-down mode 1.2 mW
Power dissipation, DVDD = 3.3 V fS = 48 kHz, input is bipolar zero data 79.2 103 mW
fS = 96 kHz, input is bipolar zero data 82.5
fS = 192 kHz, input is bipolar zero data 89.1
Power dissipation, DVDD = 3.3 V fS = 48 kHz, input is 1 kHz – 1 dBFS data 118.8 155 mW
fS = 96 kHz, input is 1 kHz – 1 dBFS data 122.1
fS = 192 kHz, input is 1 kHz – 1 dBFS data 128.7
Power dissipation, DVDD = 3.3 V(4) fS = N/A, power-down mode 2.3 4 mW
(1) Filter condition: THD+N: 20-Hz HPF, 20-kHz AES17 LPF Dynamic range: 20-Hz HPF, 20-kHz AES17 LPF, A-weighted Signal-to-noise ratio: 20-Hz HPF, 20-kHz AES17 LPF, A-weighted Channel separation: 20-Hz HPF, 20-kHz AES17 LPF Analog performance specifications are measured using the System Two Cascade™ audio measurement system by Audio Precision™ in the RMS mode.
(2) Output load is 10 kΩ, with 470-Ω output resistor and a 2.2-nF shunt capacitor (see Recommended Output Filter for the PCM514x).
(3) Assert XSMT or both L-ch and R-ch PCM data are BPZ
(4) Power-down mode, with LRCK, BCK, and SCK halted at low level.

7.6 Timing Requirements: SCK Input

Figure 1 shows the timing requirements for the system clock input. For optimal performance, use a clock source with low phase jitter and noise.
MIN NOM MAX UNIT
tSCY System clock pulse cycle time 20 1000 ns
tSCKH System clock pulse width, high DVDD = 1.8 V 8 ns
DVDD = 3.3 V 9
tSCKL System clock pulse width, low DVDD = 1.8 V 8 ns
DVDD = 3.3 V 9

7.7 Timing Requirements: PCM Audio Data

MIN NOM MAX UNIT
tBCY BCK Pulse Cycle Time 40 ns
tBCL BCK Pulse Width LOW 16 ns
tBCH BCK Pulse Width HIGH 16 ns
tBL BCK Rising Edge to LRCK Edge 8 ns
tBCK BCK frequency 24.576 MHz
tLB LRCK Edge to BCK Rising Edge 8 ns
tDS DATA Set Up Time 8 ns
tDH DATA Hold Time 8 ns
tDOD DATA delay time from BCK falling edge 15 ns

7.8 Timing Requirements: I2S Master

MIN NOM MAX UNIT
tBCY BCK Pulse Cycle Time 40 ns
tBCL BCK Pulse Width LOW 16 ns
tBCH BCK Pulse Width HIGH 16 ns
tBCK BCK frequency at DVDD = 3.3 V 24.576 MHz
tBCK(1.8V) BCK frequency at DVDD = 1.8 V 12.288 MHz
tLRD LRCKx delay time from BCKx falling edge –10 20 ns
tDS DATA Set Up Time 8 ns
tDH DATA Hold Time 8 ns
tDOD DATA delay time from BCK falling edge at DVDD = 3.3 V 15 ns
tDOD(1.8V) DATA delay time from BCK falling edge at DVDD = 1.8 V 20 ns

7.9 Timing Requirements: XSMT

MIN NOM MAX UNIT
tr Rise time 20 ns
tf Fall time 20 ns

7.10 Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DATA FORMAT (PCM MODE)
Audio data interface format I2S, left-justified, right-justified, and TDM
Audio data bit length 16, 20, 24, 32-bit acceptable
Audio data format MSB first, twos-complement
fS Sampling frequency(1) 8 384 kHz
CLOCKS
System clock frequency 64, 128, 192, 256, 384, 512, 768, 1024, 1152, 1536, 2048, or 3072
fSCK, up to 50 Mhz
PLL input frequency (2) Clock divider uses fractional divide
D > 0, P=1		 6.7 20 MHz
Clock divider uses integer divide
D = 0, P=1		 1 20 MHz
(1) One sample time is defined as the reciprocal of the sampling frequency. 1 × tS = 1 / fS
(2) With the appropriate P coefficient setting, the PLL accepts up to 50 MHz. This clock is then divided to meet the ≤ 20-MHz requirement. See PLL Calculation.
PCM5141 PCM5142 f_pcm51xx_td_sck_req.gif Figure 1. Timing Requirements for SCK Input
PCM5141 PCM5142 f_pcm512x4x_td_pcm_aud_slv.gif Figure 2. PCM514x Serial Audio Timing - Slave
PCM5141 PCM5142 f_pcm512x4x_td_pcm_aud_mstr.gif Figure 3. PCM514x Serial Audio Timing - I2S Master
PCM5141 PCM5142 f_pcm51xx_td_xsmt_soft_mute.gif Figure 4. XSMT Timing for Soft Mute and Soft Un-Mute

7.11 Typical Characteristics

Consumer grade (non-Q1) devices are specified for TA = 25°C, AVDD = CPVDD = DVDD = 3.3 V, fS = 48 kHz, system clock = 512 fS and 24-bit data (unless otherwise noted).

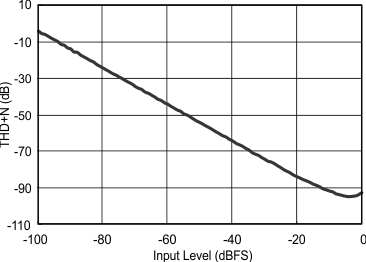

PCM5141 PCM5142 thd_n_input_level_5101.gif
Figure 5. PCM5141 THD+N vs Input Level
PCM5141 PCM5142 fft_-60dB_5101.gif
Figure 7. PCM5141 FFT Plot Using a 1-kHz Tone
(–60 dBFS) from DC to 20 kHz
PCM5141 PCM5142 fft_bpz_5101.gif
Figure 9. PCM5141 FFT Plot at Bipolar Zero Data (BPZ)
PCM5141 PCM5142 fft_bpz_amute_5101.gif
Figure 11. PCM5141 FFT Plot at BPZ With Analog Mute (AMUTE)
PCM5141 PCM5142 fft_-60_sub_300kHz_5101.gif
Figure 13. PCM5141 FFT Plot Using a 1-kHz Tone
(–60 dBFS) from DC to 300 kHz

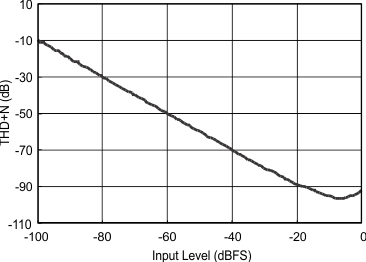

PCM5141 PCM5142 thd_n_input_level_5102.gif
Figure 6. PCM5142 THD+N vs Input Level
PCM5141 PCM5142 fft_-60dB_5102.gif
Figure 8. PCM5142 FFT Plot Using a 1-kHz Tone
(–60 dBFS) from DC to 20 kHz
PCM5141 PCM5142 fft_bpz_5102.gif
Figure 10. PCM5142 FFT Plot at BPZ
PCM5141 PCM5142 fft_bpz_amute_5102.gif
Figure 12. PCM5142 FFT Plot at BPZ With Analog Mute (AMUTE)
PCM5141 PCM5142 fft_-60_sub_300kHz_5102.gif
Figure 14. PCM5142 FFT Plot Using a 1-kHz Tone
(–60 dBFS) from DC to 300 kHz

8 Detailed Description

8.1 Overview

The integrated PLL on the device provided adds the flexibility to remove the system clock (commonly known as master clock), allowing a 3-wire I2S connection and reducing system EMI. In addition, the PLL is completely programmable, allowing the device to become the I2S clock master and drive a DSP serial port as a slave. The PLL also accepts a non-standard clock (up to 50 MHz) as a source to generate the audio related clock (for example, 24.576 MHz).

Powersense undervoltage protection utilizes a two-level mute system. Upon clock error or system power failure, the device digitally attenuates the data (or last known good data) and then mutes the analog circuit.

Compared with existing DAC technology, the PCM514x devices offer up to 20-dB lower out-of-band noise, reducing EMI and aliasing in downstream amplifiers/ADCs (from traditional 100-kHz OBN measurements to
3 MHz).

The PCM514x devices accept industry-standard audio data formats with 16- to 32-bit data. Sample rates up to 384 kHz are supported.

8.2 Functional Block Diagram

PCM5141 PCM5142 fbd_pcm514x.gif

8.3 Feature Description

8.3.1 Terminology

Control registers in this data sheet are given by REGISTER BIT/BYTE NAME (Page.x HEX ADDRESS). SE refers to single-ended analog inputs. SCK (System Clock) and MCLK (Master Clock) are used interchangeably. Sampling frequency is symbolized by fS. Full scale is symbolized by FS. Sample time as a unit is symbolized by tS.

8.3.2 Audio Data Interface

8.3.2.1 Audio Serial Interface

The audio interface port is a 3-wire serial port with the signals LRCK, BCK, and DIN. BCK is the serial audio bit clock, used to clock the serial data present on DIN into the serial shift register of the audio interface. Serial data is clocked into the PCM514x on the rising edge of BCK. LRCK is the serial audio left/right word clock. LRCK polarity for left/right is given by the format selected.

Table 4. PCM514x Audio Data Formats, Bit Depths and Clock Rates

CONTROL MODE FORMAT DATA BITS MAX LRCK FREQUENCY [fS] SCK RATE [x fS] BCK RATE [x fS]
Software Control
(SPI or I2S) 		I2S/LJ 32, 24, 20, 16 Up to 192 kHz 128 – 3072 64, 48, 32
384 kHz 64, 128 64, 48, 32
TDM/DSP 32, 24, 20, 16 Up to 48 kHz 128 – 3072 128, 256
96 kHz 128 – 512 128, 256
192 kHz 128, 192, 256 128
Hardware Control I2S/LJ 32, 24, 20, 16 Up to 192 kHz 128 – 3072 64, 48, 32
384 kHz 64, 128 64, 48, 32

The PCM514x requires the synchronization of LRCK and system clock, but does not need a specific phase relation between LRCK and system clock.

If the relationship between LRCK and system clock changes more than ±5 SCK, internal operation (using an onchip oscillator) is initialized within one sample period and analog outputs are forced to the bipolar zero level until resynchronization between LRCK and system clock is completed.

If the relationship between LRCK and BCK are invalid more than 4 LRCK periods, internal operation (using an onchip oscillator) is initialized within one sample period and analog outputs are forced to the bipolar zero level until resynchronization between LRCK and BCK is completed.

8.3.2.2 PCM Audio Data Formats

The PCM514x supports industry-standard audio data formats, including standard I2S and left-justified. Data formats are selected via Register (Pg0Reg40). All formats require binary twos-complement, MSB-first audio data; up to 32-bit audio data is accepted.

The PCM514x also supports right-justified and TDM/DSP in software control mode. I2S, LJ, RJ, and TDM/DSP are selected using Register (Pg0Reg40). All formats require binary twos-complement, MSB-first audio data. Up to 32 bits are accepted. Default setting is I2S and 24-bit word length.

PCM5141 PCM5142 f_pcm51xx_aud_data_format_lj.gif Figure 15. Left-Justified Audio Data Format
PCM5141 PCM5142 f_pcm51xx_aud_data_format_i2s.gif
I2S Data Format; L-channel = LOW, R-channel = HIGH
Figure 16. I2S Audio Data Format

The following data formats are only available in software mode.

PCM5141 PCM5142 f_pcm51xx_aud_data_format_rj.gif
Right Justified Data Format; L-channel = HIGH, R-channel = LOW
Figure 17. Right-Justified Audio Data Format
PCM5141 PCM5142 f_pcm51xx_aud_data_format_tdm1.gif
TDM/DSP Data Format; L-channel = FIRST, R-channel = LAST with OFFSET = 0
Figure 18. TDM/DSP 1 Audio Data Format

NOTE

In TDM Modes, Duty Cycle of LRCK should be 1x BCK at minimum. Rising edge is considered frame start.
PCM5141 PCM5142 f_pcm51xx_aud_data_format_tdm2.gif
TDM/DSP Data Format; L-channel = FIRST, R-channel = LAST with OFFSET = 1
Figure 19. TDM/DSP 2 Audio Data Format
PCM5141 PCM5142 f_pcm51xx_aud_data_format_tdm3.gif
TDM/DSP Data Format; L-channel = FIRST, R-channel = LAST with OFFSET = N
Figure 20. TDM/DSP 3 Audio Data Format

8.3.2.3 Zero Data Detect

The PCM514x has a zero-detect function. When the device detects the continuous zero data for both left and right channels, or separate channels, Analog mutes are set to both OUTL and OUTR, or separate OUTL and OUTR. These are controlled by Page 0, Register 65, D(2:1) as shown in Table 5.

Continuous Zero data cycles are counted by LRCK, and the threshold of decision for analog mute can be set by Page 0, Register 59, D(6:4) for L-ch, and D(2:0) for Rch as shown in Table 6. Default values are 0 for both channels.

In Hardware mode, the device uses default values. By default, Both L-ch and R-ch have to be zero data for zero data detection to begin the muting process etc.

Table 5. Zero Data Detection Mode

ATMUTECTL VALUE FUNCTION
Bit : 2 0 Independently L-ch or R-ch are zero data for zero data detection
1 (Default) Both L-ch and R-ch have to be zero data for zero data detection
Bit : 1 0 Zero detection and analog mute are disabled for R-ch
1 (Default) Zero detection analog mute are enabled for R-ch
Bit : 0 0 Zero detection analog mute are disabled for L-ch
1 (Default) Zero detection analog mute are enabled for L-ch

Table 6. Zero Data Detection Time

ATMUTETIML / ATMUTETIMR NUMBER OF LRCKs TIME AT 48 kHz
0 0 0 1024 21 ms
0 0 1 5120 106 ms
0 1 0 10240 213 ms
0 1 1 25600 533 ms
1 0 0 51200 1.066 sec
1 0 1 102400 2.133 sec
1 1 0 256000 5.333 sec
1 1 1 512000 10.66 sec

8.3.3 XSMT Pin (Soft Mute / Soft Un-Mute)

An external digital host controls the PCM514x soft mute function by driving the XSMT pin with a specific minimum rise time (tr) and fall time (tf) for soft mute and soft un-mute. The PCM514x requires tr and tf times of less than 20 ns. In the majority of applications, this is no problem; however, traces with high capacitance may have issues.

When the XSMT pin is shifted from high to low (3.3 V to 0 V), a soft digital attenuation ramp begins. –1-dB attenuation is then applied every sample time from 0 dBFS to –∞. The soft attenuation ramp takes 104 samples.

When the XSMT pin is shifted from low to high (0 V to 3.3 V), a soft digital un-mute is started. 1-dB gain steps are applied every sample time from –∞ to 0 dBFS. The un-mute takes 104 samples.

In systems where XSMT is not required, it can be directly connected to AVDD.

8.3.4 Audio Processing

8.3.4.1 PCM514x Audio Processing Options

8.3.4.1.1 Overview

The PCM514x features a fully-programmable miniDSP core. The algorithms for the miniDSP must be loaded into the device after power up. The miniDSP has direct access to the digital stereo audio stream, offering the possibility for advanced DSP algorithms with very low group delay. The miniDSP can run up to 1024 instructions on every audio sample at a 48-kHz sample rate.

NOTE

At higher sampling frequencies, fewer instruction cycles are available. (For example, 512 instructions can be done in a 96-kHz frame.)

The PCM514x supports two different code sources. ROM based process flow (See the next section for how to select) and RAM based process flow. In program 31 (RAM based), different algorithms can be called from ROM - such as EQ, DRC and Zero Crossing volume control. Please see the PurePath Studio Development Environment for more details.

8.3.4.1.2 miniDSP Instruction Register

Registers on Page 152-169 are 25-bit instructions for the miniDSP engine. For details, see Table 53. 7 bits of Instr(32:25) in Base register +0 are reserved bits. 1 bit of Instr(24) - (LSB) in Base register +0 is MSB bit of 25 bit instruction. These instructions control miniDSP operation. When the fully programmable miniDSP mode is enabled and the DAC channel is powered up, the read and write access to these registers is disabled.

8.3.4.1.3 Digital Output

The PCM514x supports an SDOUT output. This can be selected within the process flow, and driven out of a GPIO pin selected in the register map (for example, Page 0 / Register 80). Users should note that the I2S output will be attenuated by 0.5 dB. A full scale (FS) output will actually be FS-0.5dB. This can be compensated for within the process flow using PurePath Studio. The I2S output can be a separate audio stream to the analog DAC output, allowing 2.1 and 2.2 systems to be implimented. By default, the SDOUT is not linked to the volume control registers on Page 0 / Register 60, 61, 62. However, it is possible to configure the SDOUT component in Purepath studio to mirror that register.

8.3.4.1.4 Software

Software development for the PCM514x is supported through TI's comprehensive PurePath ™Studio; a powerful, easy-to-use tool designed specifically to simplify software development on the PCM514x miniDSP audio platform.

Please visit the PCM514x product folder on www.ti.com to learn more about PurePath Console and the latest status on available, ready-to-use DSP algorithms.

8.3.4.2 Interpolation Filter

The PCM514x provides 4 types of interpolation filters, selectable by writing to Page 0, Register 43, D(4:0).

Additional RAM based Hybrid Flows can be implemented by selecting Program 31, and downloading instructions and coefficients to the device.

Table 7. ROM Preset Programs

PROGRAM NUMBER D(4:0) DESCRIPTION MINIMUM CYCLES
0 0 0000 Reserved
1 0 0001 Normal x8/x4/x2/x1 Interpolation Filter(1) 256
2 0 0010 Low Latency x8/x4/x2/x1 Interpolation Filter(1) 256
3 0 0011 High Attenuation x8/x4/x2 Interpolation Filter(1) 512
4 0 0100 Reserved
5 0 0101 Preset Process Flow
6 0 0110 Reserved
7 0 0111 Asymmetric FIR Interpolation Filter(1) 512
: : Reserved
31 1 1111 RAM program / Hybrid Flows
(1) At fs=44.1 kHz, de-emphasis filter is supported.

The PCM514x supports four sampling modes (single rate, dual rate, quad rate, and octal rate) which produce different oversampling rates (OSR) in the interpolation digital filter operation. These are shown in Table 8.

Table 8. Sampling Modes and Oversampling Rates

SAMPLING MODE SAMPLING FREQUENCY (fS) kHz OVERSAMPLING RATE (OSR)
Single Rate 8 8 or 16
16
32
44.1
48
Dual Rate 88.2 4
96
Quad Rate 176.4 2
192
Octal Rate 384 1 (Bypass)

Table 9. Normal x8 Interpolation Filter, Single Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.45 × fS ±0.01 dB
Filter Gain Stop Band 0.55 × fS ….. 7.455 × fS -60 dB
Filter Group Delay 20 × ts S

SPACE

PCM5141 PCM5142 G012_gphpcm51xx_frequency_response_x8_normal.gif Figure 21. Normal x8 Interpolation Filter
Frequency Response
PCM5141 PCM5142 G034_gphpcm51xx_pass_band_ripple_x8_normal.gif Figure 23. Normal x8 Interpolation Filter Passband Ripple
PCM5141 PCM5142 G023_gphpcm51xx_impulse_response_x8_normal.gif Figure 22. Normal x8 Interpolation Filter
Impulse Response

Table 10. Normal x4 Interpolation Filter, Dual Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.45 × fS ±0.01 dB
Filter Gain Stop Band 0.55 × fS ….. 3.455 × fS -60 dB
Filter Group Delay 20 × ts S

SPACE

PCM5141 PCM5142 G009_gphpcm51xx_frequency_response_x4_slase12.gif Figure 24. Normal x4 Interpolation Filter
Frequency Response
PCM5141 PCM5142 G031_gphpcm51xx_pass_band_ripple_x4_normal_slase12.gif Figure 26. Normal x4 Interpolation Filter Passband Ripple
PCM5141 PCM5142 G020_gphpcm51xx_impulse_response_x4_normal.gif Figure 25. Normal x4 Interpolation Filter
Impulse Response

Table 11. Normal x2 Interpolation Filter, Quad Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.45 × fS ±0.01 dB
Filter Gain Stop Band 0.55 × fS ….. 1.455 × fS -60 dB
Filter Group Delay 20 × ts S

SPACE

PCM5141 PCM5142 G006_gphpcm51xx_frequency_response_x4_slase12.gif Figure 27. Normal x2 Interpolation Filter
Frequency Response
PCM5141 PCM5142 G028_gphpcm51xx_pass_band_ripple_x2_normal_slase12.gif Figure 29. Normal x2 Interpolation Filter Passband Ripple
PCM5141 PCM5142 G017_gphpcm51xx_impulse_response_x2_normal.gif Figure 28. Normal x2 Interpolation Filter
Impulse Response

Table 12. Low Latency x8 Interpolation Filter, Single Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.45 × fS ±0.001 dB
Filter Gain Stop Band 0.55 × fS ….. 7.455 × fS -52 dB
Filter Group Delay 3.5 × ts S

SPACE

PCM5141 PCM5142 G011_gphpcm51xx_frequency_response_x8_lowlt.gif Figure 30. Low Latency x8 Interpolation Filter
Frequency Response
PCM5141 PCM5142 G033_gphpcm51xx_pass_band_ripple_x8_lowlt.gif Figure 32. Low Latency x8 Interpolation Filter Passband Ripple
PCM5141 PCM5142 G022_gphpcm51xx_impulse_response_x8_lowlt.gif Figure 31. Low Latency x8 Interpolation Filter
Impulse Response

Table 13. Low Latency x4 Interpolation Filter, Dual Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.45 × fS ±0.001 dB
Filter Gain Stop Band 0.55 × fS ….. 3.455 × fS -52 dB
Filter Group Delay 3.5 × ts S

SPACE

PCM5141 PCM5142 G008_gphpcm51xx_frequency_response_x4_slase12.gif Figure 33. Low Latency x4 Interpolation Filter
Frequency Response
PCM5141 PCM5142 G030_gphpcm51xx_pass_band_ripple_x4_lowlt_slase12.gif Figure 35. Low Latency x4 Interpolation Filter Passband Ripple
PCM5141 PCM5142 G019_gphpcm51xx_impulse_response_x4_lowlt.gif Figure 34. Low Latency x4 Interpolation Filter
Impulse Response

Table 14. Low Latency ×2 Interpolation Filter, Quad Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.45 × fS ±0.001 dB
Filter Gain Stop Band 0.55 × fS ….. 1.455 × fS -52 dB
Filter Group Delay 3.5 × ts S

SPACE

PCM5141 PCM5142 G005_gphpcm51xx_frequency_response_x4_slase12.gif Figure 36. Low Latency x2 Interpolation Filter
Frequency Response
PCM5141 PCM5142 G030_gphpcm51xx_pass_band_ripple_x4_lowlt_slase12.gif Figure 38. Low Latency x2 Interpolation Filter Passband Ripple
PCM5141 PCM5142 G016_gphpcm51xx_impulse_response_x2_lowlt.gif Figure 37. Low Latency x2 Interpolation Filter
Impulse Response

Table 15. Asymmetric FIR x8 Interpolation Filter, Single Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.40 × fS ±0.05 dB
Filter Gain Stop Band 0.72 × fS ….. 7.28 × fS –50 dB
Filter Group Delay 1.2 × ts S

SPACE

PCM5141 PCM5142 gphpcm51xx_frequency_response_x8_asymFIR.png Figure 39. Asymmetric FIR x8 Interpolation Filter Frequency Response, Single Rate
PCM5141 PCM5142 gphpcm51xx_pass_band_ripple_x8_asymFIR.png Figure 41. Asymmetric FIR x8 Interpolation Filter Passband Ripple, Single Rate
PCM5141 PCM5142 gphpcm51xx_impulse_response_x8_asymFIR.png Figure 40. Asymmetric FIR x8 Interpolation Filter Impulse Response, Single Rate

Table 16. Asymmetric FIR x4 Interpolation Filter, Dual Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.40 × fS ±0.05 dB
Filter Gain Stop Band 0.72 × fS ….. 3.28 × fS –50 dB
Filter Group Delay 1.2 × ts S

SPACE

PCM5141 PCM5142 G002_gphpcm51xx_frequency_response_x4_asymFIR_slase12.gif Figure 42. Asymmetric FIR x4 Interpolation Filter Frequency Response, Dual Rate
PCM5141 PCM5142 gphpcm51xx_pass_band_ripple_x4_asymFIR.png Figure 44. Asymmetric x4 Interpolation Filter Passband Ripple, Dual Rate
PCM5141 PCM5142 gphpcm51xx_impulse_response_x4_asymFIR.png Figure 43. Asymmetric FIR x4 Interpolation Filter Impulse Response, Dual Rate

Table 17. Asymmetric FIR x2 Interpolation Filter, Quad Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.40 × fS ±0.05 dB
Filter Gain Stop Band 0.72 × fS ….. 1.28 × fS –50 dB
Filter Group Delay 1.2 × ts S

SPACE

PCM5141 PCM5142 G001_gphpcm51xx_frequency_response_x2_asymFIR_slase12.gif Figure 45. Asymmetric FIR x2 Interpolation Filter Frequency Response, Quad Rate
PCM5141 PCM5142 G100_gphpcm51xx_pass_band_ripple_x2_asymFIR_slase12.gif Figure 47. Asymmetric x2 Interpolation Filter Passband Ripple, Quad Rate
PCM5141 PCM5142 gphpcm51xx_impulse_response_x2_asymFIR.png Figure 46. Asymmetric FIR x2 Interpolation Filter Impulse Response, Quad Rate

Table 18. High-Attentuation x8 Interpolation Filter, Single Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.45 × fS ±0.0005 dB
Filter Gain Stop Band 0.55 × fS ….. 7.455 × fS –100 dB
Filter Group Delay 33.7 × tS S

SPACE

PCM5141 PCM5142 gphpcm51xx_frequency_response_x8_high_ATT.png Figure 48. High-Attentuation x8 Interpolation Filter Frequency Response, Single Rate
PCM5141 PCM5142 gphpcm51xx_pass_band_ripple_x8_high_ATT.png Figure 50. High-Attentuation x8 Interpolation Filter Passband Ripple, Single Rate
PCM5141 PCM5142 gphpcm51xx_impulse_response_x8_high_ATT.png Figure 49. High-Attentuation x8 Interpolation Filter Impulse Response, Single Rate

Table 19. High-Attentuation x4 Interpolation Filter, Dual Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.45 × fS ±0.0005 dB
Filter Gain Stop Band 0.55 × fS ….. 3.455 × fS –100 dB
Filter Group Delay 33.7 × tS S

SPACE

PCM5141 PCM5142 G004_gphpcm51xx_frequency_response_x4_high_ATT_slase12.gif Figure 51. High-Attentuation x4 Interpolation Filter Frequency Response, Dual Rate
PCM5141 PCM5142 G101_gphpcm51xx_pass_band_ripple_x4_high_ATT_slase12.gif Figure 53. High-Attentuation x4 Interpolation Filter Passband Ripple, Dual Rate
PCM5141 PCM5142 gphpcm51xx_impulse_response_x4_high_ATT.png Figure 52. High-Attentuation x4 Interpolation Filter Impulse Response, Dual Rate

Table 20. High-Attentuation x2 Interpolation Filter, Quad Rate

PARAMETER CONDITION VALUE (TYP) VALUE (MAX) UNIT
Filter Gain Pass Band 0 ……. 0.45 × fS ±0.0005 dB
Filter Gain Stop Band 0.55 × fS ….. 1.455 × fS –100 dB
Filter Group Delay 33.7 × tS S

SPACE

PCM5141 PCM5142 G003_gphpcm51xx_frequency_response_x2_high_ATT_slase12.gif Figure 54. High-Attentuation x2 Interpolation Filter Frequency Response, Quad Rate
PCM5141 PCM5142 G102_gphpcm51xx_pass_band_ripple_x2_high_ATT_slase12.gif Figure 56. High-Attentuation x2 Interpolation Filter Passband Ripple, Quad Rate
PCM5141 PCM5142 gphpcm51xx_impulse_response_x2_high_ATT.png Figure 55. High-Attentuation x2 Interpolation Filter Impulse Response, Quad Rate

8.3.4.3 Fixed Audio Processing Flow (Program 5)

The PCM514x implements signal processing capabilities and interpolation filtering via processing blocks. These fixed processing blocks give users the choice of how much and what type of signal processing they may use and which interpolation filter is applied.

The signal processing blocks available are:

  • Biquad filters
  • Multiband DRC
  • Mono mixer
  • Stereo mixer
  • Master volume

The addresses of the coefficients are fixed when selecting the fixed processing flow, however, if these components are used in the RAM source mode (Program 31) the registers for coefficients will change. Users can find more details in Purepath Studio.

NOTE

This process flow requires 1024 instruction cycles. Therefore, it will only function at sampling frequencies up to 48 kHz.

8.3.4.3.1 Processing Blocks – Detailed Descriptions

Figure 57 shows the fixed processing flow.

PCM5141 PCM5142 pcm512x4x_aud_fixed_proc_flow.gif Figure 57. Preset Process Flow

Figure 58 shows a screen capture of PurePath Studio.

PCM5141 PCM5142 pcm514x_purepath_screenshot_whitebg.png Figure 58. PurePath Studio Screen Capture

8.3.4.3.2 Biquad Section

The transfer function of each of the biquad filters is given by Equation 1.

Equation 1. PCM5141 PCM5142 q1_xfr_func_las759.gif
PCM5141 PCM5142 pcm512x4x_biquad_block.gif Figure 59. Biquad Block

Table 21. Biquad Filter Coefficients

FILTER CHANNEL COEFFICIENT REGISTER
BIQUAD (1) - 1 BIQUAD (2) - 1 Lch,
Rch		 N0 C10 (Pg 44, Reg 48 ,49, 50, 51)
N1 C11 (Pg 44, Reg 52, 53, 54, 55)
N2 C12 (Pg 44, Reg 56, 57, 58, 59)
D1 C13 (Pg 44, Reg 60, 61, 62, 63)
D2 C14 (Pg 44, Reg 64, 65, 66, 67)
BIQUAD (1) - 2 BIQUAD (2) - 2 Lch,
Rch		 N0 C15 (Pg 44, Reg 68, 69, 70, 71)
N1 C16 (Pg 44, Reg 72, 73, 74, 75)
N2 C17 (Pg 44, Reg 76, 77, 78, 79)
D1 C18 (Pg 44, Reg 80, 81, 82, 83)
D2 C19 (Pg 44, Reg 84, 85, 86, 87)
BIQUAD (1) - 3 BIQUAD (2) - 3 Lch,
Rch		 N0 C20 (Pg 44, Reg 88, 89, 90, 91)
N1 C21 (Pg 44, Reg 92, 93, 94, 95)
N2 C22 (Pg 44, Reg 96, 97, 98, 99)
D1 C23 (Pg 44, Reg 100, 101, 102, 103)
D2 C24 (Pg 44, Reg 104, 105, 106, 107)
BIQUAD (1) - 4 BIQUAD (2) - 4 Lch,
Rch		 N0 C25 (Pg 44, Reg 108, 109, 110, 111)
N1 C26 (Pg 44, Reg 112, 113, 114, 115)
N2 C27 (Pg 44, Reg 116, 117, 118, 119)
D1 C28 (Pg 44, Reg 120, 121, 122, 123)
D2 C29 (Pg 44, Reg 124, 125, 126, 127)
BIQUAD (1) - 5 BIQUAD (2) - 5 Lch,
Rch		 N0 C30 (Pg 45, Reg 8, 9, 10, 11)
N1 C31 (Pg 45, Reg 12, 13, 14, 15)
N2 C32 (Pg 45, Reg 16, 17, 18, 19)
D1 C33 (Pg 45, Reg 20, 21, 22, 23)
D2 C34 (Pg 45, Reg 24, 25, 26, 27)
BIQUAD (1) - 6 BIQUAD (2) - 6 Lch,
Rch		 N0 C35 (Pg 45, Reg 28, 29, 30, 31)
N1 C36 (Pg 45, Reg 32, 33, 34, 35)
N2 C37 (Pg 45, Reg 36, 37, 38, 39)
D1 C38 (Pg 45, Reg 40, 41, 42, 43)
D2 C39 (Pg 45, Reg 44, 45, 46, 47)
BIQUAD (3) - 1 BIQUAD (4) - 1 Lch,
Rch		 N0 C40 (Pg 45, Reg 48, 49, 50, 51)
N1 C41 (Pg 45, Reg 52, 53, 54, 55)
N2 C42 (Pg 45, Reg 56, 57, 58, 59)
D1 C43 (Pg 45, Reg 60, 61, 62, 63)
D2 C44 (Pg 45, Reg 64, 65, 66, 67)
BIQUAD (3) - 2 BIQUAD (4) - 2 Lch,
Rch		 N0 C45 (Pg 45, Reg 68, 69, 70, 71)
N1 C46 (Pg 45, Reg 72, 73, 74, 75)
N2 C47 (Pg 45, Reg 76, 77, 78, 79)
D1 C48 (Pg 45, Reg 80, 81, 82, 83)
D2 C49 (Pg 45, Reg 84, 85, 86, 87)
BIQUAD (5) - 1 BIQUAD (6) - 1 Lch,
Rch		 N0 C50 (Pg 45, Reg 88, 89, 90, 91)
N1 C51 (Pg 45, Reg 92, 93, 94, 95)
N2 C52 (Pg 45, Reg 96, 97, 98, 99)
D1 C53 (Pg 45, Reg 100, 101, 102, 103)
D2 C54 (Pg 45, Reg 104, 105, 106, 107)
BIQUAD (5) - 2 BIQUAD (6) - 2 Lch,
Rch		 N0 C55 (Pg 45, Reg 108, 109, 110, 111)
N1 C56 (Pg 45, Reg 112, 113, 114, 115)
N2 C57 (Pg 45, Reg 116, 117, 118, 119)
D1 C58 (Pg 45, Reg 120, 121, 122, 123)
D2 C59 (Pg 45, Reg 124, 125, 126, 127)
BIQUAD (7) - 1 BIQUAD (8) - 1 Lch,
Rch		 N0 C60 (Pg 46, Reg 8, 9, 10, 11)
N1 C61 (Pg 46, Reg 12, 13, 14, 15)
N2 C62 (Pg 46, Reg 16, 17, 18, 19)
D1 C63 (Pg 46, Reg 20, 21, 22, 23)
D2 C64 (Pg 46, Reg 24, 25, 26, 27)
BIQUAD (7) - 2 BIQUAD (8) - 2 Lch,
Rch		 N0 C65 (Pg 46, Reg 28, 29, 30, 31)
N1 C66 (Pg 46, Reg 32, 33, 34, 35)
N2 C67 (Pg 46, Reg 36, 37, 38, 39)
D1 C68 (Pg 46, Reg 40, 41, 42, 43)
D2 C69 (Pg 46, Reg 44, 45, 46, 47)

8.3.4.3.3 Dynamic Range Compression

Dynamic range compression (DRC) improves the overall listening experience. Typical music signals are characterized by crest factors (the ratio of peak signal power to average signal power) of 12 dB or more. To avoid audible distortion due to clipping of peak signals, the gain of the DAC channel must be adjusted so as not to cause hard clipping. As a result, the low applied gain during nominal periods causes the perception that the signal is not loud enough. To overcome this problem, the DRC in the PCM514x continuously monitors the output of the DAC Digital Volume control to detect its power level with respect to 0-dB full-scale. When the power level is low, the DRC increases the input signal gain to make it sound louder, and reduces the gain during peaks to avoid hard clipping. The DRC enables louder audio during nominal periods with a clearer, more pleasant listening experience.

The 3-band DRC function applies DRC to 3 different mono/stereo signals with 3 different time constants. The same DRC curve is applied on all the signals, enabling a multi-band DRC solution. The underlying DRC algorithm is the same as that available with the DRC component in PurePath Studio. In this instance, the DRC gain acts on each signal in time-multiplexed order, for example, 1-2-3, 1-2-3, 1-2-3.

Table 22. DRC Coefficients

COEFFICIENT REGISTER
DRC_MB_1_DRC_1_DRCAE C70 (Pg 46, Reg 48, 49, 50, 51)
DRC_MB_1_DRC_1_DRC1AE C71 (Pg 46, Reg 52, 53, 54, 55)
DRC_MB_1_DRC_1_DRCAA C72 (Pg 46, Reg 56, 57, 58, 59)
DRC_MB_1_DRC_1_DRC1AA C73 (Pg 46, Reg 60, 61, 62, 63)
DRC_MB_1_DRC_1_DRCAD C74 (Pg 46, Reg 64, 65, 66, 67)
DRC_MB_1_DRC_1_DRC1AD C75 (Pg 46, Reg 68, 69, 70, 71)
DRC_MB_1_DRC_2_DRCAE C76 (Pg 46, Reg 72, 73, 74, 75)
DRC_MB_1_DRC_2_DRC1AE C77 (Pg 46, Reg 76, 77, 78, 79)
DRC_MB_1_DRC_2_DRCAA C78 (Pg 46, Reg 80, 81, 82, 83)
DRC_MB_1_DRC_2_DRC1AA C79 (Pg 46, Reg 84, 85, 86, 87)
DRC_MB_1_DRC_2_DRCAD C80 (Pg 46, Reg 88, 89, 90, 91)
DRC_MB_1_DRC_2_DRC1AD C81 (Pg 46, Reg 92, 93, 94, 95)
DRC_MB_1_DRC_3_DRCAE C82 (Pg 46, Reg 96, 97, 98, 99)
DRC_MB_1_DRC_3_DRC1AE C83 (Pg 46, Reg 100, 101, 102, 103)
DRC_MB_1_DRC_3_DRCAA C84 (Pg 46, Reg 104, 105, 106, 107)
DRC_MB_1_DRC_3_DRC1AA C85 (Pg 46, Reg 108, 109, 119, 111)
DRC_MB_1_DRC_3_DRCAD C86 (Pg 46, Reg 112, 113, 114, 115)
DRC_MB_1_DRC_3_DRC1AD C87 (Pg 46, Reg 116, 117, 118, 119)
DRC_MB_1_DRC_DRCK0 C88 (Pg 46, Reg 120, 121, 122, 123)
DRC_MB_1_DRC_DRCK1 C89 (Pg 46, Reg 124, 125, 126, 127)
DRC_MB_1_DRC_DRCK2 C90 (Pg 47, Reg 8, 9, 10, 11)
DRC_MB_1_DRC_DRCMT1 C91 (Pg 47, Reg 12, 13, 14, 15)
DRC_MB_1_DRC_DRCMT2 C92 (Pg 47, Reg 16, 17, 18, 19)
DRC_MB_1_DRC_DRCOFF1 C93 (Pg 47, Reg 20, 21, 22, 23)
DRC_MB_1_DRC_DRCOFF2 C94 (Pg 47, Reg 24, 25, 26, 27)
DRC_MB_1_MinusOne_Q22 C95 (Pg 47, Reg 28, 29, 30, 31)
DRC_MB_1_MinusTwo_Q22 C96 (Pg 47, Reg 32, 33, 34, 35)
DRC_MB_1_One_M2 C97 (Pg 47, Reg 36, 37, 38, 39)
DRC_MB_1_Zero C98 (Pg 47, Reg 40, 41, 42, 43)
DRC_MB_1_En_dB C99 (Pg 47, Reg 44, 45, 46, 47)
DRC_MB_1_Minus__Zero_dB C100 (Pg 47, Reg 48, 49, 50, 51)
DRC_MB_1_60_dB C101 (Pg 47, Reg 52, 53, 54, 55)
DRC_MB_1_Minus_60_dB C102 (Pg 47, Reg 56, 57, 58, 59)
DRC_MB_1_12_dB C103 (Pg 47, Reg 60, 61, 62, 63)
DRC_MB_1_Offset C104 (Pg 47, Reg 64, 65, 66, 67)
DRC_MB_1_K C105 (Pg 47, Reg 68, 69, 70, 71)
DRC_MB_1_x / DRC_MB_1_DRC C106 (Pg 47, Reg 72, 73, 74, 75)
DRC_MB_1_48_dB C107 (Pg 47, Reg 76, 77, 78, 79)
DRC_MB_1_Minus_48_dB C108 (Pg 47, Reg 80, 81, 82, 83)
DRC_MB_1_c1_3 C109 (Pg 47, Reg 84, 85, 86, 87)
DRC_MB_1_c1_2 C110 (Pg 47, Reg 88, 89, 90, 91)
DRC_MB_1_c1_1 C111 (Pg 47, Reg 92, 93, 94, 95)
DRC_MB_1_c1_0 C112 (Pg 47, Reg 96, 97, 98, 99)
DRC_MB_1_O1_1 C113 (Pg 47, Reg 100, 101, 102, 103)
DRC_MB_1_S1_1 C114 (Pg 47, Reg 104, 105, 106, 107)
DRC_MB_1_O1_2 C115 (Pg 47, Reg 108, 109, 119, 111)
DRC_MB_1_S1_2 C116 (Pg 47, Reg 112, 113, 114, 115)
DRC_MB_1_O1_3 C117 (Pg 47, Reg 116, 117, 118, 119)
DRC_MB_1_S1_3 C118 (Pg 47, Reg 120, 121, 122, 123)
DRC_MB_1_One_1_Q17 C119 (Pg 47, Reg 124, 125, 126, 127)
DRC_MB_1_Scale1 C120 (Pg 48, Reg 8, 9, 10, 11)
DRC_MB_1_x1Coeff C121 (Pg 48, Reg 12, 13, 14, 15)
DRC_MB_1_c2_3 C122 (Pg 48, Reg 16, 17, 18, 19)
DRC_MB_1_c2_2 C123 (Pg 48, Reg 20, 21, 22, 23)
DRC_MB_1_c2_1 C124 (Pg 48, Reg 24, 25, 26, 27)
DRC_MB_1_c2_0 C125 (Pg 48, Reg 28, 29, 30, 31)
DRC_MB_1_O2_1 C126 (Pg 48, Reg 32, 33, 34, 35)
DRC_MB_1_S2_1 C127 (Pg 48, Reg 36, 37, 38, 39)
DRC_MB_1_O2_2 C128 (Pg 48, Reg 40, 41, 42, 43)
DRC_MB_1_S2_2 C129 (Pg 48, Reg 44, 45, 46, 47)
DRC_MB_1_O2_3 C130 (Pg 48, Reg 48, 49, 50, 51)
DRC_MB_1_S2_3 C131 (Pg 48, Reg 52, 53, 54, 55)
DRC_MB_1_One_2_Q17 C132 (Pg 48, Reg 56, 57, 58, 59)
DRC_MB_1_Scale2 C133 (Pg 48, Reg 60, 61, 62, 63)
DRC_MB_1_x2Coeff C134 (Pg 48, Reg 64, 65, 66, 67)
DRC_MB_1_R1_1 C135 (Pg 48, Reg 68, 69, 70, 71)
DRC_MB_1_R1_2 C136 (Pg 48, Reg 72, 73, 74, 75)
DRC_MB_1_R2_1 C137 (Pg 48, Reg 76, 77, 78, 79)
DRC_MB_1_R2_2 C138 (Pg 48, Reg 80, 81, 82, 83)
DRC_MB_1_Band1_GainC C139 (Pg 48, Reg 84, 85, 86, 87)
DRC_MB_1_Band2_GainC C140 (Pg 48, Reg 88, 89, 90, 91)
DRC_MB_1_Band3_GainC C141 (Pg 48, Reg 92, 93, 94, 95)
DRC_MB_1_MinusOne_M1 C142 (Pg 48, Reg 96, 97, 98, 99)
DRC_MB_1_One_M1 C143 (Pg 48, Reg 100, 101, 102, 103)
DRC_MB_1_Band1_GainE C144 (Pg 48, Reg 104, 105, 106, 107)
DRC_MB_1_Band2_GainE C145 (Pg 48, Reg 108, 109, 110, 111)
DRC_MB_1_Band3_GainE C146 (Pg 48, Reg 112, 113, 114, 115)
DRC_MB_1_minus_One_M2 C147 (Pg 48, Reg 116, 117, 118, 119)

8.3.4.3.4 Stereo Mixer

Three stereo inputs are mixed into one stereo output with input signal gain given by Equation 2.

Equation 2. PCM5141 PCM5142 q2_stereo_mix_signal_gain_pcm512x4x.gif

where

  • i=1:2,3

Figure 60 and Table 23 show the stereo mixer operation.

PCM5141 PCM5142 pcm512x4x_stereo_mixer_block.gif Figure 60. Stereo Mixer Block

Table 23. Stereo Mixer Coefficients

COEFFICIENT REGISTER
Stereo_Mixer_1_MixGain1 C148 (Pg 48, Reg 120, 121, 122, 123)
Stereo_Mixer_1_MixGain2 C149 (Pg 48, Reg 124, 125, 126, 127)
Stereo_Mixer_1_MixGain3 C150 (Pg 49, Reg 8, 9, 10, 11)

8.3.4.3.5 Stereo Multiplexer

The Stereo Multiplexer selects one or two from 4 stereo input channels.

PCM5141 PCM5142 pcm512x4x_stereo_mux_block.gif Figure 61. Stereo Multiplexer Block

Table 24. Stereo Multiplexer Select Coefficient

COEFFICIENT REGISTER
Stereo_Mux_1_MuxSelect C152 (Pg 49, Reg 16, 17, 18, 19)

Table 25. Stereo Multiplexer Input Coefficient

COEFFICIENT REGISTER
C_to_D_1_Coefval
C_to_D_2_Coefval 		C153 (Pg 49, Reg 20, 21, 22, 23)

8.3.4.3.6 Mono Mixer

The Mono Mixer computes a weighted sum of 2 input channels and produces an output.

PCM5141 PCM5142 pcm512x4x_mono_mixer_block.gif Figure 62. Mono Mixer Block

Table 26. Mono Mixer Coefficients

COEFFICIENT REGISTER
Mono_Mixer_1_MixGain1 C154 (Pg 49, Reg 24, 25, 26, 27)
Mono_Mixer_1_MixGain2 C155 (Pg 49, Reg 28, 29, 30, 31)

8.3.4.3.7 Master Volume Control

The Master Volume controls the volume using a linear ramp and zero crossing detection for transitions.

Table 27. Mono Mixer Coefficients

COEFFICIENT REGISTER
Volume_ZeroX_1_volcmd C158 (Pg 49, Reg 40, 41, 42, 43)
Volume_ZeroX_1_volout C159 (Pg 49, Reg 44, 45, 46, 47)
Volume_ZeroX_1_volout_loudness C160 (Pg 49, Reg 48, 49, 50, 51)
Volume_ZeroX_1_MinusOne_M2 C161 (Pg 49, Reg 52, 53, 54, 55)
Volume_ZeroX_1_workingval_1_pre_CRAM C162 (Pg 49, Reg 56, 57, 58, 59)
Volume_ZeroX_1_volout_pre1 C163 (Pg 49, Reg 60, 61, 62, 63)
Volume_ZeroX_1_workingval_2_pre_CRAM C164 (Pg 49, Reg 64, 65, 66, 67)
Volume_ZeroX_1_volout_pre2 C165 (Pg 49, Reg 68, 69, 70, 71)
Volume_ZeroX_1_workingval_3_pre_CRAM C166 (Pg 49, Reg 72, 73, 74, 75)
Volume_ZeroX_1_volout_pre3 C167 (Pg 49, Reg 76, 77, 78, 79)
Volume_ZeroX_1_One_M2 C168 (Pg 49, Reg 80, 81, 82, 83)
Volume_ZeroX_1_Zero C169 (Pg 49, Reg 84, 85, 86, 87)
MinusOne_Int C170 (Pg 49, Reg 88, 89, 90, 91)
MinusOne_M1 C171 (Pg 49, Reg 92, 93, 94, 95)
One_M2 C172 (Pg 49, Reg 96, 97, 98, 99)
One_M1 C173 (Pg 49, Reg 100, 101, 102, 103)
Zero C174 (Pg 49, Reg 104, 105, 106, 107)

8.3.4.3.8 Miscellaneous Coefficients

Table 28. Miscellaneous Coefficients

COEFFICIENT REGISTER
DRC_MB_1_DataBlock C175 (Pg 49, Reg 108, 109, 110, 111)
DRC_MB_1_CoeffBlock C176 (Pg 49, Reg 112, 113, 114, 115)
Volume_ZeroX_1_DataBlock C177 (Pg 49, Reg 116, 117, 118, 119)
Volume_ZeroX_1_CoeffBlock C178 (Pg 49, Reg 120, 121, 122, 123)
plus_one C179 (Pg 49, Reg 124, 125, 126, 127)
ADD_OF_filter_in_L C180 (Pg 50, Reg 8, 9, 10, 11)
ADD_OF_filter_in_R C181 (Pg 50, Reg 12, 13, 14, 15)

8.3.5 DAC Outputs

8.3.5.1 Analog Outputs

The PCM514x devices include a two-channel DAC, with single-ended outputs. The full-scale output voltage is 2.1Vrms with ground center output. A dc-coupled load is supported in addition to an ac-coupled load, if the load resistance conforms to the specification. The PCM514x DAC outputs on the OUTL and OUTR terminals have market-leading low out-of-band noise, which offer up to 20dB lower out-of-band noise compared with existing DAC technology.

Most applications require an external low-pass RC filter (470Ω + 2.2nF) to provide sufficient out-of-band noise rejection. This RC filter provides the added advantage of improved protection against ESD damage.

8.3.5.2 Recommended Output Filter for the PCM514x

The diagram in Figure 63 shows the recommended output filter for the PCM514x. The new PCM514x next-generation current segment architecture offers excellent out-of-band noise, making a traditional 20-kHz low pass filter a thing of the past.

The RC settings below offer a –3-dB filter point at 153 kHz (approximately), giving the DAC the ability to reproduce virtually all frequencies through to it’s maximum sampling rate of 384 kHz. A NP0/C0G type capacitor is strongly recommended for the shunt capacitor for lowest distortion.

PCM5141 PCM5142 f_pcm51xx_lowpass_filt_10k_op.gif Figure 63. Recommended Output Lowpass Filter for 10-kΩ Operation

8.3.5.3 Choosing Between VREF and VCOM Modes

VREF mode is the default configuration. This mode allows full 2.1-Vrms signal output. As shown in Recommended Operating Conditions, the minimum AVDD to avoid clipping is 3.2 V.

VCOM mode allows setting a custom common-mode voltage when required by the application. This somewhat limits the output signal swing before clipping.

8.3.5.3.1 Voltage Reference and Output Levels

The PCM514x devices have an internal, fixed band-gap reference voltage, with default operation in VREF mode. No external decoupling capacitor is required for this mode.

The PCM514x devices can be operated with a common-mode voltage output (VCOM mode) at the VCOM pin by setting Page 1, Register 1, D(0) to 1. In this mode, an external decoupling capacitor is required.

When using this DAC in VREF mode, the output-signal voltage is independent of the power-supply voltage: The D/A conversion gain in VREF mode yields a 2.1-Vrms output voltage with a digital full-scale input. However, in VREF mode, an output waveform may clip due to the limitations that may be present in the analog power supply voltage. On the other hand, the full-scale output voltage in VCOM mode is proportional to the analog power supply AVDD (for example, (2.1 × AVDD / 3.3) Vrms).

8.3.5.3.2 Mode Switching Sequence, from VREF Mode to VCOM Mode

Following register setting sequence is recommended for changing VREF mode to VCOM mode.

1. Page 0 / Register 2 RQST = 1: Standby mode
2. Page 1 / Register 8 RCMF = 1: Fast ramp up → on
3. Page 1 / Register 9　 VCPD = 0: VCOM is power on
4. Wait 3 ms with external capacitor = 1 µF
5. Page 1 / Register 8 RCMF = 0: Fast ramp up → off
6. Page 1 / Register 1 OSEL = 1: VCOM mode
7. Page 0 / Register 2 RQST = 0: Normal mode

8.3.5.4 Digital Volume Control

A basic digital volume control with range from 24 dB to –103 dB and mute is available on each channels by Page 0, Resister 61, D(7:0) for L-ch and Register 62, D(7:0) for R-ch. These volume controls all have 0.5-dB step programmability over most gain and attenuation ranges. Table 29 lists the detailed gain versus programmed setting for this basic volume control. Volume can be changed for both L-ch and R-ch at the same time or independently by Page 0, Register 60, D(1:0). When D(1:0) set 00 (default), independent control is selected. When D(1:0) set 01, R-ch accords with L-ch volume. When D(1:0) set 10, L-ch accords with R-ch volume. To set D(1:0) to 11 is prohibited.

NOTE

This volume control is done externally to the miniDSP and only influences the analog DAC output. Any changes to the SDOUT data should be done in the miniDSP process flow.

Table 29. Digital Volume Control Settings

GAIN SETTING BINARY DATA GAIN (dB) COMMENTS
0 0000-0000 24.0 Positive maximum
1 0000-0001 23.5
: : —
46 0010-1110 1.0
47 0010-1111 0.5
48 0011-0000 0.0 No attenuation (default)
49 0011-0001 –0.5
50 0011-0010 –1.0
51 0011-0011 –1.5
: : —
253 1111-1101 –102.5
254 1111-1110 –103 Negative maximum
255 1111-1111 –∞ Negative infinite (Mute)

Ramp-up frequency and ramp-down frequency can be controlled by Page 0, Register 63, D(7:6) and D(3:2) as shown in Table 30. Also Ramp-up step and ramp-down step can be controlled by Page 0, Register 63 D(5:4) and D(1:0) as shown in Table 31.

Table 30. Ramp-Up or Down Frequency

RAMP-UP SPEED EVERY N fS COMMENTS RAMP-DOWN FREQUENCY EVERY N fS COMMENTS
00 1 Default 00 1 Default
01 2 01 2
10 4 10 4
11 Direct change 11 Direct change

Table 31. Ramp-Up or Down Step

RAMP-UP STEP STEP dB COMMENTS RAMP-DOWN STEP STEP dB COMMENTS
00 4.0 00 -4.0
01 2.0 01 -2.0
10 1.0 Default 10 -1.0 Default
11 0.5 11 -0.5

8.3.5.4.1 Emergency Ramp-Down

Digital volume emergency ramp-down by is provided for situations such as I2S clock error and power supply failure. Ramp-down speed is controlled by Page 0, Register 64, D(7:6). Ramp-down step can be controlled by Page 0 Register 64, D(5:4). Default is ramp-down by every fS cycle with –4-dB step.

8.3.5.5 Analog Gain Control

Analog gain control can be selected between 2-Vrms FS (0dB) or 1-Vrms FS (–6 dB). Gain is controlled through hardware by the AGNS pin, and through software (SPI/I2C), Page 1, Register 2, D4(L-ch) / D0(R-ch).

8.3.6 Reset and System Clock Functions

8.3.6.1 Clocking Overview

The PCM514x devices have flexible systems for clocking. Internally, the device requires a number of clocks, mostly at related clock rates to function correctly. All of these clocks can be derived from the serial audio interface in one form or another.

PCM5141 PCM5142 f_pcm51xx_clk_bd.gif Figure 64. Audio Flow with Respective Clocks

As shown in Figure 64 the data flows at the sample rate (fS). Once the data is brought into the serial audio interface, it gets processed, interpolated and modulated all the way to 128 × fS before arriving at the current segments for the final digital to analog conversion.

The clock tree is shown in Figure 65.

PCM5141 PCM5142 f_pcm51xx_clk_tree_PLL.gif Figure 65. PCM514x Clock Distribution Tree

The serial audio interface typically has 4 connections: SCK (system master clock), BCK (bit clock), LRCK (left right word clock), and DIN (data). The device has an internal PLL that is used to take either SCK or BCK and create the higher rate clocks required by the interpolating processor and the DAC clock. This allows the device to operate with or without an external SCK.

In situations where the highest audio performance is required, it is suggested that the SCK is brought to the device, along with BCK and LRCK. The device should be configured so that the PLL is only providing a clock source to the miniDSP. By ensuring that the DACCK (DAC Clock) is being driven by the external SCK source, jitter evident in the PLL (in all PLLs) is kept out of the DAC, charge pump, and oversampling system.

Everything else should be a division of the incoming SCK. This is done by setting DAC CLK Source Mux (SDAC in Figure 65) to use SCK as a source, rather than the output of the SCK/PLL Mux. Code examples for this are available in SLASE12.

When the Auto Clock Configuration bit is set (Page 0/ Register 0x25), no additional clocks configuration is required. However, when setting custom PLL values and so forth, the target output rates should match those shown in the recommended PLL values of Table 132.

8.3.6.2 Clock Slave Mode With Master and System Clock (SCK) Input (4 Wire I2S)

The PCM514x requires a system clock to operate the digital interpolation filters and advanced segment DAC modulators. The system clock is applied at the SCK input and supports up to 50 MHz. The PCM514x system-clock detection circuit automatically senses the system-clock frequency. Common audio sampling frequencies in the bands of 8 kHz, 16 kHz, (32 kHz - 44.1 kHz - 48 kHz), (88.2kHz - 96kHz), (176.4 kHz - 192 kHz), and 384 kHz with ±4% tolerance are supported. Values in the parentheses are grouped when detected, (for example, 88.2 kHZ and 96 kHz are detected as double rate, and 32 kHz, 44.1 kHz and 48 kHz are detected as single rate.)

In the presence of a valid bit SCK, BCK and LRCK in software mode, the device will auto-configure the clock tree and PLL to drive the miniDSP as required.

The sampling frequency detector sets the clock for the digital filter, Delta Sigma Modulator (DSM) and the Negative Charge Pump (NCP) automatically. Table 32 shows examples of system clock frequencies for common audio sampling rates.

SCK rates that are not common to standard audio clocks, between 1 MHz and 50 MHz, are only supported in software mode by configuring various PLL and clock-divider registers. This programmability allows the device to become a clock master and drive the host serial port with LRCK and BCK, from a non-audio related clock (for example, using 12 MHz to generate 44.1 kHz [LRCK] and 2.8224 MHz [BCK]).

Table 32. System Master Clock Inputs for Audio Related Clocks

SAMPLING FREQUENCY SYSTEM CLOCK FREQUENCY (fSCK) (MHz)
64 fS 128 fS 192 fS 256 fS 384 fS 512 fS 768 fS 1024 fS 1152 fS 1536 fS 2048 fS 3072 fS
8 kHz –(1) 1.024(2) 1.536(2) 2.048 3.072 4.096 6.144 8.192 9.216 12.288 16.384 24.576
16 kHz –(1) 2.048(2) 3.072(2) 4.096 6.144 8.192 12.288 16.384 18.432 24.576 36.864 49.152
32 kHz –(1) 4.096(2) 6.144(2) 8.192 12.288 16.384 24.576 32.768 36.864 49.152 –(1) –(1)
44.1 kHz –(1) 5.6488(2) 8.4672(2) 11.2896 16.9344 22.5792 33.8688 45.1584 –(1) –(1) –(1) –(1)
48 kHz –(1) 6.144(2) 9.216(2) 12.288 18.432 24.576 36.864 49.152 –(1) –(1) –(1) –(1)
88.2 kHz –(1) 11.2896(2) 16.9344 22.5792 33.8688 45.1584 –(1) –(1) –(1) –(1) –(1) –(1)
96 kHz –(1) 12.288(2) 18.432 24.576 36.864 49.152 –(1) –(1) –(1) –(1) –(1) –(1)
176.4 kHz –(1) 22.579 33.8688 45.1584 –(1) –(1) –(1) –(1) –(1) –(1) –(1) –(1)
192 kHz –(1) 24.576 36.864 49.152 –(1) –(1) –(1) –(1) –(1) –(1) –(1) –(1)
384 kHz 24.576 49.152 –(1) –(1) –(1) –(1) –(1) –(1) –(1) –(1) –(1) –(1)
(1) This system clock rate is not supported for the given sampling frequency.
(2) This system clock rate is supported by PLL mode.

See Timing Requirements: PCM Audio Data for clock timing requirements.

8.3.6.3 Clock Slave Mode With BCK PLL to Generate Internal Clocks (3-Wire PCM)

The system clock PLL mode allows designers to use a simple 3-wire I2S audio source. The 3-wire source reduces the need for a high frequency SCK, making PCB layout easier, and reduces high frequency electromagnetic interference.

In hardwired mode, the internal PLL is disabled as soon as an external SCK is supplied.

In hardwired mode, the device starts up expecting an external SCK input, but if BCK and LRCK start correctly while SCK remains at ground level for 16 successive LRCK periods, then the internal PLL starts, automatically generating an internal SCK from the BCK reference. Specific BCK rates are required to generate an appropriate master clock. Table 33 describes the minimum and maximum BCK per LRCK for the integrated PLL to automatically generate an internal SCK.

In software mode, the user must set all the PLL registers and clock divider registers for referencing BCK. See Clock Generation Using the PLL for more information. Recommended values can be found in Table 132.

Table 33. BCK Rates (MHz) by LRCK Sample Rate for PCM514x PLL Operation

  SAMPLE F (kHz)  BCK (fS)
32 64
8 – –
16 – 1.024
32 1.024 2.048
44.1 1.4112 2.8224
48 1.536 3.072
96 3.072 6.144
192 6.144 12.288
384 12.288 24.576

8.3.6.4 Clock Generation Using the PLL

The PCM514x supports a wide range of options to generate the required clocks for the DAC section as well as interface and other control blocks as shown in Figure 65.

The clocks for the PLL require a source reference clock. This clock is sourced as the incoming BCK or SCK. In software mode, a GPIO can also be used.

The source reference clock for the PLL reference clock is selected by programming the SRCREF value on Page 0, Register 13, D(6:4). The PCM514x provides several programmable clock dividers to achieve a variety of sampling rates for the DAC and clocks for the NCP, OSR, and the miniDSP. OSRCK for OSR must be set at 16 fS frequency by DOSR on Page0, Register 30, D(6:0). See Figure 65.

If PLL functionality is not required, set the PLLEN value on Page 0, Register 4, D(0) to 0. In this situation, an external SCK is required.

Table 34. PLL Configuration Registers

CLOCK MULTIPLEXER FUNCTION BITS
SRCREF PLL reference Page 0, Register 13, D(6:4)
DIVIDER FUNCTION BITS
DDSP miniDSP clock divider Page 0, Register 27, D(6:0)
DACCK DAC clock divider Page 0, Register 28, D(6:0)
CPCK NCP clock divider Page 0, Register 29, D(6:0)
OSRCK OSR clock divider Page 0, Register 30, D(6:0)
DBCK External BCK Div Page 0, Register 32, D(6:0)
DLRK External LRCK Div Page 0, Register 33, D(7:0)

8.3.6.5 PLL Calculation

The PCM514x has an on-chip PLL with fractional multiplication to generate the clock frequency needed by the audio DAC, Negative Charge Pump, Modulator and Digital Signal Processing blocks. The programmability of the PLL allows operation from a wide variety of clocks that may be available in the system. The PLL input (PLLCKIN) supports clock frequencies from 1 MHz to 50 MHz and is register programmable to enable generation of required sampling rates with fine precision.

The PLL is enabled by default. The PLL can be turned on by writing to Page 0, Register 4, D(0). When the PLL is enabled, the PLL output clock PLLCK is given by Equation 3.

Equation 3. PCM5141 PCM5142 f_pcm51xx_eq_pll_rate_clac.gif

where

  • R = 1, 2, 3,4, ... , 15, 16
  • J = 4,5,6, . . . 63, and D = 0000, 0001, 0002, . . . 9999
  • K = [J value].[D value]
  • P = 1, 2, 3, ... 15

R, J, D, and P are programmable. J is the integer portion of K (the numbers to the left of the decimal point), while D is the fractional portion of K (the numbers to the right of the decimal point, assuming four digits of precision).

8.3.6.5.1 Examples:

  • If K = 8.5, then J = 8, D = 5000
  • If K = 7.12, then J = 7, D = 1200
  • If K = 14.03, then J = 14, D = 0300
  • If K = 6.0004, then J = 6, D = 0004

When the PLL is enabled and D = 0000, the following conditions must be satisfied:

  • 1 MHz ≤ ( PLLCKIN / P ) ≤ 20 MHz
  • 64 MHz ≤ (PLLCKIN x K x R / P ) ≤ 100 MHz (in VREF mode)
  • 72 MHz ≤ (PLLCKIN x K x R / P ) ≤ 86 MHz (in VCOM mode)
  • 1 ≤ J ≤ 63

When the PLL is enabled and D ≠ 0000, the following conditions must be satisfied:

  • 6.667 MHz ≤ PLLCLKIN / P ≤ 20 MHz
  • 64 MHz ≤ (PLLCKIN x K x R / P ) ≤ 100 MHz (in VREF mode)
  • 72 MHz ≤ (PLLCK IN x K x R / P ) ≤ 86 MHz (in VCOM mode)
  • 4 ≤ J ≤ 11
  • R = 1

When the PLL is enabled,

  • fS = (PLLCLKIN × K × R) / (2048 × P)
  • The value of N is selected so that fS × N = PLLCLKIN x K x R / P is in the allowable range.

Example: MCLK = 12 MHz and fS = 44.1 kHz, (N=2048)

Select P = 1, R = 1, K = 7.5264, which results in J = 7, D = 5264

Example: MCLK = 12 MHz and fS = 48.0 kHz, (N=2048)

Select P = 1, R = 1, K = 8.192, which results in J = 8, D = 1920

Values are written to the registers in Table 35.

8.3.6.5.1.1 Recommended PLL Settings

Recommended values for the PLL can be found after the register descriptions in this data sheet. Different values are defined based on the device configuration for VREF or VCOM mode.

Other configurations are possible, at your own risk.

Below are details of the register locations, as well as the nomenclature for the table of registers found at the end of this document.

Table 35. PLL Registers

DIVIDER FUNCTION BITS
PLLE PLL enable Page 0, Register 4, D(0)
PPDV PLL P Page 0, Register 20, D(3:0)
PJDV PLL J Page 0, Register 21, D(5:0)
PDDV PLL D Page 0, Register 22, D(5:0)
Page 0, Register 23, D(7:0)
PRDV PLL R Page 0, Register 24, D(3:0)

Table 36. PLL Configuration Recommendations

COLUMN DESCRIPTION
fS (kHz) Sampling frequency
RSCK Ratio between sampling frequency and SCK frequency (SCK frequency = RSCK × sampling frequency)
SCK (MHz) System master clock frequency at SCK input (pin 20)
PLL VCO (MHz) PLL VCO frequency as PLLCK in Figure 65
P One of the PLL coefficients in Equation 3
PLL REF (MHz) Internal reference clock frequency which is produced by SCK / P
M = K * R The final PLL multiplication factor computed from K and R as described in Equation 3
K = J.D One of the PLL coefficients in Equation 3
R One of the PLL coefficients in Equation 3
PLL fS Ratio between fS and PLL VCO frequency (PLL VCO / fS)
DSP fS Ratio between miniDSP operating clock rate and fS (PLL fS / NMAC)
NMAC The miniDSP clock divider value in Table 34
DSP CLK (MHz) The miniDSP operating frequency as DSPCK in Figure 65
MOD fS Ratio between DAC operating clock frequency and fS (PLL fS / NDAC)
MOD f (kHz) DAC operating frequency as DACCK in Figure 65
NDAC DAC clock divider value in Table 34
DOSR OSR clock divider value in Table 34 for generating OSRCK in Figure 65. DOSR must be chosen so that MOD fS / DOSR = 16 for correct operation.
NCP NCP (negative charge pump) clock divider value in Table 34
CP f Negative charge pump clock frequency (fS × MOD fS / NCP)
% Error Percentage of error between PLL VCO / PLL fS and fS (mismatch error).
  • This number is typically zero but can be non-zero especially when K is not an integer (D is not zero).
  • This number may be non-zero only when the PCM514x acts as a master.

8.3.6.6 Clock Master Mode from Audio Rate Master Clock

In Master Mode, the device generates bit clock (BCK) and left-right clock (LRCK) and outputs them on the appropriate pins. To configure the device in this mode, first put the device into reset, then use registers BCKO and LRKO (Pg 0, Reg 9 0x09). Then reset the LRCK and BCK divider counters using bits RBCK and RLRK (Pg 0, Reg 12 0x0C). Finally, exit reset.

An example of this is given in register programming examples in the PCM5242 data sheet (SLASE12.)

Figure 66 shows a simplified serial port clock tree for the device in master mode.

PCM5141 PCM5142 f_pcm51xx_serialport_clk_tree.gif Figure 66. Simplified Clock Tree for SCK Sourced Master Mode

In master mode, SCK is an input and BCK/LRCK are outputs. BCK and LRCK are integer divisions of SCK. Master mode with a non-audio rate master clock source will require external GPIOs to use the PLL in standalone mode.

The PLL will also need to be configured to ensure that the onchip miniDSP processor can be driven at its maximum clock rate.

Register changes that need to be done include switching the device into master mode, and setting the divider ratio.

Here is an example of using 24.576 MCLK as a master clock source and driving the BCK and LRCK with integer dividers to create 48 kHz.

In this mode, the DAC section of the device is also running from the PLL output. While the PLL inside the PCM514x is one that has been specified to achieve the stated performance, using the SCK CMOS Oscillator source will have less jitter.

To switch the DAC clocks (SDAC in the Figure 65) the following registers should be modified.

  • Clock Tree Flex Mode (Page 253, Registers 0x3F and 0x40)
  • DAC and OSR Source Clock Register (Page 0, Reg 14) – set to 0x30 (SCK input, and OSR is set to whatever the DAC source is)
  • The DAC clock divider should be 16 FS.
    • 16 × 48 kHz = 768 kHz
    • 24.576 MHz (SCK in) / 768 kHz = 32
    • Therefor, divide ratio for register DDAC (Page 0, Reg 28 0x1C) should be set to 32. The may the register is mapped gives 0x00 = 1, so 32 must be converted to 0x1F.

An example configuration can be found in the PCM5242 data sheet (SLASE12).

8.3.6.7 Clock Master from a Non-Audio Rate Master Clock

The classic example here is running a 12-MHz Master clock for a 48-kHz sampling system. Given the clock tree for the device (shown in Figure 65), a non-audio clock rate cannot be brought into the SCK to the PLL in master mode. Therefore, the PLL source must be configured to be a GPIO pin, and the output brought back into another GPIO pin.

PCM5141 PCM5142 f_pcm51xx_non-aud_mstr_clk.gif Figure 67. Application Diagram for Using Non-Audio Clock Sources to Generate Audio Clocks

The clock flow through the system is shown in Figure 67. The newly-generated SCK must be brought out of the device on a GPIO pin, then brought into the SCK pin for integer division to create BCK and LRCK outputs.

NOTE

Pullup resistors must be used on BCK and LRCK in this mode to ensure the device does not go into sleep mode.

A code example for configuring this mode is provided in the PCM5242 data sheet (SLASE12).

8.4 Device Functional Modes

8.4.1 Choosing a Control Mode

SPI Mode is selected by connecting MODE1 to DVDD. SPI Mode uses four signal lines and allows higher-speed full-duplex communication between the host and the PCM514x device.

I2C Mode is selected by connecting MODE1 to DGND and Mode2 to DVDD. I2C uses two signal lines for half-duplex communication, and is widely used in a variety of devices.

Hardware Control Mode is selected by connecting both MODE1 and MODE2 pins to DGND. Hardware control is useful in applications that do not require on-the-fly device-reconfiguration changes in operating features such as gain or filter latency selection.

See for a comparison of pin assignments for the 28-pin TSSOP.

8.4.1.1 Software Control

8.4.1.1.1 SPI Interface

The SPI interface is a 4-wire synchronous serial port which operates asynchronously to the serial audio interface and the system clock (SCK). The serial control interface is used to program and read the on-chip mode registers.

The control interface includes MISO (pin 24), MOSI (pin 11), MC (pin 12), and MS (pin 18). MISO (Master In Slave Out) is the serial data output, used to read back the values of the mode registers; MOSI (Master Out Slave In) is the serial data input, used to program the mode registers.

MC is the serial bit clock, used to shift data in and out of the control port by falling edge of MC, and MS is the mode control enable with LOW active, used to enable the internal mode register access. If feedback from the device is not required, the MISO pin can be assigned to GPIO1 by register control.

8.4.1.1.1.1 Register Read and Write Operation

All read/write operations for the serial control port use 16-bit data words. Figure 68 shows the control data word format. The most significant bit is the read/write bit. For write operations, the bit must be set to 0. For read operations, the bit must be set to 1. There are seven bits, labeled IDX[6:0], that hold the register index (or address) for the read and write operations. The least significant eight bits, D[7:0], contain the data to be written to, or the data that was read from, the register specified by IDX[6:0].

Figure 68 and Figure 69 show the functional timing diagram to write or read through the serial control port. MS is held at a logic-1 state until a register access. To start the register write or read cycle, set MS to logic 0. Sixteen clocks are then provided on MC, corresponding to the 16 bits of the control data word on MOSI and read-back data on MISO. After the eighth clock cycle has completed, the data from the indexed-mode control register appears on MISO during the read operation. After the sixteenth clock cycle has completed, the data is latched into the indexed-mode control register during the write operation. To write or read subsequent data, MS is set to logic 1 once (see tMHH in Figure 73).

PCM5141 PCM5142 f_pcm51xx_mdi_ctrl_data_word_format.gif Figure 68. Control Data Word Format; MDI

NOTE

B8 is used for selection of Write or Read. Setting = 0 indicates a Write, while = 1 indicates a Read. Bits 15–9 are used for register address. Bits 7–0 are used for register data. Multiple-byte write or read (up to 8 bytes) is supported while MS is kept low. The address field becomes the initial address, automatically incrementing for each byte.
PCM5141 PCM5142 f_pcm51xx_td_ser_ctrl_format_wr.gif Figure 69. Serial Control Format; Write, Single Byte
PCM5141 PCM5142 f_pcm51xx_td_ser_ctrl_format__burst_wr.gif Figure 70. Serial Control Format; Write, Multiple Byte
PCM5141 PCM5142 f_pcm51xx_td_ser_ctrl_format_rd.gif Figure 71. Serial Control Format; Read
PCM5141 PCM5142 f_pcm51xx_td_ser_ctrl_format__burst_rd.gif Figure 72. Serial Control Format; Read, Multiple Byte
PCM5141 PCM5142 f_pcm51xx_td_ctrl_if.gif Figure 73. Control Interface Timing

Table 37. Control Interface Timing

MIN MAX UNIT
tMCY MC Pulse Cycle Time 100 ns
tMCL MC Low Level Time 40 ns
tMCH MC High Level Time 40 ns
tMHH MS High Level Time 20 ns
tMSS MS ↓ Edge to MC ↑ Edge 30 ns
tMSH MS Hold Time(1) 30 ns
tMDH MDI Hold Time 15 ns
tMDS MDI Set-up Time 15 ns
tMOS MC Rise Edge to MDO Stable 20 ns
(1) MC falling edge for LSB to MS rising edge.

8.4.1.1.2 I2C Interface

The PCM514x supports the I2C serial bus and the data transmission protocol for standard and fast mode as a slave device.

In I2C mode, the control terminals are changed as follows.

Table 38. I2C Pins and Functions

SIGNAL PIN I/O DESCRIPTION
SDA 11 I/O I2C data
SCL 12 I I2C clock
ADR2 16 I I2C address 2
ADR1 24 I I2C address 1

8.4.1.1.2.1 Slave Address

Table 39. I2C Slave Address

MSB LSB
1 0 0 1 1 ADR2 ADR1 R/ W

The PCM514x has 7 bits for its own slave address. The first five bits (MSBs) of the slave address are factory preset to 10011 (0x9x). The next two bits of the address byte are the device select bits which can be user-defined by the ADR1 and ADR0 terminals. A maximum of four devices can be connected on the same bus at one time. This gives a range of 0x98, 0x9A, 0x9C and 0x9E. Each PCM514x responds when it receives its own slave address.

8.4.1.1.2.2 Register Address Auto-Increment Mode

PCM5141 PCM5142 f_pcm51xx_auto_inc_mode.gif Figure 74. Auto Increment Mode

Auto-increment mode allows multiple sequential register locations to be written to or read back in a single operation, and is especially useful for block write and read operations.

8.4.1.1.2.3 Packet Protocol

A master device must control packet protocol, which consists of start condition, slave address, read/write bit, data if write or acknowledge if read, and stop condition. The PCM514x supports only slave receivers and slave transmitters.

PCM5141 PCM5142 f_pcm51xx_packet_protocol.gif Figure 75. Packet Protocol

Table 40. Write Operation - Basic I2C Framework

Transmitter M M M S M S M S S M
Data Type St slave address R/ ACK DATA ACK DATA ACK ACK Sp

Table 41. Read Operation - Basic I2C Framework

Transmitter M M M S S M S M M M
Data Type St slave address R/ ACK DATA ACK DATA ACK NACK Sp

M = Master Device; S = Slave Device; St = Start Condition; Sp = Stop Condition

8.4.1.1.2.4 Write Register

A master can write to any PCM514x registers using single or multiple accesses. The master sends a PCM514x slave address with a write bit, a register address with auto-increment bit, and the data. If auto-increment is enabled, the address is that of the starting register, followed by the data to be transferred. When the data is received properly, the index register is incremented by 1 automatically. When the index register reaches 0x7F, the next value is 0x0. Table 42 shows the write operation.

Table 42. Write Operation

Transmitter M M M S M S M S M S S M
Data Type St slave addr W ACK inc reg addr ACK write data 1 ACK write data 2 ACK ACK Sp

M = Master Device; S = Slave Device; St = Start Condition; Sp = Stop Condition; W = Write; ACK = Acknowledge

8.4.1.1.2.5 Read Register

A master can read the PCM514x register. The value of the register address is stored in an indirect index register in advance. The master sends a PCM514x slave address with a read bit after storing the register address. Then the PCM514x transfers the data which the index register points to. When auto-increment is enabled, the index register is incremented by 1 automatically. When the index register reaches 0x7F, the next value is 0x0. Table 43 shows the read operation.

Table 43. Read Operation

Transmitter M M M S M S M M M S S M M M
Data Type St slave addr W ACK inc reg addr ACK Sr slave addr R ACK data ACK NACK Sp

M = Master Device; S = Slave Device; St = Start Condition; Sr = Repeated Start Condition; Sp = Stop Condition; W = Write; R = Read; NACK = Not acknowledge

8.4.1.1.2.6 Timing Characteristics

PCM5141 PCM5142 f_pcm51xx_td_reg_rd.gif Figure 76. Register Access Timing

Table 44. I2C Bus Timing

MIN MAX UNIT
fSCL SCL clock frequency Standard 100 kHz
Fast 400 kHz
tBUF Bus free time between a STOP and START condition Standard 4.7 µs
Fast 1.3
tLOW Low period of the SCL clock Standard 4.7 µs
Fast 1.3
tHI High period of the SCL clock Standard 4.0 µs
Fast 600 ns
tRS-SU Setup time for (repeated)START condition Standard 4.7 µs
Fast 600 ns
tS-HD Hold time for (repeated)START condition Standard 4.0 µs
tRS-HD Fast 600 ns
tD-SU Data setup time Standard 250 ns
Fast 100
tD-HD Data hold time Standard 0 900 ns
Fast 0 900
tSCL-R Rise time of SCL signal Standard 20 + 0.1CB 1000 ns
Fast 20 + 0.1CB 300
tSCL-R1 Rise time of SCL signal after a repeated START condition and after an acknowledge bit Standard 20 + 0.1CB 1000 ns
Fast 20 + 0.1CB 300
tSCL-F Fall time of SCL signal Standard 20 + 0.1CB 1000 ns
Fast 20 + 0.1CB 300
tSDA-R Rise time of SDA signal Standard 20 + 0.1CB 1000 ns
Fast 20 + 0.1CB 300
tSDA-F Fall time of SDA signal Standard 20 + 0.1CB 1000 ns
Fast 20 + 0.1CB 300
tP-SU Setup time for STOP condition Standard 4.0 µs
Fast 600 ns
CB Capacitive load for SDA and SCL line 400 pF
tSP Pulse width of spike suppressed Fast 50 ns
VNH Noise margin at High level for each connected device (including hysteresis) 0.2 × VDD V

8.4.2 VREF and VCOM Modes

See Choosing Between VREF and VCOM Modes for information on configuring these modes.

8.5 Programming

In software mode, the PCM514x can act as an I2S master, generating BCK and LRCK as outputs from the SCK input.

Table 45. I2S Master Mode Registers

REGISTER FUNCTION
Page0, Register 9, D(0), D(4), and D(5) I2S Master mode select
Register 32, D(6:0) BCK divider and LRCK divider
Register 33, D(7:0)

9 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

9.1 Application Information

The PCM514x family is flexible, and this flexibility gives rise to a number of design questions that define the design requirements for a given application.

9.2 Typical Application

PCM5141 PCM5142 pcm512x4X_barebones_app_i2c.gif Figure 77. Simplified Schematic, Hardware-Controlled Subsystem

9.2.1 Design Requirements

  • Single-ended 2.1-VRMS analog outputs
  • 3-wire I2S interface (BCK PLL)
  • Single 3.3-V supply

9.2.2 Detailed Design Procedure

  • Clock and PLL setup (See Reset and System Clock Functions.) Ensure incoming BCK meets minimum requirements.
  • XSMT pin setup for 12-V monitoring (See External Power Sense Undervoltage Protection Mode.)
  • Single-supply 3.3-V operation (See Setting Digital Power Supplies and I/O Voltage Rails.)

9.2.3 Application Curve

PCM5141 PCM5142 fft_-60dB_5101.gif Figure 78. PCM5141A FFT Plot, DC to 20 kHz With a 1-kHz, –60-dBFS Input

10 Power Supply Recommendations

10.1 Power Supply Distribution and Requirements

The PCM514x devices are powered through the pins shown in Figure 79.

PCM5141 PCM5142 pcm5xxx_pwrtree.gif Figure 79. Power Distribution Tree Within PCM514x

Table 46. Power Supply Pin Descriptions

NAME USAGE / DESCRIPTION
AVDD Analog voltage supply; must be 3.3 V. This powers all analog circuitry that the DAC runs on.
DVDD Digital voltage supply. This is used as the I/O voltage control and the input to the onchip LDO.
CPVDD Charge Pump Voltage Supply - must be 3.3 V
LDOO Output from the onchip LDO. Should be used with a 0.1-µF decoupling cap. Can be driven (used as power input) with a 1.8-V supply to bypass the onchip LDO for lower power consumption.
AGND Analog ground
DGND Digital ground

10.2 Recommended Powerdown Sequence

Under certain conditions, the PCM514x devices can exhibit some pops on power down. Pops are caused by a device not having enough time to detect power loss and start the muting process.

The PCM514x devices have two auto-mute functions to mute the device upon power loss (intentional or unintentional).

10.2.1 XSMT = 0

When the XSMT pin is pulled low, the incoming PCM data is attenuated to 0, closely followed by a hard analog mute. This process takes 150 sample times (ts) + 0.2 ms.

Because this mute time is mainly dominated by the sampling frequency, systems sampling at 192 kHz will mute much faster than a 48-kHz system.

10.2.2 Clock Error Detect

When clock error is detected on the incoming data clock, the PCM514x devices switch to an internal oscillator, and continue to the drive the output, while attenuating the data from the last known value. Once this process is complete, the PCM514x outputs are hard muted to ground.

10.2.3 Planned Shutdown

These auto-muting processes can be manipulated by system designs to mute before power loss in the following ways:

  1. Assert XSMT low 150 tS + 0.2 ms before power is removed.
    2. PCM5141 PCM5142 f_pcm51xx_anti-pop_pwrdwn_seq.gif Figure 80. Assert XSMT
  2. Stop I2S clocks (SCK, BCK, LRCK) 3 ms before powerdown as shown in Figure 81.
    3. PCM5141 PCM5142 f_pcm51xx_anti-pop_pwrdwn_seq2.gif Figure 81. Stop I2C Clocks

10.2.4 Unplanned Shutdown

Many systems use a low-noise regulator to provide an AVDD 3.3-V supply for the DAC. The XSMT Pin can take advantage of such a feature to measure the pre-regulated output from the system SMPS to mute the output before the entire SMPS discharges. Figure 82 shows how to configure such a system to use the XSMT pin. The XSMT pin can also be used in parallel with a GPIO pin from the system microcontroller/DSP or power supply.

PCM5141 PCM5142 f_pcm51xx_xsmt_anti_pwrdwnpop.gif Figure 82. Using the XSMT Pin

10.3 External Power Sense Undervoltage Protection Mode

NOTE

External Power Sense Undervoltage Protection Mode is supported only when
DVDD = 3.3 V.

The XSMT pin can also be used to monitor a system voltage, such as the 24-VDC LCD TV backlight, or 12-VDC system supply using a voltage divider created with two resistors. (See Figure 83.)

  • If the XSMT pin makes a transition from 1 to 0 over 6 ms or more, the device switches into external undervoltage protection mode. This mode uses two trigger levels:
    • When the XSMT pin level reaches 2 V, soft mute process begins.
    • When the XSMT pin level reaches 1.2 V, analog mute engages, regardless of digital audio level, and analog shutdown begins. (DAC and related circuitry powers down).

If XSMT is moved from 1 to 0 in 20 ns or less, then the device will interpret it as a digital controlled request to mute. It will perform a soft mute, then move to standby.

A timing diagram to show this is shown in Figure 84.

NOTE

The XSMT input pin voltage range is from –0.3 V to DVDD + 0.3 V. The ratio of external resistors must produce a voltage within this input range. Any increase in power supply (such as power supply positive noise or ripple) can pull the XSMT pin higher than DVDD + 0.3 V.

For example, if the PCM514x is monitoring a 12-V input, and dividing the voltage by 4, then the voltage at XSMT during ideal power supply conditions is 3.3 V. A voltage spike higher than 14.4 V causes a voltage greater than 3.6 V (DVDD + 0.3) on the XSMT pin, potentially damaging the device.

Providing the divider is set appropriately, any DC voltage can be monitored.

PCM5141 PCM5142 f_pcm51xx_xsmt_ext_uvp_ckt.gif Figure 83. XSMT in External UVP Mode
PCM5141 PCM5142 f_pcm51xx_td_xsmt_uvp.gif Figure 84. XSMT Timing for Undervoltage Protection

The trigger voltage values for the soft mute and hard mute are shown in Table 47. The range of values will vary from device to device, but typical thresholds are shown. XSMT should be set up to nominally be 3.3 V along with DVDD, but derived from a higher system power supply rail.

Table 47. Distribution of Voltage Thresholds

MIN TYP MAX UNIT
Soft Mute Threshold Voltage 2 2.2 0.9 × DVDD V
Hard Mute Threshold Voltage 0.1 × DVDD 0.9 1.2 V

10.4 Power-On Reset Function

10.4.1 Power-On Reset, DVDD 3.3-V Supply

The PCM514x includes a power-on reset function, as shown in Figure 85. With VDD > 2.8 V, the power-on reset function is enabled. After the initialization period, the PCM514x is set to its default reset state. Analog output will begin ramping after valid data has been passing through the device for the given group delay given by the digital interpolation filter selected.

PCM5141 PCM5142 pcm512x4x_por_3p3.gif Figure 85. Power-On Reset Timing, DVDD = 3.3 V

10.4.2 Power-On Reset, DVDD 1.8-V Supply

The PCM514x includes a power-on reset function, as shown in Figure 86. With AVDD greater than approximately 2.8 V, CPVDD greater than approximately 2.8 V, and DVDD greater than approximately 1.5 V, the power-on reset function is enabled. After the initialization period, the PCM514x is set to its default reset state.

PCM5141 PCM5142 pcm512x4x_por_1p8.gif Figure 86. Power-On Reset Timing, DVDD = 1.8 V

10.5 PCM514x Power Modes

10.5.1 Setting Digital Power Supplies and I/O Voltage Rails

The internal digital core of the PCM514x devices run from a 1.8-V supply. This can be generated by the internal LDO, or by an external 1.8-V supply.

DVDD is used to set the I/O voltage, and to be used as the input to the onchip LDO that creates the 1.8 V required by the digital core.

For systems that require 3.3-V I/O support, but lower power consumption, DVDD should be connected to 3.3 V and LDOO can be connected to an external 1.8-V source. Doing so will disable the onchip LDO.

When setting I/O voltage to be 1.8 V, both DVDD and LDOO must be provided with an external 1.8-V supply.

10.5.2 Power Save Modes

The PCM514x devices offer two power-save modes: standby and power-down.

When a clock error (SCK, BCK, and LRCK) or clock halt is detected, the PCM514x device automatically enters standby mode. The DAC and line driver are also powered down.

When BCK and LRCK remain at a low level for more than 1 second, the PCM514x device automatically enters powerdown mode. Power-down mode disables the negative charge pump and bias/reference circuit, in addition to those disabled in standby mode.

When expected audio clocks (SCK, BCK, LRCK) are applied to the PCM514x device, or if BCK and LRCK start correctly while SCK remains at ground level for 16 successive LRCK periods, the device starts its powerup sequence automatically.

10.5.3 Power Save Parameter Programming

Table 48. Power Save Registers

REGISTER DESCRIPTION
Page 0, Register 2, D(4) Software standby mode command
Page 0, Register 2, D(0) Software power-down command
Page 0, Register 2, D(4) and D(0) Software power-up sequence command (required after software standby or power-down)
Page 0, Register 44, D(2:0) Detection time of BCK and LRCK halt

11 Layout

11.1 Layout Guidelines

  • The PCM514x family of devices are simple to layout. Most engineers use a shared common ground for an entire device. GND can consider AGND and DGND connected.
  • Good system partitioning should keep digital clock and interface traces away from the analog outputs for highest analog performance. This reduces any high-speed clock return currents influencing the analog outputs.
  • Power supply and charge pump decoupling capacitors should be placed as close as possible to the device.
  • The top layer should be used for routing signals, whilst the bottom layer can be used for GND.

11.2 Layout Example

PCM5141 PCM5142 DatasheetLayoutExample_slas759.gif
It is recommended to place a top layer ground pour for shielding around the DAC and connect to lower main PCB ground plane by multiple vias
Figure 87. PCM514x Layout Example


Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
