DATA SHEET

用于生物电势测量的 ADS129x 低功耗、双通道、24 位模拟前端

本资源的原文使用英文撰写。 为方便起见，TI 提供了译文；由于翻译过程中可能使用了自动化工具，TI 不保证译文的准确性。 为确认准确性，请务必访问 ti.com 参考最新的英文版本（控制文档）。

1 特性

  • 两个低噪声 PGA 和两个高分辨率 ADC
    （ADS1292 和 ADS1292R）
  • 低功耗：335μW/通道
  • 输入参考噪声：8μVPP
    （150Hz 带宽，G = 6）
  • 输入偏置电流：200pA
  • 数据速率：125SPS 至 8kSPS
  • CMRR：120dB
  • 可编程增益：1、2、3、4、6、8 或 12
  • 电源：单极或者双极
    • 模拟：2.7V 至 5.25V
    • 数字：1.7V 至 3.6V
  • 内置右腿驱动放大器、持续断线检测、测试信号
  • 集成型呼吸阻抗测量 (ADS1292R)
  • 内置振荡器和基准
  • 灵活的断电、待机模式
  • SPI™兼容串行接口
  • 工作温度范围：–40°C 至 +85°C

2 应用

  • 医疗仪器 (ECG) 包括：
    • 患者监护：动态心电图 (Holter)、事件、压力和生命体征，包括心电图、AED 和远程医疗
    • 个人护理和健身监视器
      （心率、呼吸和 ECG）
  • 高精度、同步、多通道数据采集

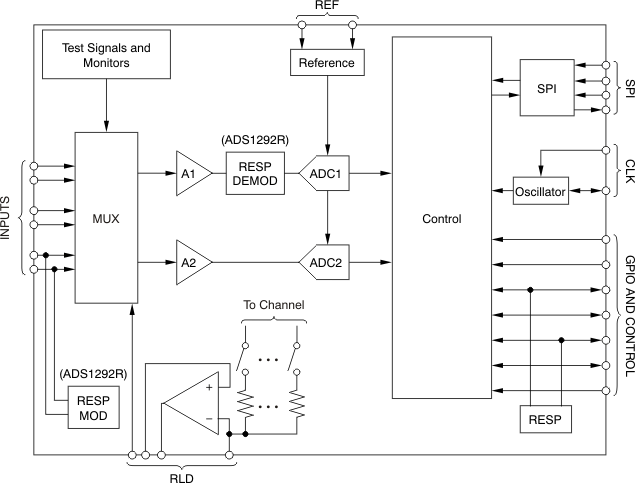

    • 简化框图

    ADS1291 ADS1292 ADS1292R fbd_sbas502.gif

3 说明

ADS1291、ADS1292 和 ADS1292R 是多通道同步采样 24 位 Δ-Σ 模数转换器 (ADC)，它们具有内置的可编程增益放大器 (PGA)、内部基准和板载振荡器。

ADS1291、ADS1292 和 ADS1292R 包含 便携式 低功耗医疗心电图 (ECG)、体育和健身 应用通常所需的所有功能。

凭借高集成度和出色的性能，ADS1291、ADS1292 和 ADS1292R 可在显著减少尺寸、功耗和总体成本的前提下创建可扩展的医疗仪器系统。

ADS1291、ADS1292 和 ADS1292R 每通道具有灵活的输入多路复用器，此多路复用器可独立连接至内部生成的信号，实现测试、温度和持续断线检测。此外，可选择输入通道的任一配置生成右腿驱动 (RLD) 输出信号。ADS1291、ADS1292 和 ADS1292R 工作时的数据速率高达 8kSPS。通过器件内部激励灌电流或拉电流，可在器件内部执行持续断线检测。ADS1292R 版本包括一个完全集成的呼吸阻抗测量功能。

这些器件采用 5mm × 5mm、32 引脚薄型四方扁平封装 (TQFP) 和 4mm x 4mm、32 引脚无引线四方扁平封装 (VQFN)。额定工作温度范围 –40°C 至 +85°C。

器件信息(1)

器件型号 封装 封装尺寸（标称值）
ADS129x TQFP (32) 5.00mm × 5.00mm
VQFN (32) 4.00mm × 4.00mm
  1. 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

4 修订历史记录

Changes from B Revision (September 2012) to C Revision

  • Added 添加了器件信息 表、ESD 额定值 表、首页图的标题、建议运行条件 表、特性 说明 部分、器件功能模式 部分、应用和实施 部分、电源相关建议 部分、布局 部分、器件和文档支持 部分以及机械、封装和可订购信息 部分Go
  • Changed 将 CMRR 值从 105dB 更改为 120dB（位于特性 部分）Go
  • Changed 更改了应用 部分Go
  • Changed 通篇将 QFN 更改为 VQFNGo
  • Added thermal pad data to RDM pin out package drawing Go
  • Changed Pin Functions title from Pin Assignments, changed Terminal column header to Pin, and corrected format to show both package optionsGo
  • Changed function and description of RESP_MODN/IN3N and RESP_MODP/IN3P pins, changed function of RLDOUT pin from Analog input to Analog output, and added Thermal Pad row to Pin Assignments tableGo
  • Deleted Family and Ordering Information tableGo
  • Changed CMRR parameter values from –105 dB to 105 dB (minimum) and from –120 dB to 120 dB (typical) in Electrical Characteristics tableGo
  • Changed Noise Measurements section: deleted SNR equation, changed DYN RANGE and EFF RESOL column headers in section tablesGo
  • Added last sentence to Internal Respiration Circuitry with External Clock (ADS1292R) sectionGo
  • Changed denominator of equation 10 Go
  • Changed first paragraph of Data Output (DOUT) sectionGo
  • Changed RDATAC Usage figureGo
  • Changed RDATA Usage figureGo
  • Changed ADS1292R Application section to fulfill Typical Application sectionGo

Changes from A Revision (March 2012) to B Revision

  • Added 向器件图形添加了 QFN 封装Go
  • Added QFN pin out drawingGo
  • Changed AVSS to DGND row in Absolute Maximum Ratings tableGo
  • Changed parameters of Supply Current (RLD Amplifier Turned Off) section in Electrical Characteristics tableGo
  • Changed description of bit 6 in LOFF_STATUS: Lead-Off Status registerGo

Changes from * Revision (December 2011) to A Revision

  • Changed 更改了器件图形Go
  • Changed 将器件状态从“混合状态”更改为“生产数据”Go
  • Changed 更改了第二个 “特性” 项目符号Go
  • Updated Family and Ordering Information tableGo
  • Moved ADS1292R to production statusGo
  • Deleted footnote 2 from Family and Ordering Information tableGo
  • Changed values of AVDD to AVSS and DVDD to DGND rows in Absolute Maximum Ratings tableGo
  • Changed Operating temperature range parameter in Absolute Maximum Ratings tableGo
  • Changed DC Channel Performance, INL parameter test conditions in Electrical Characteristics tableGo
  • Changed AC Channel Performance, SNR and THD parameters test conditions in Electrical Characteristics tableGo
  • Added third Channel Performance, THD parameter row to Electrical Characteristics tableGo
  • Added Digital Filter section to Electrical Characteristics tableGo
  • Deleted Right Leg Drive Amplifier, Quiescent power consumption parameter test condition from Electrical Characteristics tableGo
  • Changed Respiration, Impedance measurement noise parameter test conditions in Electrical Characteristics tableGo
  • Changed Respiration, Maximum modulator current parameter in Electrical Characteristics tableGo
  • Changed Power-Supply Requirements, Digital supply parameter in Electrical Characteristics tableGo
  • Changed first IDVDD Supply Current, Normal mode parameter test conditions in Electrical Characteristics tableGo
  • Changed 3-V Power Dissipation, Quiescent power dissipation, per channel parameter typical specifications in Electrical Characteristics tableGo
  • Added CFILTER to Typical Characteristics conditionsGo
  • Updated Figure 5Go
  • Updated Figure 9 and Figure 12Go
  • Changed description of CHnSET setting in Supply Measurements (MVDDP, MVDDN) sectionGo
  • Changed second paragraph of PGA Settings and Input Range sectionGo
  • Changed description of PD_REFBUF bit in the Reference sectionGo
  • Updated second column title in Table 9Go
  • Updated Figure 33Go
  • Updated Figure 42Go
  • Added description of Figure 43, Figure 43, and Table 12 to Internal Respiration Circuitry with External Clock (ADS1292R) sectionGo
  • Updated description of DOUT and DRDY in RDATAC: Read Data Continuous sectionGo
  • Updated RLD_STAT in address 08h of Table 16Go
  • Changed description of bit 1 in CONFIG2: Configuration Register 2Go
  • Changed descriptions of bits[3:0] in CH2SET: Channel 2 SettingsGo
  • Updated Figure 70 and Figure 71Go
  • Updated Figure 73 and added footnote 1Go
  • Updated Figure 74 and added footnote 1Go

5 Pin Configuration and Functions

PBS Package
32-Pin TQFP
Top View
ADS1291 ADS1292 ADS1292R po_bas502.gif
RSM Package
32-Pin VQFN
Top View
ADS1291 ADS1292 ADS1292R po_qfn_bas502.gif

Pin Functions

PIN FUNCTION DESCRIPTION
NO. PBS (TQFP) RSM (VQFN)
1 PGA1N PGA1N Analog output PGA1 inverting output
2 PGA1P PGA1P Analog output PGA1 noninverting output
3 IN1N(1) IN1N(1) Analog input Differential analog negative input 1
4 IN1P(1) IN1P(1) Analog input Differential analog positive input 1
5 IN2N(1) IN2N(1) Analog input Differential analog negative input 2
6 IN2P(1) IN2P(1) Analog input Differential analog positive input 2
7 PGA2N PGA2N Analog output PGA2 inverting output
8 PGA2P PGA2P Analog output PGA2 noninverting output
9 VREFP VREFP Analog input/output Positive reference voltage
10 VREFN VREFN Analog input Negative reference voltage; must be connected to AVSS
11 VCAP1 VCAP1 — Analog bypass capacitor
12 AVDD AVDD Supply Analog supply
13 AVSS AVSS Supply Analog ground
14 CLKSEL CLKSEL Digital input Master clock select
15 PWDN/RESET PWDN/RESET Digital input Power-down or system reset; active low
16 START START Digital input Start conversion
17 CLK CLK Digital input Master clock input
18 CS CS Digital input Chip select
19 DIN DIN Digital input SPI data in
20 SCLK SCLK Digital input SPI clock
21 DOUT DOUT Digital output SPI data out
22 DRDY DRDY Digital output Data ready; active low
23 DVDD DVDD Supply Digital power supply
24 DGND DGND Supply Digital ground
25 GPIO2/RCLK2 GPIO2/RCLK2 Digital input/output General-purpose I/O 2 or resp clock 2 (ADS1292R)
26 GPIO1/RCLK1 GPIO1/RCLK1 Digital input/output General-purpose I/O 1 or resp clock 1 (ADS1292R)
27 VCAP2 VCAP2 — Analog bypass capacitor
28 RLDINV RLDINV Analog input Right leg drive inverting input; connect to AVDD if not used
29 RLDIN/ RLDREF RLDIN/ RLDREF Analog input Right leg drive input to MUX or RLD amplifier noninverting input; connect to AVDD if not used
30 RLDOUT RLDOUT Analog output Right leg drive output
31 RESP_MODP/ IN3P(1) RESP_MODP/ IN3P(1) Analog output/input P-side respiration excitation signal for respiration (analog output) or auxiliary input 3P (analog input)
32 RESP_MODN/ IN3N(1) RESP_MODN/ IN3N(1) Analog output/input N-side respiration excitation signal for respiration (analog output) or auxiliary input 3N (analog input)
Power Pad — Pad — Thermal pad; must be connected to AVSS
(1) Connect unused analog inputs to AVDD.

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
AVDD to AVSS –0.3 5.5 V
DVDD to DGND –0.3 3.9 V
AVSS to DGND –3 0.2 V
Analog input to AVSS AVSS – 0.3 AVDD + 0.3 V
Digital input to DVDD DVSS – 0.3 DVDD + 0.3 V
Input current to any pin except supply pins ±10 mA
Input current Momentary ±100 mA
Continuous ±10
Operating temperature range –40 +85 °C
Maximum junction temperature (TJ) 150 °C
Storage temperature, Tstg –60 +150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±1000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
AVDD Analog power supply, AVDD to AVSS 2.7 5 5.25 V
DVDD Digital power supply, DVDD to DGND 1.7 3 3.6 V
Analog input voltage AVSS AVDD V
Digital input voltage DVSS DVDD V
TA Operating ambient temperature –40 85 °C

6.4 Thermal Information

THERMAL METRIC(1) ADS1291, ADS1292, ADS1292R UNIT
PBS (TQFP) RSM (VQFN)
32 PINS 32 PINS
RθJA Junction-to-ambient thermal resistance 68.4 33.7 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 25.9 36.4 °C/W
RθJB Junction-to-board thermal resistance 30.5 25.2 °C/W
ψJT Junction-to-top characterization parameter 0.5 0.2 °C/W
ψJB Junction-to-board characterization parameter 24.3 7.4 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance n/a 2.2 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC package thermal metrics application report.

6.5 Electrical Characteristics

minimum and maximum specifications apply from –40°C to +85°C; typical specifications are at +25°C; all specifications are at DVDD = 1.8 V, AVDD – AVSS = 3 V(3), VREF = 2.42 V, external fCLK = 512 kHz, data rate = 500 SPS, CFILTER = 4.7 nF(4), and gain = 6 (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ANALOG INPUTS
Full-scale differential input voltage
(AINP – AINN)		 ±VREF / gain V
Input common-mode range See the Input Common-Mode Range subsection of the PGA Settings and Input Range section
Input capacitance 20 pF
Input bias current (PGA chop = 8 kHz) TA = +25°C, input = 1.5 V ±200 pA
TA = –40°C to +85°C, input = 1.5 V ±1 nA
Chop rates other than 8 kHz See Pace Detect section
DC input impedance No pull-up or pull-down current source 1000 MΩ
Current source lead-off detection (nA),
AVSS + 0.3 V < AIN < AVDD – 0.3 V		 500 MΩ
Current source lead-off detection (µA),
AVSS + 0.6 V < AIN < AVDD – 0.6 V		 100 MΩ
PGA PERFORMANCE
Gain settings 1, 2, 3, 4, 6, 8, 12
Bandwidth With a 4.7-nF capacitor on PGA output
(see PGA Settings and Input Range section for details)		 8.5 kHz
ADC PERFORMANCE
Resolution 24 Bits
Data rate fCLK = 512 kHz 125 8000 SPS
CHANNEL PERFORMANCE (DC Performance)
Input-referred noise Gain = 6(1), 10 seconds of data 8 μVPP
Gain = 6, 256 points, 0.5 seconds of data 8 11 μVPP
Gain settings other than 6,
data rates other than 500 SPS		 See Noise Measurements section
Integral nonlinearity Full-scale with gain = 6, best fit 2 ppm
Offset error ±100 μV
Offset error drift 2 μV/°C
Offset error with calibration 15 μV
Gain error Excluding voltage reference error ±0.1 ±0.2 % of FS
Gain drift Excluding voltage reference drift 2 ppm/°C
Gain match between channels 0.2 % of FS
CHANNEL PERFORMANCE (AC performance)
CMRR Common-mode rejection ratio fCM = 50 Hz and 60 Hz(2) 105 120 dB
PSRR Power-supply rejection ratio fPS = 50 Hz and 60 Hz 90 dB
Crosstalk fIN = 50 Hz and 60 Hz –120 dB
SNR Signal-to-noise ratio fIN = 10 Hz input, gain = 6 107 dB
THD Total harmonic distortion 10 Hz, –0.5 dBFs, CFILTER = 4.7nF –104 dB
100 Hz, –0.5 dBFs, CFILTER = 4.7nF –95 dB
ADS1292R channel 1, 10 Hz, –0.5 dBFS, CFILTER = 47 nF –82 dB
DIGITAL FILTER
–3-dB bandwidth 0.262 fDR Hz
Digital filter settling Full setting 4 Conversions
RIGHT LEG DRIVE (RLD) AMPLIFIER
RLD integrated noise BW = 150 Hz 1.4 μVRMS
GBP Gain bandwidth product 50 kΩ || 10 pF load, gain = 1 100 kHz
SR Slew rate 50 kΩ || 10 pF load, gain = 1 0.07 V/μs
THD Total harmonic distortion fIN = 100 Hz, gain = 1 –85 dB
CMIR Common-mode input range AVSS + 0.3 AVDD – 0.3 V
Common-mode resistor matching Internal 200-kΩ resistor matching 0.1 %
ISC Short-circuit current 1.1 mA
Quiescent power consumption 5 μA
LEAD-OFF DETECT
Frequency See Register Map section for settings 0, fDR / 4 kHz
Current ILEAD_OFF [1:0] = 00 6 nA
ILEAD_OFF [1:0] = 01 22 nA
ILEAD_OFF [1:0] = 10 6 μA
ILEAD_OFF [1:0] = 11 22 μA
Current accuracy ±10 %
Comparator threshold accuracy ±10 mV
RESPIRATION (ADS1292R)
Frequency Internal source 32, 64 kHz
External source 32 64 kHz
Phase shift See Register Map section for settings 0 112.5 168.75 Degrees
Impedance range IRESP = 30 µA 2000 10,000 Ω
Impedance measurement noise 0.05-Hz to 2-Hz brick wall filter, 32-kHz modulation clock, phase = 112.5,
using IRESP = 30 µA with 2-kΩ baseline load, gain = 4 		40 mΩPP
Maximum modulator current Using Internal reference 100 μA
EXTERNAL REFERENCE
Reference input voltage 3-V supply VREF = (VREFP – VREFN) 2 2.5 VDD – 0.3 V
5-V supply VREF = (VREFP – VREFN) 2 4 VDD – 0.3 V
VREFN Negative input AVSS V
VREFP Positive input AVSS + 2.5 V
Input impedance 120 kΩ
INTERNAL REFERENCE
Output voltage Register bit CONFIG2.VREF_4V = 0 2.42 V
Register bit CONFIG2.VREF_4V = 1 4.033 V
Output current drive Available for external use 100 µA
VREF accuracy ±0.5 %
Internal reference drift –40°C ≤ TA ≤ +85°C 45 ppm/°C
Start-up time Settled to 0.2% with 10-µF capacitor on VREFP pin 100 ms
Quiescent current consumption 20 µA
SYSTEM MONITORS
Analog supply reading error 1 %
Digital supply reading error 1 %
Device wake up From power-supply ramp after power-on reset (POR) to DRDY low 32 ms
From power-down mode to DRDY low 10 ms
From STANDBY mode to DRDY low 10 ms
VCAP1 settling time 1% accuracy 0.5 s
Temperature sensor reading Voltage TA = +25°C 145 mV
Coefficient 490 μV/°C
TEST SIGNAL
Signal frequency See Register Map section for settings At dc and 1 Hz Hz
Signal voltage See Register Map section for settings ±1 mV
Accuracy ±2 %
CLOCK
Internal oscillator clock frequency Nominal frequency 512 kHz
Internal clock accuracy TA = +25°C ±0.5 %
–40°C ≤ TA ≤ +85°C ±1.5 %
Internal oscillator start-up time 32 μs
Internal oscillator power consumption 30 μW
External clock input frequency CLKSEL pin = 0, CLK_DIV = 0 485 512 562.5 kHz
CLKSEL pin = 0, CLK_DIV = 1 1.94 2.048 2.25 MHz
DIGITAL INPUT/OUTPUT
VIH Logic level DVDD = 1.8 V to 3.6 V 0.8 DVDD DVDD + 0.1 V
VIL DVDD = 1.8 V to 3.6 V –0.1 0.2 DVDD V
VIH DVDD = 1.7 V to 1.8 V DVDD – 0.2 V
VIL DVDD = 1.7 V to 1.8 V 0.2 V
VOH DVDD = 1.7 V to 3.6 V IOH = –500 μA 0.9 DVDD V
VOL DVDD = 1.7 V to 3.6 V IOL = +500 μA 0.1 DVDD V
IIN Input current 0 V < VDigitalInput < DVDD –10 +10 μA
POWER-SUPPLY REQUIREMENTS
AVDD Analog supply AVDD – AVSS 2.7 3 5.25 V
DVDD Digital supply DVDD – DGND 1.7 1.8 3.6 V
AVDD – DVDD –2.1 3.6 V
SUPPLY CURRENT (RLD Amplifier Turned Off)
IAVDD ADS1292 and ADS1292R AVDD – AVSS = 3 V 205 μA
AVDD – AVSS = 5 V 250 μA
IDVDD ADS1292 and ADS1292R DVDD = 3.3 V 75 μA
DVDD = 1.8 V 32 μA
POWER DISSIPATION (Analog Supply = 3 V, RLD Amplifier Turned Off)
Quiescent power dissipation ADS1292 and ADS1292R Normal mode 670 740 µW
Standby mode 160 µW
ADS1291 Normal mode 450 495 µW
Standby mode 160 µW
Quiescent power dissipation, per channel ADS1292R Normal mode 335 µW
ADS1292 Normal mode 335 µW
ADS1291 Normal mode 450 µW
POWER DISSIPATION (Analog Supply = 5 V, RLD Amplifier Turned Off)
Quiescent power dissipation ADS1292 and ADS1292R Normal mode 1300 µW
Standby mode 340 µW
ADS1291 Normal mode 950 µW
Standby mode 340 µW
Quiescent power dissipation, per channel ADS1292R Normal mode 670 µW
ADS1292 Normal mode 670 µW
ADS1291 Normal mode 860 µW
POWER DISSIPATION IN POWER-DOWN MODE
Analog supply = 3 V DVDD = 1.8 V 1 µW
DVDD = 3.3 V 4 µW
Analog supply = 5 V DVDD = 1.8 V 5 µW
DVDD = 3.3 V 10 µW
TEMPERATURE
Specified temperature range –40 +85 °C
Operating temperature range –40 +85 °C
Storage temperature range –60 +150 °C
(1) Noise data measured in a 10-second interval. Test not performed in production. Input-referred noise is calculated with input shorted (without electrode resistance) over a 10-second interval.
(2) CMRR is measured with a common-mode signal of AVSS + 0.3 V to AVDD – 0.3 V. The values indicated are the minimum of the two channels.
(3) Performance is applicable for 5-V operation as well. Production testing for limits is performed at 3 V.
(4) CFILTER is the capacitor accross the PGA outputs; see the PGA Settings and Input Range section for details.

6.6 Timing Requirements

specifications apply from –40°C to +85°C; load on DOUT = 20 pF || 100 kΩ
2.7 V ≤ DVDD ≤ 3.6 V 1.7 V ≤ DVDD ≤ 2 V UNIT
MIN NOM MAX MIN NOM MAX
tCLK Master clock period (CLK_DIV bit of LOFF_STAT register = 0) 1775 2170 1775 2170 ns
Master clock period (CLK_DIV bit of LOFF_STAT register = 1) 444 542 444 542 ns
tCSSC CS low to first SCLK, setup time 6 17 ns
tSCLK SCLK period 50 66.6 ns
tSPWH, L SCLK pulse width, high and low 15 25 ns
tDIST DIN valid to SCLK falling edge: setup time 10 10 ns
tDIHD Valid DIN after SCLK falling edge: hold time 10 11 ns
tDOPD SCLK rising edge to DOUT valid 12 22 ns
tCSH CS high pulse 2 2 tCLKs
tCSDOD CS low to DOUT driven 10 20 ns
tSCCS Eighth SCLK falling edge to CS high 3 3 tCLKs
tSDECODE Command decode time 4 4 tCLKs
tCSDOZ CS high to DOUT Hi-Z 10 20 ns

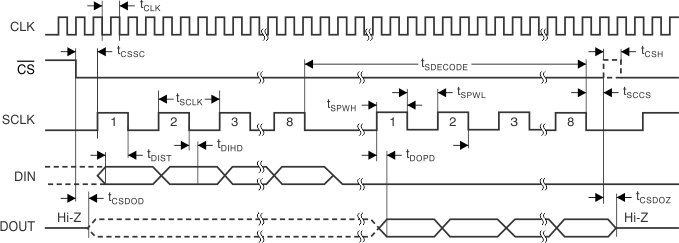

ADS1291 ADS1292 ADS1292R tim_serial_bas502.gif

NOTE:

SPI settings are CPOL = 0 and CPHA = 1.
Figure 1. Serial Interface Timing

6.7 Typical Characteristics

at TA = +25°C, AVDD = 3 V, AVSS = 0 V, DVDD = 1.8 V, internal VREFP = 2.42 V, VREFN = AVSS, external clock = 512 kHz, data rate = 500 SPS, CFILTER = 4.7 nF, and gain = 6 (unless otherwise noted)
ADS1291 ADS1292 ADS1292R G001_SBAS502_Input_short_noise.png
Figure 2. Input-Referred Noise
ADS1291 ADS1292 ADS1292R G003_SBAS502_InternalRef_Vs_Temp.png
Figure 4. Internal Reference vs Temperature
ADS1291 ADS1292 ADS1292R G005_SBAS502_leakage_Vs_Input.png
Figure 6. Leakage Current vs Input Voltage
ADS1291 ADS1292 ADS1292R G007_SBAS502_PSRR_Vs_Freq.png
Figure 8. PSRR vs Frequency
ADS1291 ADS1292 ADS1292R G009_SBAS502_INL_Vs_PGA.png
Figure 10. INL vs PGA Gain
ADS1291 ADS1292 ADS1292R G011_SBAS502_FFTplot_500sps.png
Figure 12. THD FFT Plot
(60-Hz Signal)
ADS1291 ADS1292 ADS1292R G013_SBAS502_Offset_Vs_PGA.png
Figure 14. Offset vs PGA Gain
(Absolute Value)
ADS1291 ADS1292 ADS1292R G015_SBAS502_Comp_threshold_distribution.png
Figure 16. Lead-Off Comparator Threshold Accuracy
ADS1291 ADS1292 ADS1292R G002_SBAS502_Input_short_noise_histo.png
Figure 3. Noise Histogram
ADS1291 ADS1292 ADS1292R G004_SBAS502_CMRR_Vs_Freq.png
Figure 5. CMRR vs Frequency
ADS1291 ADS1292 ADS1292R G006_SBAS502_leakage_Vs_Temp.png
Figure 7. Leakage Current vs Temperature
ADS1291 ADS1292 ADS1292R G008_SBAS502_THD_Vs_Freq.png
Figure 9. THD vs Frequency
ADS1291 ADS1292 ADS1292R G010_SBAS502_INL_Vs_Temp.png
Figure 11. INL vs Temperature

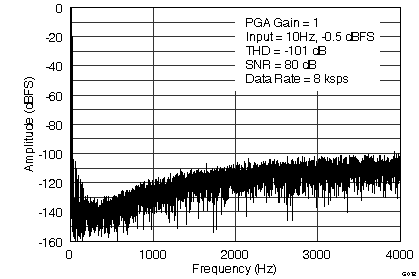

ADS1291 ADS1292 ADS1292R G012_SBAS502_FFTplot_8ksps.png
Figure 13. FFT Plot
(60-Hz Signal)
ADS1291 ADS1292 ADS1292R G014_SBAS502_Test_signal_distribution.png
Figure 15. Test Signal Amplitude Accuracy
ADS1291 ADS1292 ADS1292R G016_SBAS502_Loff_current_distribution_24nA.png
Figure 17. Lead-Off Current Source Accuracy Distribution

7 Parameter Measurement Information

7.1 Noise Measurements

The ADS1291, ADS1292, and ADS1292R noise performance can be optimized by adjusting the data rate and PGA setting. As the averaging is increased by reducing the data rate, the noise drops correspondingly. Increasing the programmable gain amplifier (PGA) value reduces the input-referred noise, which is particularly useful when measuring low-level biopotential signals. Table 1 through Table 8 summarize the ADS1291, ADS1292, and ADS1292R noise performance. The data are representative of typical noise performance at TA = +25°C. The data shown are the result of averaging the readings from multiple devices and are measured with the inputs shorted together. For the shown data rates, the ratio is approximately 6.6.

Table 1 through Table 8 show measurements taken with an internal reference. The data are also representative of the ADS1291, ADS1292, and ADS1292R noise performance when using a low-noise external reference such as the REF5025.

In Table 1 through Table 8, µVRMS and µVPP are measured values. Effective resolution (EFF RESOL) and dynamic range (DYN RANGE) are calculated with Equation 1 and Equation 2.

Equation 1. ADS1291 ADS1292 ADS1292R eq_effres_sbas590.gif
Equation 2. ADS1291 ADS1292 ADS1292R eq_DR_sbas705.gif

Table 1. Input-Referred Noise (μVRMS / μVPP) 3-V Analog Supply and 2.42-V Reference(1)

DR BITS OF CONFIG1 REGISTER OUTPUT DATA RATE (SPS) –3-dB BANDWIDTH (Hz) PGA GAIN = 1 PGA GAIN = 2
μVRMS μVPP DYN RANGE EFF RESOL ENOB μVRMS μVPP DYN RANGE EFF RESOL ENOB
000 125 32.75 1.5 10.3 121.0 18.83 20.10 0.8 5.6 120.0 18.71 19.94
001 250 65.5 2.2 14.4 117.8 18.34 19.58 1.2 7.5 117.1 18.29 19.46
010 500 131 3.0 18.9 115.1 17.95 19.11 1.7 10.9 113.9 17.75 18.91
011 1000 262 4.6 30.8 111.3 17.25 18.49 2.5 15.6 110.6 17.23 18.37
100 2000 524 10.1 99 104.5 15.57 17.36 5.3 48 104.0 15.60 17.28
101 4000 1048 55.2 563 89.7 13.06 14.91 26.0 265 90.3 13.14 15.00
110 8000 2096 287.3 2930 75.4 10.68 12.53 144.1 1470 75.4 10.67 12.52
111 NA NA — — — — — — — — — —
(1) At least 1000 consecutive readings were used to calculate the peak-to-peak noise values in this table.

Table 2. Input-Referred Noise (μVRMS / μVPP) 3-V Analog Supply and 2.42-V Reference(1)

DR BITS OF CONFIG1 REGISTER OUTPUT DATA RATE (SPS) –3-dB BANDWIDTH (Hz) PGA GAIN = 3 PGA GAIN = 4
μVRMS μVPP DYN RANGE EFF RESOL ENOB μVRMS μVPP DYN RANGE EFF RESOL ENOB
000 125 32.75 0.6 4.1 119.2 18.58 19.80 0.5 3.4 117.9 18.42 19.58
001 250 65.5 0.9 5.5 115.9 18.15 19.26 0.8 5.0 114.8 17.88 19.07
010 500 131 1.3 7.7 113.0 17.67 18.77 1.1 6.6 111.9 17.47 18.59
011 1000 262 1.9 12.0 109.5 17.02 18.19 1.6 10.3 108.7 16.83 18.06
100 2000 524 3.7 31 103.7 15.65 17.23 2.9 23 103.2 15.69 17.14
101 4000 1048 17.0 173 90.5 13.18 15.03 12.2 124 90.8 13.24 15.09
110 8000 2096 91.9 937 75.8 10.74 12.59 66.8 681 76.1 10.78 12.63
111 NA NA — — — — — — — — — —
(1) At least 1000 consecutive readings were used to calculate the peak-to-peak noise values in this table.

Table 3. Input-Referred Noise (μVRMS / μVPP) 3-V Analog Supply and 2.42-V Reference(1)

DR BITS OF CONFIG1 REGISTER OUTPUT DATA RATE (SPS) –3-dB BANDWIDTH (Hz) PGA GAIN = 6 PGA GAIN = 8
μVRMS μVPP DYN RANGE EFF RESOL ENOB μVRMS μVPP DYN RANGE EFF RESOL ENOB
000 125 32.75 0.5 3.0 115.9 18.04 19.26 0.4 2.6 114.0 17.82 18.94
001 250 65.5 0.7 4.1 112.8 17.58 18.73 0.6 3.9 111.0 17.22 18.44
010 500 131 0.9 5.6 109.9 17.14 18.25 0.8 5.5 108.0 16.75 17.93
011 1000 262 1.3 8.7 106.8 16.49 17.73 1.2 7.6 104.9 16.26 17.42
100 2000 524 2.2 16 102.1 15.64 16.96 2.0 14 100.7 15.36 16.72
101 4000 1048 7.5 77 91.5 13.34 15.19 5.5 56 91.7 13.39 15.24
110 8000 2096 42.7 436 76.4 10.84 12.69 31.3 319 76.6 10.88 12.73
111 NA NA — — — — — — — — — —
(1) At least 1000 consecutive readings were used to calculate the peak-to-peak noise values in this table.

Table 4. Input-Referred Noise (μVRMS / μVPP) 3-V Analog Supply and 2.42-V Reference(1)

DR BITS OF CONFIG1 REGISTER OUTPUT DATA RATE (SPS) –3-dB BANDWIDTH (Hz) PGA GAIN = 12
μVRMS μVPP DYN RANGE EFF RESOL ENOB
000 125 32.75 0.4 2.5 111.3 17.31 18.48
001 250 65.5 0.5 3.5 108.4 16.81 18.01
010 500 131 0.8 5.0 105.0 16.29 17.44
011 1000 262 1.1 6.9 102.1 15.82 16.97
100 2000 524 1.7 11 98.6 15.21 16.38
101 4000 1048 3.5 36 92.0 13.44 15.29
110 8000 2096 20.1 205 76.9 10.93 12.78
111 NA NA — — — — —
(1) At least 1000 consecutive readings were used to calculate the peak-to-peak noise values in this table.

Table 5. Input-Referred Noise (μVRMS / μVPP) 5-V Analog Supply and 4.033-V Reference(1)

DR BITS OF CONFIG1 REGISTER OUTPUT DATA RATE (SPS) –3-dB BANDWIDTH (Hz) PGA GAIN = 1 PGA GAIN = 2
μVRMS μVPP DYN RANGE EFF RESOL ENOB μVRMS μVPP DYN RANGE EFF RESOL ENOB
000 125 32.75 1.6 10.2 124.9 19.58 20.75 0.9 5.4 124.3 19.50 20.65
001 250 65.5 2.2 13.3 122.3 19.20 20.31 1.2 8.1 121.3 18.91 20.15
010 500 131 3.1 18.9 119.3 18.69 19.82 1.7 10.6 118.2 18.52 19.63
011 1000 262 4.9 31.9 115.2 17.94 19.14 2.7 17.9 114.4 17.77 19.00
100 2000 524 15.5 167 105.2 15.55 17.48 7.5 80 105.5 15.62 17.53
101 4000 1048 89.6 959 90.0 13.03 14.95 45.0 481 89.9 13.02 14.94
110 8000 2096 460.1 4923 75.8 10.67 12.59 229.0 2450 75.8 10.67 12.59
111 NA NA — — — — — — — — — —
(1) At least 1000 consecutive readings were used to calculate the peak-to-peak noise values in this table.

Table 6. Input-Referred Noise (μVRMS / μVPP) 5-V Analog Supply and 4.033-V Reference(1)

DR BITS OF CONFIG1 REGISTER OUTPUT DATA RATE (SPS) –3-dB BANDWIDTH (Hz) PGA GAIN = 3 PGA GAIN = 4
μVRMS μVPP DYN RANGE EFF RESOL ENOB μVRMS μVPP DYN RANGE EFF RESOL ENOB
000 125 32.75 0.6 4.2 123.4 19.28 20.50 0.5 3.6 122.3 19.08 20.32
001 250 65.5 0.9 5.7 120.7 18.82 20.04 0.7 4.8 119.5 18.66 19.86
010 500 131 1.3 8.4 117.3 18.27 19.49 1.1 7.4 116.2 18.04 19.31
011 1000 262 2.0 13.3 113.5 17.62 18.85 1.6 11.0 112.7 17.48 18.72
100 2000 524 5.1 53 105.3 15.61 17.49 3.9 38 105.2 15.67 17.47
101 4000 1048 28.7 307 90.3 13.08 15.00 20.7 222 90.6 13.14 15.06
110 8000 2096 149.3 1598 76.0 10.70 12.62 111.8 1196 76.0 10.71 12.63
111 NA NA — — — — — — — — — —
(1) At least 1000 consecutive readings were used to calculate the peak-to-peak noise values in this table.

Table 7. Input-Referred Noise (μVRMS / μVPP) 5-V Analog Supply and 4.033-V Reference(1)

DR BITS OF CONFIG1 REGISTER OUTPUT DATA RATE (SPS) –3-dB BANDWIDTH (Hz) PGA GAIN = 6 PGA GAIN = 8
μVRMS μVPP DYN RANGE EFF RESOL ENOB μVRMS μVPP DYN RANGE EFF RESOL ENOB
000 125 32.75 0.5 3.0 120.4 18.78 19.99 0.4 2.7 118.5 18.48 19.68
001 250 65.5 0.6 4.0 117.5 18.36 19.52 0.6 3.8 115.7 18.01 19.21
010 500 131 0.9 6.0 114.3 17.75 18.99 0.8 5.3 112.8 17.53 18.74
011 1000 262 1.4 8.8 110.8 17.20 18.41 1.2 8.1 109.5 16.92 18.19
100 2000 524 2.8 24 104.6 15.74 17.38 2.3 18 103.6 15.73 17.22
101 4000 1048 13.3 142 91.0 13.20 15.12 9.3 100 91.5 13.29 15.21
110 8000 2096 71.5 765 76.4 10.77 12.69 52.3 560 76.6 10.80 12.72
111 NA NA — — — — — — — — — —
(1) At least 1000 consecutive readings were used to calculate the peak-to-peak noise values in this table.

Table 8. Input-Referred Noise (μVRMS / μVPP) 5-V Analog Supply and 4.033-V Reference(1)

DR BITS OF CONFIG1 REGISTER OUTPUT DATA RATE (SPS) –3-dB BANDWIDTH (Hz) PGA GAIN = 12
μVRMS μVPP DYN RANGE EFF RESOL ENOB
000 125 32.75 0.4 2.6 115.7 17.96 19.21
001 250 65.5 0.5 3.4 112.9 17.59 18.75
010 500 131 0.8 5.2 109.8 16.96 18.24
011 1000 262 1.1 6.9 106.6 16.56 17.70
100 2000 524 1.9 14 101.9 15.57 16.83
101 4000 1048 5.9 63 92.0 13.37 15.29
110 8000 2096 33.8 362 76.9 10.85 12.77
111 NA NA — — — — —
(1) At least 1000 consecutive readings were used to calculate the peak-to-peak noise values in this table.

8 Detailed Description

8.1 Overview

The ADS1291, ADS1292, and ADS1292R are low-power, multichannel, simultaneously-sampling, 24-bit delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with integrated programmable gain amplifiers (PGAs). These devices integrate various electrocardiogram (ECG)-specific functions that make them well-suited for scalable ECG, sports, and fitness applications. The devices can also be used in high-performance, multichannel data acquisition systems by powering down the ECG-specific circuitry.

The ADS1291, ADS1292, and ADS1292R have a highly programmable multiplexer that allows for temperature, supply, input short, and RLD measurements. Additionally, the multiplexer allows any of the input electrodes to be programmed as the patient reference drive. The PGA gain can be chosen from one of seven settings (1, 2, 3, 4, 6, 8, and 12). The ADCs in the device offer data rates from 125 SPS to 8 kSPS. Communication to the device is accomplished using an SPI-compatible interface. The device provides two general-purpose I/O (GPIO) pins for general use. Multiple devices can be synchronized using the START pin.

The internal reference can be programmed to either 2.42 V or 4.033 V. The internal oscillator generates a 512-kHz clock. The versatile right leg drive (RLD) block allows the user to choose the average of any combination of electrodes to generate the patient drive signal. Lead-off detection can be accomplished either by using an external pull-up or pull-down resistor or the device internal current source or sink. An internal ac lead-off detection feature is also available. Apart from the above features, the ADS1292R provides options for internal respiration circuitry. Functional Block Diagram shows a block diagram for the ADS1291, ADS1292, and ADS1292R.

8.2 Functional Block Diagram

ADS1291 ADS1292 ADS1292R ai_fbd_bas502.gif


Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
