DATA SHEET

AMC1204 适用于分流测量的 20MHz 二阶隔离式 Δ-Σ 调制器

本资源的原文使用英文撰写。 为方便起见,TI 提供了译文;由于翻译过程中可能使用了自动化工具,TI 不保证译文的准确性。 为确认准确性,请务必访问 ti.com 参考最新的英文版本(控制文档)。

1 特性

  • 针对分流电阻器进行优化的 ±250mV 输入电压范围
  • 安全相关认证:
    • 符合 DIN VDE V 0884-11: 2017-01 标准的 4250VPK (AMC1204B) 基础型隔离
    • 3005VRMS (AMC1204B) 隔离长达 1 分钟,符合 UL1577 标准
    • 符合 CAN/CSA No. 5A 组件验收服务通知和 DIN EN 61010-1 标准
    • 工作电压:1200VPEAK
    • 瞬态抗扰度:15kV/µs
  • 高电磁场抗扰度
    (请参阅 SLLA181A 应用报告)
  • 出色的交流性能:
    • SNR:84dB(最小值)
    • THD:–80dB(最大值)
  • 出色的直流精度:
    • INL:±8 LSB(最大值)
    • 增益误差:±2%(最大值)
  • 外部时钟输入,可轻松实现同步
  • 完整的额定工作温度范围

2 应用

  • 基于分流电阻器的电流感应,可用于:
    • 电机控制
    • 绿色能源
    • 逆变器 应用
    • 不间断电源

3 说明

AMC1204 和 AMC1204B 是 1 位数字输出、隔离型 Δ-Σ (ΔΣ) 调制器,时钟频率高达 20MHz。二氧化硅 (SiO2) 隔离栅抗磁干扰能力强,为调制器输出提供数字隔离功能。经认证,该隔离栅可提供高达 4000VPEAK (AMC1204) 和 4250VPEAK (AMC1204B) 的基本电隔离,符合 UL1577、VDE V 0884-11 和 CSA 标准或规范。

AMC1204 和 AMC1204B 可为测量隔离栅中分流电阻的小信号提供单芯片解决方案。这些类型的电阻通常用于感测电机控制逆变器、低能耗生成系统以及其他工业 应用的电流中的数字输入 D 类音频放大器。AMC1204 和 AMC1204B 差分输入可轻松连接分流电阻或其他低电平信号源。内部基准可免除对外部组件的需要。当与适当的外部数字滤波器配合使用时,可在 78kSPS 数据速率下获得 14 个有效位数 (ENOB)。

调制器采用 5V 模拟电源 (AVDD),而隔离数字接口则可通过 3V,3.3V 或 5V 电源 (DVDD) 供电。AMC1204 和 AMC1204B 采用 SOIC-16 (DW) 和 SOIC-8 (DWV) 封装,额定温度范围为 –40°C 至 105°C。

器件信息(1)

器件型号 封装 封装尺寸(标称值)
AMC1204 SOIC (16) 10.30mm x 7.50mm
SOIC (8) 5.85mm × 7.50mm
  1. 如需了解所有可用封装,请参阅数据表末尾的可订购产品附录。

Device Images

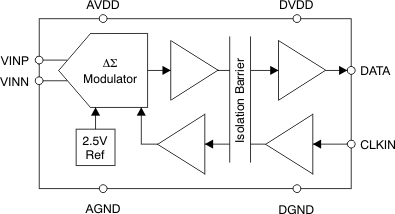

器件框图

AMC1204 fbd_sbas512.gif

4 修订历史记录

Changes from E Revision (September 2015) to F Revision

  • Changed 将经认证的数字隔离 项目符号更改为安全相关认证 并根据 ISO 标准更改了详细信息Go
  • Deleted 删除了隔离栅使用寿命长 项目符号(位于特性 部分)Go
  • Changed 将 VDE V 0884-10 更改为 VDE V 0884-11(位于说明 部分)Go
  • Changed 将标题从简化原理图 更改为器件方框图Go
  • Changed Absolute Maximum Ratings condition statementGo
  • Added Power Ratings tableGo
  • Changed Insulation Specifications table per ISO standardGo
  • Changed Safety-Related Certification table per ISO standardGo
  • Changed Safety Limiting Values table per ISO standardGo
  • Added Insulation Characteristics Curves as per ISO standardGo
  • Changed 更改了相关文档 部分Go
  • Deleted 删除了相关链接 部分Go

Changes from D Revision (December 2013) to E Revision

  • Added 添加了 ESD 额定值 表、特性 说明 部分、器件功能模式、应用和实施 部分、电源相关建议 部分、布局 部分、器件和文档支持 部分和机械、封装和可订购信息 部分Go
  • Changed 更改了经认证的数字隔离 特性项目符号中的第一个子项目符号:将 IEC60747-5-5 更改为 VDE V 0884-10Go
  • Changed 将 IEC60747-5-5 更改为 VDE V 0884-10(位于说明 部分的第一段)Go

Changes from C Revision (August 2012) to D Revision

  • Changed 更改了经认证的数字隔离 特性项目符号中的第一个子项目符号:将 IEC60747-5-2 更改为 IEC60747-5-5Go
  • Deleted 删除了芯片照片Go
  • Added 向文档添加了 DWV (SSO-8) 封装Go
  • Changed 将 IEC60747-5-2 更改为 IEC60747-5-5(位于说明 部分的第一段)Go
  • Changed 更改了说明 部分的最后一段Go
  • Added DWV pin out drawingGo
  • Added DWV information to Pin Descriptions tableGo
  • Added DWV package to Thermal Information tableGo
  • Changed first paragraph of Digital Output section: changed 78.1% to 89.06% and 21.9% to 10.94%Go

Changes from B Revision (August 2011) to C Revision

  • Changed 更改了经认证的数字隔离、隔离电压特性项目符号Go
  • Added 向文档添加了 AMC1204BGo
  • Changed 更改了“说明” 部分,以添加 AMC1204BGo
  • Changed package name from TSSOP to SOGo
  • Changed footnote 1 in Electrical Characteristics tableGo
  • Changed Analog Inputs, VCM parameter minimum specification and unit in Electrical Characteristics tableGo
  • Changed Digital Output, COUT and CLOAD parameters unit specifications in Electrical Characteristics tableGo
  • Updated Figure 53Go
  • Updated Figure 55Go
  • Updated Figure 56Go

5 Pin Configuration and Functions

DWV Package
8-Pin SOIC
Top View
AMC1204 po_dwv_bas512.gif
DW Package
16-Pin SOIC
Top View
AMC1204 po_bas512.gif
NC = no internal connection.

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
8 PINS 16 PINS
AVDD 1 1 Power High-side power supply
VINP 2 2 Analog input Noninverting analog input
VINN 3 3 Analog input Inverting analog input
AGND 4 4, 8(1) Power High-side ground
DGND 5 9, 16 Power Controller-side ground
DATA 6 11 Digital output Modulator data output
CLKIN 7 13 Digital input Modulator clock input
DVDD 8 14 Power Controller-side power supply
NC — 5-7, 10, 12, 15 — No internal connection; can be tied to any potential or left unconnected
(1) Both pins are connected internally via a low-impedance path; thus, only one of the pins must be tied to the ground plane.

6 Specifications

6.1 Absolute Maximum Ratings

see (1)
MIN MAX UNIT
Supply voltage, AVDD to AGND or DVDD to DGND –0.3 6 V
Analog input voltage at VINP, VINN AGND – 0.5 AVDD + 0.5 V
Digital input voltage at CLKIN DGND – 0.3 DVDD + 0.3 V
Input current to any pin except supply pins –10 10 mA
Maximum virtual junction temperature, TJ 150 °C
Operating ambient temperature, TOA –40 125 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under the Electrical Characteristics is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per JEDEC standard 22, test method A114-C.01(1) ±3000 V
Charged-device model (CDM), per JEDEC standard 22, test method C101(2) ±1500
Machine model (MM), per JEDEC standard 22, test method A115A ±200
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
TA Operating ambient temperature –40 105 °C
AVDD High-side (analog) supply voltage 4.5 5 5.5 V
DVDD Controller-side (digital) supply voltage 2.7 3.3 5.5 V
