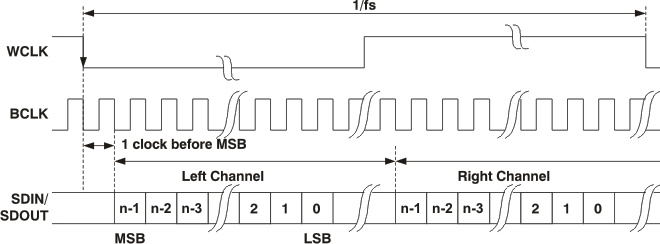

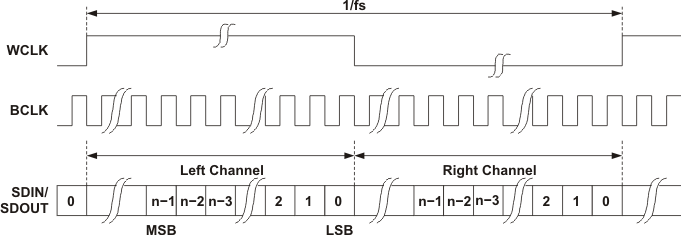

        3. 10.3.2.3 I2S Mode
        4. 10.3.2.4 DSP Mode
        5. 10.3.2.5 TDM Data Transfer
      3. 10.3.3  Audio Data Converters
        1. 10.3.3.1 Audio Clock Generation
        2. 10.3.3.2 Stereo Audio ADC
          1. 10.3.3.2.1 Stereo Audio ADC High Pass Filter
          2. 10.3.3.2.2 Automatic Gain Control (AGC)
            1. 10.3.3.2.2.1 Target Level
            2. 10.3.3.2.2.2 Attack Time
            3. 10.3.3.2.2.3 Decay Time
            4. 10.3.3.2.2.4 Noise Gate Threshold
            5. 10.3.3.2.2.5 Maximum PGA Gain Applicable
        3. 10.3.3.3 Stereo Audio DAC
          1. 10.3.3.3.1 Digital Audio Processing for Playback
          2. 10.3.3.3.2 Digital Interpolation Filter
          3. 10.3.3.3.3 Delta-Sigma Audio DAC
          4. 10.3.3.3.4 Audio DAC Digital Volume Control
          5. 10.3.3.3.5 Increasing DAC Dynamic Range
          6. 10.3.3.3.6 Analog Output Common-Mode Adjustment
          7. 10.3.3.3.7 Audio DAC Power Control

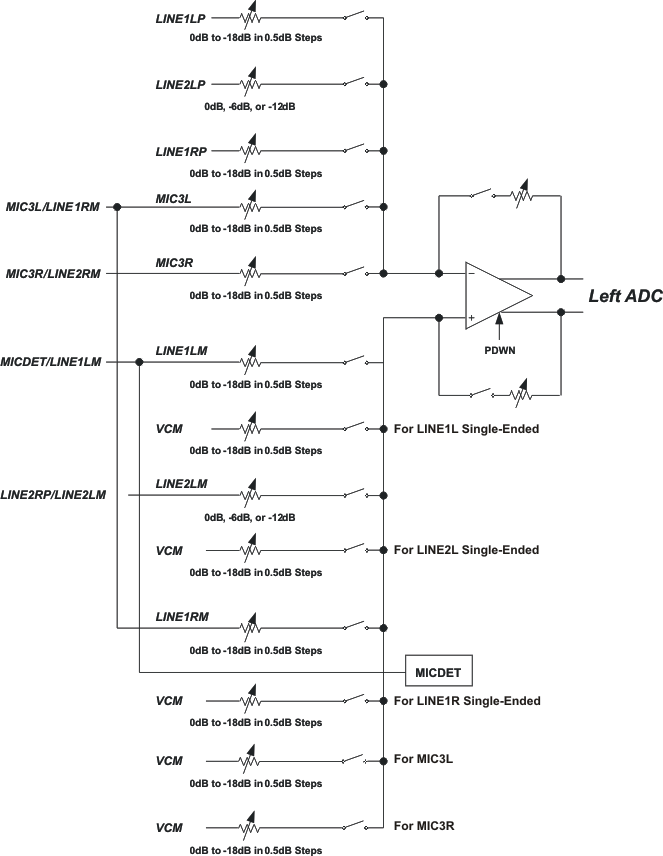

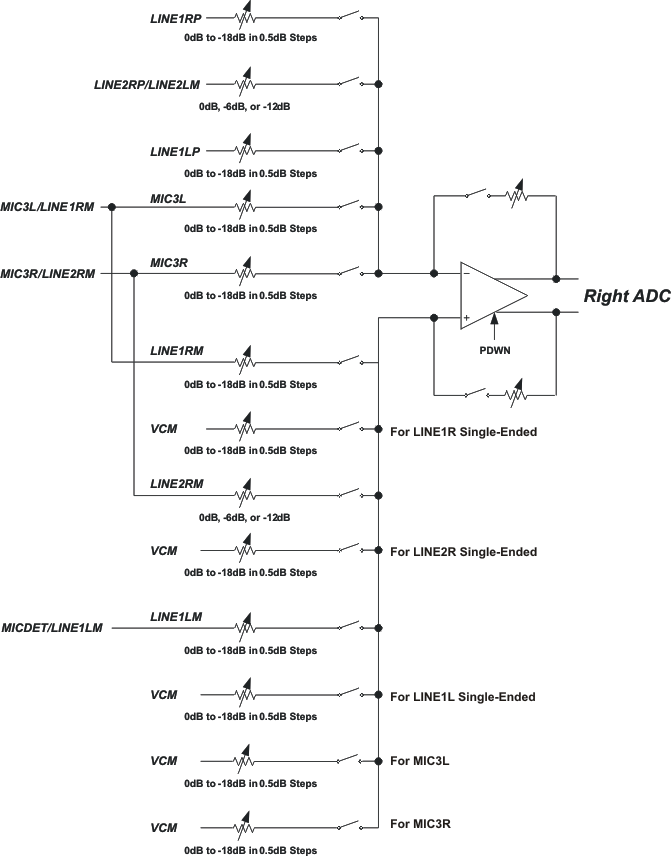

      4. 10.3.4  Audio Analog Inputs

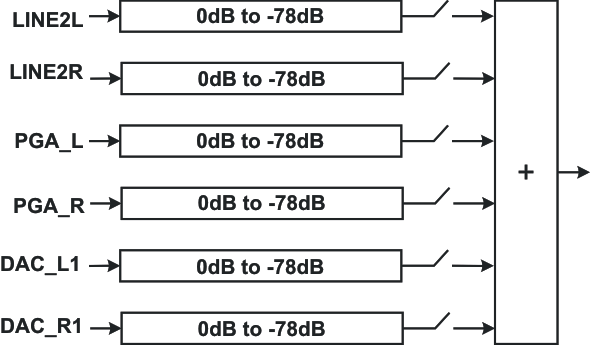

      5. 10.3.5  Analog Line Output Drivers

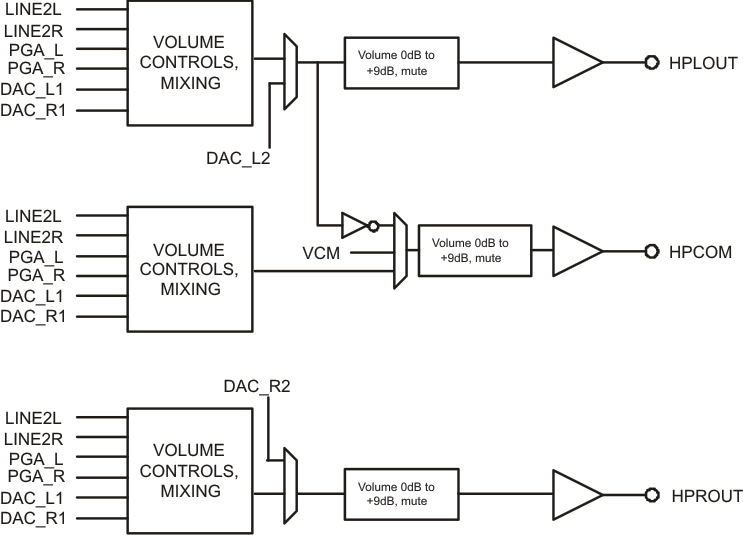

      6. 10.3.6  Analog High Power Output Drivers
      7. 10.3.7  Input Impedance and VCM Control
      8. 10.3.8  General Purpose I/O
      9. 10.3.9  MICBIAS Generation
      10. 10.3.10 Class-D Speaker Driver
      11. 10.3.11 Short Circuit Output Protection
      12. 10.3.12 Jack and Headset Detection
    4. 10.4 Device Functional Modes
      1. 10.4.1 Bypass Path Mode
        1. 10.4.1.1 Analog Input Bypass Path Functionality
        2. 10.4.1.2 ADC PGA Signal Bypass Path Functionality

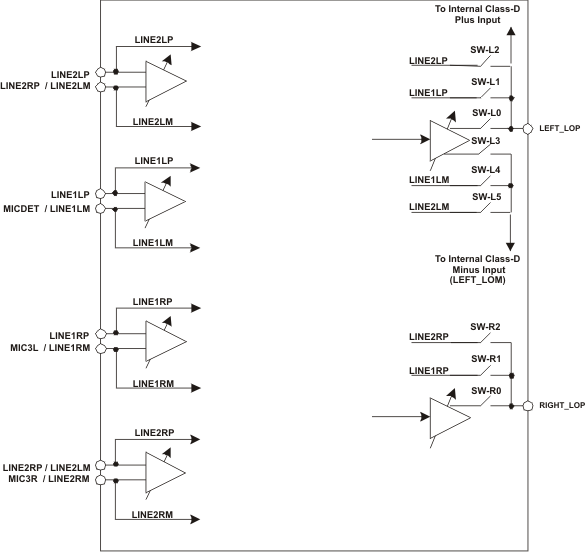

        3. 10.4.1.3 Passive Analog Bypass During Powerdown
      2. 10.4.2 Digital Audio Processing For Record Path
    5. 10.5 Programming

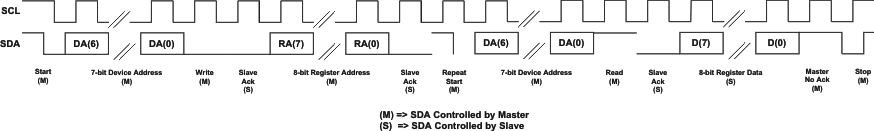

      1. 10.5.1 I2C Control Mode

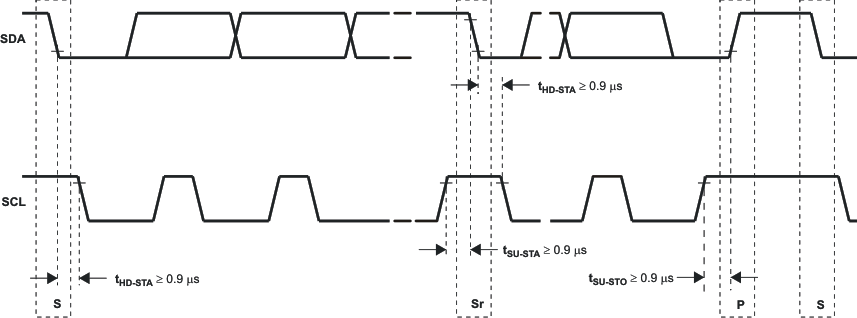

        1. 10.5.1.1 I2C Bus Debug in a Glitched System
        2. 10.5.1.2 Register Map Structure
    6. 10.6 Register Maps
      1. 10.6.1 Control Registers
      2. 10.6.2 Output Stage Volume Controls
        1. 10.6.2.1 Page 1 / Register 10:   Left Channel Audio Effects Filter N4 Coefficient LSB Register
  11. 11Application and Implementation
    1. 11.1 Application Information
    2. 11.2 Typical Application
      1. 11.2.1 Design Requirements
      2. 11.2.2 Detailed Design Procedure
      3. 11.2.3 Application Curves
  12. 12Power Supply Recommendations
  13. 13Layout
    1. 13.1 Layout Guidelines

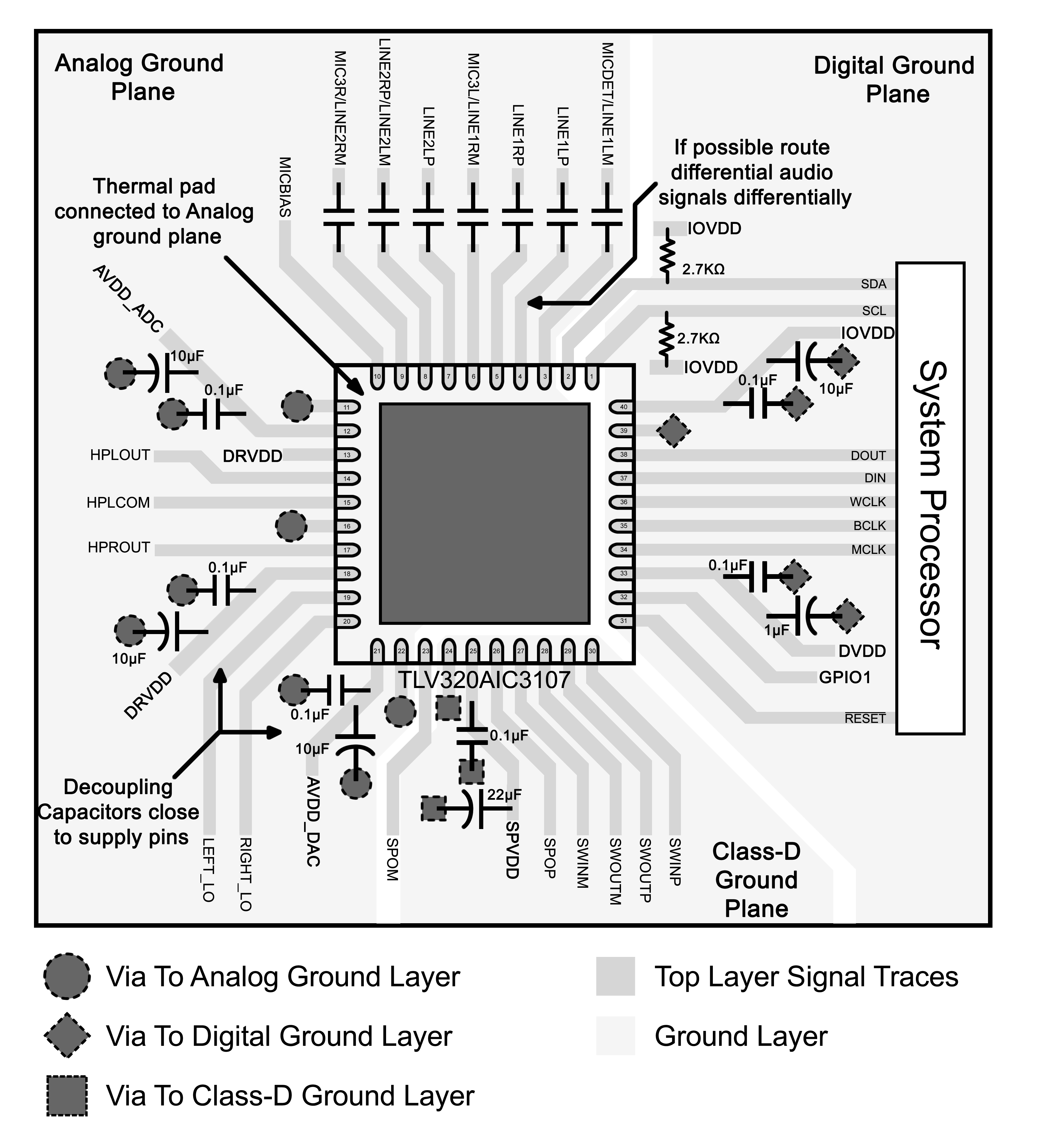

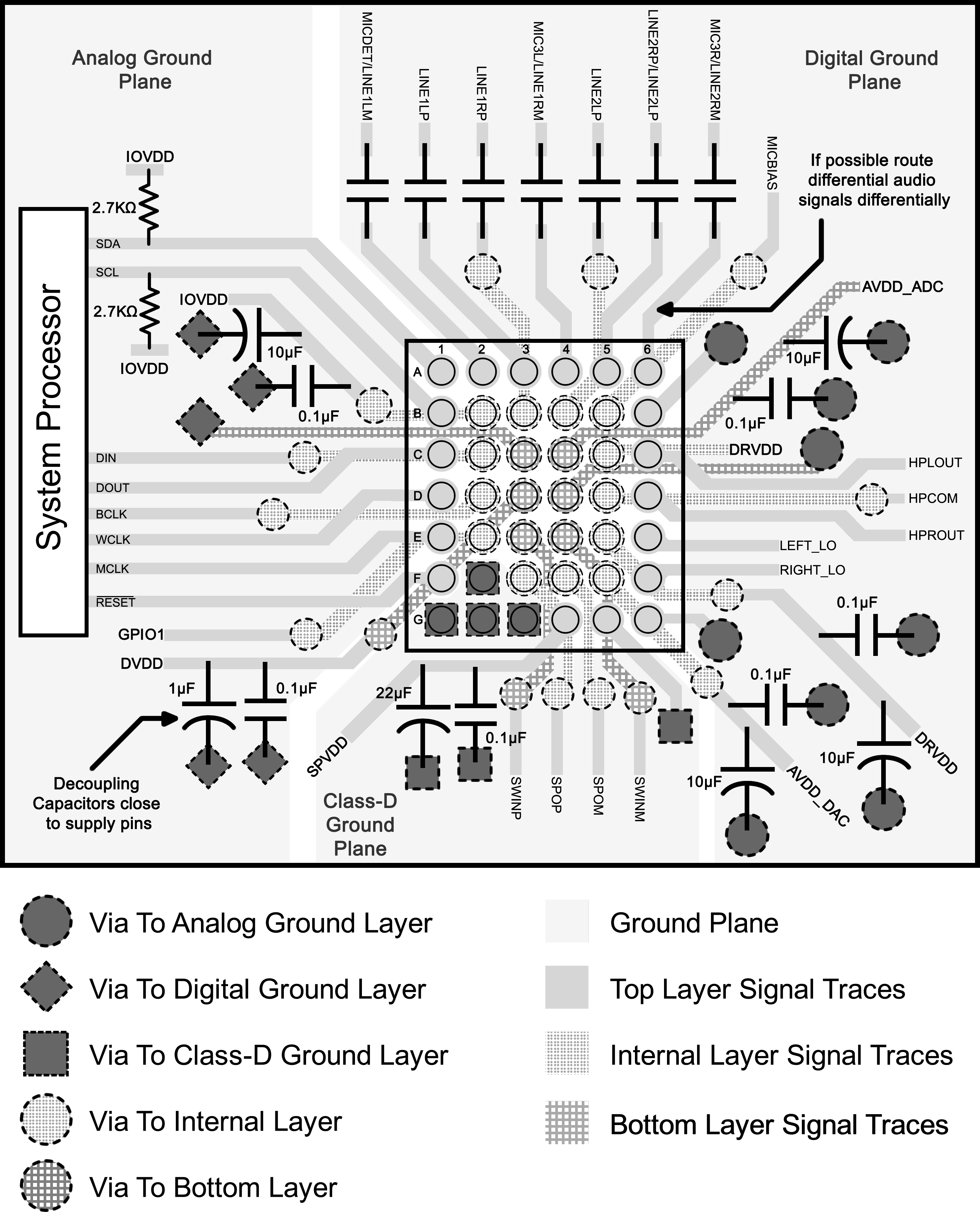

    2. 13.2 Layout Example
  14. 14Device and Documentation Support
    1. 14.1 Trademarks
    2. 14.2 Electrostatic Discharge Caution
    3. 14.3 Glossary
  15. 15Mechanical, Packaging, and Orderable Information
  16. IMPORTANT NOTICE
search No matches found.
  • Full reading width
    • Full reading width
    • Comfortable reading width
    • Expanded reading width
  • Card for each section
  • Card with all content



DATA SHEET

TLV320AIC3107 Low-Power Stereo Codec With Integrated Mono Class-D Speaker Amplifier

1 Features

  • Stereo CODEC With Integrated Mono Class-D Amplifier
  • High Performance Audio DAC
    • 97-dBA Signal-to-Noise Ratio (Single Ended)
    • 16/20/24/32-Bit Data
    • Supports Sample Rates From 8 kHz to 96 kHz
    • 3D/Bass/Treble/EQ/De-Emphasis Effects
    • Flexible Power Saving Modes and Performance are Available
  • High Performance Audio ADC
    • 92-dBA Signal-to-Noise Ratio
    • Supports Rates From 8 kHz to 96 kHz
    • Digital Signal Processing and Noise Filtering Available During Record
  • Seven Audio Input Pins
    • Programmable as 6 Single-Ended or 3 Fully Differential Inputs
    • Capability for Floating Input Configurations
  • Multiple Audio Output Drivers
    • Mono Fully Differential or Stereo Single-Ended Headphone Drivers
    • Single-Ended Stereo Line Outputs
  • Mono 1 W Class-D BTL 8Ω Speaker Driver
  • Low Power Consumption: 15-mW Stereo 48-kHz Playback With 3.3-V Analog Supply
  • Ultra-Low Power Mode with Passive Analog Bypass
  • Programmable Input/Output Analog Gains
  • Automatic Gain Control (AGC) for Record
  • Programmable Microphone Bias Level
  • Programmable PLL for Flexible Clock Generation
  • I2C™ Control Bus
  • Audio Serial Data Bus Supports I2S, Left/Right-Justified, DSP, and TDM Modes
  • Extensive Modular Power Control
  • Power Supplies:
    • Speaker Amp: 2.7 V – 5.5 V
    • Analog: 2.7 V – 3.6 V.
    • Digital Core: 1.525 V – 1.95 V
    • Digital I/O: 1.1 V – 3.6 V
  • Packages: 5-mm × 5-mm 40-QFN, 0.4-mm Pitch
    3.563-mm × 3.376-mm 42-DSBGA, 0.5 mm Pitch
    (Product Preview)

2 Applications

  • Cellular Handsets
  • Digital Cameras
  • Portable Media Players
  • General Portable Audio Equipment

3 Description

The TLV320AIC3107 is a low power stereo audio codec with stereo headphone amplifier, and mono class-D speaker driver, as well as multiple inputs and outputs programmable in single-ended or
fully differential configurations.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (MAX)
TLV320AIC3107 WQFN (40) 5.15 mm × 5.15 mm
DSBGA (42) 3.563 mm × 3.376 mm
  1. For all available packages, see the orderable addendum at the end of the datasheet.

4 Simplified Block Diagram


5 Revision History

Changes from C Revision (March 2009) to D Revision

  • Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable Information section Go

6 Description (Continued)

Extensive register-based power control is included, enabling stereo 48-kHz DAC playback as low as 15 mW from a 3.3-V analog supply, making it ideal for portable battery-powered audio and telephony applications.

The high-power output drivers are capable of driving a variety of load configurations, including up to three channels of single-ended 16-Ω headphones using ac-coupling capacitors, or stereo 16-Ω headphones in a capacitorless output configuration. The mono class-D output is capable of differentially driving an 8-Ω speaker.

The stereo audio DAC supports sampling rates from 8 kHz to 96 kHz and includes programmable digital filtering in the DAC path for 3D, bass, treble, midrange effects, speaker equalization, and de-emphasis for 32-kHz, 44.1-kHz, and 48-kHz rates. The stereo audio ADC supports sampling rates from 8 kHz to 96 kHz and is preceded by programmable gain amplifiers or AGC that can provide up to 59.5 dB analog gain for low-level microphone inputs. The TLV320AIC3107 provides an extremely high range of programmability for both attack (8-1,408 ms) and for decay (0.05-22.4 seconds). This extended AGC range allows the AGC to be tuned for many types of applications.

For battery saving applications where neither analog nor digital signal processing are required, the device can be put in a special analog signal passthru mode. This mode significantly reduces power consumption, as most of the device is powered down during this pass through operation.

The serial control bus supports I2C protocol, while the serial audio data bus is programmable for I2S, left/right-justified, DSP, or TDM modes. A highly programmable PLL is included for flexible clock generation and support for all standard audio rates from a wide range of available MCLKs, varying from 512 kHz to 50 MHz, with special attention paid to the most popular cases of 12-MHz, 13-MHz, 16-MHz, 19.2-MHz, and 19.68-MHz system clocks.

The TLV320AIC3107 operates from an analog supply of 2.7 V–3.6 V, a digital core supply of 1.65 V–1.95 V, a digital I/O supply of 1.1 V–3.6 V, and a speaker amplifier supply of 2.7V–5.5V. The device is available in the 5 × 5-mm, 40-pin QFN package and in the future a 3.5 × 3-mm, 42-lead DSBGA package.

The record path of the TLV320AIC3107 contains integrated microphone bias, digitally controlled stereo microphone preamplifier, and automatic gain control (AGC), with mix/mux capability among the multiple analog inputs. Programmable filters are available during record which can remove audible noise that can occur during optical zooming in digital cameras. The playback path includes mix/mux capability from the stereo DAC and selected inputs, through programmable volume controls, to the various outputs.

The TLV320AIC3107 contains three high-power output drivers as well as two single-ended line output drivers, and a differential class-D output driver.

7 Pin Configuration and Functions

RSB Package
40-Pin WQFN With Exposed Thermal Pad
Bottom View
YZF Package
42-Pin DSBGA (6 × 7)
Bottom View

Pin Functions

PIN I/O DESCRIPTION
QFN WCSP(1) NAME
1 A1 SCL I I2C serial clock
2 B1 SDA I/O I2C serial data input/output
3 A2 MICDET/LINE1LM I MIC1 or Line1 analog input (left – or multifunctional) or Microphone detect
4 A3 LINE1LP I MIC1 or Line1 analog input (left + or multifunctional)
5 B3 LINE1RP I MIC1 or Line1 analog input (R + or multifunctional)
6 A4 MIC3L/LINE1RM I MIC3 or Line1 analog input (R - or multifunctional)
7 B4 LINE2LP I MIC2 or Line2 analog input (left + or multifunctional)
8 A5 LINE2RP/LINE2LM I MIC2 or Line2 analog input (left + or right - or multifunctional)
9 A6 MIC3R/LINE2RM I MIC3 or Line2 analog input (right + or multifunctional)
10 B5 MICBIAS O Microphone bias voltage output
11 B6 AVSS_ADC G ADC analog ground supply, 0 V
12 C4 AVDD_ADC P ADC analog voltage supply, 2.7 V–3.6 V
13 C5 DRVDD P High-power output driver analog voltage supply, 2.7 V–3.6 V
14 C6 HPLOUT O High-power output driver (left +)
15 D5 HPCOM O High-power output driver (left – or multifunctional)
16 D4 DRVSS G High-power output driver analog ground supply, 0 V
17 D6 HPROUT O High-power output driver (right +)
18 E5 DRVDD P High-power output driver analog voltage supply, 2.7 V–3.6 V
19 E6 LEFT_LOP O Left line output
20 F6 RIGHT_LOP O Right line output
21 F5 AVDD_DAC P DAC analog voltage supply, 2.7 V–3.6 V
22 G6 AVSS_DAC G DAC analog ground supply, 0 V
23 F4 SPOM O Class-D (or Bypass SW, WCSP only) negative differential output
24 F2, G1, G2, G3, G5 SPVSS G Class-D ground supply, 0 V
25 G4 SPVDD P Class-D voltage supply, 2.7 V–5.5 V
26 F3 SPOP O Class-D (or Bypass SW, WCSP only) positive differential output
27 E4 SWINM I Negative Bypass Switch Input
28 — SWOUTM O Negative Bypass Switch Output, to be tied to SPOM externally
29 — SWOUTP O Positive Bypass Switch Output, to be tied to SPOP externally
30 E3 SWINP I Positive Bypass Switch Input
31 F1 RESET I Reset
32 E2 GPIO1 I/O General-purpose input/output
33 D3 DVDD P Digital core voltage supply, 1.525 V–1.95 V
34 E1 MCLK I Master clock input
35 D2 BCLK I/O Audio serial data bus bit clock (input/output)
36 D1 WCLK I/O Audio serial data bus word clock (input/output)
37 C2 DIN I Audio serial data bus data input (input)
38 C1 DOUT O Audio serial data bus data output (output)
39 C3 DVSS G Digital core / I/O ground supply, 0 V
40 B2 IOVDD P I/O voltage supply, 1.1 V–3.6 V
(1) Product Preview

8 Specifications

8.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)(2)
MIN MAX UNIT
AVDD_DAC to AVSS_DAC, DRVDD to DRVSS, AVSS_ADC –0.3 3.9 V
SPVDD to SPVSS –0.3 6.0 V
AVDD to DRVSS –0.3 3.9 V
IOVDD to DVSS –0.3 3.9 V
DVDD to DVSS –0.3 2.5 V
AVDD_DAC to DRVDD –0.1 0.1 V
Digital input voltage to DVSS –0.3 IOVDD + 0.3 V
Analog input voltage to AVSS_ADC –0.3 AVDD + 0.3 V
Operating temperature range –40 85 °C
TJ Max Junction temperature 105 °C
Power dissipation (TJ Max – TA)/θJA
Tstg Storage temperature range –65 105 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) ESD compliance tested to EIA/JESD22-A114-B and passed.

8.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2300 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1000
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

8.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
AVDD_DAC, DRVDD(1) Analog supply voltage 2.7 3.3 3.6 V
DVDD(1) Digital core supply voltage 1.525 1.8 1.95 V
IOVDD(1) Digital I/O supply voltage 1.1 1.8 3.6 V
SPVDD Speaker Amplifier supply voltage 2.7 3.6 5.5 V
VI Analog full-scale 0 dB input voltage (DRVDD1 = 3.3 V) (Single Ended) 0.707 VRMS
Stereo line output load resistance 10 kΩ
Stereo headphone output load resistance 16 Ω
Digital output load capacitance 10 pF
TA Operating free-air temperature –40 85 °C
(1) Analog voltage values are with respect to AVSS_ADC, AVSS_DAC, DRVSS; digital voltage values are with respect to DVSS.

8.4 Thermal Information

THERMAL METRIC(1) TLV320AIC3107 UNIT
RSB YZF
40 PINS 42 PINS
RθJA Junction-to-ambient thermal resistance 30.7 49.5 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 16 0.1
RθJB Junction-to-board thermal resistance 4.6 7.1
ψJT Junction-to-top characterization parameter 0.2 0.8
ψJB Junction-to-board characterization parameter 4.5 7
RθJC(bot) Junction-to-case (bottom) thermal resistance 0.9 n/a
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

8.5 Dissipation Ratings(1)

PACKAGE TYPE TA = 25°C
POWER RATING 		DERATING FACTOR TA = 75°C
POWER RATING		 TA = 85°C
POWER RATING
DSBGA(2) 1.60 W 20 mW/°C 600 mW 400 mW
QFN 2.35 W 29.4 mW/° C 882 mW 588 mW
(1) This data was taken using 2 oz. trace and copper pad that is soldered directly to a JEDEC standard 4-layer 3 in × 3 in PCB.
(2) Product Preview

8.6 Electrical Characteristics

At 25°C, AVDD_DAC = 3.3 V, DRVDD = 3.3 V, SPVDD = 5 V, IOVDD = 3.3 V, DVDD = 1.8 V, Fs = 48-kHz, 16-bit audio data
(unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
AUDIO ADC
Input signal level (0 dB) Single-ended input 0.707 VRMS
Signal-to-noise ratio, A-weighted(1)(2) Fs = 48 ksps, 0 dB PGA gain, Inputs ac-shorted to ground 80 92 dB
Dynamic range (2) Fs = 48 ksps, 0 dB PGA gain,
–60 dB full-scale input signal		 91 dB
THD Total harmonic distortion Fs = 48 ksps, 0 dB PGA gain,
–2dB full-scale 1kHz input signal		 –88 –70 dB
Power supply rejection ratio 217 Hz signal applied to DRVDD 49 dB
1 kHz signal applied to DRVDD 46
Gain error Fs = 48 ksps, 0 dB PGA gain,
–2dB full-scale 1kHz input signal		 0.84 dB
Input channel separation 1 kHz, -2dB full-scale signal, MIC3L to MIC3R -86 dB
1 kHz, -2dB full-scale signal, MIC2L to MIC2R -98
1 kHz, -2dB full-scale signal, MIC1L to MIC1R -75
ADC programmable gain amplifier maximum gain 1-kHz input tone 59.5 dB
ADC programmable gain amplifier step size 0.5 dB
Input resistance LINE1L inputs routed to single ADC
Input mix attenuation = 0 dB		 20 kΩ
LINE1L inputs routed to single ADC,
input mix attenuation = 12 dB		 80
LINE2L inputs routed to single ADC
Input mix attenuation = 0 dB		 20
LINE2L inputs routed to single ADC,
input mix attenuation = 12 dB		 80
Input level control minimum attenuation setting 0 dB
Input level control maximum attenuation setting 12 dB
Input signal level Differential Input 1.414 VRMS
Signal-to-noise ratio, A-weighted(1)(2) Fs = 48 ksps, 0 dB PGA gain, Inputs ac-shorted to ground, Differential Mode 92 dB
THD Total harmonic distortion Fs = 48 ksps, 0 dB PGA gain, –2dB Full-scale 1kHz input signal, Differential Mode –91 dB
ANALOG PASS THROUGH MODE
Input to output switch resistance, (rDS(on)) LINE1L to LEFT_LOP 330 Ω
LINE1R to RIGHT_LOP 330
SWINP to SWOUTP 1
SWINM to SWOUTM 1
ADC DIGITAL DECIMATION FILTER, Fs = 48 kHz
Filter gain from 0 to 0.39 Fs ±0.1 dB
Filter gain at 0.4125 Fs –0.25 dB
Filter gain at 0.45 Fs –3 dB
Filter gain at 0.5 Fs –17.5 dB
Filter gain from 0.55 Fs to 64 Fs –75 dB
Filter group delay 17/Fs s
MICROPHONE BIAS
Bias voltage Programmable setting = 2.0 2 V
Programmable setting = 2.5 2.3 2.5 2.7
Programmable setting = DRVDD DRVDD
Current sourcing Programmable setting = 2.5V 4 mA
AUDIO DAC - SINGLE ENDED LINE OUTPUT, LOAD = 10 kΩ
Full-scale output voltage 0 dB Input full-scale signal, output volume control = 0 dB,
Output common mode setting = 1.35 V		 0.707 Vrms
Signal-to-noise ratio, A-weighted No input signal, output volume control = 0 dB,
Output common mode setting = 1.35 V, Fs = 48 kHz		 97 dB
Total harmonic distortion 0 dB 1 kHz input full-scale signal,
Output volume control = 0 dB,
Output common mode setting = 1.35 V, Fs = 48 kHz		 -84 -70 dB
DAC Gain Error 0 dB 1 kHz input full-scale signal,
Output volume control = 0 dB,
Output common mode setting = 1.35 V, Fs = 48 kHz		 -0.8 dB
AUDIO DAC - SINGLE ENDED HEADPHONE OUTPUT, LOAD = 16 Ω
Full-scale output voltage 0 dB Input full-scale signal,
Output volume control = 0 dB,
Output common mode setting = 1.35 V		 0.707 Vrms
Signal-to-noise ratio, A-weighted No input signal, output volume control = 0 dB,
Output common mode setting = 1.35 V, Fs = 48 kHz		 95 dB
No input signal, output volume control = 0 dB,
Output common mode setting = 1.35 V,
Fs = 48 kHz, 50% DAC Current Boost Mode		 96 dB
Dynamic range, A-weighted –60 dB 1 kHz input full-scale signal,
Output volume control = 0 dB,
Output common mode setting = 1.35 V, Fs = 48 kHz		 92 dB
Total harmonic distortion 0 dB 1 kHz input full-scale signal,
Output volume control = 0 dB,
Output common mode setting = 1.35 V, Fs = 48 kHz		 -84 -65 dB
Power supply rejection ratio 217 Hz Signal applied to DRVDD, AVDD_DAC 41 dB
1 kHz Signal applied to DRVDD, AVDD_DAC 44
DAC channel separation 0 dB Full-scale input signal between left and right Lineout 84 dB
DAC Gain Error 0 dB 1 kHz input full-scale signal,
Output volume control = 0 dB,
Output common mode setting = 1.35 V, Fs = 48 kHz		 -1 dB
AUDIO DAC - LINEOUT AND HEADPHONE OUT DRIVERS
Output common mode First option 1.35 V
Second option 1.5
Third option 1.65
Fourth option 1.8
Output volume control max setting 9 dB
Output volume control step size 1 dB
SPEAKER AMPLIFIER OUTPUT, LOAD = 8 Ω
Full-scale output voltage 1 kHz, 0dB full-scale input signal,
Output volume control for left line output = 0 dB, for class-D = 0 dB
Output common mode setting = 1.35 V, Fs = 48 kHz		 2.5 Vrms
Output voltage 1 kHz, 0dB full-scale input signal,
Output volume control for left line output = -4.5 dB, for class-D = 6 dB
Output common mode setting = 1.35 V, Fs = 48 kHz		 2.875 Vrms
Idle Channel Noise No input signal, output gain control = 0 dB -92 dB
Dynamic range, A-weighted 1 kHz,–60 dB full-scale input signal,
Output volume control for left line output = 0 dB, for class-D = 0 dB
Output common mode setting = 1.35 V, Fs = 48 kHz		 91 dB
Total harmonic distortion 1 kHz, 0 dB full-scale input signal,
Output volume control for left line output = –4.5 dB, for class-D = 6 dB
Output common mode setting = 1.35 V, Fs = 48 kHz, 1 W output power		 1.77%
-35		 dB
Total harmonic distortion 1 kHz, –6 dB full-scale input signal,
Output volume control for left line output = –4.5 dB, for class-D = 6 dB
Output common mode setting = 1.35 V, Fs = 48 kHz, 250 mW output power		 0.056%
-65		 0.316%
-50		 dB
Power supply rejection ratio 217 Hz Signal applied to SPVDD 37 dB
1 kHz Signal applied to SPVDD 33
Gain Error 1 kHz, 0 dB input full-scale signal,
Output volume control = 0 dB,
Output common mode setting = 1.35 V, Fs = 48 kHz		 -1.6 dB
DAC DIGITAL INTERPOLATION – FILTER Fs = 48-ksps
Passband 0 0.45 × Fs Hz
Passband ripple ±0.06 dB
Transition band 0.45 × Fs 0.55 × Fs Hz
Stopband 0.55 × Fs 7.5 × Fs Hz
Stopband attenuation 65 dB
Group delay 21/Fs s
DIGITAL I/O
VIL Input low level –0.3 0.3 × IOVDD V
VIH Input high level(3) IOVDD > 1.6 V 0.7 × IOVDD V
IOVDD < 1.6 V 1.1
VOL Output low level 0.1 × IOVDD V
VOH Output high level 0.8 × IOVDD V
POWER CONSUMPTION, DRVDD, AVDD_DAC = 3.3 V, SPVDD = 5V, DVDD = 1.8 V, IOVDD = 3.3 V
IDRVDD+IAVDD_DAC RESET Held low 0.1 μA
IDVDD 0.2
IDRVDD+IAVDD_DAC Mono ADC record, Fs = 8 ksps, I2S Slave, AGC Off, No signal 2.1 mA
IDVDD 0.5
IDRVDD+IAVDD_DAC Stereo ADC record, Fs = 8 ksps, I2S Slave, AGC Off, No signal 4.1 mA
IDVDD 0.6
IDRVDD+IAVDD_DAC Stereo ADC record, Fs = 48 ksps, I2S Slave, AGC Off, No signal 4.3 mA
IDVDD 2.5
IDRVDD+IAVDD_DAC Stereo DAC Playback to Lineout , Analog mixer bypassed Fs = 48 ksps, I2S Slave 3.5 mA
IDVDD 2.3
IDRVDD+IAVDD_DAC Stereo DAC Playback to Lineout, Fs = 48 ksps, I2S Slave, No signal 4.9 mA
IDVDD 2.3
IDRVDD+IAVDD_DAC Stereo DAC Playback to stereo single-ended headphone, Fs = 48 ksps, I2S Slave, No signal 6.7 mA
IDVDD 2.3
IDRVDD+IAVDD_DAC Stereo LINEIN to stereo LINEOUT, No signal 3.1 mA
IDVDD 0
IDRVDD+IAVDD_DAC Extra power when PLL enabled 1.4 mA
IDVDD 0.9
IDRVDD+IAVDD_DAC All blocks powered down, Headset detection enabled 28 μA
IDVDD 2
SPVDD class-D disabled 200 nA
(1) Ratio of output level with 1-kHz full-scale sine-wave input, to the output level with the inputs short circuited, measured A-weighted over a 20-Hz to 20-kHz bandwidth using an audio analyzer.
(2) All performance measurements done with 20-kHz low-pass filter and, where noted, A-weighted filter. Failure to use such a filter may result in higher THD+N and lower SNR and dynamic range readings than shown in the Electrical Characteristics. The low-pass filter removes out-of-band noise, which, although not audible, may affect dynamic specification values.
(3) When IOVDD < 1.6V, minimum VIH is 1.1 V.

8.7 Audio Data Serial Interface Timing Requirements(1)(2)

IOVDD = 1.1 V IOVDD = 3.3 V UNIT
MIN MAX MIN MAX
I2S/LJF/RJF TIMING IN MASTER MODE, SEE Figure 1
td(WS) ADWS/WCLK delay time 50 15 ns
td(DO-WS) ADWS/WCLK to DOUT delay time 50 20 ns
td(DO-BCLK) BCLK to DOUT delay time 50 15 ns
ts(DI) DIN setup time 10 6 ns
th(DI) DIN hold time 10 6 ns
tr Rise time 30 10 ns
tf Fall time 30 10 ns
DSP TIMING IN MASTER MODE, SEE Figure 2
td(WS) ADWS/WCLK delay time 50 15 ns
td(DO-BCLK) BCLK to DOUT delay time 50 15 ns
ts(DI) DIN setup time 10 6 ns
th(DI) DIN hold time 10 6 ns
tr Rise time 30 10 ns
tf Fall time 30 10 ns
I2S/LJF/RJF TIMING IN SLAVE MODE, SEE Figure 3
tP(BCLK) BCLK clock period ns
tH(BCLK) BCLK high period 70 35 ns
tL(BCLK) BCLK low period 70 35 ns
ts(WS) ADWS/WCLK setup time 10 6 ns
th(WS) ADWS/WCLK hold time 10 6 ns
td(DO-WS) ADWS/WCLK to DOUT delay time (for LJF Mode only) 25 35 ns
td(DO-BCLK) BCLK to DOUT delay time 50 20 ns
ts(DI) DIN setup time 10 6 ns
th(DI) DIN hold time 10 6 ns
tr Rise time 8 4 ns
tf Fall time 8 4 ns
DSP TIMING IN SLAVE MODE, SEE Figure 4
tP(BCLK) BCLK clock period ns
tH(BCLK) BCLK high period 70 35 ns
tL(BCLK) BCLK low period 70 35 ns
ts(WS) ADWS/WCLK setup time 10 8 ns
th(WS) ADWS/WCLK hold time 10 8 ns
td(DO-BCLK) BCLK to DOUT delay time 50 20 ns
ts(DI) DIN setup time 10 6 ns
th(DI) DIN hold time 10 6 ns
tr Rise time 8 4 ns
tf Fall time 8 4 ns
(1) All timing specifications are measured at characterization but not tested at final test.
(2) All specifications at 25°C, DVDD = 1.8 V
t0145-01_las510.gifFigure 1. I2S/LJF/RJF Timing in Master Mode
t0146-01_las510.gifFigure 2. DSP Timing in Master Mode
t0145-02_las510.gifFigure 3. I2S/LJF/RJF Timing in Slave Mode
t0146-02_las510.gifFigure 4. DSP Timing in Slave Mode

8.8 Typical Characteristics

 

thd1_op_las509.gifFigure 5. Total Harmonic Distortion vs Headphone Out Power
mbias_v_las509.gifFigure 7. MICBIAS Voltage vs Supply Voltage
l_dac_fft_las509.gifFigure 9. Left DAC FFT
l_adc_fft_las509.gifFigure 11. Left ADC FFT
clas_d_out_los545.gifFigure 13. Total Harmonic Distortion vs Class-D Output Power
snr_adc_las509.gifFigure 6. Signal-to-Noise Ratio vs ADC PGA Setting
mbias_ta_las509.gifFigure 8. MICBIAS Voltage vs Free-Air Temperature
r_dac_fft_las509.gifFigure 10. Right DAC FFT
r_adc_fft_las509.gifFigure 12. Right ADC FFT

9 Parameter Measurement Information

All parameters are measured according to the conditions described in the Specifications section.


Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
