8.3.6.1 FAULT Codes

When the UCC25800-Q1 transformer driver enters fault mode, it outputs a train of pulses to indicate which faults have occurred through the DIS/FLT pin. The pulse train consists of a number 50% duty cycle pulses at 50 kHz, (that is, 10-μs wide pulses), where the number of pulses indicates the fault listed in Table 8-4. The pulse train is created through controlling the internal 750-μA pull-down current source, together with the 100-kΩ pull-up resistor.

Table 8-4 Fault codes
NO. OF PULSES FAULT
1 OCP1
2 OCP2
3 Input overvoltage protection
4 Over temperature protection
5 DT out of range
6 OC/DT open
7 OC/DT short
8 RT short
9 OTP (one-time-programmable bit ) error

The pulse train starts 10 µs after the fault has been asserted. Transmission of the fault code begins with a 100-µs wide high pulse. If more than one fault is detected, the codes are transmitted successively based on the order in Table 8-4, separated by a 100-μs wide high pulse, as shown below in Figure 8-18.

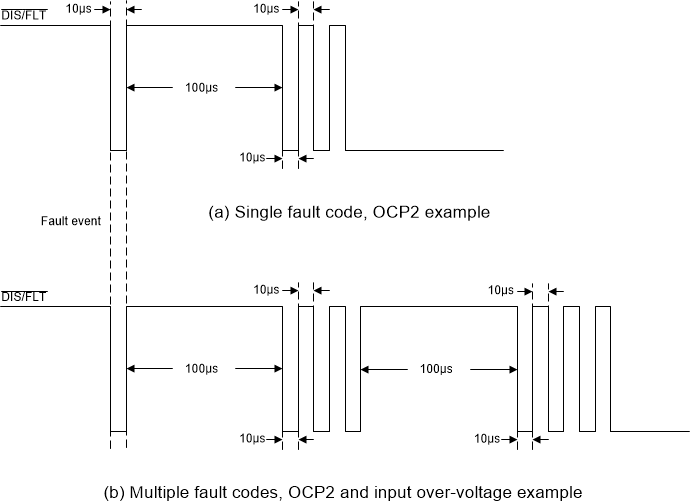

GUID-D379065F-FCBC-4926-8A44-5D6F370C4958-low.gifFigure 8-18 Fault code diagram
