SCDS216E OCTOBER 2005 – November 2017 TS5A3160

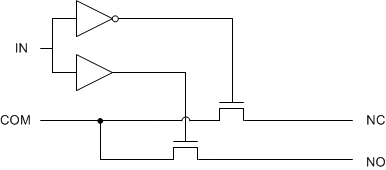

The TS5A3160 device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and an excellent channel-to-channel ON-state resistance matching. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
|PART NUMBER||PACKAGE||BODY SIZE (NOM)|
|TS5A3160DBV||SOT-23 (6)||2.90 mm × 1.60 mm|
|TS5A3160DCK||SC70 (6)||2.00 mm × 1.25 mm|
