6.3.1 Adjustable Operation

The TPS73801 has an adjustable output voltage range of 1.21 V to 20 V. The output voltage is set by the ratio of two external resistors as shown in Figure 6-1. The device maintains the voltage at the FB pin at 1.21 V referenced to ground. The current in R1 is then equal to (1.21 V / R1), and the current in R2 is the current in R1 plus the FB pin bias current. The FB pin bias current, 3 μA at 25 °C, flows through R2 into the FB pin. The output voltage can be calculated using the formula shown in Equation 1. The value of R1 must be less than 4.17 kΩ to minimize errors in the output voltage caused by the FB pin bias current. In shutdown the output is turned off, and the divider current is zero.

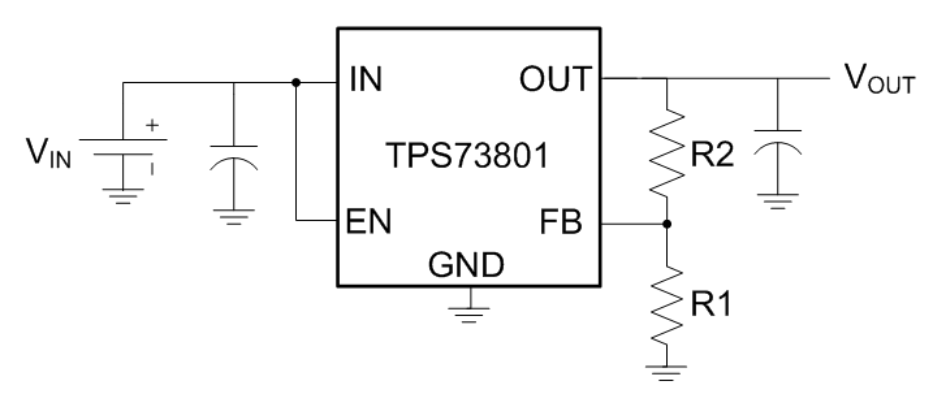

TPS73801 Adjustable OperationFigure 6-1 Adjustable Operation

The output voltage can be set using the following equations:

Equation 1. TPS73801
Equation 2. VFB = 1.21 V
Equation 3. IFB = 3 μA at 25 °C
Equation 4. Output Range = 1.21 to 20 V
