1 Features

  • 2.9-V to 5.0-V Input Voltage Range
  • Fixed 5.0-V Positive Output Voltage (VPOS)
  • Fixed –5.0-V Negative Output Voltage (VNEG)
  • ±1% Output Voltage Accuracy
  • High Efficiency
  • 250-mA Output Current Capability
  • Independent Converter Operation Allows 100% Output Current Mismatch
  • Excellent Line and Load Transient Response
  • Operates in CCM to Minimize Output Noise
  • Boost Converter able to Operate with Input Supply Voltages close to 5.0 V
  • Short-Circuit Protection
  • Thermal Shutdown

2 Applications

  • LCD Bias
  • AMOLED Supplies
  • Operational Amplifier Supplies
  • Headphone Amplifier Supplies
  • Sensor Front-End Supplies
  • Data Acquisition Supplies
  • General ±5-V Power Supplies

3 Description

The TPS65133 is designed to supply any system requiring ±5.0-V supply rails. Each output can supply up to 250 mA of output current. The input supply voltage range is suitable for use with lithium ion batteries or from a fixed 3.3-V supply.

Efficiency is typically over 90% for most applications (operating from a lithium ion battery, output currents in the range 50 mA to 200 mA). The two converters in the TPS65133 device operate independently, allowing 100% mismatch between positive and negative output currents.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
TPS65133 WSON (12) 3.00 mm × 3.00 mm
  1. For all available packages, see the orderable addendum at the end of the datasheet.

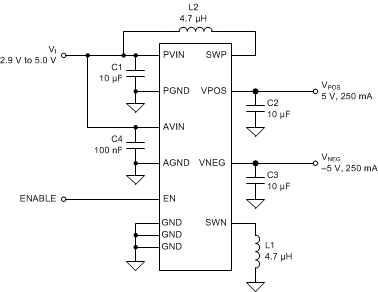

4 Typical Application

TPS65133 Application_Schematic_SLVSC01.gif

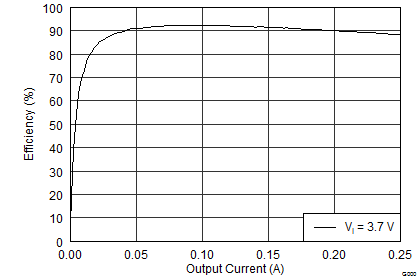

Efficiency

TPS65133 App_Perf_Front_Page_SLVSC01.png
