Typical Characteristics

Operation of the device at these or any other conditions beyond those indicated in the Recommended Operating Conditions table are not implied.
TLVH431B-EP D001_reference-voltage-vs-temperature-SLVSFF4.gifFigure 1. Reference Voltage
vs Junction Temperature
TLVH431B-EP pmif6_lvs555.gif
VKA = VREF TA = 25°C
Figure 3. Cathode Current
vs Cathode Voltage

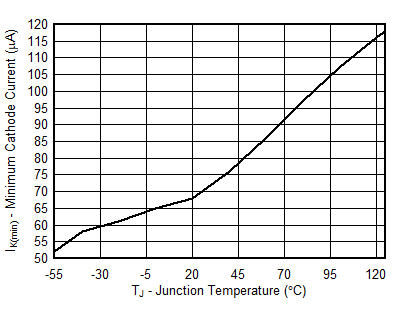

TLVH431B-EP D003_minimum-cathode-current-vs-temperature-SLVSFF4.gifFigure 5. Minimum Cathode Current
vs Junction Temperature
TLVH431B-EP D005_ratio-delta-reference-to-delta-cathode-vs-temperature-SLVSFF4.gif
Figure 7. Ratio of Delta Reference Voltage to Delta Cathode
Voltage vs Junction Temperature

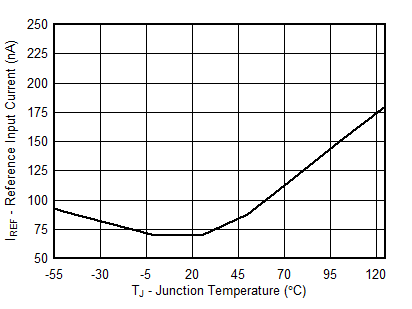

TLVH431B-EP D002_reference-current-vs-temperature-SLVSFF4.gifFigure 2. Reference Input Current
vs Junction Temperature

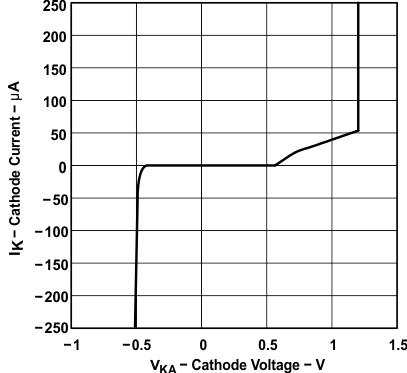

TLVH431B-EP cathode-current-vs-cathode-voltage-slvsff4.gif
VKA = VREF TA = 25°C
Figure 4. Cathode Current
vs Cathode Voltage
TLVH431B-EP D004_off-state-cathode-current-vs-temperature-SLVSFF4.gifFigure 6. Off-State Cathode Current
vs Junction Temperature
TLVH431B-EP pmif10_lvs555.gif
(1) Extrapolated from life-test data taken at 125°C; the activation energy assumed is 0.7 eV.
IK = 1 mA
Figure 8. Percentage Change in VREF
vs Operating Life at 55°C
TLVH431B-EP pmif11_lvs555.gif
VKA = VREF IK = 1 mA TA = 25°C
Figure 9. Equivalent Input Noise Voltage
vs Frequency
TLVH431B-EP pmif12_lvs555.gif
f = 0.1 Hz to 10 Hz IK = 1 mA TA = 25°C
Figure 11. Equivalent Input Noise Voltage
Over a 10-s Period
TLVH431B-EP pmif13_lvs555.gif
IK = 1 mA TA = 25°C
Figure 13. Voltage Gain and Phase Margin
vs Frequency
TLVH431B-EP pulse-response-1-slvsff4.gif
R = 18 kΩ TA = 25°C
Figure 15. Pulse Response 1

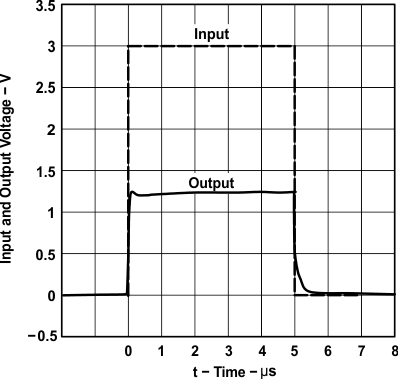

TLVH431B-EP pulse-response-2-slvsff4.gif
R = 1.8 kΩ TA = 25°C
Figure 17. Pulse Response 2
TLVH431B-EP phase_margin_test_cx_new_lvs555.gif
Figure 19. Phase Margin Test Circuit
TLVH431B-EP g_phase_capload_vk2p5_new_lvs555.gif
VKA = 2.5 V TA = 25°C
Figure 21. Phase Margin vs Capacitive Load
TLVH431B-EP test-circuit-for-equivalent-input-noise-voltage-slvsff4.gif
Figure 10. Test Circuit for Equivalent Noise Voltage
TLVH431B-EP test-circuit-for-eqivalent-noise-voltage-slvsff4.gif
Figure 12. Test Circuit for 0.1-Hz to 10-Hz
Equivalent Noise Voltage
TLVH431B-EP test-circuit-for-voltage-gain-and-phase-margin-slvsff4.gif
Figure 14. Test Circuit for Voltage Gain and Phase Margin
TLVH431B-EP test-circuit-for-pulse-response-1-slvsff4.gif
Figure 16. Test Circuit for Pulse Response 1
TLVH431B-EP test-circuit-for-pulse-response-2-slvsff4.gif
Figure 18. Test Circuit for Pulse Response 2
TLVH431B-EP g_phase_capload_vk1p25_new_lvs555.gif
VKA = VREF (1.25 V) TA = 25°C
Figure 20. Phase Margin vs Capacitive Load
TLVH431B-EP g_phase_capload_vk5_new_lvs555.gif
VKA = 5 V TA = 25°C
Figure 22. Phase Margin vs Capacitive Load
