7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Supply voltage 40 (±20) V
Signal input pins Voltage(2) (VS–) – 0.5 (VS+) + 0.5 V
Current(2) ±10 mA
Output short-circuit(3) Continuous mA
Operating temperature –55 150 °C
Junction temperature, TJ 150 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Input pins are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5 V beyond the supply rails must be current limited to 10 mA or less.
(3) Short-circuit to ground; one comparator per package.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100-002(1) ±1000 V
Charged-device model (CDM), per AEC Q100-011 ±1000
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Supply voltage VS = (VS+) – (VS–) 2.2 (±1.1) 36 (±18) V
Specified temperature –40 125 °C

7.4 Thermal Information

THERMAL METRIC(1) TLV1702-Q1 UNIT
DGK (VSSOP)
8 PINS
RθJA Junction-to-ambient thermal resistance 199 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 89.5 °C/W
RθJB Junction-to-board thermal resistance 120.4 °C/W
ψJT Junction-to-top characterization parameter 22 °C/W
ψJB Junction-to-board characterization parameter 118.7 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

at TA = 25°C, VS = 2.2 V to 36 V, CL = 15 pF, RPULLUP = 5.1 kΩ, VCM = VS / 2, and VS = VPULLUP (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
OFFSET VOLTAGE
VOS Input offset voltage TA = 25°C, VS = 2.2 V ±0.5 ±3.5 mV
TA = 25°C, VS = 36 V ±0.3 ±2.5 mV
TA = –40°C to +125°C ±5.5 mV
dVOS/dT Input offset voltage drift TA = –40°C to +125°C ±4 ±20 μV/°C
PSRR Power-supply rejection ratio TA = 25°C 15 100 μV/V
TA = –40°C to +125°C 20 μV/V
INPUT VOLTAGE RANGE
VCM Common-mode voltage range TA = –40°C to +125°C (V–) (V+) V
INPUT BIAS CURRENT
IB Input bias current TA = 25°C 5 15 nA
TA = –40°C to +125°C 20 nA
IOS Input offset current 0.5 nA
CLOAD Capacitive load drive See Typical Characteristics
OUTPUT
VO Voltage output swing from rail IO ≤ 4 mA, input overdrive = 100 mV,
VS = 36 V		 900 mV
IO = 0 mA, input overdrive = 100 mV,
VS = 36 V		 600 mV
ISC Short circuit sink current 20 mA
Output leakage current VIN+ > VIN– 70 nA
POWER SUPPLY
VS Specified voltage range 2.2 36 V
IQ Quiescent current (per channel) IO = 0 A 55 75 μA
IO = 0 A, TA = –40°C to +125°C 100 μA

7.6 Switching Characteristics

at TA = 25°C, VS = +2.2 V to +36 V, CL = 15 pF, RPULLUP = 5.1 kΩ, VCM = VS / 2, and VS = VPULLUP (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tpHL Propagation delay time, high-to-low Input overdrive = 100 mV 460 ns
tpLH Propagation delay time, low-to-high Input overdrive = 100 mV 560 ns
tR Rise time Input overdrive = 100 mV 365 ns
tF Fall time Input overdrive = 100 mV 240 ns

7.7 Typical Characteristics

at TA = 25°C, VS = 5 V, RPULLUP = 5.1 kΩ, and input overdrive = 100 mV (unless otherwise noted)
TLV1702-Q1 C017_SBOS589.png

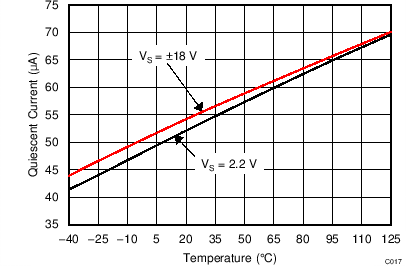

Figure 1. Quiescent Current vs Temperature
TLV1702-Q1 C014_SBOS589.png

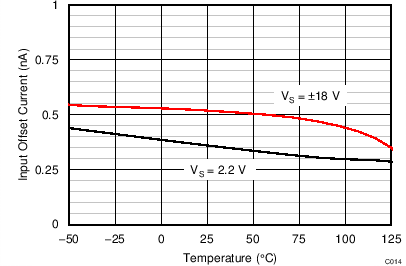

Figure 3. Input Offset Current vs Temperature
TLV1702-Q1 D003_SLOS890.gif

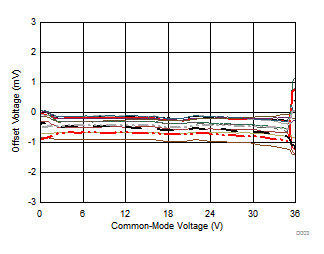

VS = ±18 V 14 typical units shown
Figure 5. Offset Voltage vs Common-Mode Voltage
TLV1702-Q1 D001_SLOS890.gif
16 typical units shown
Figure 7. Offset Voltage vs Supply Voltage
TLV1702-Q1 C006_SBOS589.png

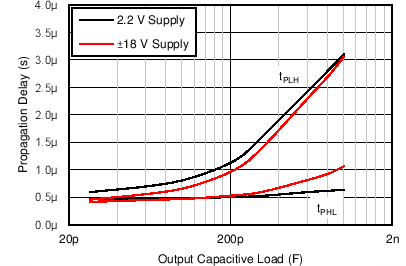

Figure 9. Propagation Delay vs Capacitive Load
TLV1702-Q1 C007_SBOS589.png

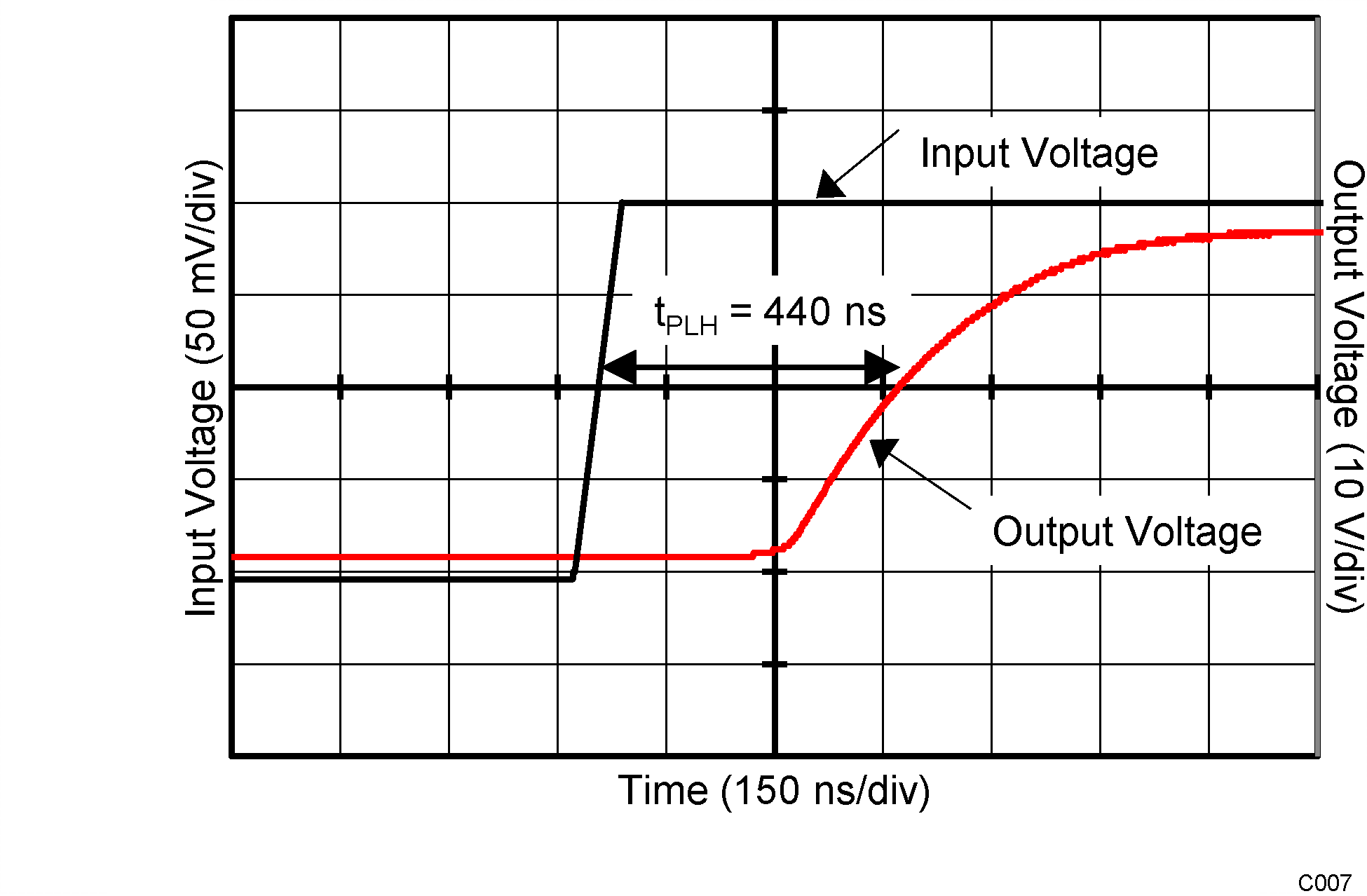

VS = 36 V Overdrive = 100 mV
Figure 11. Propagation Delay (TpLH)
TLV1702-Q1 C009_SBOS589.png
VS = 2.2 V Overdrive = 100 mV
Figure 13. Propagation Delay (TpLH)
TLV1702-Q1 D005_SLOS890.gif
VS = ±18 V Distribution taken from 2524 comparators
Figure 15. Offset Voltage Production Distribution
TLV1702-Q1 C016_SBOS589.png
Sink current
Figure 17. Short-Circuit Current vs Supply Voltage
TLV1702-Q1 C015_SBOS589.png
Figure 2. Input Bias Current vs Temperature
TLV1702-Q1 C011_SBOS589.png
Figure 4. Output Voltage vs Output Current
TLV1702-Q1 D002_SLOS890.gif

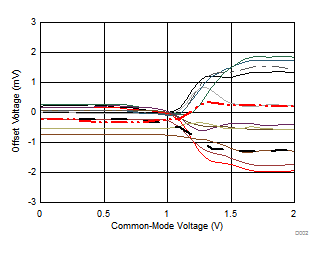

VS = 2.2 V 13 typical units shown
Figure 6. Offset Voltage vs Common-Mode Voltage
TLV1702-Q1 C013_SBOS589.png

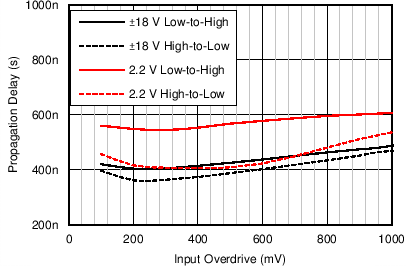

Figure 8. Propagation Delay vs Input Overdrive
TLV1702-Q1 C012_SBOS589.png
VOD = 100 mV
Figure 10. Propagation Delay vs Temperature
TLV1702-Q1 C008_SBOS589.png

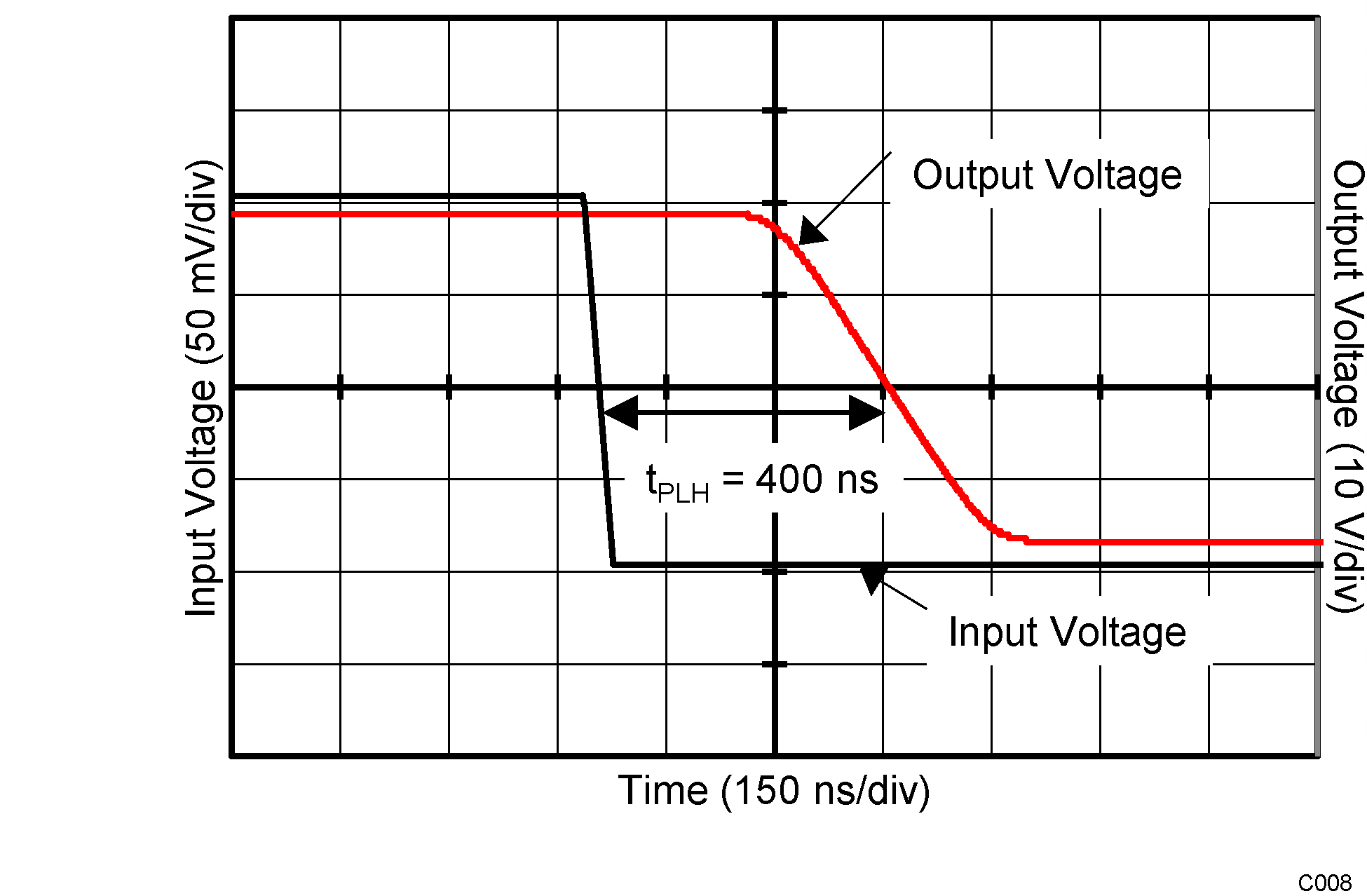

VS = 36 V Overdrive = 100 mV
Figure 12. Propagation Delay (TpHL)
TLV1702-Q1 C010_SBOS589.png

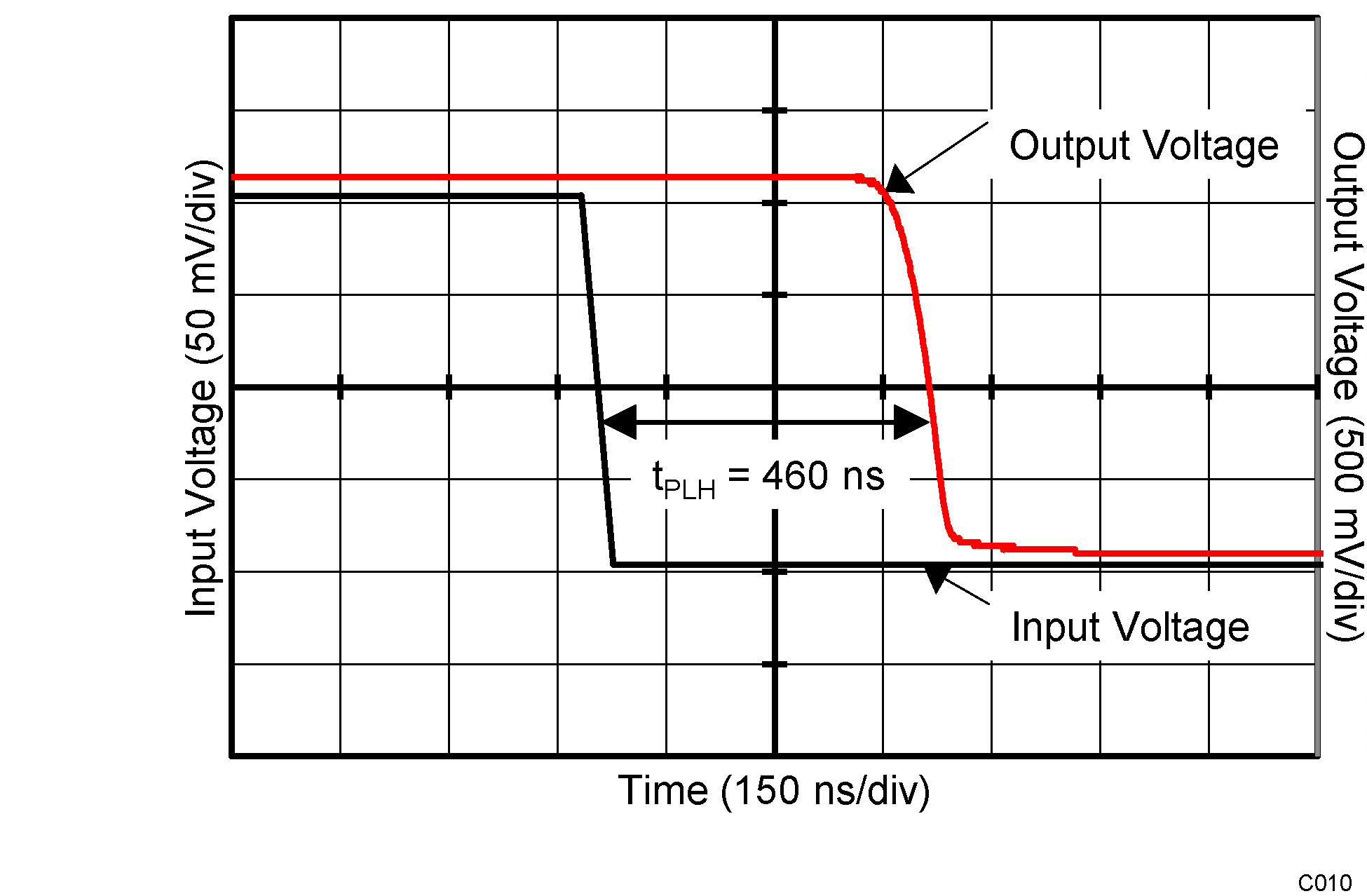

VS = 2.2 V Overdrive = 100 mV
Figure 14. Propagation Delay (TpHL)
TLV1702-Q1 D004_SLOS890.gif

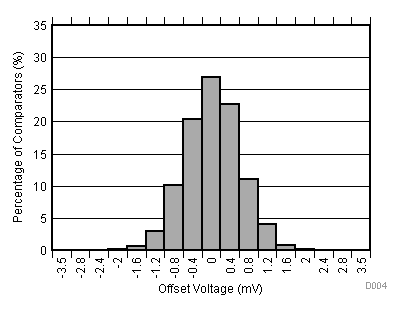

VS = 2.2 V Distribution taken from 2524 comparators
Figure 16. Offset Voltage Production Distribution
