Parameter Measurement Information

TCA9554A I2C_interface2.png
CL includes probe and jig capacitance.
All inputs are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr/tf  ≤ 30 ns.
All parameters and waveforms are not applicable to all devices.
Figure 11. I2C Interface Load Circuit and Voltage Waveforms

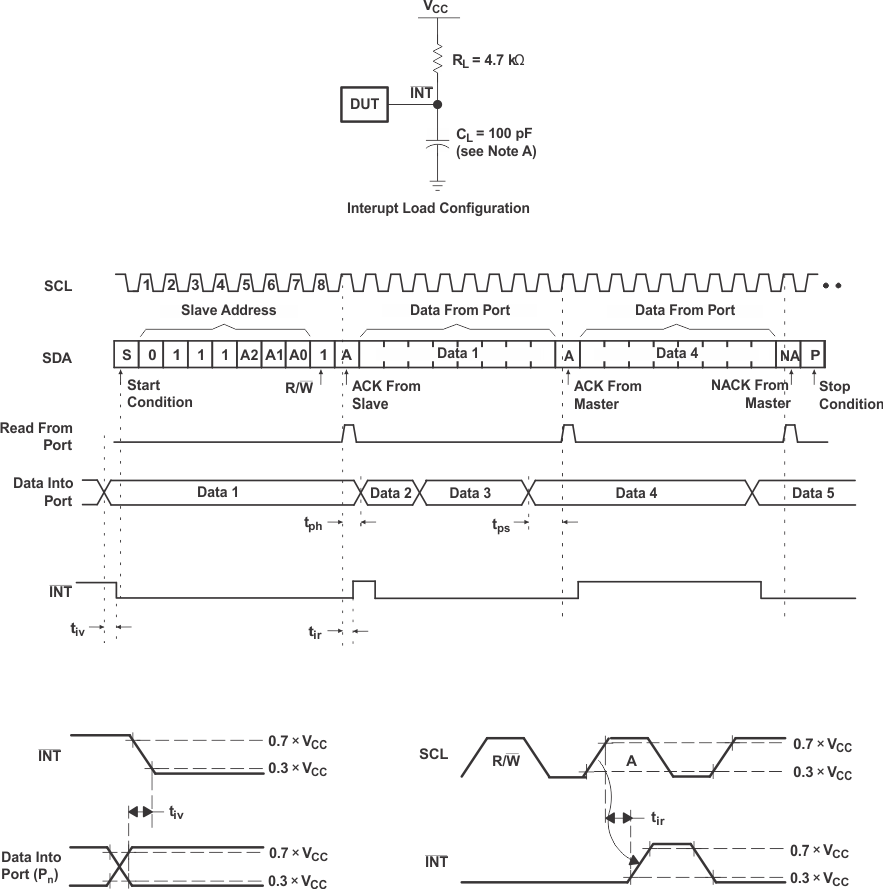

TCA9554A pmi_int_scps196.gif
CL includes probe and jig capacitance.
All inputs are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr/tf  ≤ 30 ns.
All parameters and waveforms are not applicable to all devices.
Figure 12. Interrupt Load Circuit and Voltage Waveforms

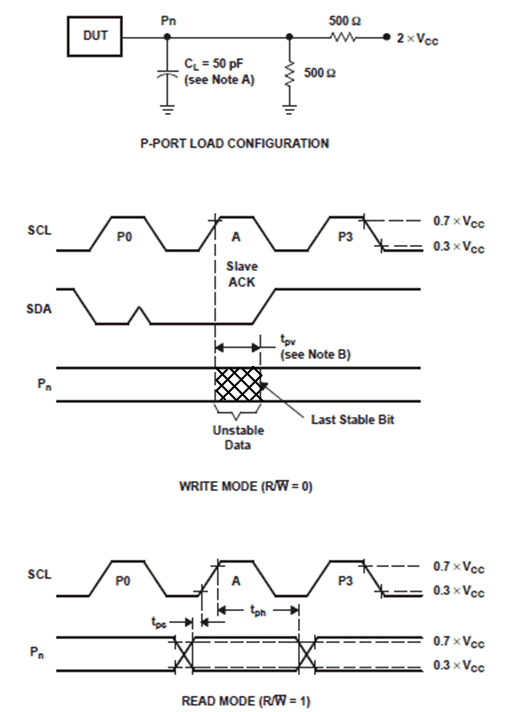

TCA9554A pmi_pport.gif
CL includes probe and jig capacitance.
tpv is measured from 0.7 × VCC on SCL to 50% I/O (Pn) output.
All inputs are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr/tf  ≤ 30 ns.
The outputs are measured one at a time, with one transition per measurement.
All parameters and waveforms are not applicable to all devices.
Figure 13. P-Port Load Circuit and Voltage Waveforms
