3 说明

TAS5441-Q1 是一款单声道 D 类音频放大器，适用于汽车类紧急呼叫 (eCall)、远程信息处理、仪表组和信息娱乐系统应用。该器件采用 14.4Vdc 汽车电池供电，可在负载为 4Ω 且 THD+N 不超过 10% 的情况下提供高达 22W 的功率。该器件具有宽工作电压范围和优异的效率，是需要启停支持或使用备用电池运行时的理想选择。集成的负载突降保护能够缩减外部电压钳位电路的成本与尺寸，板载负载诊断功能能够通过 I2C 报告扬声器状态。

器件信息
器件型号 封装(1) 封装尺寸（标称值）
TAS5441-Q1 HTSSOP (16) 5.00mm x 4.40mm
(1) 如需了解所有可用封装，请参阅数据表末尾的可订购产品附录。

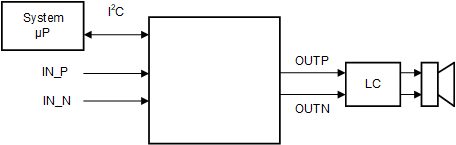

GUID-95C579C1-09BE-412F-B15A-FDE19B09FCFF-low.gif简化版方框图
GUID-DB373965-D3CC-4A3C-B70A-E32B5951C90F-low.gif输出功率效率
