8 Parameter Measurement Information

SN65HVD255 SN65HVD256 SN65HVD257 test_rxd-dom_timeout_llsea2.gifFigure 4. RXD Dominant Timeout Test Circuit and Measurement
SN65HVD255 SN65HVD256 SN65HVD257 test_fault_257_llsea2.gifFigure 5. FAULT Test and Measurement
SN65HVD255 SN65HVD256 SN65HVD257 dvr_tst_cir_llsea2.gifFigure 6. Driver Test Circuit and Measurement
SN65HVD255 SN65HVD256 SN65HVD257 rx_tst_cir_llsea2.gifFigure 7. Receiver Test Circuit and Measurement
SN65HVD255 SN65HVD256 SN65HVD257 tmode_tst_cir_llsea2.gifFigure 8. tMODE Test Circuit and Measurement

Table 1. Receiver Differential Input Voltage Threshold Test

INPUT OUTPUT
VCANH VCANL |VID| RXD
–1.1 V –2.0 V 900 mV L VOL
7.0 V 6.1 V 900 mV L
–1.5 V –2.0 V 500 mV H VOH
7.0 V 6.5 V 500 mV H
Open Open X H
SN65HVD255 SN65HVD256 SN65HVD257 tprop_tst_cir_llsea2.gifFigure 9. TPROP(LOOP) Test Circuit and Measurement

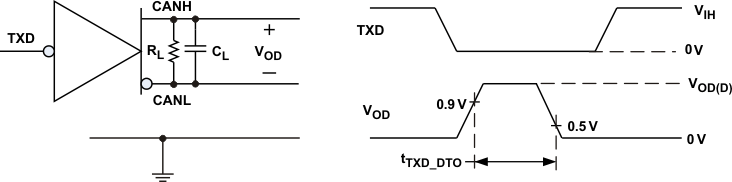

SN65HVD255 SN65HVD256 SN65HVD257 txd_tim_tst_llsea2.gifFigure 10. TXD Dominant Timeout Test Circuit and Measurement
SN65HVD255 SN65HVD256 SN65HVD257 dvr_short_cir_tst_llsea2.gifFigure 11. Driver Short Circuit Current Test and Measurement
