ZHCSXB8E April 2003 – November 2024 RC4580
PRODUCTION DATA
- 1
- 1 特性
- 2 应用
- 3 说明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Detailed Description
- 7 Application and Implementation
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封装选项
请参考 PDF 数据表获取器件具体的封装图。
机械数据 (封装 | 引脚)
- D|8
- P|8
- DDF|8
- DGK|8
- PW|8
散热焊盘机械数据 (封装 | 引脚)
订购信息
5.7 Typical Characteristics
Figure 5-1 Maximum Output Voltage Swing vs Load Resistance
Figure 5-3 Output Voltage Swing vs Output Current

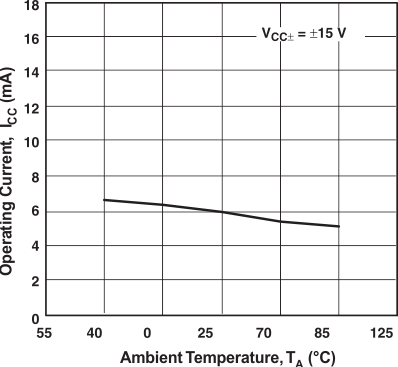

Figure 5-5 Operating Current vs Temperature
Figure 5-7 Input Offset Voltage vs Temperature
Figure 5-9 Maximum Output Voltage Swing vs Operating Voltage
Figure 5-11 Total Harmonic Distortion vs Output Voltage

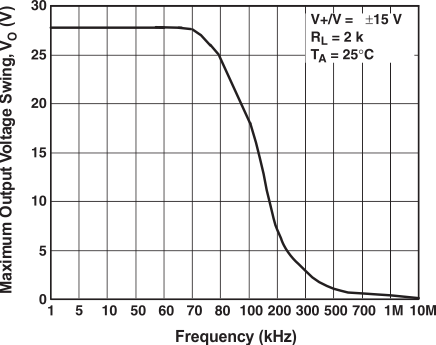

Figure 5-2 Maximum Ouput Voltage Swing vs Frequency

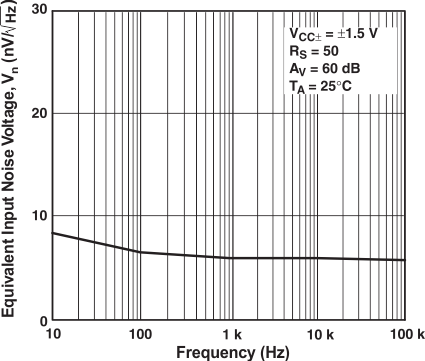

Figure 5-4 Equivalent Input Noise Voltage vs Frequency

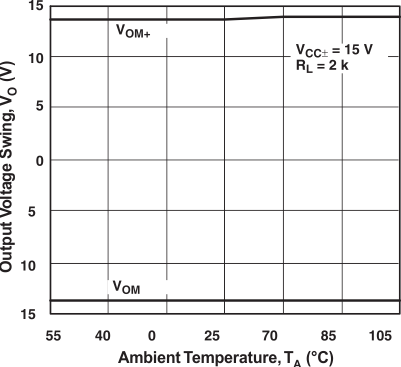

Figure 5-6 Output Voltage Swing vs TemperatureFigure 5-8 Input Bias Current vs Temperature

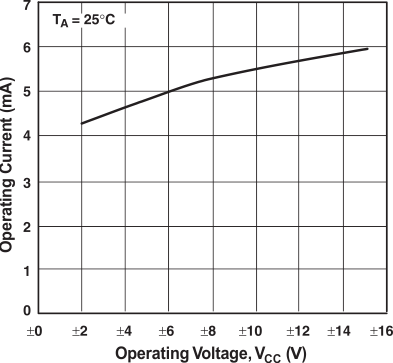

Figure 5-10 Operating Current vs Operating Voltage
Figure 5-12 Voltage Gain, Phase vs Frequency
