ZHCSIP5 August 2024 PGA305
PRODUCTION DATA
7.3.19 Digital Compensation and Filter
The PGA305 device implements a third-order TC and NL correction of the pressure and temperature inputs. The user can use a second-order IIR filter to filter and write the corrected output to the DAC as shown in Figure 24.

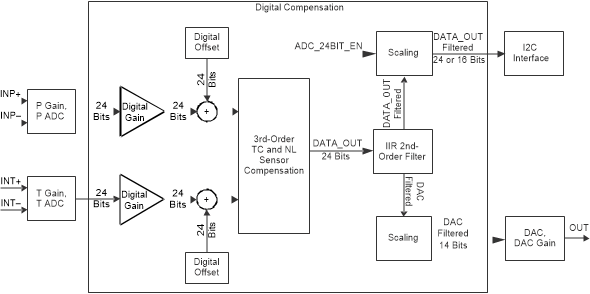

Figure 24. Digital Transfer Block Diagram
