7.6 Typical Characteristics

At T_A = +25°C, V_S = 5.5 V, R_L = 10 kΩ, R_F= 5 kΩ, C_F= 2.5 pF, V_CM = midsupply – 0.5 V, G = 6 V/V (unless otherwise noted).

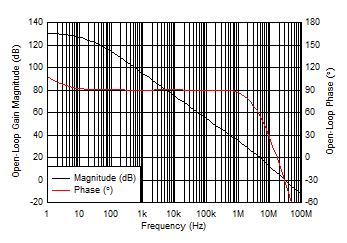

Figure 7-1 Open Loop Gain and Phase vs Frequency

Figure 7-3 Input Current Noise Density vs Frequency

V_OUT = 20 mV_PP

Figure 7-5 Small-Signal Frequency Response vs Capacitive Load

Figure 7-7 Large-Signal Frequency Response vs Output Voltage

V_OUT = 2 V_PP

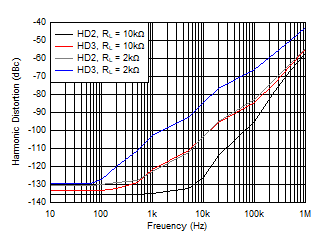

Figure 7-9 Harmonic Distortion vs Frequency

Figure 7-11 Rejection Ratio vs frequency

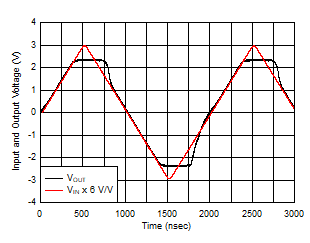

Figure 7-13 Output Overdrive Recovery

T_RISE = T_FALL = 40 nsec

Figure 7-15 Small-Signal Transient Response

Simulated

Figure 7-17 Step Settling Time

V_OUT = 200 mV_PP

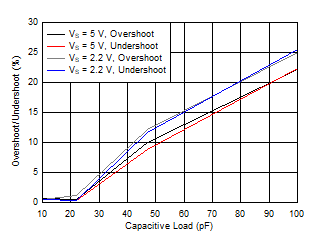

Figure 7-19 Overshoot vs Capacitive Load

32 Units, Normalized to
V_OS = 0V at 25°C

Figure 7-21 Input Offset Voltage vs Temperature

V_S = ±2.75 V

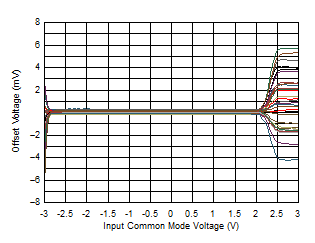

Figure 7-23 Input Offset vs Common Mode Voltage

Figure 7-25 Common Mode Rejection Ratio vs Temperature

Figure 7-27 Input Bias and Offset Current vs Temperature

Figure 7-29 Output Voltage vs Output Current Sourcing and Sinking

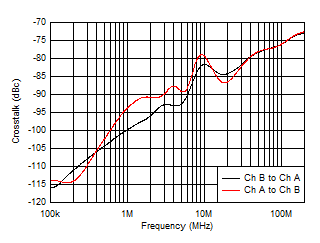

Figure 7-31 Crosstalk vs Frequency

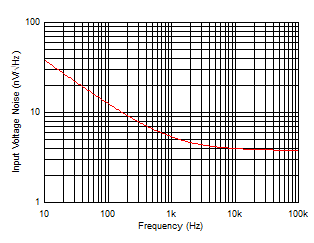

Figure 7-2 Input Voltage Noise Density vs Frequency

V_OUT = 20 mV_PP

Figure 7-4 Small-Signal Frequency Response vs Gain

V_OUT = 20 mV_PP

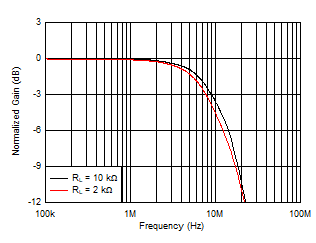

Figure 7-6 Small-Signal Frequency Response vs Output Load

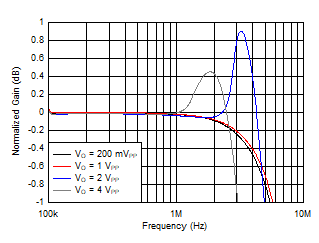

Figure 7-8 Large-Signal Response Flatness vs Frequency

Frequency = 20 kHz

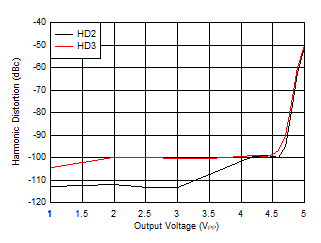

Figure 7-10 Harmonic Distortion vs Output Voltage

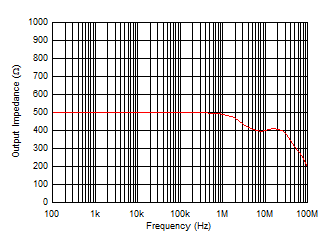

Figure 7-12 Open Loop Output Impedance vs Frequency

T_RISE = 1 µsec , T_FALL = 0.7 µsec

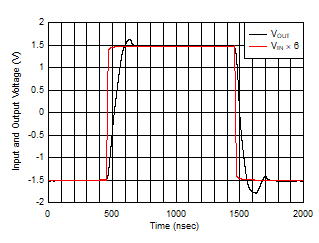

Figure 7-14 Large-Signal Transient Response

Figure 7-16 Phase Margin vs Capacitive Load

Figure 7-18 Recommended Isolation Resistor vs Capacitive Load

9000 units

Figure 7-20 Input Offset Voltage Distribution

32 Units, –40°C to +125°C

Figure 7-22 Input Offset Drift Distribution

32 Units

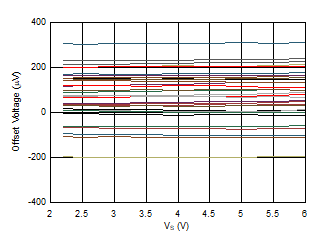

Figure 7-24 Input Offset vs Supply

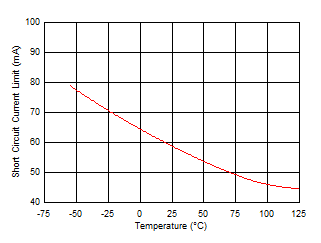

Figure 7-26 Short-Circuit Current vs Temperature

Figure 7-28 Quiescent Current vs Temperature

Figure 7-30 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs Frequency
