6.6 Typical Characteristics

TA = 25°C, VS = 5 V, G = 2, RF = 604 Ω, RL = 150 Ω connected to VS / 2 (unless otherwise noted)
OPA356-Q1 typchar_1_1_bos479.gif
Figure 1. Noninverting Small-Signal Frequency Response
OPA356-Q1 typchar_1_3_bos479.gif
Figure 3. Noninverting Small-Signal Step Response
OPA356-Q1 typchar_1_5_bos479.gif
Figure 5. 0.1-dB Gain Flatness for Various RF
OPA356-Q1 typchar_2_1_bos479.gif
Figure 7. Harmonic Distortion vs Non-Inverting Gain
OPA356-Q1 typchar_2_3_bos479.gif

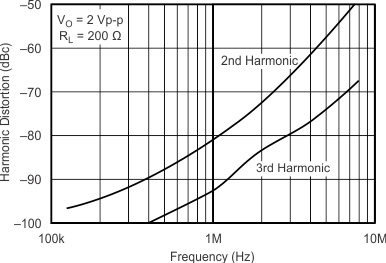

Figure 9. Harmonic Distortion vs Frequency
OPA356-Q1 typchar_2_5_bos479.gif
Figure 11. Input Voltage and Current Noise
Spectral Density vs Frequency
OPA356-Q1 typchar_3_1_bos479.gif
Figure 13. Frequency Response for Various CL
OPA356-Q1 typchar_3_3_bos479.gif
Figure 15. Frequency Response vs Capacitive Load
OPA356-Q1 typchar_3_5_bos479.gif
Figure 17. Open-Loop Gain and Phase
OPA356-Q1 typchar_4_1_bos479.gif
Figure 19. Input Bias Current vs Temperature
OPA356-Q1 typchar_4_3_bos479.gif
Figure 21. Supply Current vs Temperature
OPA356-Q1 typchar_4_5_bos479.gif
Figure 23. Closed-Loop Output Impedance vs Frequency
OPA356-Q1 typchar_5_1_bos479.gif
Figure 25. Output Settling Time to 0.1%
OPA356-Q1 typchar_5_3_bos479.gif
Figure 27. Offset Voltage Production Distribution
OPA356-Q1 typchar_1_2_bos479.gif
Figure 2. Inverting Small-Signal Frequency Response
OPA356-Q1 typchar_1_4_bos479.gif
Figure 4. Noninverting Large-Signal Step Response
OPA356-Q1 typchar_1_6_bos479.gif
Figure 6. Harmonic Distortion vs Output Voltage
OPA356-Q1 typchar_2_2_bos479.gif
Figure 8. Harmonic Distortion vs Inverting Gain
OPA356-Q1 typchar_2_4_bos479.gif
Figure 10. Harmonic Distortion vs Load Resistance
OPA356-Q1 typchar_2_6_bos479.gif
Figure 12. Frequency Response for Various RL
OPA356-Q1 typchar_3_2_bos479.gif

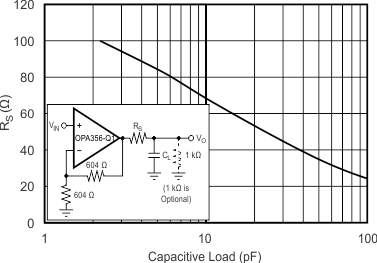

Figure 14. Recommended RS vs Capacitive Load
OPA356-Q1 typchar_3_4_bos479.gif
Figure 16. Common-Mode Rejection Ratio and
Power-Supply Rejection Ratio vs Frequency
OPA356-Q1 typchar_3_6_bos479.gif
Figure 18. Composite Video Differential Gain and Phase
OPA356-Q1 typchar_4_2_bos479.gif
VS = 3 V
Figure 20. Output Voltage Swing vs Output Current
OPA356-Q1 typchar_4_4_bos479.gif
VS = 5 V
Figure 22. Output Voltage Swing vs Output Current
OPA356-Q1 typchar_4_6_bos479.gif
Figure 24. Maximum Output Voltage vs Frequency
OPA356-Q1 typchar_5_2_bos479.gif
Figure 26. Open-Loop Gain vs Temperature
OPA356-Q1 typchar_5_4_bos479.gif
Figure 28. Common-Mode Rejection Ratio and
Power-Supply Rejection Ratio vs Temperature
