6.6 Typical Characteristics

at TA = –55°C to 125°C, VS = 5 V, G = 2, RF = 604 Ω, and RL = 150 Ω connected to VS / 2 (unless otherwise noted)
OPA2356-EP G001_sbos212.gif
Figure 1. Noninverting Small-Signal Frequency Response
OPA2356-EP G003_sbos212.gif
Figure 3. Noninverting Small-Signal Step Response
OPA2356-EP G005_sbos212.gif
Figure 5. 0.1-dB Gain Flatness for Various RF
OPA2356-EP G007_sbos212.gif
Figure 7. Harmonic Distortion vs Noninverting Gain
OPA2356-EP G009_sbos212.gif
Figure 9. Harmonic Distortion vs Frequency
OPA2356-EP G011_sbos212.gif
Figure 11. Input Voltage and Current Noise
Spectral Density vs Frequency
OPA2356-EP G013_sbos212.gif
Figure 13. Frequency Response for Various CL
OPA2356-EP G015_sbos212.gif
Figure 15. Frequency Response vs Capacitive Load
OPA2356-EP G017_sbos212.gif
Figure 17. Open-Loop Gain and Phase
OPA2356-EP G019_sbos212.gif
Figure 19. Input Bias Current vs Temperature

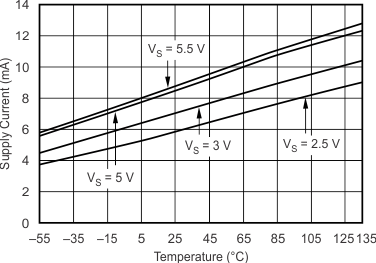

OPA2356-EP G021_sbos212.gif
Figure 21. Supply Current vs Temperature

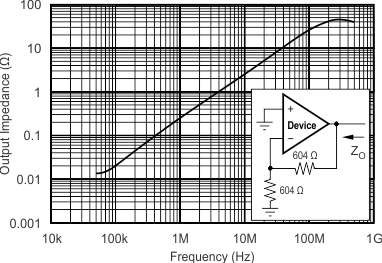

OPA2356-EP G023_sbos212.gif
Figure 23. Closed-Loop Output Impedance vs Frequency
OPA2356-EP G025_sbos212.gif
Figure 25. Output Settling Time to 0.1%
OPA2356-EP G027_sbos212.gif
Figure 27. Offset Voltage Production Distribution
OPA2356-EP G029_sbos212.gif
Figure 29. Channel-to-Channel Crosstalk
OPA2356-EP G002_sbos212.gif
Figure 2. Inverting Small-Signal Frequency Response
OPA2356-EP G004_sbos212.gif
Figure 4. Noninverting Large-Signal Step Response
OPA2356-EP G006_sbos212.gif
Figure 6. Harmonic Distortion vs Output Voltage
OPA2356-EP G008_sbos212.gif
Figure 8. Harmonic Distortion vs Inverting Gain
OPA2356-EP G010_sbos212.gif
Figure 10. Harmonic Distortion vs Load Resistance
OPA2356-EP G012_sbos212.gif
Figure 12. Frequency Response for Various RL

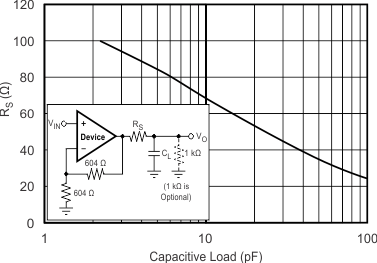

OPA2356-EP G014_sbos212.gif
Figure 14. Recommended RS vs Capacitive Load

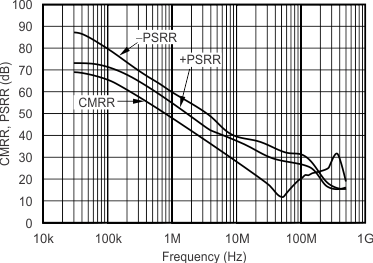

OPA2356-EP G016_sbos212.gif
Figure 16. Common-Mode Rejection Ratio and
Power-Supply Rejection Ratio vs Frequency
OPA2356-EP G018_sbos212.gif
Figure 18. Composite Video Differential Gain and Phase
OPA2356-EP G020_sbos212.gif
VS = 3 V
Figure 20. Output Voltage Swing vs Output Current

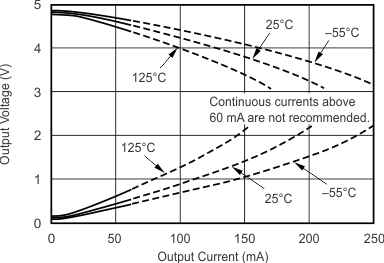

OPA2356-EP G022_sbos212.gif
VS = 5 V
Figure 22. Output Voltage Swing vs Output Current
OPA2356-EP G024_sbos212.gif
Figure 24. Maximum Output Voltage vs Frequency
OPA2356-EP G026_sbos212.gif
Figure 26. Open-Loop Gain vs Temperature
OPA2356-EP G028_sbos212.gif
Figure 28. Common-Mode Rejection Ratio and
Power-Supply Rejection Ratio vs Temperature
