9.13.14 Port PU (PU.0 and PU.1) Ports (F645x, F535x)

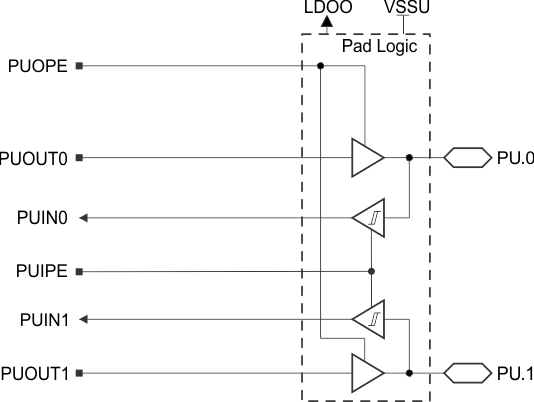

Figure 9-15 shows the port diagram. Table 9-69 summarizes selection of the pin functions.

GUID-8921D061-3E77-49C6-B160-EA6B3B5E2450-low.gif Figure 9-15 Port PU (PU.0 and PU.1) Diagram (F645x, F535x)
Table 9-69 Port PU (PU.0 and PU.1) Functions (F645x, F535x)
PUIPE(1)PUOPEPUOUT1PUOUT0PU.1PU.0PORT U FUNCTION
0100Output lowOutput lowOutputs enabled
0101Output lowOutput highOutputs enabled
0110Output highOutput lowOutputs enabled
0111Output highOutput highOutputs enabled
10XXInput enabledInput enabledInputs enabled
00XXHi-ZHi-ZOutputs and inputs disabled
(1) PU.1 and PU.0 inputs and outputs are supplied from LDOO. LDOO can be generated by the device using the integrated 3.3-V LDO when enabled. LDOO can also be supplied externally when the 3.3-V LDO is not being used and is disabled.
