Pin Configuration and Functions

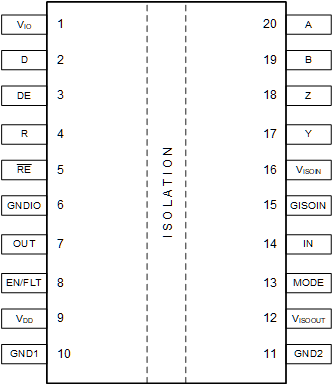

GUID-20210511-CA0I-CWRN-TGMP-4JKTL2T1RR8Z-low.gif Figure 7-1 ISOW14x220-pin DFMTop View
Table 7-1 Pin Functions
PIN I/O DESCRIPTION
NAME NO.
VIO 1 -- Side 1 logic supply
D 2 I Data input
DE 3 I Driver enable. If pin is floating, driver is disabled (internal pull-down resistor)
R 4 O Received data output
RE 5 I Receiver enable. If pin is floating, receiver buffer is disabled (internal pull-up resistor)
GNDIO 6 -- Ground connections for VIO . GNDIO and GND1 need be shorted directly on PCB.
OUT 7 O General purpose logic output
EN/FLT 8 I/O

Multi-function power converter enable input pin or fault output pin. Can only be used as either an input pin or an output pin.

  • If it's used as Power converter enable input pin, it enables and disables the integrated DC-DC power converter. Connect directly to microcontroller or through a series current limiting resistor to use as an enable input pin. DC-DC power converted is enabled when EN is high (connected to VIO) and disabled when low (connected to GND1). If EN is floating, DC-DC converter is enabled (internal pull-up resistor)
  • If it's used as Fault output pin, it gives an alert signal if power converter is not operating properly. This pin is active low. Connect to microcontroller through a 5 kΩ or greater pull-up resistor in order to use as a fault outpin pin.
VDD 9 -- Side 1 DC-DC converter power supply
GND1 10 -- Ground connection for VIO. GNDIO and GND1 need be shorted directly on PCB.
GND2 11 -- Ground connection for VISOOUT. GND2 and GISOIN need be shorted direclty on PCB, or connected through a ferrite bead.
VISOOUT 12 -- Isolated power converter output voltage. VISOOUT and VISOIN need be shorted directly on PCB, or connected through a ferrite bead.
MODE 13 I Mode select. For RS-485 transceiver to operate at 3.3V supply, connect MODE to GND2. For RS-485 transceiver to operate in 5V supply PROFIBUS mode, connect MODE to VISOOUT (internal pull-down resistor)
IN 14 I General purpose logic input
GISOIN 15 -- Ground connections for VISOIN. GND2 and GISOIN need be shorted direclty on PCB, or connected through a ferrite bead.
VISOIN 16 -- Side 2 supply voltage for RS485. VISOOUT and VISOIN need be shorted directly on PCB, or connected through a ferrite bead.
Y 17 O RS-485 driver non-inverting output
Z 18 O RS-485 driver inverting output
B 19 I RS-485 receiver inverting input
A 20 I RS-485 receiver non-inverting input
