6.6 Typical Characteristics

All specifications at T_A = 25 °C, V_S = 5 V, V_SENSE = V_IN+ – V_IN– = 0.5 V / Gain, and V_CM = V_IN– = 48 V, unless otherwise noted.

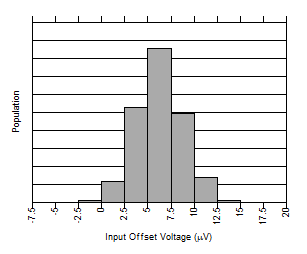

Figure 6-1 Input Offset Production Distribution, A1 Devices

Figure 6-3 Input Offset Production Distribution, A3 Devices

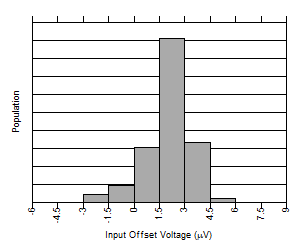

Figure 6-5 Input Offset Production Distribution, A5 Devices

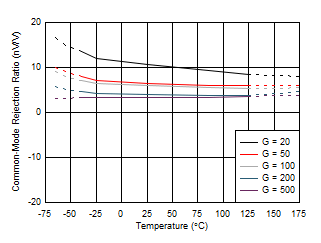

Figure 6-7 Common-Mode Rejection Ratio vs Temperature

V_SENSE = 4 V / Gain

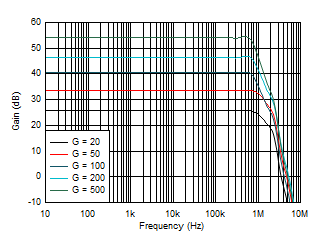

Figure 6-9 Gain vs Frequency

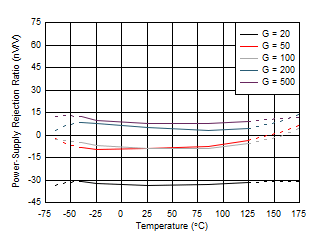

Figure 6-11 Power-Supply Rejection Ratio vs Temperature

V_SENSE = 0 V

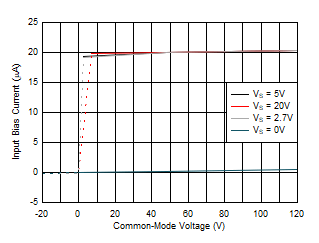

Figure 6-13 Input Bias Current vs Common-Mode Voltage

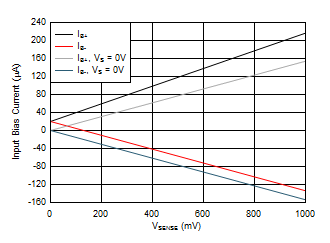

Figure 6-15 Input Bias Current vs V_SENSE, A1 Devices

Figure 6-17 Input Bias Current vs V_SENSE, A4 and A5 Devices

V_S = 5 V

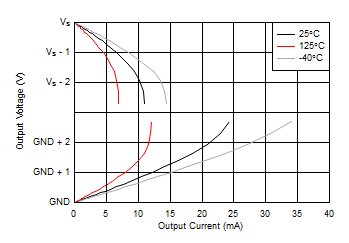

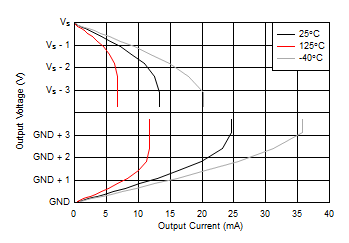

Figure 6-19 Output Voltage vs Output Current

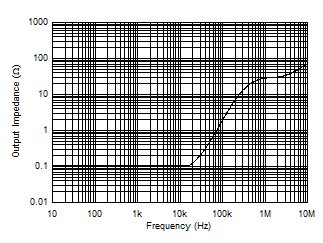

Figure 6-21 Output Impedance vs Frequency

R_L = 10 kΩ

Figure 6-23 Swing to GND vs Temperature

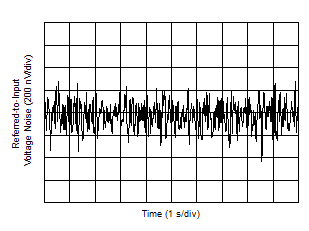

Figure 6-25 Input Referred Noise

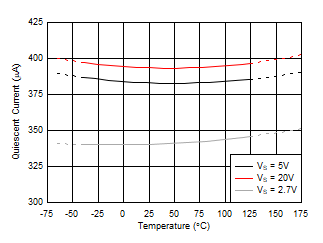

Figure 6-27 Quiescent Current vs Temperature, INA290

Figure 6-29 Quiescent Current vs Supply Voltage, INA290

R_L = 10 kΩ

V_SENSE = 5 mV

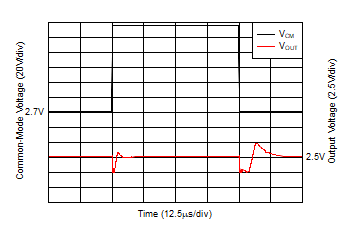

Figure 6-31 Common-Mode Voltage Fast Transient Pulse, A5 DeviceAs

V_SENSE = 0 mV

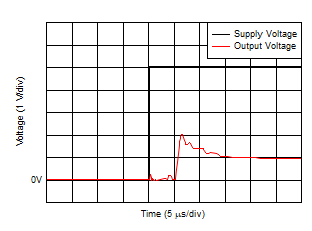

Figure 6-33 Start-Up Response

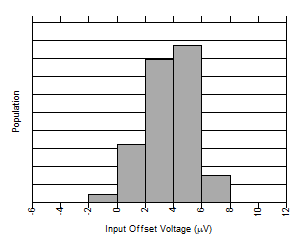

Figure 6-2 Input Offset Production Distribution, A2 Devices

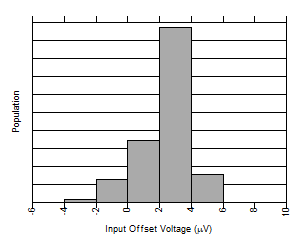

Figure 6-4 Input Offset Production Distribution, A4 Devices

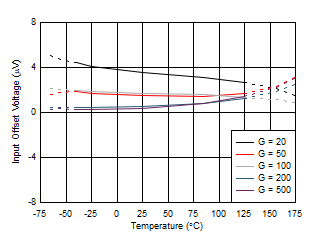

Figure 6-6 Input Offset Voltage vs Temperature

Figure 6-8 Common-Mode Rejection Ratio vs Frequency

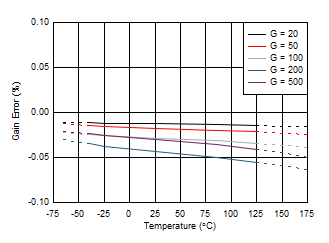

Figure 6-10 Gain Error vs Temperature

Figure 6-12 Power-Supply Rejection Ratio vs Frequency

Figure 6-14 Input Bias Current vs Temperature

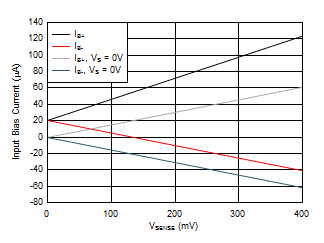

Figure 6-16 Input Bias Current vs V_SENSE, A2 and A3 Devices

V_S = 2.7 V

Figure 6-18 Output Voltage vs Output Current

V_S = 20 V

Figure 6-20 Output Voltage vs Output Current

R_L = 10 kΩ

Figure 6-22 Swing to Supply vs Temperature

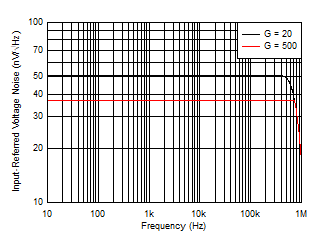

Figure 6-24 Input Referred Noise vs Frequency

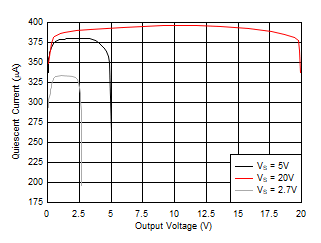

Figure 6-26 Quiescent Current vs Output Voltage, INA290

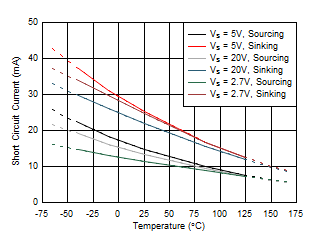

Figure 6-28 Short-Circuit Current vs Temperature

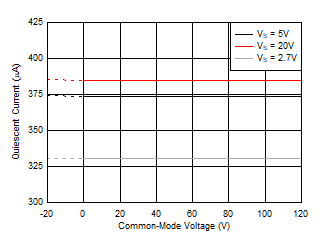

Figure 6-30 Quiescent Current vs Common-Mode Voltage, INA290

Figure 6-32 Step Response, A3 Devices

V_SENSE = 5 mV

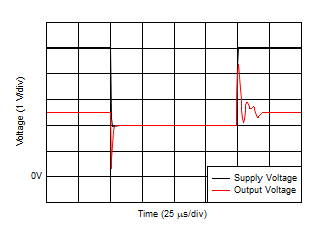

Figure 6-34 Supply Transient Response, A5 Devices
