4 Specifications

4.1 Absolute Maximum Ratings

Under no circumstances must the absolute maximum ratings be violated. Stress exceeding one or more of the limiting values may cause permanent damage to the device.
Parameter Min Max Units Condition
Supply voltage –0.3 3.9 V All supply pins must have the same voltage
Voltage on any digital pin –0.3 VDD + 0.3, max 3.9 V
Voltage on the pins RF_P, RF_N, DCOUPL, RBIAS –0.3 2.0 V
Voltage ramp-up rate 120 kV/µs
Input RF level +10 dBm

4.2 Handling Ratings

Parameter MIN MAX UNIT
Storage temperature range, Tstg (default) –50 150 °C
ESD Stress Voltage, VESD Human Body Model (HBM), per ANSI/ESDA/JEDEC JS001(1) 750 V
Charged Device Model (CDM), per JJESD22-C101(2) 400 V
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V HBM allows safe manufacturing with a standard ESD control process.

4.3 Recommended Operating Conditions

Parameter Min Max Unit Condition
Operating temperature –40 85 °C
Operating supply voltage 1.8 3.6 V All supply pins must have the same voltage

4.4 General Characteristics

Parameter Min Typ Max Unit Condition
Frequency range 300 348 MHz
387 464 MHz If using a 27 MHz crystal, the lower frequency limit for this band is 392 MHz
779 928 MHz
Data rate 0.6 500 kBaud 2-FSK
0.6 250 kBaud GFSK and OOK
0.6 300 kBaud 4-FSK (the data rate in kbps will be twice the baud rate) Optional Manchester encoding (the data rate in kbps will be half the baud rate)

4.5 Current Consumption

TA = 25°C, VDD = 3.0 V if nothing else stated. All measurement results are obtained using SWRR046 and SWRR045. Reduced current settings, MDMCFG2.DEM_DCFILT_OFF=1, gives a slightly lower current consumption at the cost of a reduction in sensitivity. See Section 4.6 for additional details on current consumption and sensitivity.
Parameter Min Typ Max Unit Condition
Current consumption in power down modes 0.2 1 µA Voltage regulator to digital part off, register values retained (SLEEP state). All GDO pins programmed to 0x2F (HW to 0)
100 µA Voltage regulator to digital part off, register values retained, XOSC running (SLEEP state with MCSM0.OSC_FORCE_ON set)
165 µA Voltage regulator to digital part on, all other modules in power down (XOFF state)
Current consumption 1.7 mA Only voltage regulator to digital part and crystal oscillator running (IDLE state)
8.4 mA The current consumption for the intermediate states when going from IDLE to RX, including the calibration state
Current consumption,
315 MHz		 15.4 mA Receive mode, 1.2 kBaud, reduced current, input at sensitivity limit
14.4 mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input well above sensitivity limit
15.2 mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input at sensitivity limit
14.3 mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input well above sensitivity limit
16.5 mA Receive mode, 250 kBaud, register settings optimized for reduced current, input at sensitivity limit
15.1 mA Receive mode, 250 kBaud, register settings optimized for reduced current, input well above sensitivity limit
Current consumption,
433 MHz		 16.0 mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input at sensitivity limit
15.0 mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input well above sensitivity limit
15.7 mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input at sensitivity limit
15.0 mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input well above sensitivity limit
17.1 mA Receive mode, 250 kBaud, register settings optimized for reduced current, input at sensitivity limit
15.7 mA Receive mode, 250 kBaud, register settings optimized for reduced current, input well above sensitivity limit
Current consumption,
868/915 MHz		 15.7 mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input at sensitivity limit.

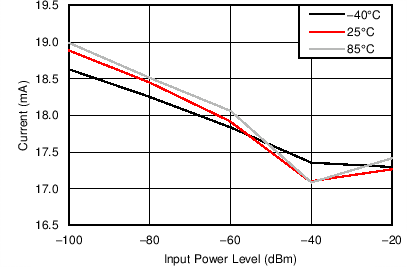

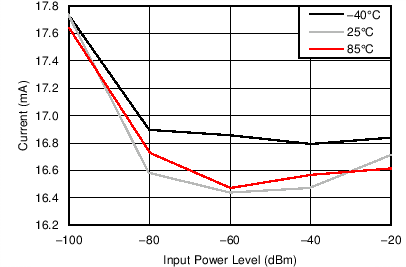

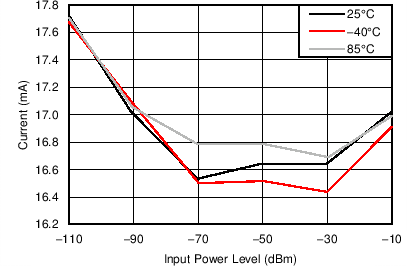

See Figure 4-1 through Figure 4-3 for current consumption with register settings optimized for sensitivity.
14.7 mA Receive mode, 1.2 kBaud, register settings optimized for reduced current, input well above sensitivity limit.
See Figure 4-1 through Figure 4-3 for current consumption with register settings optimized for sensitivity.
15.6 mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input at sensitivity limit.
See Figure 4-1 through Figure 4-3 for current consumption with register settings optimized for sensitivity.
14.6 mA Receive mode, 38.4 kBaud, register settings optimized for reduced current, input well above sensitivity limit.
See Figure 4-1 through Figure 4-3 for current consumption with register settings optimized for sensitivity.
16.9 mA Receive mode, 250 kBaud, register settings optimized for reduced current, input at sensitivity limit.
See Figure 4-1 through Figure 4-3 for current consumption with register settings optimized for sensitivity.
15.6 mA Receive mode, 250 kBaud, register settings optimized for reduced current, input well above sensitivity limit.
See Figure 4-1 through Figure 4-3 for current consumption with register settings optimized for sensitivity.

4.5.1 Typical RX Current Consumption over Temperature and Input Power Level, 868/915 MHz

See Section 4.12.1.

4.6 RF Receive Section

TA = 25°C, VDD = 3.0 V if nothing else stated. All measurement results are obtained using SWRR046 and SWRR045.

Parameter Min Typ Max Unit Condition
Digital channel filter bandwidth 58 812 kHz User programmable. The bandwidth limits are proportional to crystal frequency (given values assume a 26.0 MHz crystal)
Spurious emissions –68 –57 dBm 25 MHz - 1 GHz
(Maximum figure is the ETSI EN 300 220 V2.3.1 limit)
–66 –47 dBm Above 1 GHz
(Maximum figure is the ETSI EN 300 220 V2.3.1 limit)
Typical radiated spurious emission is –49 dBm measured at the VCO frequency
RX latency 9 bit Serial operation. Time from start of reception until data is available on the receiver data output pin is equal to 9 bit
315 MHz
1.2 kBaud data rate, sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(2-FSK, 1% packet error rate, 20 bytes packet length, 5.2 kHz deviation, 58 kHz digital channel filter bandwidth)
Receiver sensitivity –111 dBm Sensitivity can be traded for current consumption by setting MDMCFG2.DEM_DCFILT_OFF=1. The typical current consumption is then reduced from 17.2 mA to 15.4 mA at the sensitivity limit. The sensitivity is typically reduced to -109 dBm
433 MHz
0.6 kBaud data rate, sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(GFSK, 1% packet error rate, 20 bytes packet length, 14.3 kHz deviation, 58 kHz digital channel filter bandwidth)
Receiver sensitivity –116 dBm
1.2 kBaud data rate, sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
GFSK, 1% packet error rate, 20 bytes packet length, 5.2 kHz deviation, 58 kHz digital channel filter bandwidth)
Receiver sensitivity –112 dBm Sensitivity can be traded for current consumption by setting MDMCFG2.DEM_DCFILT_OFF=1. The typical current consumption is then reduced from 18.0 mA to 16.0 mA at the sensitivity limit. The sensitivity is typically reduced to –110 dBm
38.4 kBaud data rate, sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(GFSK, 1% packet error rate, 20 bytes packet length, 20 kHz deviation, 100 kHz digital channel filter bandwidth)
Receiver sensitivity –104 dBm
250 kBaud data rate, sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(GFSK, 1% packet error rate, 20 bytes packet length, 127 kHz deviation, 540 kHz digital channel filter bandwidth)
Receiver sensitivity –95 dBm
868/915 MHz
1.2 kBaud data rate, sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(GFSK, 1% packet error rate, 20 bytes packet length, 5.2 kHz deviation, 58 kHz digital channel filter bandwidth)
Receiver sensitivity –112 dBm Sensitivity can be traded for current consumption by setting MDMCFG2.DEM_DCFILT_OFF=1. The typical current consumption is then reduced from 17.7 mA to 15.7 mA at sensitivity limit. The sensitivity is typically reduced to –109 dBm
Saturation –14 dBm FIFOTHR.CLOSE_IN_RX=0. See more in DN010 SWRA147
Adjacent channel rejection ±100 kHz offset 37 dB Desired channel 3 dB above the sensitivity limit.
100 kHz channel spacing

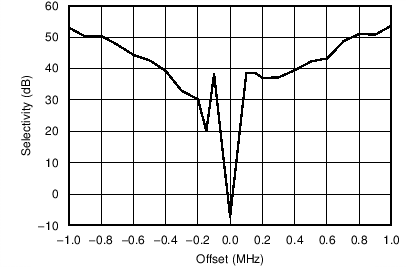

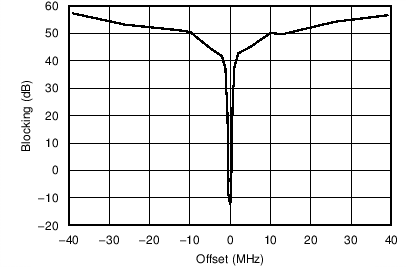

See Figure 4-4 and Figure 4-5 for selectivity performance at other offset frequencies
Image channel rejection 31 dB IF frequency 152 kHz
Desired channel 3 dB above the sensitivity limit
Blocking Desired channel 3 dB above the sensitivity limit
See Figure 4-4 and Figure 4-5 for blocking performance at other offset frequencies
±2 MHz offset –50 dBm
±10 MHz offset –40 dBm
38.4 kBaud data rate, sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(GFSK, 1% packet error rate, 20 bytes packet length, 20 kHz deviation, 100 kHz digital channel filter bandwidth)
Receiver sensitivity –104 dBm Sensitivity can be traded for current consumption by setting MDMCFG2.DEM_DCFILT_OFF=1. The typical current consumption is then reduced from 17.7 mA to 15.6 mA at the sensitivity limit. The sensitivity is typically reduced to -102 dBm
Saturation –16 dBm FIFOTHR.CLOSE_IN_RX=0. See more in DN010 SWRA147
Adjacent channel rejection Desired channel 3 dB above the sensitivity limit.
200 kHz channel spacing

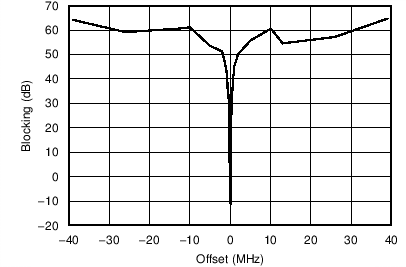

See Figure 4-6 and Figure 4-7 for blocking performance at other offset frequencies
–200 kHz offset 12 dB
+200 kHz offset 25 dB
Image channel rejection 23 dB IF frequency 152 kHz
Desired channel 3 dB above the sensitivity limit
Blocking Desired channel 3 dB above the sensitivity limit
See Figure 4-6 and Figure 4-7 for blocking performance at other offset frequencies
±2 MHz offset –50 dBm
±10 MHz offset –40 dBm
250 kBaud data rate, sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(GFSK, 1% packet error rate, 20 bytes packet length, 127 kHz deviation, 540 kHz digital channel filter bandwidth)
Receiver sensitivity –95 dBm Sensitivity can be traded for current consumption by setting MDMCFG2.DEM_DCFILT_OFF=1. The typical current consumption is then reduced from 18.9 mA to 16.9 mA at the sensitivity limit. The sensitivity is typically reduced to -91 dBm
Saturation –17 dBm FIFOTHR.CLOSE_IN_RX=0. See more in DN010 SWRA147
Adjacent channel rejection 25 dB Desired channel 3 dB above the sensitivity limit.
750-kHz channel spacing

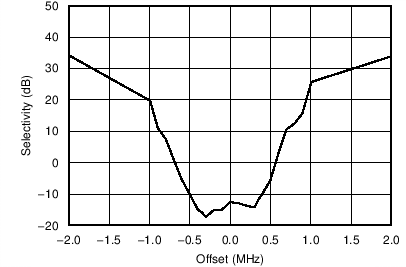

See Figure 4-8 and Figure 4-9 for blocking performance at other offset frequencies
Image channel rejection 14 dB IF frequency 304 kHz
Desired channel 3 dB above the sensitivity limit
Blocking Desired channel 3 dB above the sensitivity limit
See Figure 4-8 and Figure 4-9 for blocking performance at other offset frequencies
±2 MHz offset –50 dBm
±10 MHz offset –40 dBm
4-FSK, 125 kBaud data rate (250 kbps), sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(1% packet error rate, 20 bytes packet length, 127 kHz deviation, 406 kHz digital channel filter bandwidth)
Receiver sensitivity –96 dBm
4-FSK, 250 kBaud data rate (500 kbps), sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(1% packet error rate, 20 bytes packet length, 254 kHz deviation, 812 kHz digital channel filter bandwidth
Receiver sensitivity –91 dBm
4-FSK, 300 kBaud data rate (600 kbps), sensitivity optimized, MDMCFG2.DEM_DCFILT_OFF=0
(1% packet error rate, 20 bytes packet length, 228 kHz deviation, 812 kHz digital channel filter bandwidth)
Receiver sensitivity –89 dBm

4.6.1 Typical Sensitivity over Temperature and Supply Voltage, 868 MHz, Sensitivity Optimized Setting

Supply Voltage Supply Voltage Supply Voltage
VDD = 1.8 V VDD = 3.0 V VDD = 3.6 V
Temperature [°C] –40 25 85 –40 25 85 –40 25 85
Sensitivity [dBm] 1.2 kBaud –113 –112 –110 –113 –112 –110 –113 –112 –110
Sensitivity [dBm] 38.4 kBaud –105 –104 –102 –105 –104 –102 –105 –104 –102
Sensitivity [dBm] 250 kBaud –97 –96 –92 –97 –95 –92 –97 –94 –92
Sensitivity [dBm] 500 kBaud –91 –90 –86 –91 –90 –86 –91 –90 –86

4.6.2 Typical Sensitivity over Temperature and Supply Voltage, 915 MHz, Sensitivity Optimized Setting

Supply Voltage Supply Voltage Supply Voltage
VDD = 1.8 V VDD = 3.0 V VDD = 3.6 V
Temperature [°C] –40 25 85 –40 25 85 –40 25 85
Sensitivity [dBm] 1.2 kBaud –113 –112 –110 –113 –112 –110 –113 –112 –110
Sensitivity [dBm] 38.4 kBaud –105 –104 –102 –104 –104 –102 –105 –104 –102
Sensitivity [dBm] 250 kBaud –97 –94 –92 –97 –95 –92 –97 –95 –92
Sensitivity [dBm] 500 kBaud –91 –89 –86 –91 –90 –86 –91 –89 –86

4.6.3 Blocking and Selectivity

See Section 4.12.2.

4.7 Crystal Oscillator

TA = 25°C, VDD = 3.0 V if nothing else is stated. All measurement results obtained using SWRR046 and SWRR045.
Parameter Min Typ Max Unit Condition
Crystal frequency 26 26 27 MHz For compliance with modulation bandwidth requirements under EN 300 220 V2.3.1 in the 863 to 870 MHz frequency range it is recommended to use a 26-MHz crystal for frequencies below 869 MHz and a 27 MHz crystal for frequencies above 869 MHz.
Tolerance ±40 ppm This is the total tolerance including a) initial tolerance, b) crystal loading, c) aging, and d) temperature dependence. The acceptable crystal tolerance depends on RF frequency and channel spacing / bandwidth.
Load capacitance 10 13 20 pF Simulated over operating conditions
ESR 100 Ω
Start-up time 150 µs This parameter is to a large degree crystal dependent. Measured on SWRR046 and SWRR045 using crystal AT-41CD2 from NDK

4.8 Frequency Synthesizer Characteristics

TA = 25°C, VDD = 3.0 V if nothing else is stated. All measurement results are obtained using SWRR046 and SWRR045. Min figures are given using a 27-MHz crystal. Typ and max figures are given using a 26-MHz crystal.
Parameter Min Typ Max Unit Condition
Programmed frequency resolution 397 FXOSC/216 412 Hz 26- to 27-MHz crystal. The resolution (in Hz) is equal for all frequency bands
Synthesizer frequency tolerance ±40 ppm Given by crystal used. Required accuracy (including temperature and aging) depends on frequency band and channel bandwidth / spacing
RF carrier phase noise –92 dBc/Hz at 50 kHz offset from carrier
RF carrier phase noise –92 dBc/Hz at 100 kHz offset from carrier
RF carrier phase noise –92 dBc/Hz at 200 kHz offset from carrier
RF carrier phase noise –98 dBc/Hz at 500 kHz offset from carrier
RF carrier phase noise –107 dBc/Hz at 1 MHz offset from carrier
RF carrier phase noise –113 dBc/Hz at 2 MHz offset from carrier
RF carrier phase noise –119 dBc/Hz at 5 MHz offset from carrier
RF carrier phase noise –129 dBc/Hz at 10 MHz offset from carrier
PLL turn-on or hop time
(See Table 5-12)		 72 75 75 µs Time from leaving the IDLE state until arriving in the RX state, when not performing calibration. Crystal oscillator running.
PLL calibration time
(See Table 5-13)		 685 712 724 µs Calibration can be initiated manually or automatically before entering or after leaving RX

4.9 DC Characteristics

TA = 25°C if nothing else stated.
Digital Inputs/Outputs Min Max Unit Condition
Logic "0" input voltage 0 0.7 V
Logic "1" input voltage VDD – 0.7 VDD V
Logic "0" output voltage 0 0.5 V For up to 4 mA output current
Logic "1" output voltage VDD – 0.3 VDD V For up to 4 mA output current
Logic "0" input current N/A –50 nA Input equals 0 V
Logic "1" input current N/A 50 nA Input equals VDD

4.10 Power-On Reset

For proper Power-On-Reset functionality the power supply should comply with the requirements in Section 4.10. Otherwise, the chip should be assumed to have unknown state until transmitting an SRES strobe over the SPI interface. See Section 5.13.1, Power-On Start-Up Sequence, for further details.
Parameter Min Typ Max Unit Condition
Power-up ramp-up time 5 ms From 0 V until reaching 1.8 V
Power off time 1 ms Minimum time between power-on and power-off

4.11 Thermal Characteristics(1)

NAME DESCRIPTION QFN (°C/W)
RθJA Junction-to-ambient thermal resistance 47
RθJC(top) Junction-to-case (top) thermal resistance 45
RθJB Junction-to-board thermal resistance 13.6
RθJC(bot) Junction-to-case (bottom) thermal resistance 5.12
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

4.12 Typical Characteristics

4.12.1 Typical Characteristics, RX Current Consumption

Figure 4-1 Typical RX Current Consumption Over Temperature and Input Power Level, 868 or 915 MHz, Sensitivity Optimized Setting – 1.2 kBaud GFSK
Figure 4-3 Typical RX Current Consumption Over Temperature and Input Power Level, 868 or 915 MHz, Sensitivity Optimized Setting – 250 kBaud GFSK
Figure 4-2 Typical RX Current Consumption Over Temperature and Input Power Level, 868 or 915 MHz, Sensitivity Optimized Setting – 38.4 kBaud GFSK

4.12.2 Typical Characteristics, Blocking and Selectivity

Figure 4-4 Typical Blocking at 1.2 kBaud Data Rate, 868.3 MHz, GFSK, 5.2 kHz Deviation. IF is 152.3 kHz and the Digital Channel Filter Bandwidth is 58 kHz
Figure 4-6 Typical Blocking at 38.4 kBaud Data Rate, 868 MHz, GFSK, 20 kHz Deviation. IF is 152.3 kHz and the Digital Channel Filter Bandwidth is 100 kHz
Figure 4-8 Typical Blocking at 250 kBaud Data Rate, 868 MHz, GFSK, IF is 304 kHz and the Digital Channel Filter Bandwidth is 540 kHz
Figure 4-5 Typical Selectivity at 1.2 kBaud Data Rate, 868.3 MHz, GFSK, 5.2 kHz Deviation. IF is 152.3 kHz and the Digital Channel Filter Bandwidth is 58 kHz
Figure 4-7 Typical Selectivity at 38.4 kBaud Data Rate, 868 MHz, GFSK, 20 kHz Deviation. IF is 152.3 kHz and the Digital Channel Filter Bandwidth is 100 kHz
Figure 4-9 Typical Selectivity at 250 kBaud Data Rate, 868 MHz, GFSK, IF is 304 kHz and the Digital Channel Filter Bandwidth is 540 kHz
