7 Specifications

7.1 Absolute Maximum Ratings

at TA = 25°C (unless otherwise noted)(1)
MIN MAX UNIT
AVDD to AGND –0.3 7.0 V
DVDD to AGND –0.3 7.0 V
Analog input voltage to AGND(2) –15 15 V
Digital input to AGND –0.3 DVDD + 0.3 V
REFIN to AGND –0.3 AVDD + 0.3 V
Input current to any pin except supplies(2) –10 10 mA
Temperature Operating –40 125 °C
Junction, TJ 150
Storage, Tstg –65 150
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) Transient currents of up to 100 mA do not cause SCR latch-up.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) All pins except analog inputs ±2000 V
Analog input pins only ±7000
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) All pins ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
AVDD Analog supply voltage 4.75 5 5.25 V
DVDD Digital supply voltage 2.3 3.3 AVDD V

7.4 Thermal Information

THERMAL METRIC(1) ADS8578S UNIT
PM (LQFP)
64 PINS
RθJA Junction-to-ambient thermal resistance 46.0 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 7.8 °C/W
RθJB Junction-to-board thermal resistance 20.1 °C/W
ψJT Junction-to-top characterization parameter 0.3 °C/W
ψJB Junction-to-board characterization parameter 19.6 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

7.5 Electrical Characteristics

minimum and maximum specifications are at TA = –40°C to +125°C, AVDD = 4.75 V to 5.25 V; typical specifications are at TA = 25°C; AVDD = 5 V, DVDD = 3 V, VREF = 2.5 V (internal), and fSAMPLE = 200 kSPS (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT TEST LEVEL(8)
ANALOG INPUTS
Full-scale input span(1)
(AIN_nP to AIN_nGND)		 RANGE pin = 1 –10 10 V A
RANGE pin = 0 –5 5 A
AIN_nP Operating input range,
positive input		 RANGE pin = 1 –10 10 V A
RANGE pin = 0 –5 5 A
AIN_nGND Operating input range,
negative input		 All input ranges –0.3 0 0.3 V B
RIN Input impedance At TA = 25°C 0.85 1 1.15 MΩ B
Input impedance drift All input ranges –25 ±7 25 ppm/°C B
IIkg(in) Input leakage current With voltage at AIN_nP = VIN,
all input ranges		 (VIN – 2) / RIN µA A
SYSTEM PERFORMANCE
Resolution 14 Bits A
NMC No missing codes 14 Bits A
DNL Differential nonlinearity All input ranges –0.5 ±0.2 0.5 LSB(2) A
INL Integral nonlinearity(4) All input ranges –0.45 ±0.2 0.45 LSB A
EG Gain error(9) All input ranges,
external reference		 TA = –40°C to +85°C –16 ±1 16 LSB A
TA = –40°C to +125°C –16 ±1 24 A
All input ranges,
internal reference		 ±0.3 A
Gain error matching
(channel-to-channel)		 Input range = ±10 V,
external and internal reference		 2 15 LSB A
Input range = ±5 V,
external and internal reference		 2.5 15 A
Gain error temperature drift All input ranges,
external reference		 –14 ±6 14 ppm/°C B
All input ranges,
internal reference		 ±10 B
EO Offset error Input range = ±10 V –1.8 ±0.15 1.8 mV B
Input range = ±5 V –1.8 ±0.15 1.8 B
Offset error matching
(channel-to-channel)		 All input ranges 0.3 2.4 mV B
Offset error temperature drift All input ranges –3 ±0.3 3 ppm/°C B
SAMPLING DYNAMICS
tACQ Acquisition time 1 µs A
fS Maximum throughput rate per channel without latency All eight channels included 200 kSPS A
DYNAMIC CHARACTERISTICS
SNR Signal-to-noise ratio,
no oversampling
(VIN – 0.5 dBFS at 1 kHz)		 Input range = ±10 V 84.5 85.7 dB A
Input range = ±5 V 84.2 85.6 A
SNROSR Signal-to-noise ratio,
oversampling = 4x
(VIN – 0.5 dBFS at 130 Hz)		 Input range = ±10 V 85.5 85.8 dB A
Input range = ±5 V 85.2 85.6 A
THD Total harmonic distortion(3)
(VIN – 0.5 dBFS at 1 kHz)		 All input ranges –109 –95 dB B
SINAD Signal-to-noise + distortion ratio,
no oversampling
(VIN – 0.5 dBFS at 1 kHz)		 Input range = ±10 V 84.5 85.4 dB A
Input range = ±5 V 84.3 85.3 A
SINADOSR Signal-to-noise + distortion ratio,
oversampling = 4x
(VIN – 0.5 dBFS at 130 Hz)		 Input range = ±10 V 85.4 85.5 dB A
Input range = ±5 V 85.2 85.4 A
SFDR Spurious-free dynamic range
(VIN – 0.5 dBFS at 1 kHz)		 All input ranges –111 dB B
Crosstalk isolation(5) –95 dB A
BW(–3 dB) Small-signal bandwidth –3 dB At TA = 25°C,
input range = ±10 V		 24 kHz B
At TA = 25°C,
input range = ±5 V		 16 B
BW(–0.1 dB) –0.1 dB At TA = 25°C,
input range = ±10 V		 14 kHz B
At TA = 25°C,
input range = ±5 V		 9.5 B
tGROUP Group delay Input range = ±10 V 13 µs C
Input range = ±5 V 19 C
INTERNAL REFERENCE OUTPUT (REFSEL = 1)
VREF(6) Voltage on the REFIN/REFOUT pin
(configured as output)		 At TA = 25°C 2.4975 2.5 2.5025 V A
Internal reference temperature drift 7.5 ppm/°C B
C(REFIN_ REFOUT) Decoupling capacitor on REFIN/REFOUT(7) 10 µF B
V(REFCAP) Reference voltage to the ADC
(on the REFCAPA, REFCAPB pin)		 At TA = 25°C 3.996 4.0 4.004 V A
Reference buffer output impedance 0.5 1 Ω C
Reference buffer output temperature drift 5 ppm/°C B
C(REFCAP) Decoupling capacitor on REFCAPA, REFCAPB 10 μF B
Turn-on time C(REFCAP) = 10 µF,
C(REFIN_REFOUT) = 10 µF		 25 ms B
EXTERNAL REFERENCE INPUT (REFSEL = 0)
VREFIO_EXT External reference voltage on REFIO
(configured as input)		 2.475 2.5 2.525 V B
Reference input impedance 100 MΩ C
Reference input capacitance 10 pF C
POWER-SUPPLY REQUIREMENTS
AVDD Analog power-supply voltage Analog supply 4.75 5 5.25 V A
DVDD Digital power-supply voltage Digital supply range 2.3 3.3 AVDD V A
IAVDD_DYN Analog supply current
(operational)		 For ADS8578S, AVDD = 5 V,
fS = 200 kSPS,
internal reference		 17.7 24.0 mA A
For ADS8578S, AVDD = 5 V,
fS = 200 kSPS,
external reference		 17.1 24.0 A
IAVDD_STC Analog supply current
(static)		 For ADS8578S, AVDD = 5 V, internal reference,
device not converting		 12.4 17.0 mA A
For ADS8578S, AVDD = 5 V, external reference,
device not converting		 12.0 17.0 A
IAVDD_STDBY AVDD supply
STANDBY current		 At AVDD = 5 V, device in STDBY mode, internal reference 4.2 5.5 mA A
At AVDD = 5 V, device in STDBY mode, external reference 3.8 5.5 A
IAVDD_PWR_ DN AVDD supply
power-down current		 At AVDD = 5 V, device in PWR_DN, internal or external reference,
TA = –40°C to +85°C		 0.2 6 µA A
IDVDD_DYN Digital supply current For ADS8578S,
DVDD = 3.3 V,
fS = 200 kSPS		 0.15 0.3 mA A
IDVDD_STDBY DVDD supply STANDBY current At AVDD = 5 V, device in STDBY mode 0.05 1.5 µA A
IDVDD_PWR-DN DVDD supply power-down current At AVDD = 5 V, device in PWR_DN mode 0.05 1.5 µA A
DIGITAL INPUTS (CMOS)
VIH Digital high input voltage logic level DVDD > 2.3 V 0.7 × DVDD DVDD + 0.3 V A
VIL Digital low input voltage logic level DVDD > 2.3 V –0.3 0.3 × DVDD V A
Input leakage current 100 nA A
Input pin capacitance 5 pF A
DIGITAL OUTPUTS (CMOS)
VOH Digital high output voltage logic level IO = 100-μA source 0.8 × DVDD DVDD V A
VOL Digital low output voltage logic level IO = 100-μA sink 0 0.2 × DVDD V A
Floating state leakage current Only for SDO 1 µA A
Internal pin capacitance 5 pF A
TEMPERATURE RANGE
TA Operating free-air temperature –40 125 °C A
(1) Ideal input span, does not include gain or offset error.
(2) LSB = least significant bit.
(3) Calculated on the first nine harmonics of the input frequency.
(4) This parameter is the endpoint INL, not best-fit INL.
(5) Isolation crosstalk is measured by applying a full-scale sinusoidal signal up to 160 kHz to a channel, not selected in the multiplexing sequence, and measuring the effect on the output of any selected channel.
(6) Does not include the variation in voltage resulting from solder shift effects.
(7) Recommended to use an X7R-grade, 0603-size ceramic capacitor for optimum performance (see the Layout Guidelines section).
(8) Test Levels: (A) Tested at final test. Overtemperature limits are set by characterization and simulation. (B) Limits set by characterization and simulation, across temperature range. (C) Typical value only for information, provided by design simulation.
(9) Gain error is calculated after adjusting for offset error, which implies that positive full scale error = negative full scale error = gain error ÷ 2.

7.6 Timing Requirements: CONVST Control

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), BUSY load = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 1)
MIN NOM MAX UNIT
tACQ Acquisition time:
BUSY falling edge to rising edge of trailing CONVSTA or CONVSTB		 1 µs
tPH_CN CONVSTA, CONVSTB pulse high time 25 ns
tPL_CN CONVSTA, CONVSTB pulse low time 25 ns
tSU_BSYCS Setup time: BUSY falling to CS falling 0 ns
tSU_RSTCN Setup time: RESET falling to first rising edge of CONVSTA or CONVSTB 25 ns
tPH_RST RESET pulse high time 50 ns
tD_CNAB Delay between rising edges of CONVSTA and CONVSTB 500 µs

7.7 Timing Requirements: Data Read Operation

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), BUSY load = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 2)
MIN NOM MAX UNIT
tDZ_CNCS Delay between CONVSTA, CONVSTB rising edge to CS falling edge, start of data read operation during conversion 10 ns
tDZ_CSBSY Delay between CS rising edge to BUSY falling edge, end of data read operation during conversion 40 ns
tSU_BSYCS Setup time: BUSY falling edge to CS falling edge, start of data read operation after conversion 0 ns
tD_CSCN Delay between CS rising edge to CONVSTA, CONVSTB rising edge, end of data read operation after conversion 10 ns

7.8 Timing Requirements: Parallel Data Read Operation, CS and RD Tied Together

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), load on DB[15:0] and FRSTDATA = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 3)
MIN NOM MAX UNIT
tPH_CS, tPH_RD CS and RD high time 15 ns
tPL_CS, tPL_RD CS and RD low time 15 ns
tHT_RDDB, tHT_CSDB Hold time: RD and CS rising edge to DB[15:0] invalid 2.5 ns

7.9 Timing Requirements: Parallel Data Read Operation, CS and RD Separate

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), load on DB[15:0] and FRSTDATA = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 4)
MIN NOM MAX UNIT
tSU_CSRD Set-up time: CS falling edge to RD falling edge 0 ns
tHT_RDCS Hold time: RD rising edge to CS rising edge 0 ns
tPL_RD RD low time 15 ns
tPH_RD RD high time 15 ns
tHT_CSDB Hold time: CS rising edge to DB[15:0] becoming invalid 6 ns
tHT_RDDB Hold time: RD rising edge to DB[15:0] becoming invalid 2.5 ns

7.10 Timing Requirements: Serial Data Read Operation

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), load on DOUTA, DOUTB, and FRSTDATA = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 5)
MIN NOM MAX UNIT
tSCLK SCLK time period 50 ns
tPH_SCLK SCLK high time 0.45 0.55 tSCLK
tPL_SCLK SCLK low time 0.45 0.55 tSCLK
tHT_CKDO Hold time: SCLK rising edge to DOUTA, DOUTB invalid 7 ns
tSU_CSCK Setup time: CS falling to first SCLK edge 8 ns
tHT_CKCS Hold time: last SCLK active edge to CS high 10 ns

7.11 Timing Requirements: Byte Mode Data Read Operation

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), load on DB[7:0] and FRSTDATA = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 6)
MIN NOM MAX UNIT
tSU_CSRD Setup time: CS falling edge to RD falling edge 0 ns
tHT_RDCS Hold time: RD rising edge to CS rising edge 0 ns
tPL_RD RD low time 15 ns
tPH_RD RD high time 15 ns
tHT_CSDB Hold time: CS rising edge to DB[15:0] becoming invalid 6 ns
tHT_RDDB Hold time: RD rising edge to DB[15:0] becoming invalid 2.5 ns

7.12 Timing Requirements: Oversampling Mode

MIN NOM MAX UNIT
tHT_OS Hold time: BUSY falling to OSx 20 ns
tSU_OS Setup time: BUSY falling to OSx 20 ns

7.13 Timing Requirements: Exit Standby Mode

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C, AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 8)
MIN NOM MAX UNIT
tD_STBYCN Delay between STBY rising edge to CONVSTA or CONVSTB rising edge(1) 100 µs
(1) First conversion data must be discarded or RESET must be issued if the maximum timing is exceeded.

7.14 Timing Requirements: Exit Shutdown Mode

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 9)
MIN NOM MAX UNIT
tD_SDRST Delay between STBY rising edge to RESET rising edge Internal reference mode 50 ms
External reference mode(1) 13
tPH_RST RESET high time 50 ns
tD_RSTCN Delay between RESET falling edge to CONVSTA or CONVSTB rising edge 25 µs
(1) Excludes wake-up time for external reference device.

7.15 Switching Characteristics: CONVST Control

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), BUSY load = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 1)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tCYC ADC cycle time period No oversampling, parallel read, serial read with both DOUTA and DOUTB during conversion 5 µs
No oversampling, serial read after conversion with both DOUTA and DOUTB, 7
No oversampling, serial read after conversion with only DOUTA or DOUTB, 9.7
tCONV Conversion time: BUSY high time No oversampling, 8 channels 3.7 3.8 3.9 µs
No oversampling, 6 channels 3
No oversampling, 4 channels 2
Oversampling by 2 8.4 8.8
Oversampling by 4 17.5 18.5
Oversampling by 8 36 38
Oversampling by 16 73 77
Oversampling by 32 148 155
Oversampling by 64 298 311
tD_CNBSY Delay between trailing rising edges of CONVSTA or CONVSTB and BUSY rising 15 ns

7.16 Switching Characteristics: Parallel Data Read Operation, CS and RD Tied Together

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), load on DB[15:0] and FRSTDATA = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 3)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tD_CSDB Delay time: CS falling edge to DB[15:0] becoming valid
(out of tri-state)		 12 ns
tD_RDDB Delay time: RD falling edge to new data on DB[15:0] 17 ns
tD_CSFD, tD_RDFD Delay time: CS and RD falling edge to FRSTDATA going high or low out of tri-state 10 ns
tDHZ_CSDB, tDHZ_RDDB Delay time: CS and RD rising edge to DB[15:0] tri-state 12 ns
tDHZ_CSFD, tDHZ_RDFD Delay time: CS and RD rising edge to FRSTDATA tri-state 10 ns

7.17 Switching Characteristics: Parallel Data Read Operation, CS and RD Separate

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), load on DB[15:0] and FRSTDATA = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 4)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tD_CSDB Delay time: CS falling edge to DB[15:0] becoming valid
(out of tri-state)		 12 ns
tD_RDDB Delay time: RD falling edge to new data on DB[15:0] 17 ns
tDHZ_CSDB Delay time: CS rising edge to DB[15:0] becoming tri-state 12 ns
tD_CSFD Delay time: CS falling edge to FRSTDATA going low out of tri-state 15 ns
tDHZ_CSFD Delay time: CS rising edge to FRSTDATA going to tri-state 10 ns
tD_RDFD Delay time: RD falling edge to FRSTDATA going high or low 15 ns

7.18 Switching Characteristics: Serial Data Read Operation

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), load on DOUTA, DOUTB, and FRSTDATA = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 5)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tD_CSDO Delay time: CS falling edge to DOUTA, DOUTB enable
(out of tri-state)		 12 ns
tD_CKDO Delay time: SCLK rising edge to valid data on DOUTA, DOUTB 15 ns
tDZ_CSDO Delay time: CS rising edge to DOUTA, DOUTB going to tri-state 12 ns
tD_CSFD Delay time: CS falling edge to FRSTDATA from tri-state to high or low 10 ns
tDZ_CKFD Delay time: 14th SCLK falling edge to FRSTDATA falling edge 15 ns
tDHZ_CSFD Delay time: CS rising edge to FRSTDATA going to tri-state 10 ns

7.19 Switching Characteristics: Byte Mode Data Read Operation

minimum and maximum specifications are at TA = –40°C to +125°C, typical specifications are at TA = 25°C; AVDD = 5 V, 2.3 V ≤ DVDD ≤ 5.25 V, VREF = 2.5 V (internal), load on DB[7:0] and FRSTDATA = 20 pF, VIL and VIH at datasheet limits, and fSAMPLE = 200 kSPS (unless otherwise noted) (see Figure 6)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tD_CSDB Delay time: CS falling edge to DB[7:0] becoming valid
(out of tri-state)		 12 ns
tD_RDDB Delay time: RD falling edge to new data on DB[7:0] 17 ns
tDHZ_CSDB Delay time: CS rising edge to DB[7:0] becoming tri-state 12 ns
tD_CSFD Delay time: CS falling edge to FRSTDATA going low out of tri-state 10 ns
tD_RDFD Delay time: RD falling edge to FRSTDATA going low or high state 15 ns
tDHZ_CSFD Delay time: CS rising edge to FRSTDATA going to tri-state 10 ns
ADS8578S tim_conv_ctrl_sbas642.gif Figure 1. CONVST Control Timing Diagram
ADS8578S tim_data_read_sbas642.gif Figure 2. Data Read Operation Timing Diagram
ADS8578S tim_par_data_read_CSzRD_tied_sbas642.gif Figure 3. Parallel Data Read Operation, CS and RD Tied Together
ADS8578S tim_par_data_read_CSzRD_sep_sbas642.gif Figure 4. Parallel Data Read Operation, CS and RD Separate

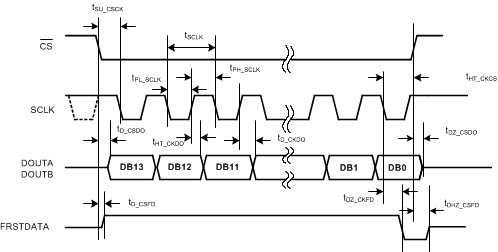

ADS8578S tim_serial_data_read_BAS825.gif Figure 5. Serial Data Read Operation Timing Diagram
ADS8578S tim_byte_data_read_sbas642.gif Figure 6. Byte Mode Data Read Operation Timing Diagram

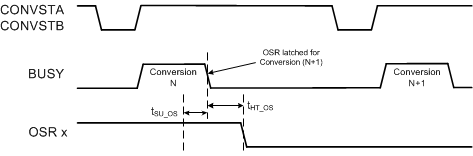

ADS8578S tim_osr_pin_sbas642.gif Figure 7. Oversampling Mode Timing Diagram
ADS8578S tim_exit_standby_sbas642.gif Figure 8. Exit Standby Mode Timing Diagram
ADS8578S tim_exit_shutdown_sbas642.gif Figure 9. Exit Shutdown Mode Timing Diagram

7.20 Typical Characteristics

at TA = 25°C, AVDD = 5 V, DVDD = 3 V, internal reference VREF = 2.5 V, and fS = 200 kSPS per channel (unless otherwise noted)
ADS8578S D002_SBAS642.gif
Figure 10. Analog Input Current vs Input Voltage Over Temperature (±10 V)
ADS8578S D004_SBAS642.gif

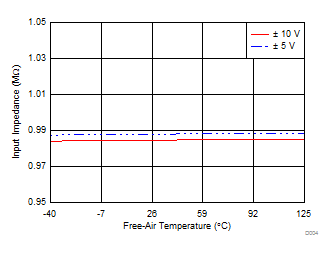

Figure 12. Input Impedance vs Temperature

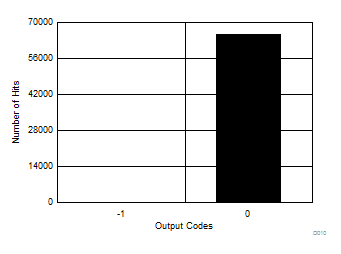

ADS8578S D010_SBAS825.gif
Mean = –0.001, sigma = 0.04, number of hits = 65536, VIN = 0 V
Figure 14. DC Histogram of Codes (±5 V)
ADS8578S D012_SBAS825.gif
Figure 16. DNL vs Temperature

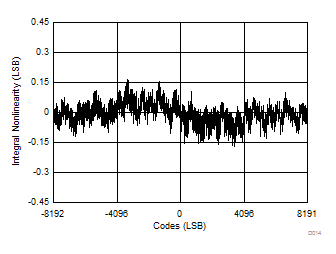

ADS8578S D014_SBAS825.gif
Figure 18. INL vs All Codes (±5 V)
ADS8578S D016_SBAS825.gif
Figure 20. INL vs Temperature (±5 V)
ADS8578S D018_SBAS642.gif

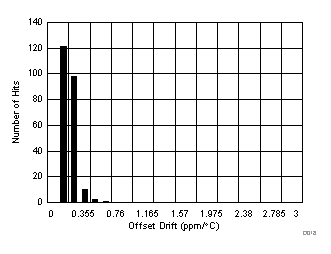

Figure 22. Offset Drift Histogram Distribution (±10 V)

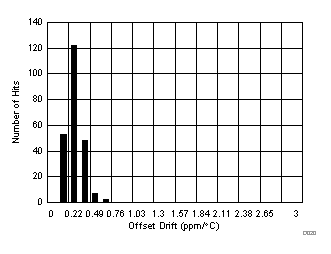

ADS8578S D020_SBAS642.gif
Figure 24. Offset Drift Histogram Distribution (±5 V)
ADS8578S D022_SBAS825.gif
External reference
Figure 26. Gain Error vs Temperature
ADS8578S D024_SBAS825.gif
External reference
Figure 28. Gain Error Across Channels vs Temperature
(±10 V)

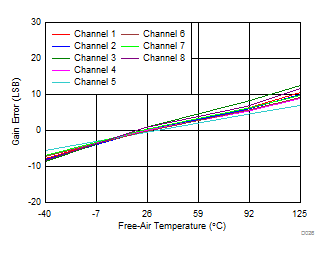

ADS8578S D026_SBAS825.gif
External reference
Figure 30. Gain Error Across Channels vs Temperature
(±5 V)
ADS8578S D028_SBAS825.gif
Number of points = 32k, SNR = 85.41 dB,
SINAD = 85.38 dB, THD = –110.57 dB, SFDR = 114.17 dB
Figure 32. Typical FFT Plot (±10 V)
ADS8578S D030_SBAS825.gif
Number of points = 32k, SNR = 85.66 dB,
SINAD = 85.62 dB, THD = –110.63 dB, SFDR = 114.65 dB
Figure 34. Typical FFT Plot for OSR 4x (±10 V)
ADS8578S D032_SBAS825.gif
OSR = 0
Figure 36. SNR vs Input Frequency for Different Input Ranges
ADS8578S D034_SBAS825.gif
Figure 38. SNR vs Input Frequency for Different OSR
(±10 V)
ADS8578S D036_SBAS825.gif
OSR = 0

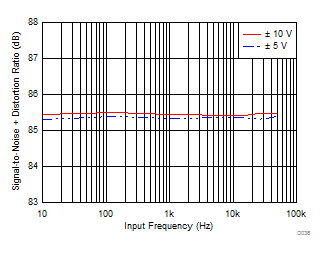

Figure 40. SINAD vs Input Frequency for Different Input Ranges
ADS8578S D038_SBAS825.gif

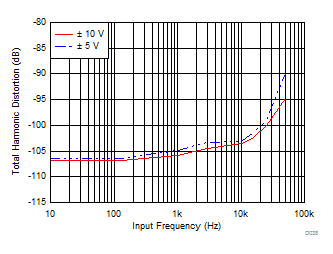

Figure 42. THD vs Input Frequency for Different Input Ranges

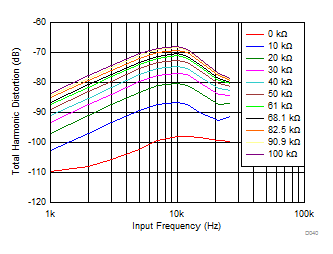

ADS8578S D040_SBAS825.gif
Figure 44. THD vs Input Frequency for Different Source Impedances (±10 V)

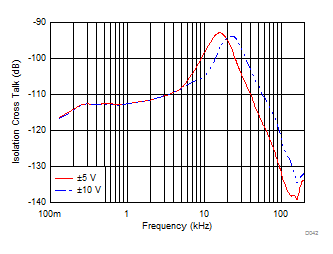

ADS8578S D042_SBAS642.gif

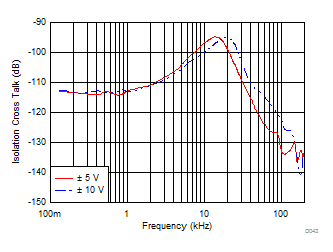

Figure 46. Isolation Crosstalk vs Noise Frequency
(Inputs Within Range)
ADS8578S D053_SBAS825.gif

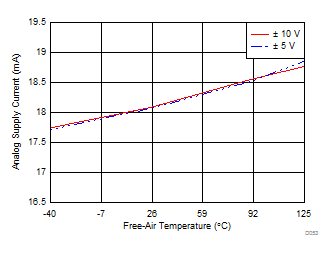

Figure 48. Analog Supply Current (Operational) vs Temperature

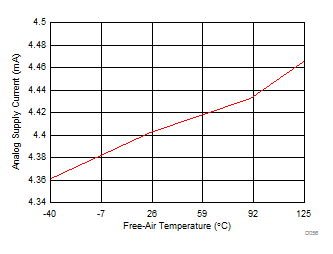

ADS8578S D056_SBAS825.gif
Figure 50. Analog Supply Current vs Temperature
(Standby)

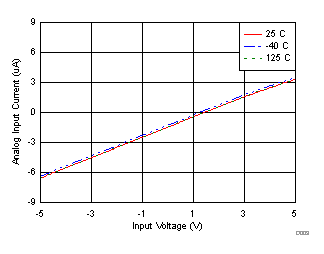

ADS8578S D003_SBAS642.gif
Figure 11. Analog Input Current vs Input Voltage Over Temperature (±5 V)

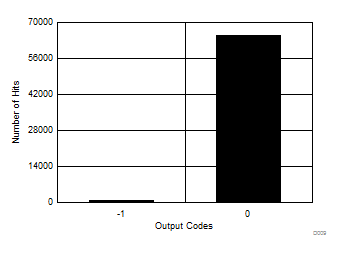

ADS8578S D009_SBAS825.gif
Mean = –0.012, sigma = 0.11, number of hits = 65536, VIN = 0 V
Figure 13. DC Histogram of Codes (±10 V)

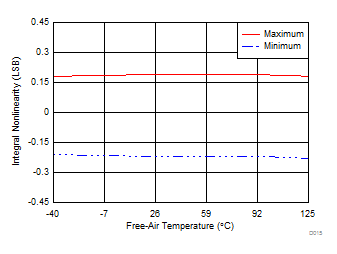

ADS8578S D011_SBAS825.gif
Figure 15. DNL for All Codes
ADS8578S D013_SBAS825.gif
Figure 17. INL vs All Codes (±10 V)
ADS8578S D015_SBAS825.gif
Figure 19. INL vs Temperature (±10 V)
ADS8578S D017_SBAS642.gif
Figure 21. Offset Error vs Temperature
ADS8578S D019_SBAS642.gif
Figure 23. Offset Error Across Channels vs Temperature
(±10 V)
ADS8578S D021_SBAS642.gif
Figure 25. Offset Error Across Channels vs Temperature
(±5 V)
ADS8578S D023_SBAS642.gif

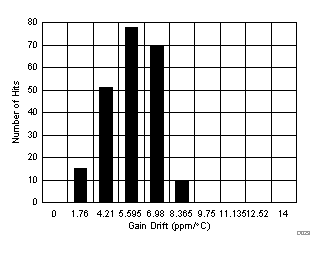

External reference
Figure 27. Gain Error Drift Histogram Distribution (±10 V)

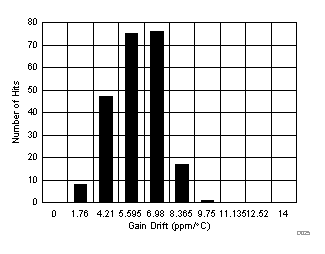

ADS8578S D025_SBAS642.gif
External reference
Figure 29. Gain Error Drift Histogram Distribution (±5 V)

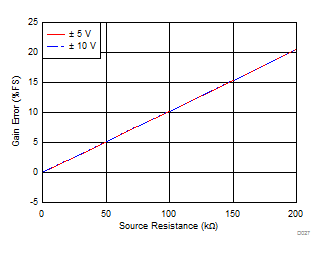

ADS8578S D027_SBAS642.gif
Figure 31. Gain Error as a Function of External Source Resistance
ADS8578S D029_SBAS825.gif
Number of points = 32k, SNR = 85.26 dB,
SINAD = 85.23 dB, THD = –110.25 dB, SFDR = 114.08 dB
Figure 33. Typical FFT Plot (±5 V)

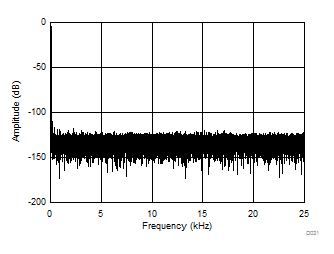

ADS8578S D031_SBAS825.gif
Number of points = 32k, SNR = 85.42 dB,
SINAD = 85.39 dB, THD = –110.6 dB, SFDR = 115.27 dB
Figure 35. Typical FFT Plot for OSR 4x (±5 V)
ADS8578S D033_SBAS825.gif
OSR = 0

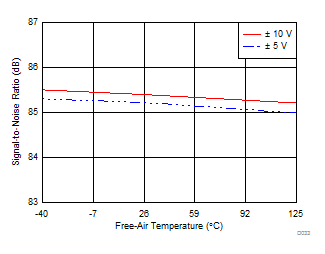

Figure 37. SNR vs Temperature for Different Input Ranges
ADS8578S D035_SBAS825.gif
Figure 39. SNR vs Input Frequency for Different OSR
(±5 V)
ADS8578S D037_SBAS825.gif
OSR = 0
Figure 41. SINAD vs Temperature for Different Input Ranges

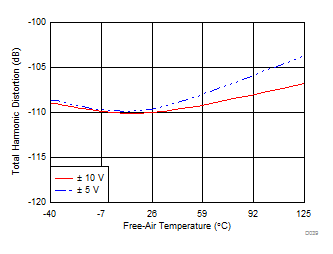

ADS8578S D039_SBAS825.gif
Figure 43. THD vs Temperature for Different Input Ranges
ADS8578S D041_SBAS825.gif
Figure 45. THD vs Input Frequency for Different Source Impedances (±5 V)
ADS8578S D043_SBAS642.gif
Figure 47. Isolation Crosstalk vs Noise Frequency (Saturated Inputs)
ADS8578S D055_SBAS825.gif
Figure 49. Analog Supply Current (Static) vs Temperature (Sampling)
ADS8578S D057_SBAS825.gif

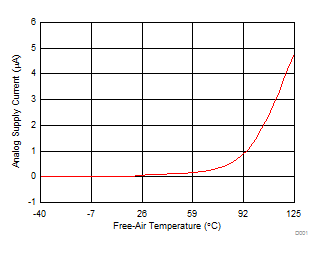

Figure 51. Analog Supply Current vs Temperature (Shutdown)
