5 Pin Configuration and Functions

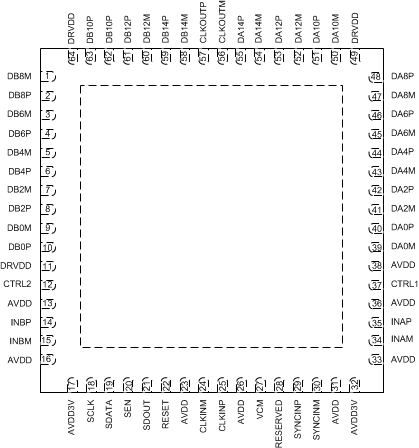

ADS42LB69 DDR LVDS: RGC Package
64-Pin VQFN
Top View
ADS42LB49 ADS42LB69 po_42lb69_las904.gif
ADS42LB49 DDR LVDS: RGC Package
64-Pin VQFN
Top View
ADS42LB49 ADS42LB69 po_42lb49_las904.gif
ADS42LB69, ADS42LB49 QDR LVDS: RGC Package
64-Pin VQFN
Top View
ADS42LB49 ADS42LB69 po_2x_ddr_las904.gif

Pin Functions

PIN I/O DESCRIPTION
NAME ADS42LB69
DDR LVDS		 ADS42LB49
DDR LVDS		 QDR LVDS
INPUT AND REFERENCE
INAP, INAM 35, 34 35, 34 34, 35 I Differential analog input for channel A
INBP, INBM 14, 15 14, 15 14, 15 I Differential analog input for channel B
VCM 27 27 27 O Common-mode voltage for analog inputs, 1.9 V
CLOCK AND SYNC
CLKINP, CLKINM 25, 24 25, 24 24, 25 I Differential clock input for ADC
SYNCINP, SYNCINM 29, 30 29, 30 29, 30 I External sync input. If not used, connect SYNCINP to GND and SYNCINM to AVDD.
CONTROL AND SERIAL
CTRL1 37 37 37 I/O Can be configured as power-down input pin or as OVR output pin for channel A, depending on the register bit PDN/OVR FOR CTRL PINS.
CTRL2 12 12 12 I/O Can be configured as power-down input pin or as OVR output pin for channel B, depending on the register bit PDN/OVR FOR CTRL PINS
NC — — 39, 40, 55-58, 60, 61 — Do not connect
NC/OVR — 9, 10, 39, 40 — — If the OVR ON LSB bit is set, these pins can be used because they carry overrange information. Otherwise, do not connect these pins.
Reserved 28 28 28 — Do not connect
RESET 22 22 22 I Hardware reset. Active high.
SCLK 18 18 18 I Serial interface clock input
SDATA 19 19 19 I Serial interface data input
SDOUT 21 21 21 O Serial interface data output
SEN 20 20 20 I Serial interface enable
DATA INTERFACE
CLKOUTP, CLKOUTM 57, 56 57, 56 — O Differential LVDS output clock
DA[3:0]P, DA[3:0]M — — 41-44, 47, 48, 50, 51 O 4-bit QDR LVDS output interface for channel A
DA[14:0]P, DA[14:0]M 39-48, 50-55 41-48, 50-55 — O DDR LVDS output interface for channel A
DACLKP, DACLKM — — 45, 46 O Differential output clock for channel A
DAFRAMEP, DAFRAMEM — — 52, 53 — Differential frame clock output for channel A
DB[3:0]P, DB[3:0]M — — 1, 2, 5-8, 62, 63 — 4-bit QDR LVDS output interface for channel B
DB[14:0]P, DB[14:0]M 1-10, 58-63 1-8, 58-63 — O DDR LVDS output interface for channel B
DBCLKP, DBCLKM — — 3, 4 — Differential output clock for channel A
DBFRAMEP, DBFRAMEM — — 9, 10 — Differential frame clock output for channel A
OVRA — — 54 O Overrange indication channel A
OVRB — — 59 O Overrange indication channel A
POWER SUPPLY
AVDD 13, 16, 23, 26, 31, 33, 36, 38 13, 16, 23, 26, 31, 33, 36, 38 13, 16, 23, 26, 31, 33, 36, 38 I Analog 1.8-V power supply
AVDD3V 17, 32 17, 32 17, 32 I Analog 3.3 V power supply for analog buffer
DRVDD 11, 49, 64 11, 49, 64 11, 49, 64 I Digital 1.8-V power supply
GND Ground pad Ground pad Ground pad I Ground
