7.12 Typical Characteristics

at TA = 25°C, IOVDD = 3.3 V, AVDD = 2.5 V, AVSS = –2.5 V, VNCPEN (register 0Bh, bit 7) = 0, internal VREF = 2.442 V, fCLKIN = 16.384 MHz, fMOD = 4.096 MHz, data rate = 8 kSPS, HR mode, and gain = 1 (unless otherwise noted)
ADS131A02 ADS131A04 D008_sbas590.gif

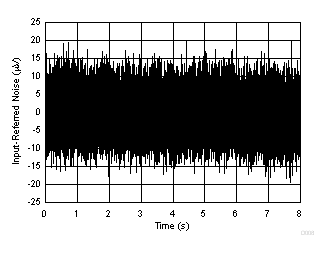

Shorted inputs, 65536 points
Figure 8. Input-Referred Noise vs Time
ADS131A02 ADS131A04 D025_sbas590.gif
Shorted inputs, 8 kSPS, 262144 points, offset removed
Figure 10. Single Device Noise Histogram
ADS131A02 ADS131A04 D011_sbas590.gif
fIN = 60 Hz, 32768 points
Figure 12. THD FFT Plot at 8 kSPS and –0.5 dBFS
ADS131A02 ADS131A04 D015_sbas590.gif
fIN = 60 Hz, 8 kSPS
Figure 14. Low-Frequency FFT Plot
ADS131A02 ADS131A04 D028_sbas590.gif
fIN = 60 Hz, 32768 points
Figure 16. THD FFT Plot at 16 kSPS and –20 dBFS
ADS131A02 ADS131A04 D010_sbas590.gif
Figure 18. INL vs Temperature
ADS131A02 ADS131A04 D020_sbas590.gif
Figure 20. Offset Error vs Temperature
ADS131A02 ADS131A04 D013_sbas590.gif
30 units, multiple lots
Figure 22. Internal VREF vs Temperature
ADS131A02 ADS131A04 D017_sbas590.gif
Figure 24. Normalized THD vs Amplitude
ADS131A02 ADS131A04 D019_sbas590.gif
Figure 26. PSRR vs Frequency
ADS131A02 ADS131A04 D022_sbas590.gif
Figure 28. Differential Input Impedance vs
Modulator Clock
ADS131A02 ADS131A04 D024_sbas590.gif
Figure 30. Differential Input Impedance vs
Temperature at 1.024-MHz fMOD
ADS131A02 ADS131A04 D033_sbas590.gif
LPM = low-power mode, HRM = high-resolution mode
Figure 32. ADS131A04 IOVDD Current vs fMOD
ADS131A02 ADS131A04 D035_sbas590.gif
LPM = low-power mode, HRM = high-resolution mode
Figure 34. ADS131A02 IOVDD Current vs fMOD
ADS131A02 ADS131A04 D026_sbas590.gif
Shorted inputs, 1 kSPS, 65536 points, offset removed
Figure 9. Single Device Noise Histogram
ADS131A02 ADS131A04 D031_sbas590.gif

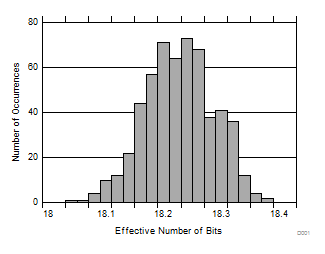

Shorted inputs, 8 kSPS, 560 devices, multiple lots
Figure 11. Multiple Device Effective Resolution Histogram
ADS131A02 ADS131A04 D012_sbas590.gif
fIN = 60 Hz, 32768 points
Figure 13. THD FFT Plot at 8 kSPS and –20 dBFS
ADS131A02 ADS131A04 D029_sbas590.gif
fIN = 60 Hz, 32768 points
Figure 15. THD FFT Plot at 16 kSPS and –0.5 dBFS
ADS131A02 ADS131A04 D032_sbas590.gif
Figure 17. THD vs Input Frequency
ADS131A02 ADS131A04 D018_sbas590.gif
Figure 19. Noise RMS vs Temperature
ADS131A02 ADS131A04 D021_sbas590.gif
Figure 21. Gain Error vs Temperature
ADS131A02 ADS131A04 D016_sbas590.gif
Figure 23. Normalized SNR vs Amplitude
ADS131A02 ADS131A04 D009_sbas590.gif
Figure 25. CMRR vs Frequency
ADS131A02 ADS131A04 D030_sbas590.gif
Figure 27. Crosstalk Histogram
ADS131A02 ADS131A04 D023_sbas590.gif
Figure 29. Differential Input Impedance vs
Temperature at 4.096-MHz fMOD
ADS131A02 ADS131A04 D027_sbas590.gif
LPM = low-power mode, HRM = high-resolution mode
Figure 31. ADS131A04 AVDD Current vs fMOD
ADS131A02 ADS131A04 D034_sbas590.gif
LPM = low-power mode, HRM = high-resolution mode
Figure 33. ADS131A02 AVDD Current vs fMOD
