6.7 Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tCSDOD CS low to DOUT driven: propagation delay 60 ns
tDOPD SCLK low to valid new DOUT: propagation delay Load on DOUT = 20 pF || 100 kΩ 100 ns
tDOHD SCLK low to DOUT invalid: hold time 0 ns
tCSDOZ CS high to DOUT tristate 40 ns

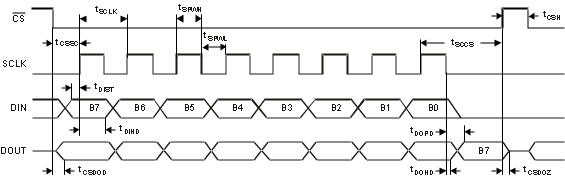

ADS1284 tim_serial_bas565.gifFigure 1. Serial Interface Timing Diagram
